Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08

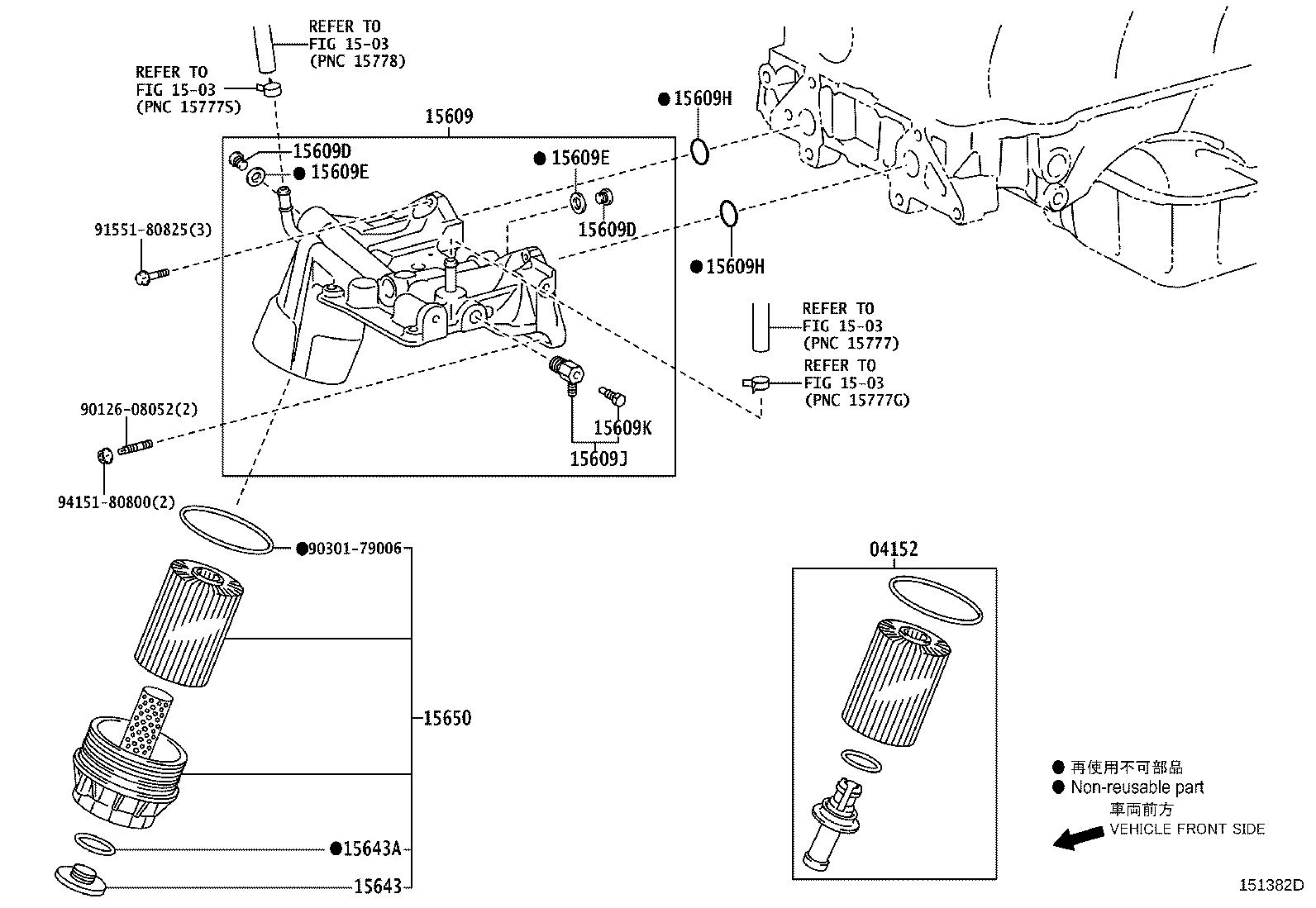

Oil Filter
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04152 | Element Kit, Oil Filter |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15609H | Ring, O(FOR OIL FILTER BRACKET) |
| 15609J | Cock Assy, Drain(FOR OIL FILTER BRACKET) |
| 15609K | Plug, Drain Cock(FOR OIL FILTER BRACKET) |
| 15620C | Gasket(FOR OIL FILTER CAP) |
| 15643 | Plug, Oil Filter Drain |
| 15643A | Ring, O(FOR OIL FILTER DRAIN PLUG) |
| 15650 | Cap Assy, Oil Filter W/Elememt |
| 15671 | Bracket, Oil Filter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
