Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08

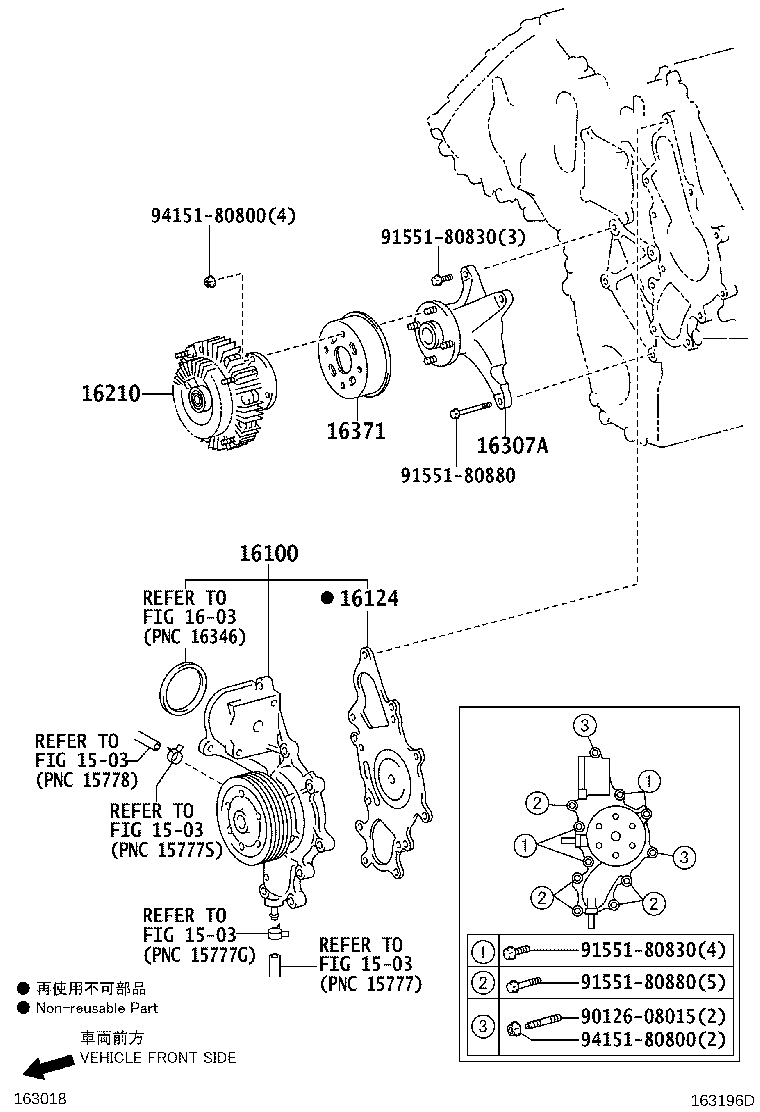

Water Pump
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16124 | Gasket, Water Pump Cover |
| 16173 | Pulley, Water Pump |
| 16210 | Coupling Assy, Fluid |
| 16211 | Bracket, Fluid Coupling |
| 16271 | Gasket, Water Pump |
| 16307A | Bracket Sub-assy, Fan |
| 16371 | Pulley, Fan |
| 16603 | Pulley Sub-assy, Idler, NO.1 |
| 16620 | Tensioner Assy, V-ribbed Belt |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
