Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

101 part groups · 8 illustrations

Illustrations

163356I 2007-11 → —

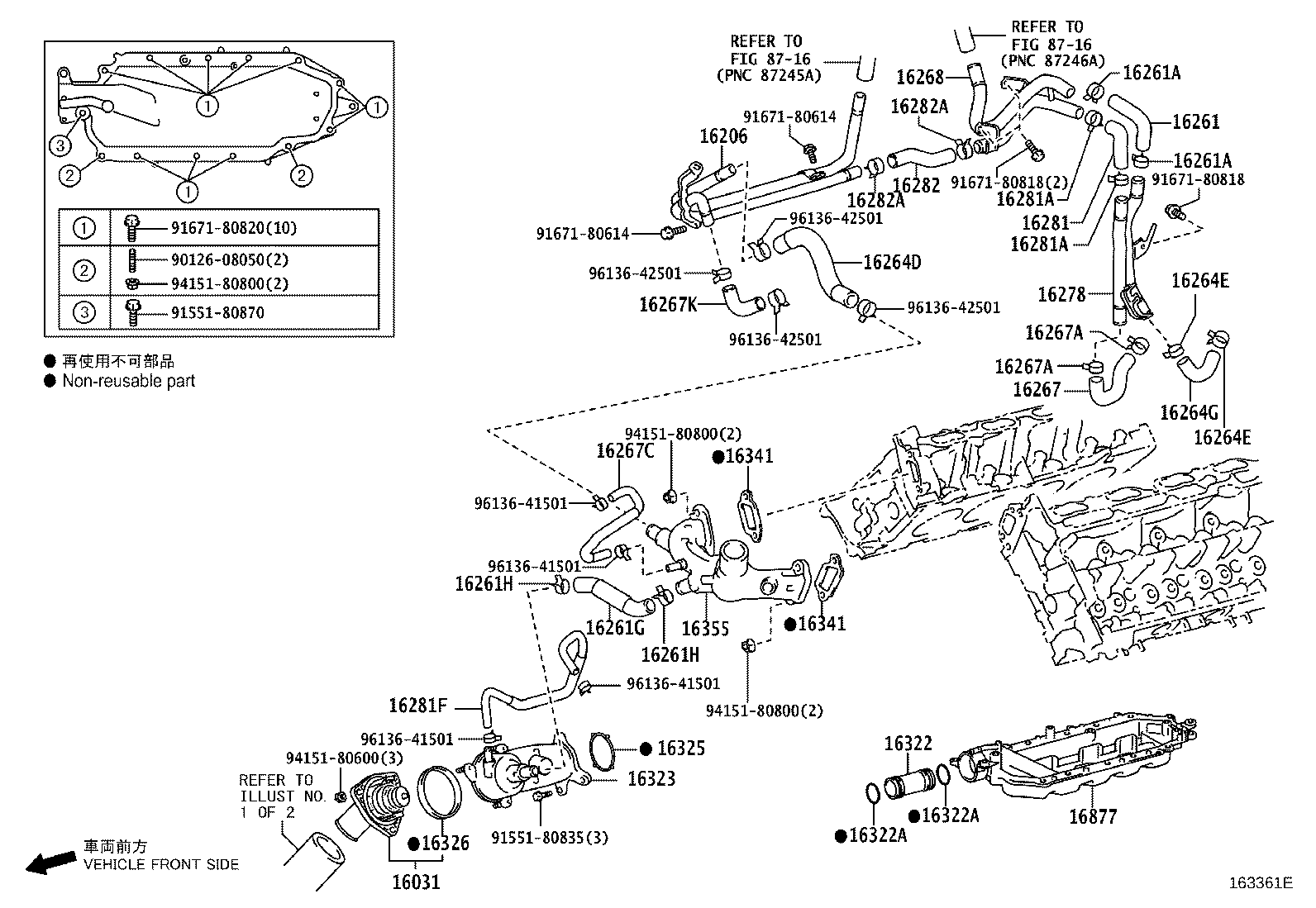

163361E 2007-11 → 2015-09

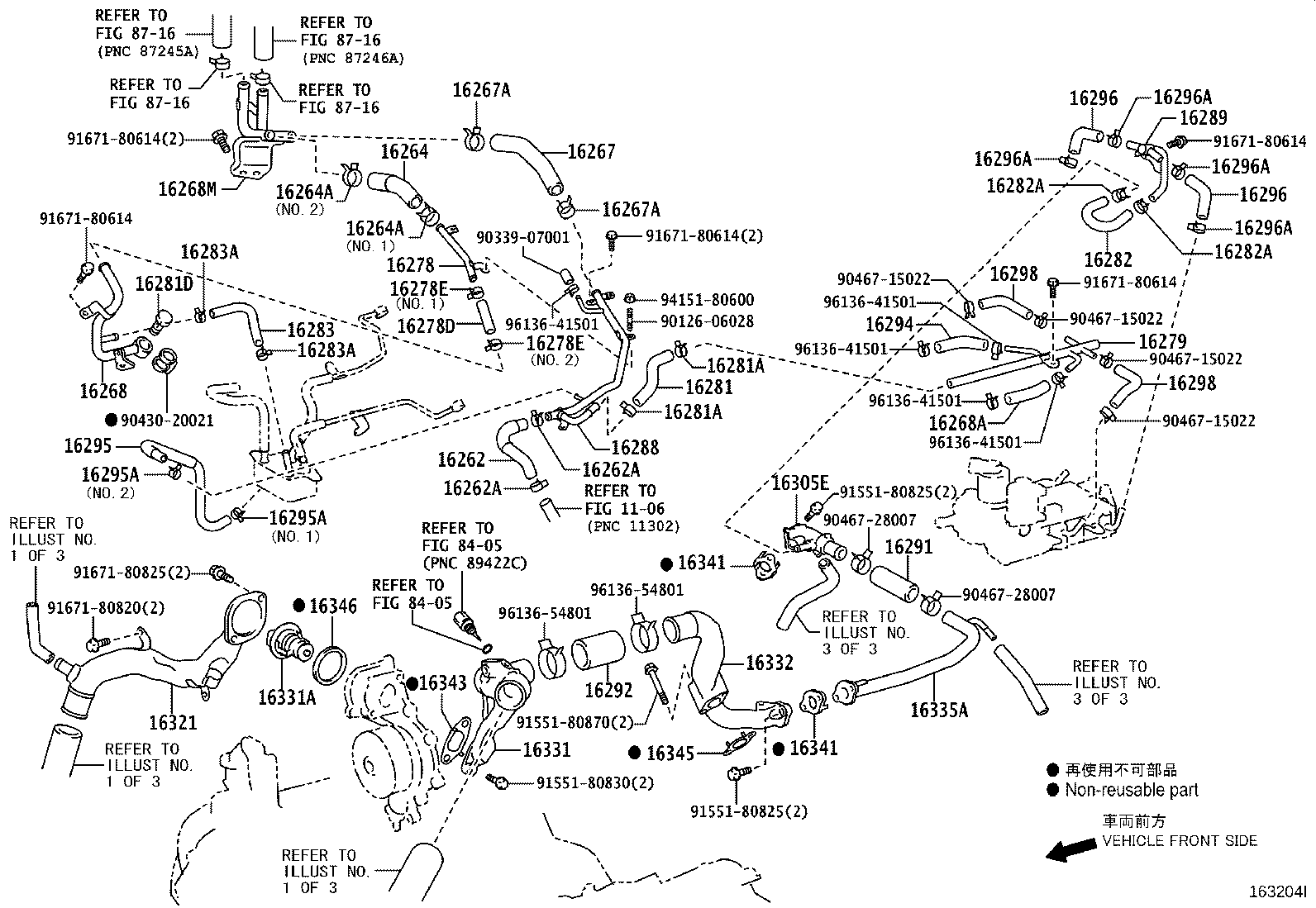

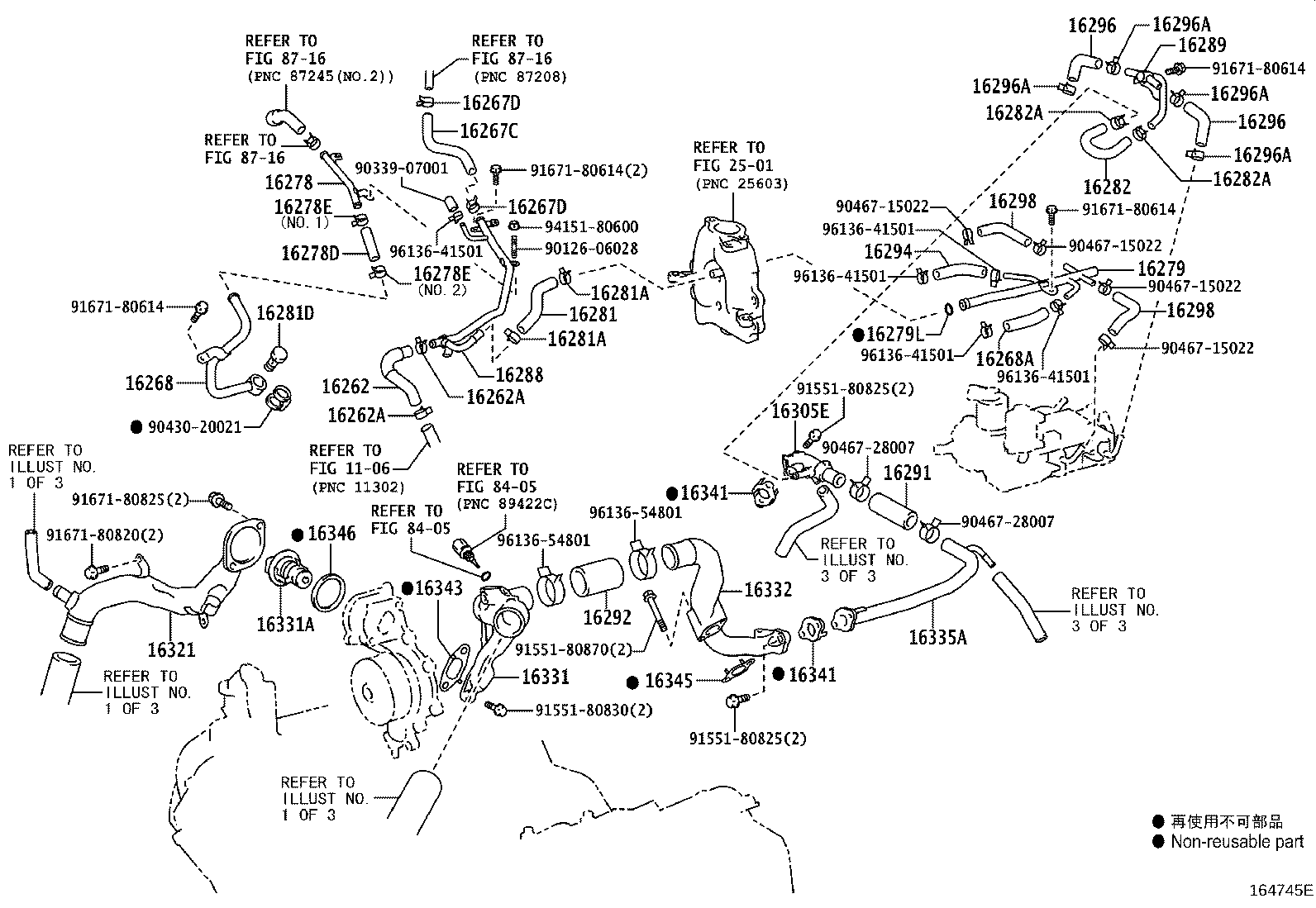

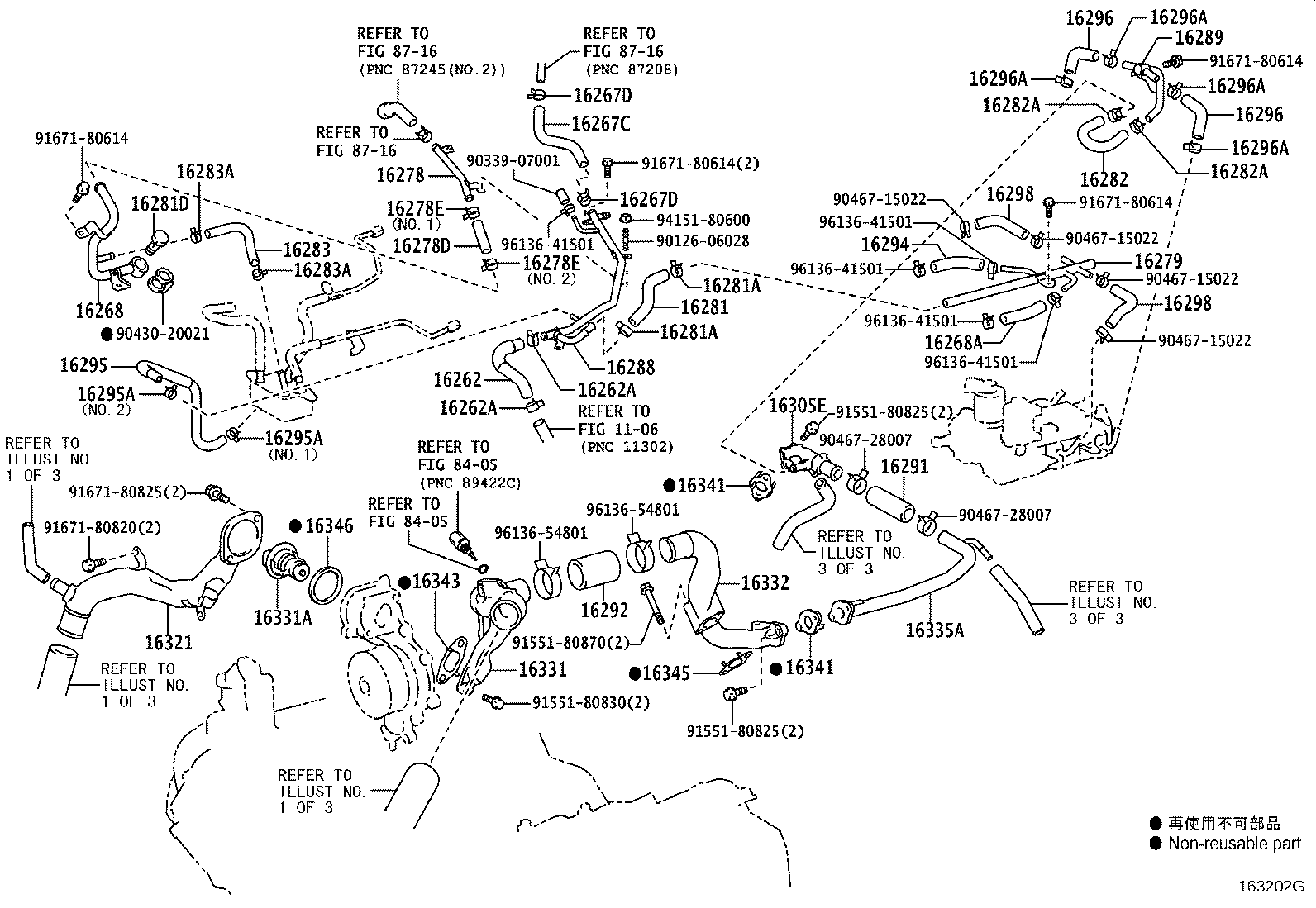

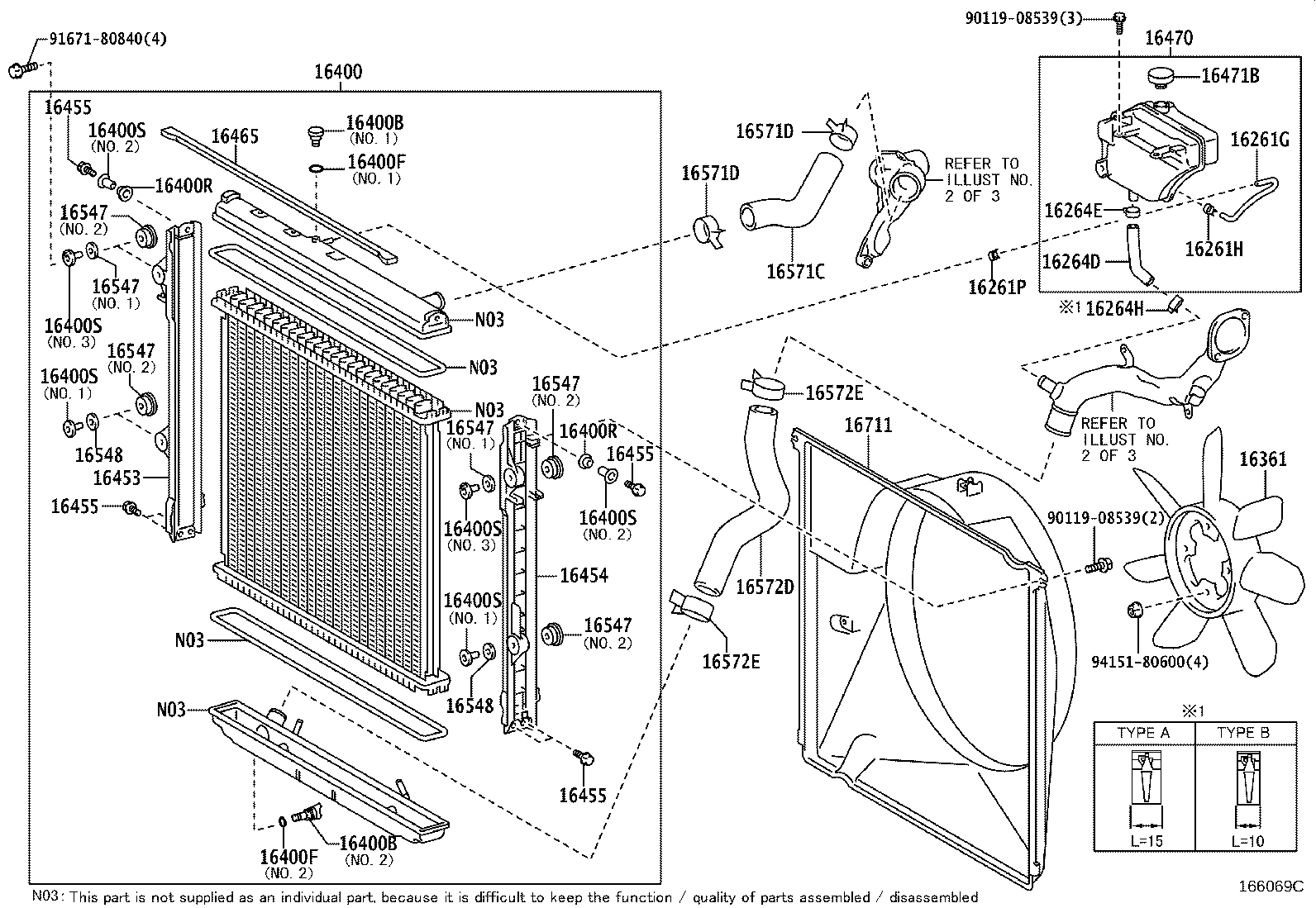

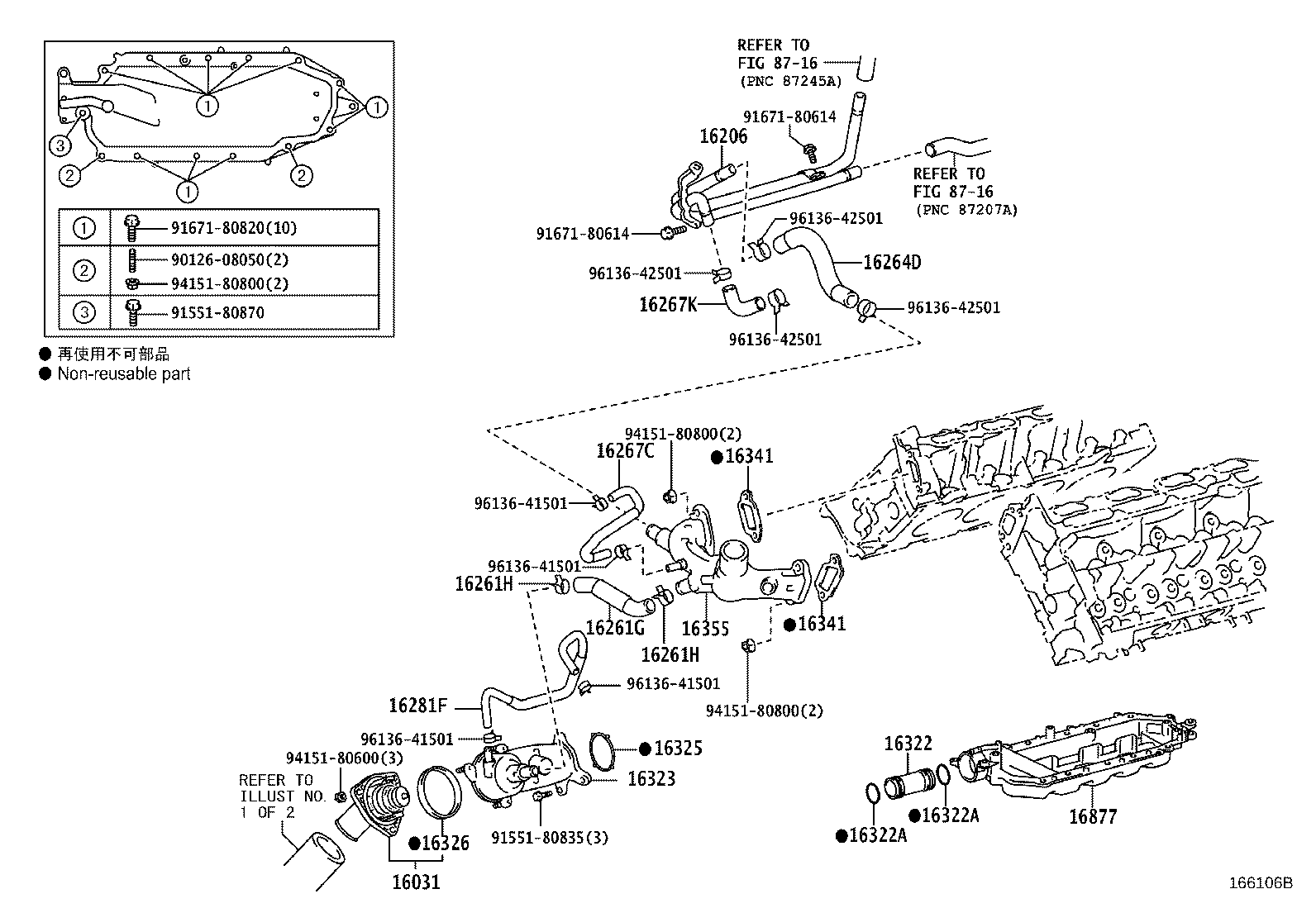

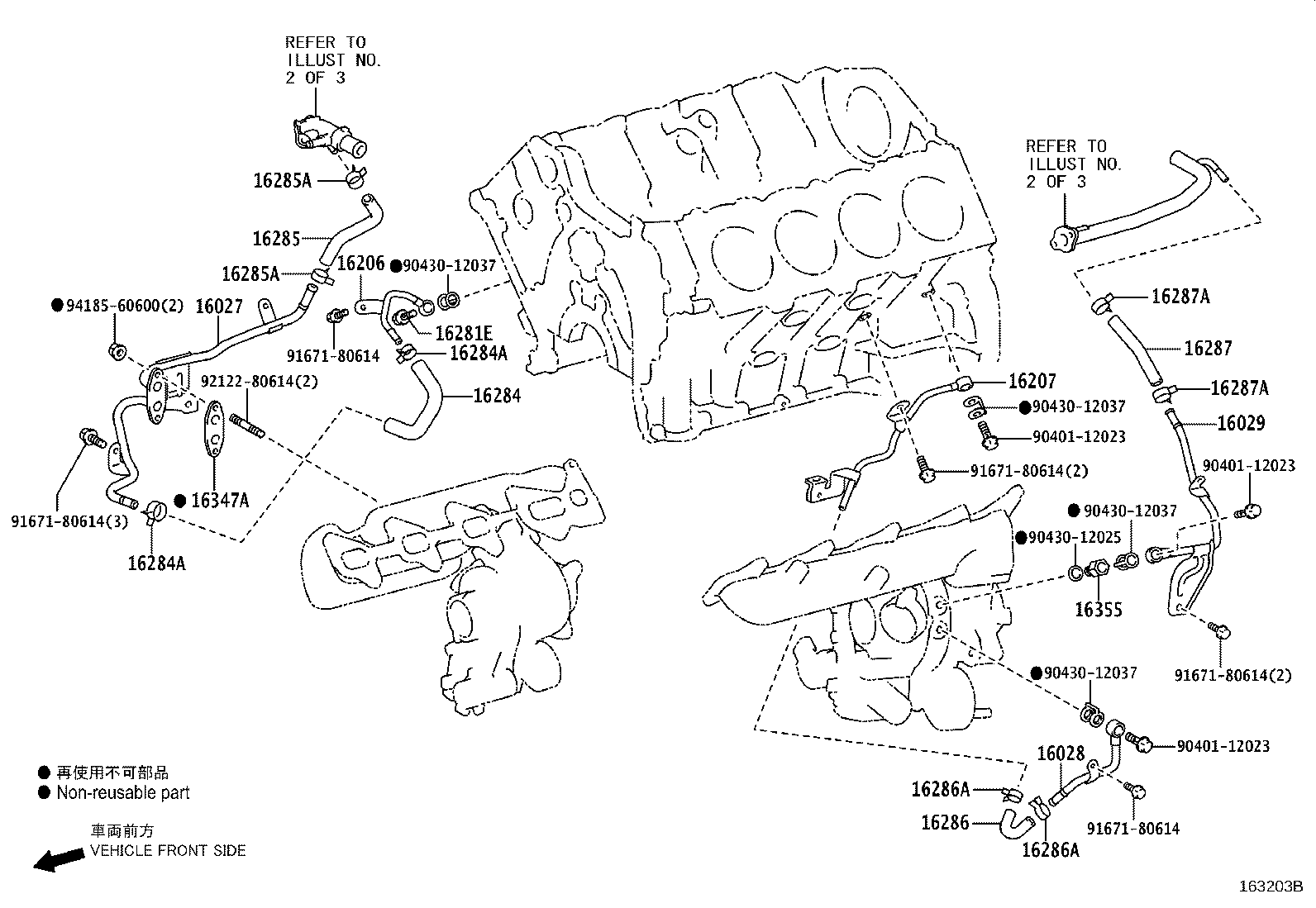

Part groups

PNC	Description
16027	Pipe Sub-assy, Turbo Water, NO.1
16028	Pipe Sub-assy, Turbo Water, NO.2
16029	Pipe Sub-assy, Turbo Water, NO.3
16031	Water Inlet Sub-assy, W/Thermostat
16206	Pipe Sub-assy, Water By-pass
16207	Pipe Sub-assy, Water By-pass, NO.2
16261	Hose, Water By-pass
16261A	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G	Hose, Water By-pass, NO.1
16261H	Clip(FOR WATER BY-PASS HOSE NO.1)
16261P	Clip(FOR WATER BY-PASS HOSE NO.2)
16262	Hose, Water Inlet
16262A	Clip(FOR WATER INLET HOSE)
16264	Hose, Water By-pass, NO.2
16264A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D	Hose, Water By-pass, NO.2
16264E	Clip(FOR WATER BY-PASS HOSE NO.2)
16264G	Hose, Water By-pass, NO.3
16264H	Clip(FOR WATER BY-PASS HOSE NO.3)
16267	Hose, Water By-pass, NO.3
16267A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267C	Hose, Water By-pass, NO.4
16267D	Clip(FOR WATER BY-PASS HOSE NO.4)
16267K	Hose, Water By-pass, NO.3
16268	Pipe, Water By-pass, NO.1
16268A	Hose(FOR WATER BY-PASS PIPE)
16268M	Pipe, Water By-pass, NO.3
16278	Pipe, Water By-pass, NO.2
16278D	Hose, Water By-pass
16278E	Clip(FOR WATER BY-PASS HOSE)
16279	Pipe, Water By-pass, NO.3
16279L	Ring, O(FOR WATER BY-PASS PIPE NO.3)
16281	Hose, Water By-pass, NO.4
16281A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281D	Bolt, Union(FOR WATER BY-PASS PIPE UNION NO.2)
16281E	Bolt, Union(FOR WATER BY-PASS PIPE UNION NO.3)
16281F	Hose, Water By-pass, NO.5
16282	Hose, Water By-pass, NO.5
16282A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283	Hose, Water By-pass, NO.6
16283A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284	Hose, Turbo Water, NO.1
16284A	Clip(FOR TURBO WATER HOSE NO.1)
16285	Hose, Turbo Water, NO.2
16285A	Clip(FOR TURBO WATER HOSE NO.2)
16286	Hose, Turbo Water, NO.3
16286A	Clip(FOR TURBO WATER HOSE NO.3)
16287	Hose, Turbo Water, NO.4
16287A	Clip(FOR TURBO WATER HOSE NO.4)
16288	Pipe, Water By-pass, NO.4
16289	Pipe, Water By-pass, NO.5
16291	Joint, Water Hose
16292	Joint, Water Hose, NO.2
16294	Hose, Water By-pass, NO.11
16295	Hose, Water By-pass, NO.7
16295A	Clip(FOR WATER BY-PASS HOSE NO.7)
16296	Hose, Water By-pass, NO.8
16296A	Clip(FOR WATER BY-PASS HOSE NO.8)
16298	Hose, Water By-pass, NO.12
16305E	Outlet Sub-assy, Water By-pass
16321	Inlet, Water
16322	Pipe, Water Inlet
16322A	Ring, O(FOR WATER INLET)
16323	Housing, Water Inlet
16325	Gasket, Water Inlet Housing, NO.1
16326	Gasket, Water Inlet Housing, NO.2
16331	Outlet, Water
16331A	Thermostat
16332	Pipe, Water Outlet, NO.1
16335A	Hose, Water Outlet
16341	Gasket, Water Outlet
16343	Gasket, Water Outlet Housing
16345	Gasket, Water Outlet Pipe
16346	Gasket, Thermostat
16347A	Gasket(FOR TURBO WATER PIPE)
16355	Joint, Water By-pass, Front
16361	Fan
16400	Radiator Assy
16400B	Plug, Radiator Drain Cock
16400F	Packing(FOR RADIATOR DRAIN COCK)
16400R	Bushing(FOR RADIATOR)
16400S	Collar(FOR RADIATOR)
16401	Cap Sub-assy, Radiator
16453	Plate, Radiator Side
16454	Plate, Radiator Side
16455	Bolt, Radiator Side Support Plate
16465	Packing, Radiator
16465B	Packing, Radiator, NO.2
16470	Tank Assy, Radiator Reserve
16471	Cap Sub-assy, Reserve Tank
16471B	Cap, Reserve Tank
16547	Bush, Radiator Support, NO.1
16548	Bush, Radiator Support, NO.2
16567	Hose(FOR RADIATOR RESERVE TANK)
16567A	Clip(FOR RADIATOR RESERVE TANK HOSE)
16571C	Hose, Radiator, NO.1
16571D	Clip, Radiator Hose, NO.1
16572D	Hose, Radiator, NO.2
16572E	Clip, Radiator Hose, NO.2
16711	Shroud, Fan
16877	Cover, Heat Exchanger, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
