Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08

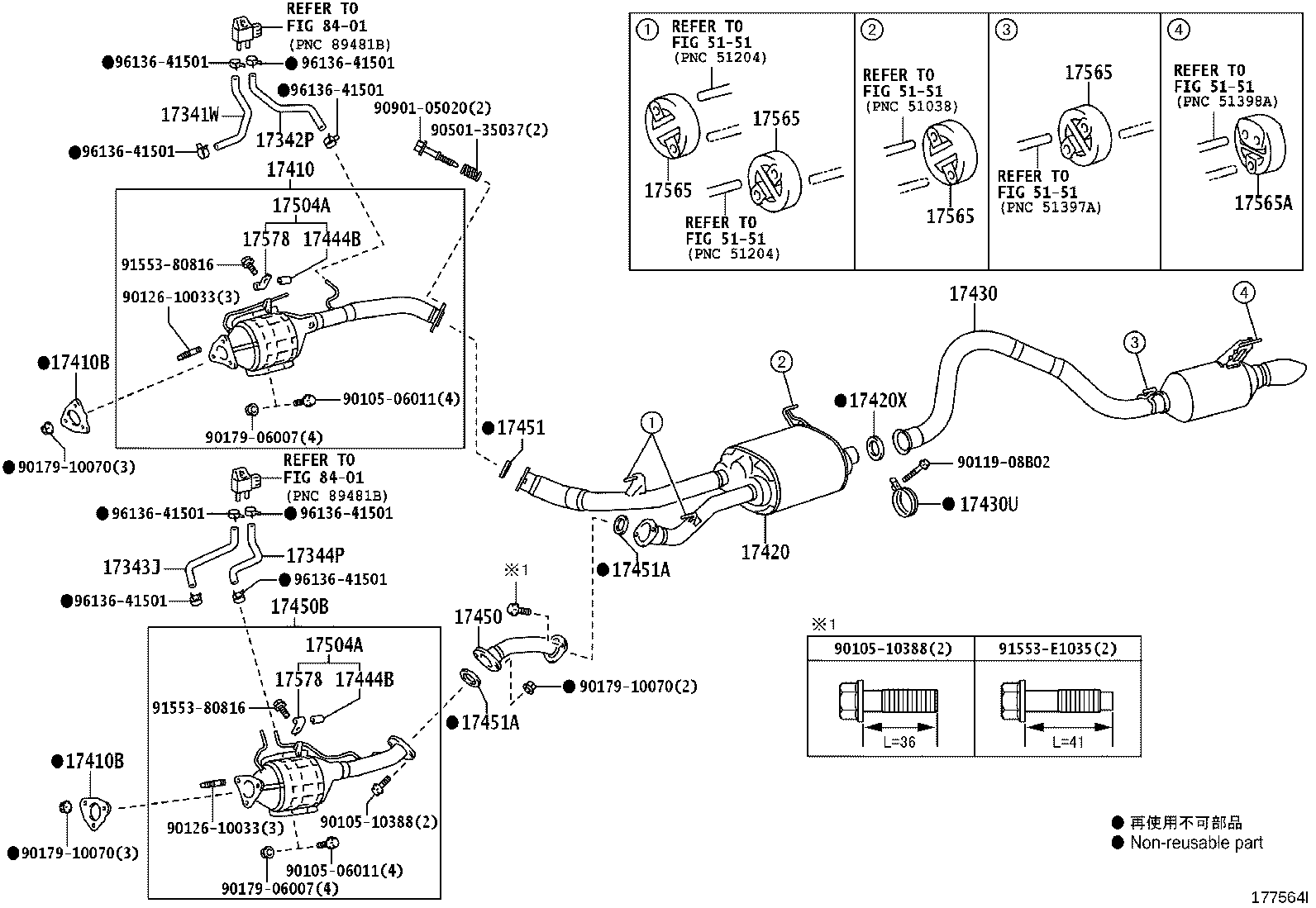

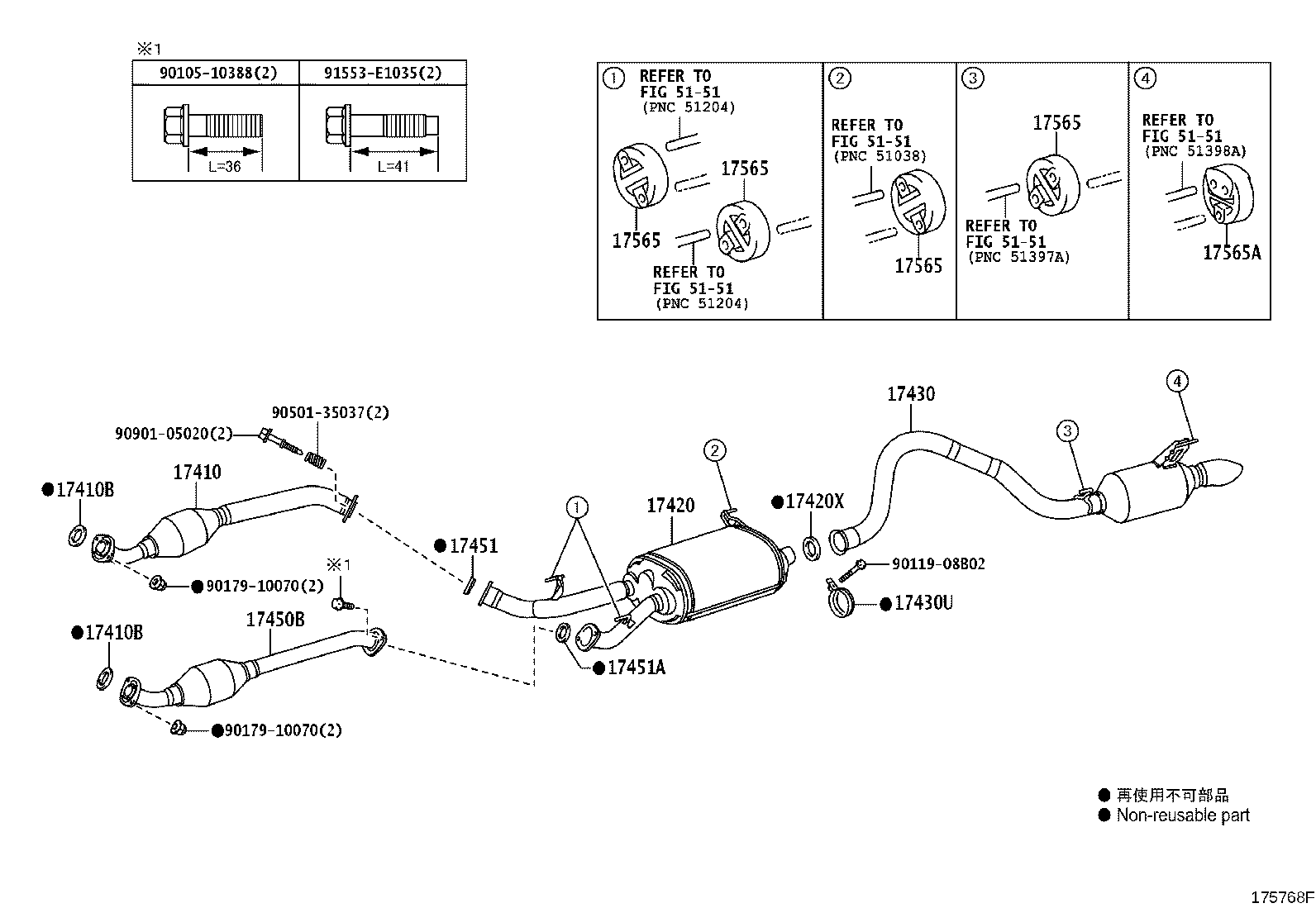

Exhaust Pipe
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341W | Hose, Air, NO.1 |
| 17342P | Hose, Air, NO.2 |
| 17343J | Hose, Air, NO.3 |
| 17344P | Hose, Air, NO.4(FOR EXHAUST PIPE) |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430U | Clamp NO.1, Exhaust Tailpipe (FOR REAR) |
| 17444B | Spacer, Exhaust Pipe |
| 17450 | Pipe Assy, Exhaust, NO.5 |
| 17450B | Pipe Assy, Exhaust, Front NO.2 |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17504A | Clamp Sub-assy, Exhaust Pipe |
| 17524 | Protector, Exhaust Pipe, Upper NO.4 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17578 | Clamp, Pipe |
| 17581A | Damper, Exhaust Pipe |
| 18422 | Stay, Converter Protector, NO.2 |
| 18435A | Protector, Monolithic Converter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
