Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

19 part groups · 3 illustrations

Illustrations

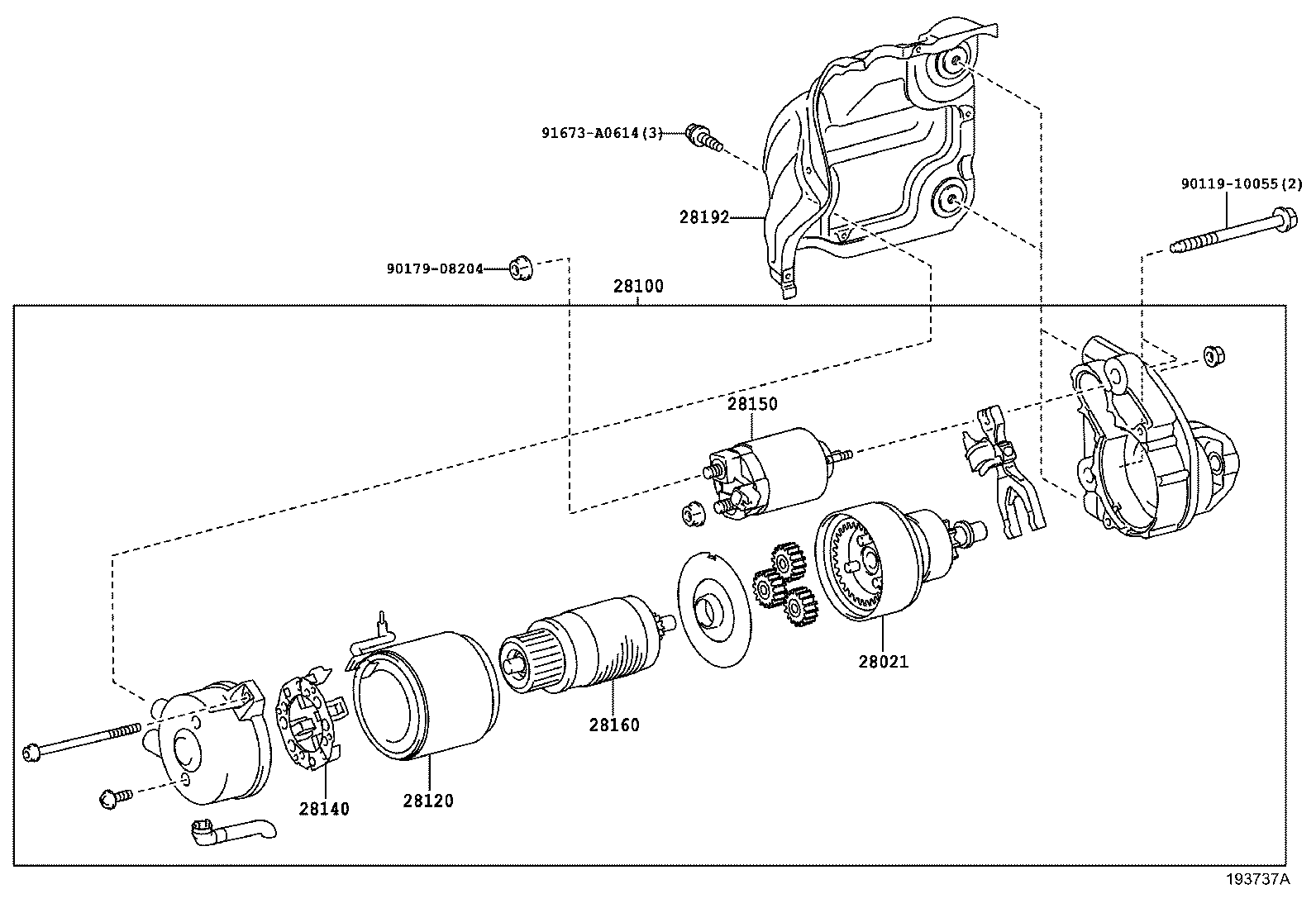

Figure 192898B 192898B 2007-11 → 2011-07 Figure 193737A 193737A 2011-07 → — Figure 193738B 193738B 2015-09 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28117 Rubber(FOR STARTER YOKE)
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28177 Plate(FOR STARTER ARMATURE)
28192 Cover, Starter
28213 Pinion, Starter Clutch
28226B Starter Kit, Repair Service
28255 Gear, Planet
28256 Gear, Starter Internal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
