Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

21 part groups · 2 illustrations

Illustrations

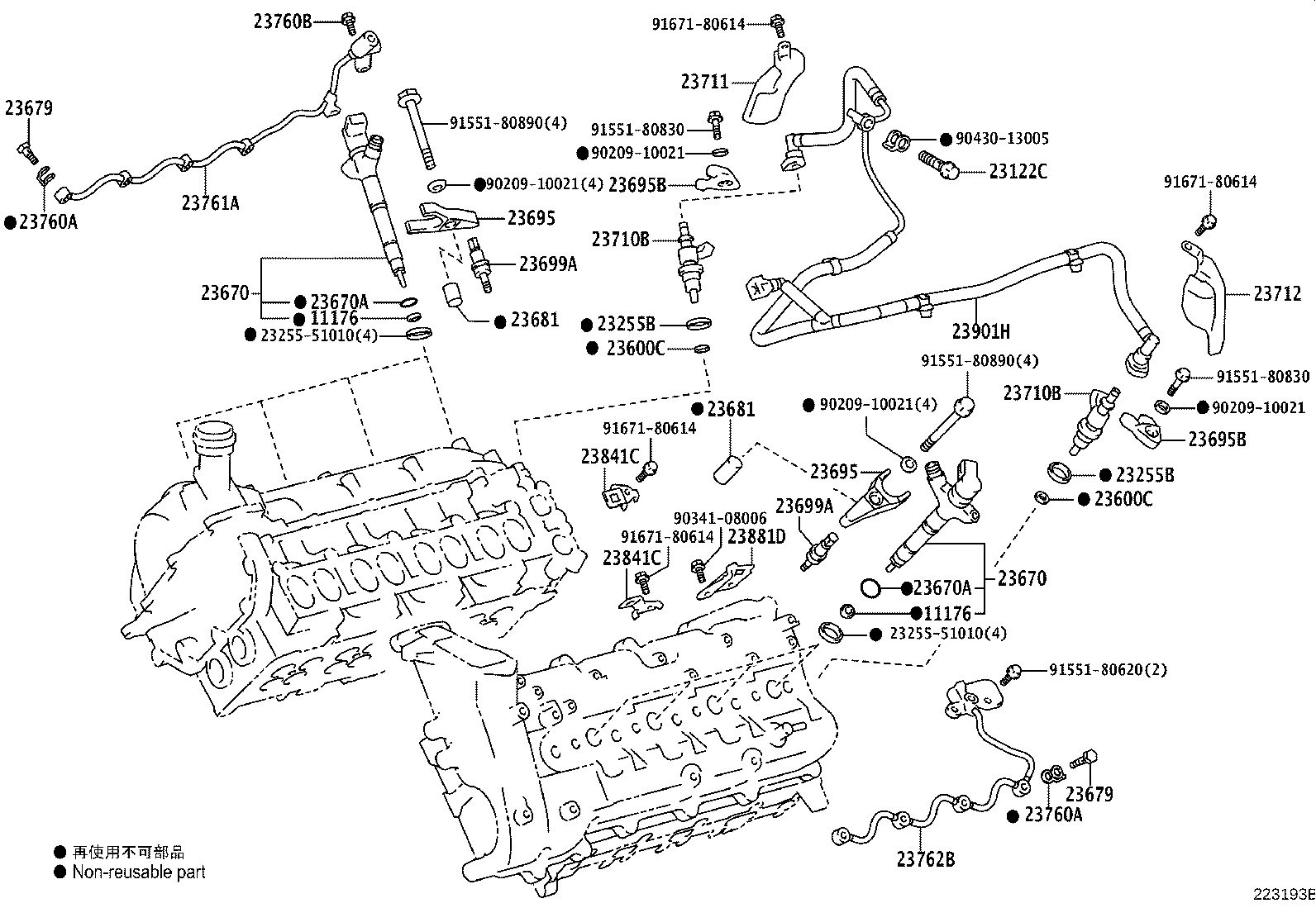

Figure 222069D 222069D 2015-09 → — Figure 223193B 223193B 2015-09 → —

Part groups

PNCDescription
11176 Seat, Injection Nozzle
23122C Valve, Check
23255B Seal, Fuel Injector
23600C Gasket(FOR HOLDER & NOZZLE SET)
23670 Injector Assy
23670A Ring, O(FOR INJECTOR ASSY)
23679 Screw, Injector Follow
23681 Seal, Nozzle Holder
23695 Clamp, Nozzle Holder, NO.1
23695B Clamp, Nozzle Holder, NO.2
23699A Seat, Nozzle Holder Clamp
23710B Injector Assy, Exhaust Fuel Addition
23711 Protector, Fuel Injector, NO.1
23712 Protector, Fuel Injector, NO.2
23760A Gasket
23760B Bolt, Union(FOR NOZZLE LEAKAGE PIPE)
23761A Pipe, Nozzle Leakage, NO.1
23762B Pipe, Nozzle Leakage, NO.2
23841C Clamp, Fuel Pipe, NO.1
23881D Bracket, Fuel Hose
23901H Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
