Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

17 part groups · 3 illustrations

Illustrations

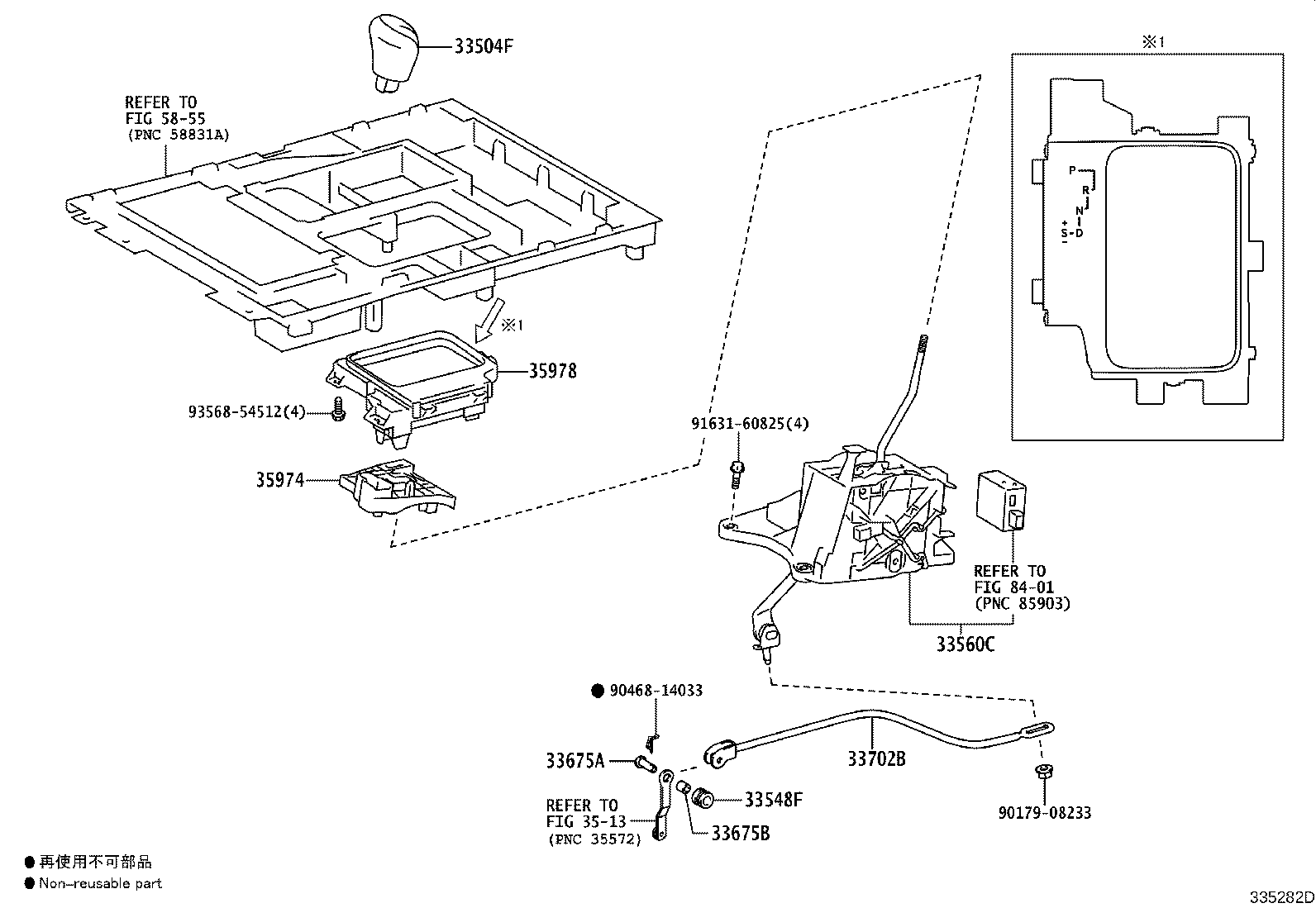

Figure 333557E 333557E 2007-11 → 2015-09 Figure 335267F 335267F 2015-09 → — Figure 335282D 335282D 2015-09 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33550 Floor Shift Assy, Transmission
33560C Lever Assy, Shift, Lower
33563 Button, Shift Lock Release
33675A Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
33675B Bush (FOR TRANSMISSION CONTROL ROD)
33702B Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
33866 Spring, Shift Lock Release
35906 Wire Sub-assy, Indicator Lamp
35952 Lens, Position Indicator
35970F Housing Assy, Position Indicator
35971A Housing, Position Indicator, Upper
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
