Torque Converter, Front Oil Pump & Chain (ATM)

21 part groups · 3 illustrations

Illustrations

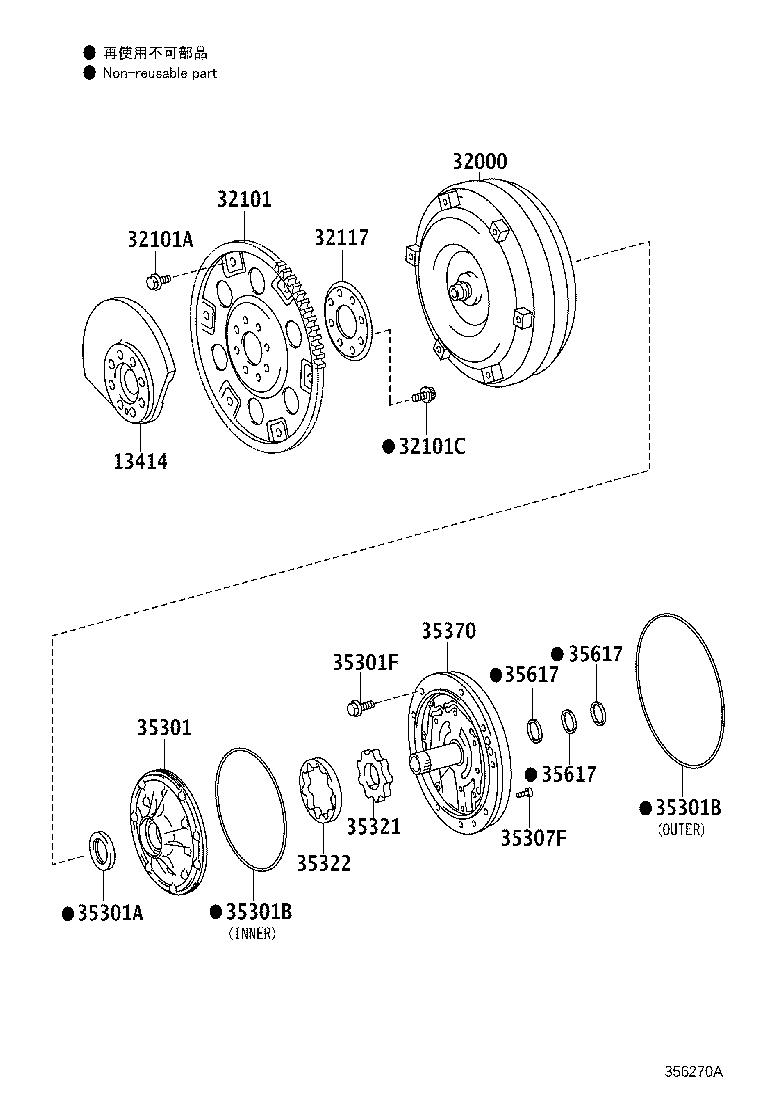

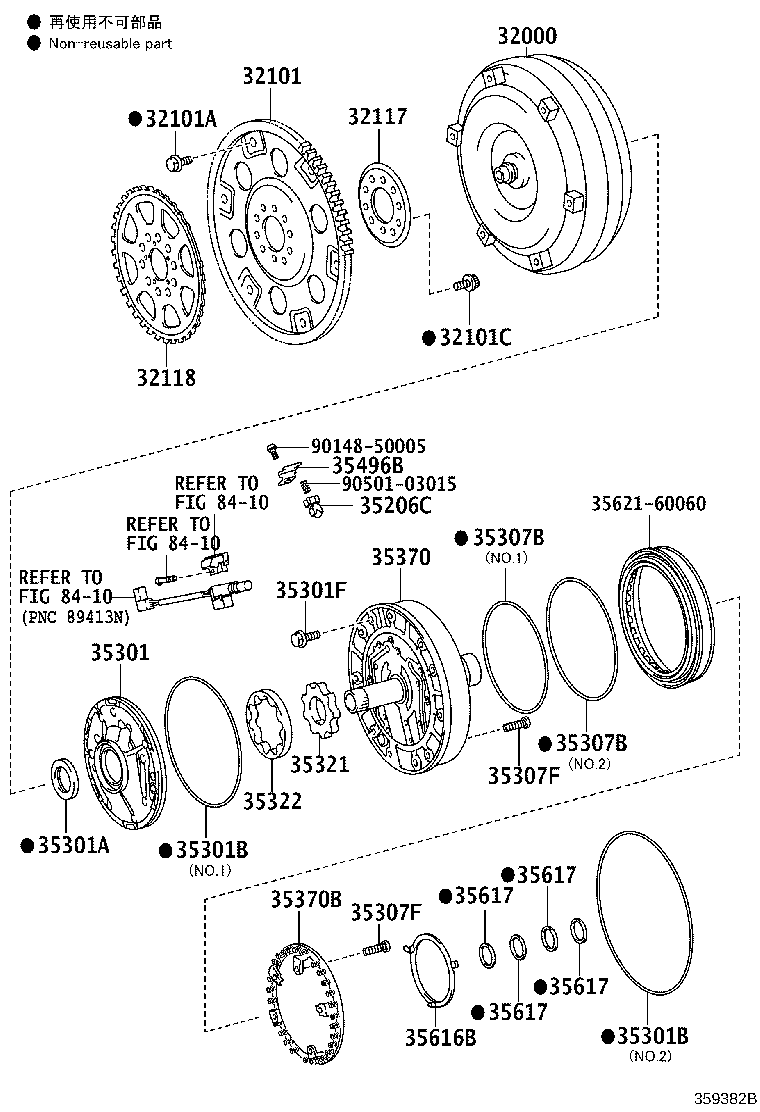

Figure 356271A 356271A 2007-11 → 2015-09 Figure 356270A 356270A 2015-09 → — Figure 359382B 359382B 2015-09 → —

Part groups

PNCDescription
13414 Weight, Crankshaft Balancer, Rear
32000 Converter Assy, Torque
32101 Gear Sub-assy, Drive Plate & Ring
32101A Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101C Bolt, Hexagon(FOR DRIVE PLATE SETTING)
32117 Spacer, Drive Plate, Rear
32118 Rotor, Crankshaft Angle Sensor
35206C Valve Sub-assy, Check, NO.1
35301 Body Sub-assy, Front Oil Pump
35301A Seal, Oil (FOR FRONT OIL PUMP)
35301B Ring, O (FOR FRONT OIL PUMP BODY)
35301F Bolt (FOR FRONT OIL PUMP SETTING)
35307B Ring, Shaft Snap (FOR STATOR SHAFT)
35307F Bolt (FOR STATOR SHAFT)
35321 Gear, Front Oil Pump Drive
35322 Gear, Front Oil Pump Driven
35370 Shaft Assy, Stator
35370B Spring Sub-assy, Stator Shaft
35496B Cover, Check Ball
35616B Washer, Clutch Drum Thrust (FOR STATOR SHAFT)
35617 Ring, Clutch Drum Oil Seal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
