Oil Cooler & Tube (ATM)

31 part groups · 3 illustrations

Illustrations

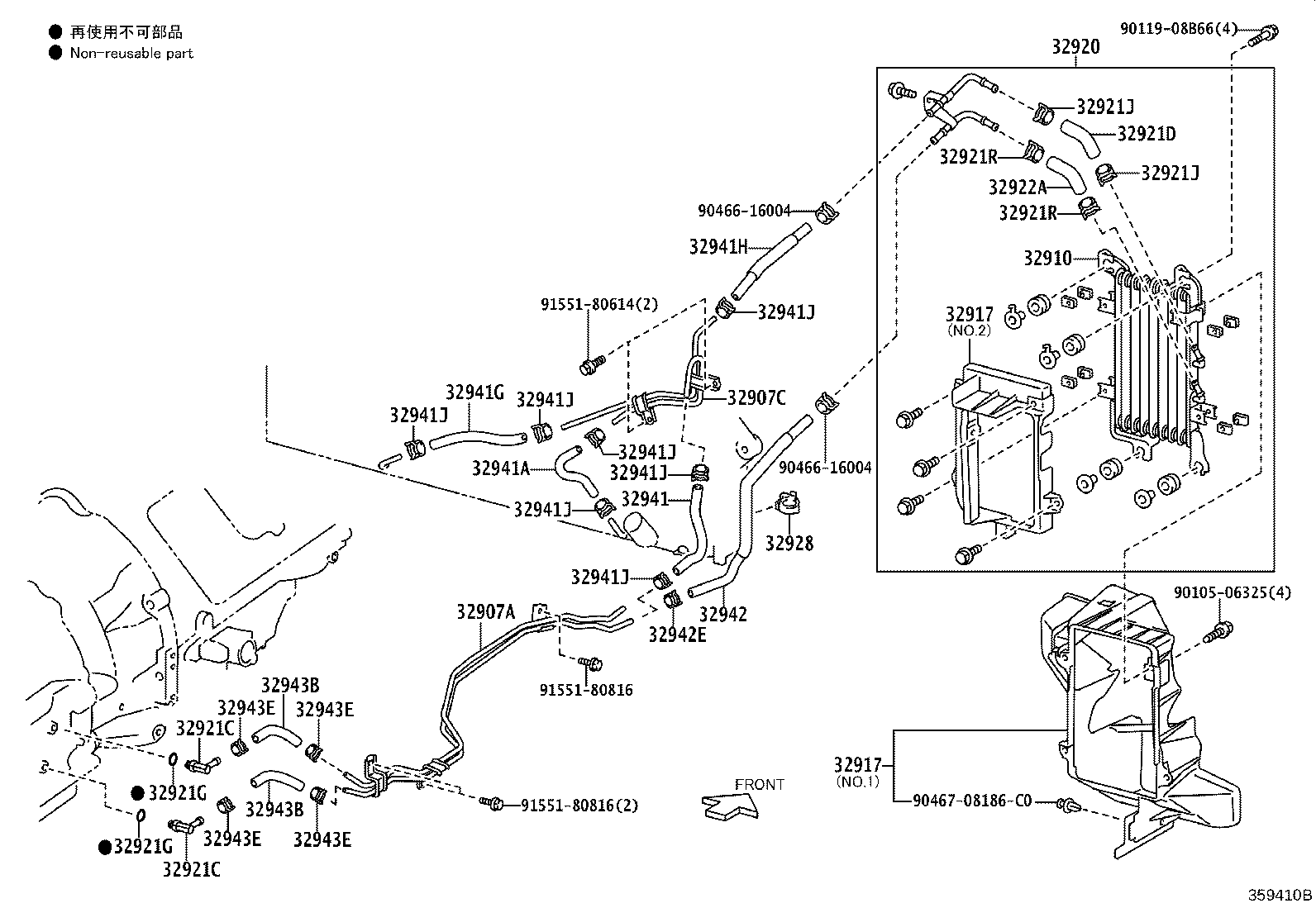

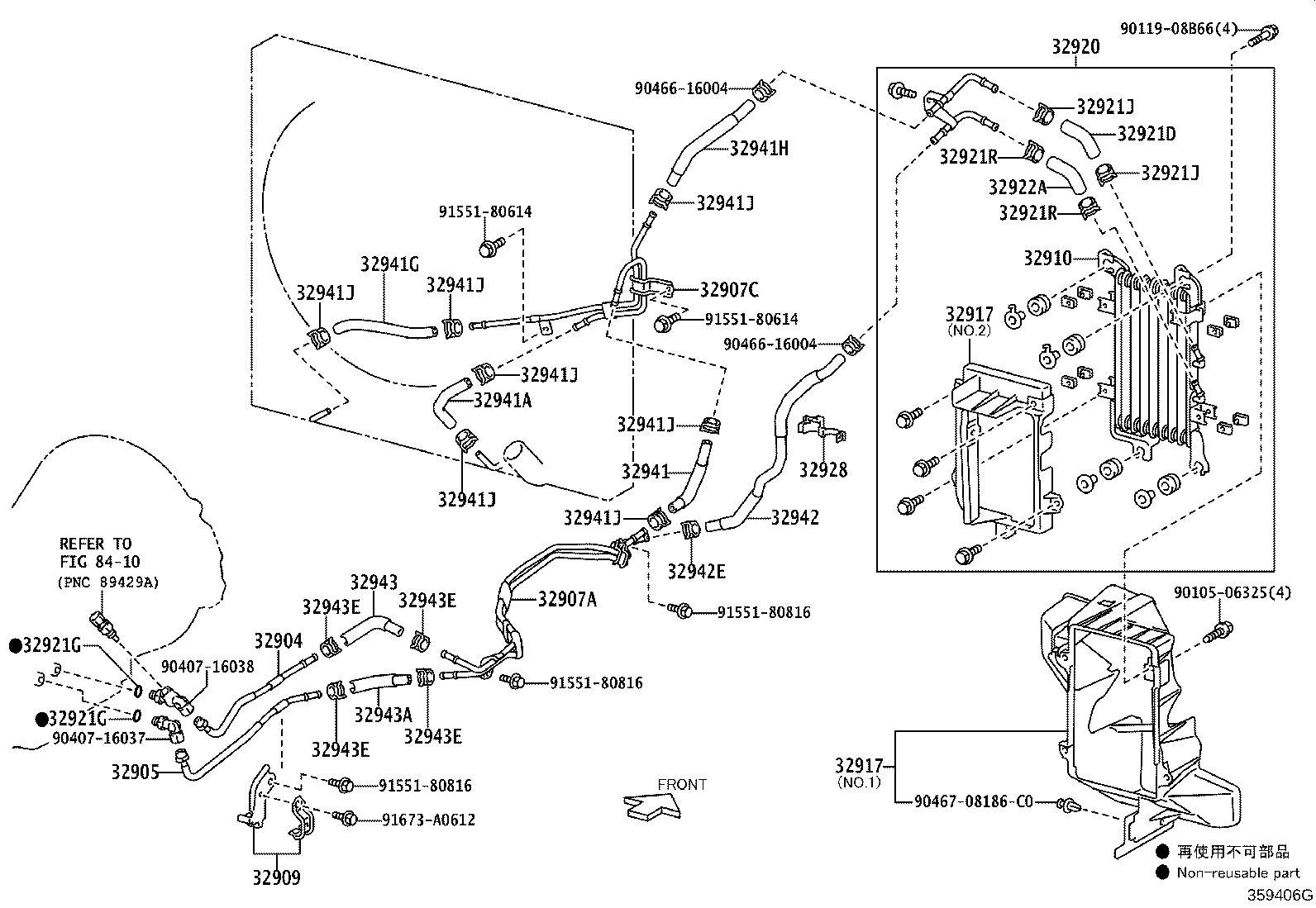

Figure 356293C 356293C 2007-11 → 2015-09 Figure 359406G 359406G 2015-09 → — Figure 359410B 359410B 2015-09 → —

Part groups

PNCDescription
32904 Tube Sub-assy, Oil Cooler Inlet, NO.1
32905 Tube Sub-assy, Oil Cooler Outlet, NO.1
32907A Tube, Oil Cooler
32907C Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32909 Clamp Sub-assy, Transmission Oil Cooler Tube, NO.1
32910 Cooler Assy, Oil
32917 Duct, Transmission Oil Cooler Air
32920 Cooler Assy, Oil W/Hose
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32921R Clip, NO.2(FOR OIL COOLER HOSE)
32922A Hose(FOR OIL COOLER OUTLET)
32928 Clamp, Flexible Hose, NO.1
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32941G Hose, Oil Cooler Inlet, NO.3
32941H Hose, Oil Cooler Inlet, NO.4
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
32943B Hose, Transmission Oil Cooler
32943E Clip, NO.3(FOR OIL COOLER HOSE)
32970 Cooler Assy, Transmission Oil W/Thermostat
32971A Ring, O(FOR TRANSMISSION OIL THERMOSTAT)
33490F Cooler Assy, Transmission Oil
33490G Ring, O (FOR TRANSMISSION OIL COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
