Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08

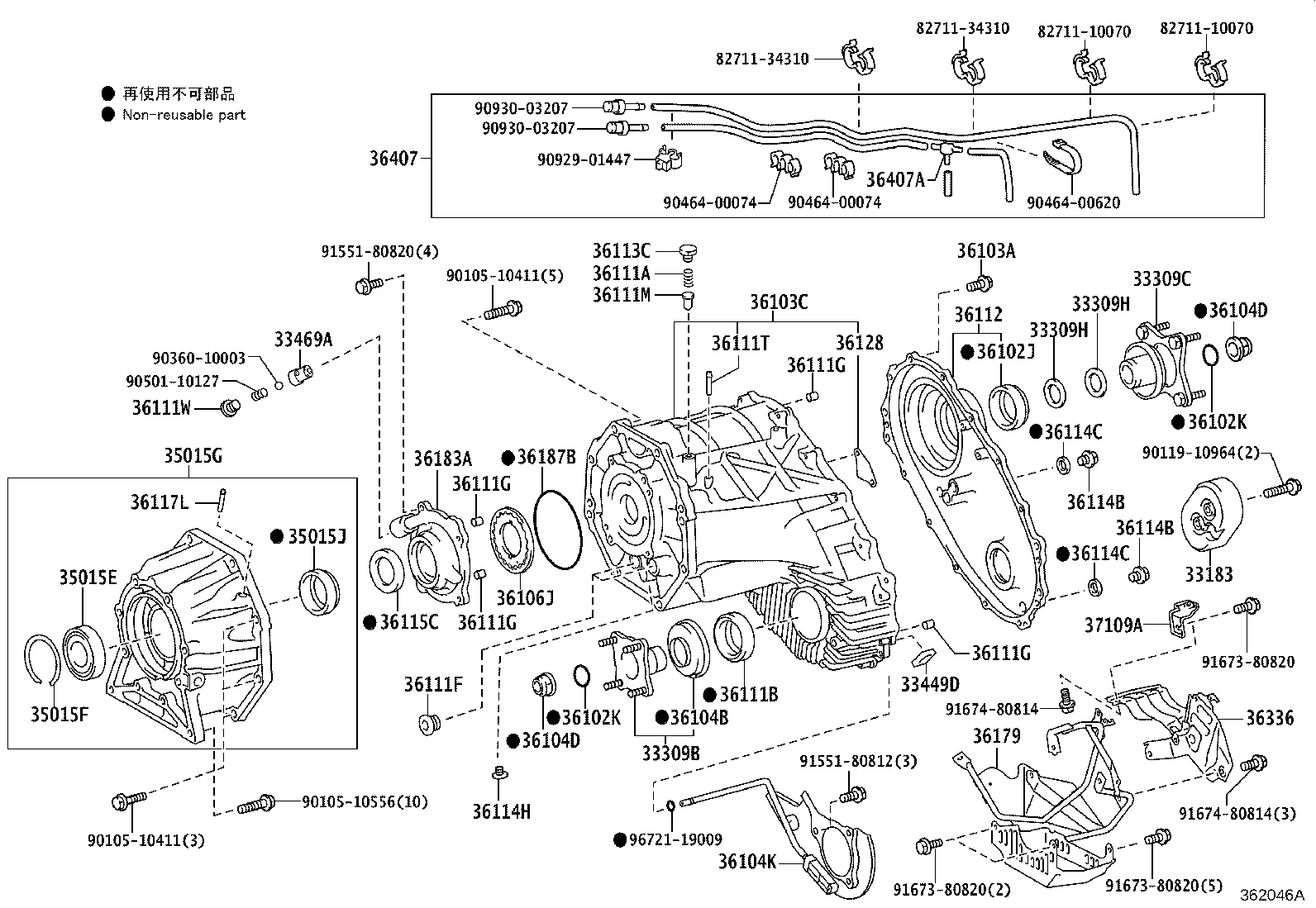

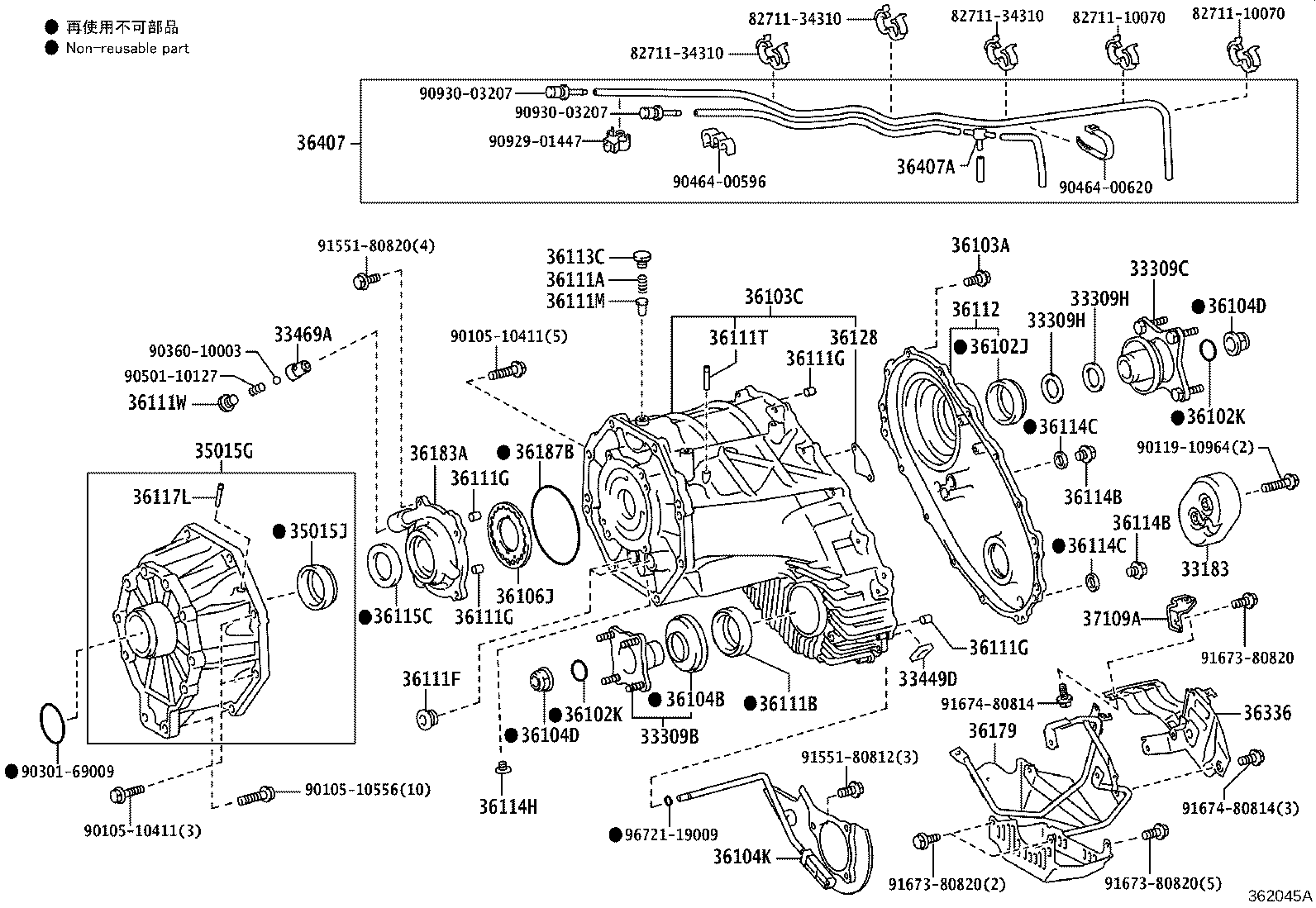

Transfer Case & Extension Housing
40 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33183 | Damper, Transfer Dynamic |
| 33309B | Flange Sub-assy, Output Shaft Companion |
| 33309C | Flange Sub-assy, Output Shaft Companion |
| 33309H | Washer, Transfer Output Shaft |
| 33449D | Magnet (FOR TRANSFER CASE) |
| 33469A | Seat, Relief Valve (FOR TRANSFER EXTENSION REAR HOUSING) |
| 35015E | Bearing, Radial Ball(FOR TRANSFER CASE ADAPTER) |
| 35015F | Ring, Hole Snap(FOR TRANSFER ADAPTER) |
| 35015G | Adapter, Transfer, Rear |
| 35015J | Seal, Oil(FOR TRANSFER CASE ADAPTER REAR) |
| 36102J | Seal, Type T Oil (FOR TRANSFER COVER) |
| 36102K | Ring, O |
| 36103A | Bolt (FOR TRANSFER CASE) |
| 36103C | Case, Transfer, Front |
| 36104B | Deflector, Dust (FOR TRANSFER OUTPUT SHAFT) |
| 36104D | Nut (FOR TRANSFER OUTPUT SHAFT) |
| 36104K | Separator Sub-assy, Transfer Oil |
| 36106J | Rotor, Transfer Oil Pump |
| 36111A | Spring, Compression (FOR TRANSFER CASE) |
| 36111B | Seal, Oil (FOR TRANSFER CASE) |
| 36111F | Plug (FOR TRANSFER CASE) |
| 36111G | Pin, Straight (FOR TRANSFER CASE) |
| 36111M | Pin, Slotted Spring (FOR TRANSFER CASE) |
| 36111T | Tube (FOR TRANSFER CASE) |
| 36111W | Plug, Tight NO.2(FOR TRANSFER CASE) |
| 36112 | Case, Transfer, Rear |
| 36113C | Plug (FOR TRANSFER CASE) |
| 36114B | Plug, NO.1 (FOR TRANSFER CASE) |
| 36114C | Gasket, NO.1 (FOR TRANSFER CASE) |
| 36114H | Plug, NO.2 (FOR TRANSFER CASE) |
| 36115C | Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING) |
| 36117L | Tube(FOR TRANSFER ADAPTER) |
| 36128 | Deflector, Breather Oil |
| 36179 | Protector, Transfer Case Lower |
| 36183A | Plate, Transfer Oil Pump |
| 36187B | Ring, O (FOR TRANSFER OIL STRAINER) |
| 36336 | Insulator, Transfer Heat |
| 36407 | Hose Sub-assy, Transfer Breather |
| 36407A | Way, 3(FOR TRANSFER BREATHER HOSE) |
| 37109A | Bracket Sub-assy, Propeller Shaft Heat Insulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
