Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

13 part groups · 3 illustrations

Illustrations

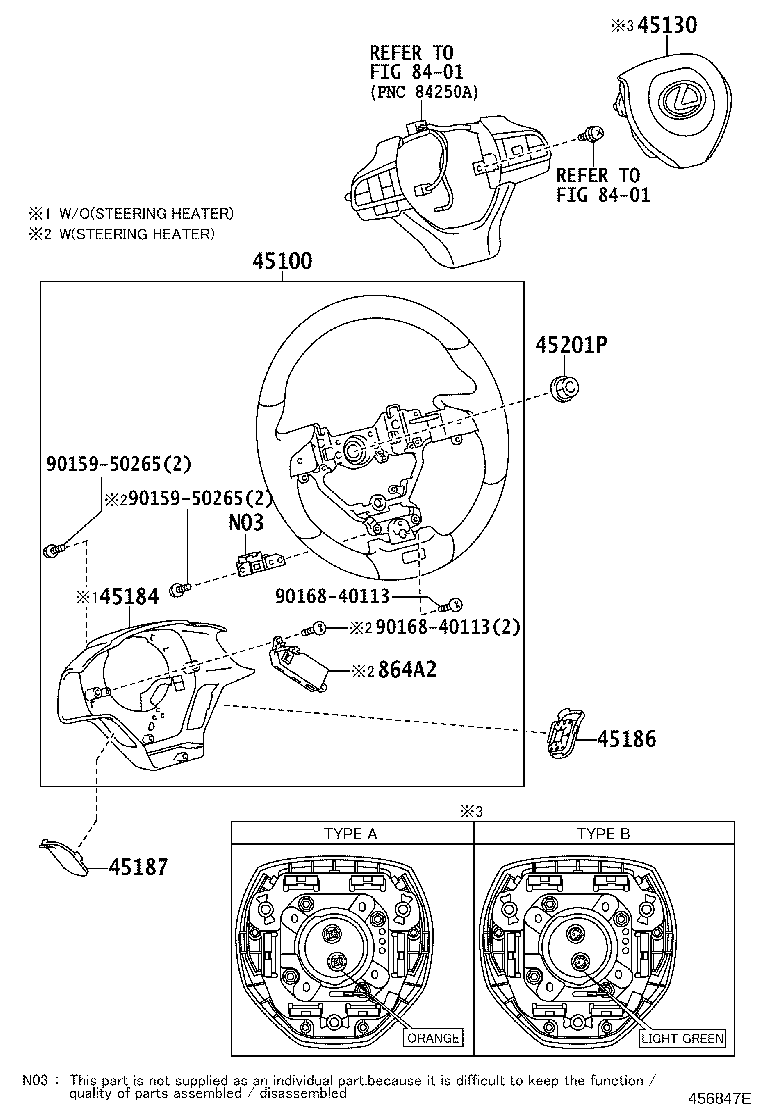

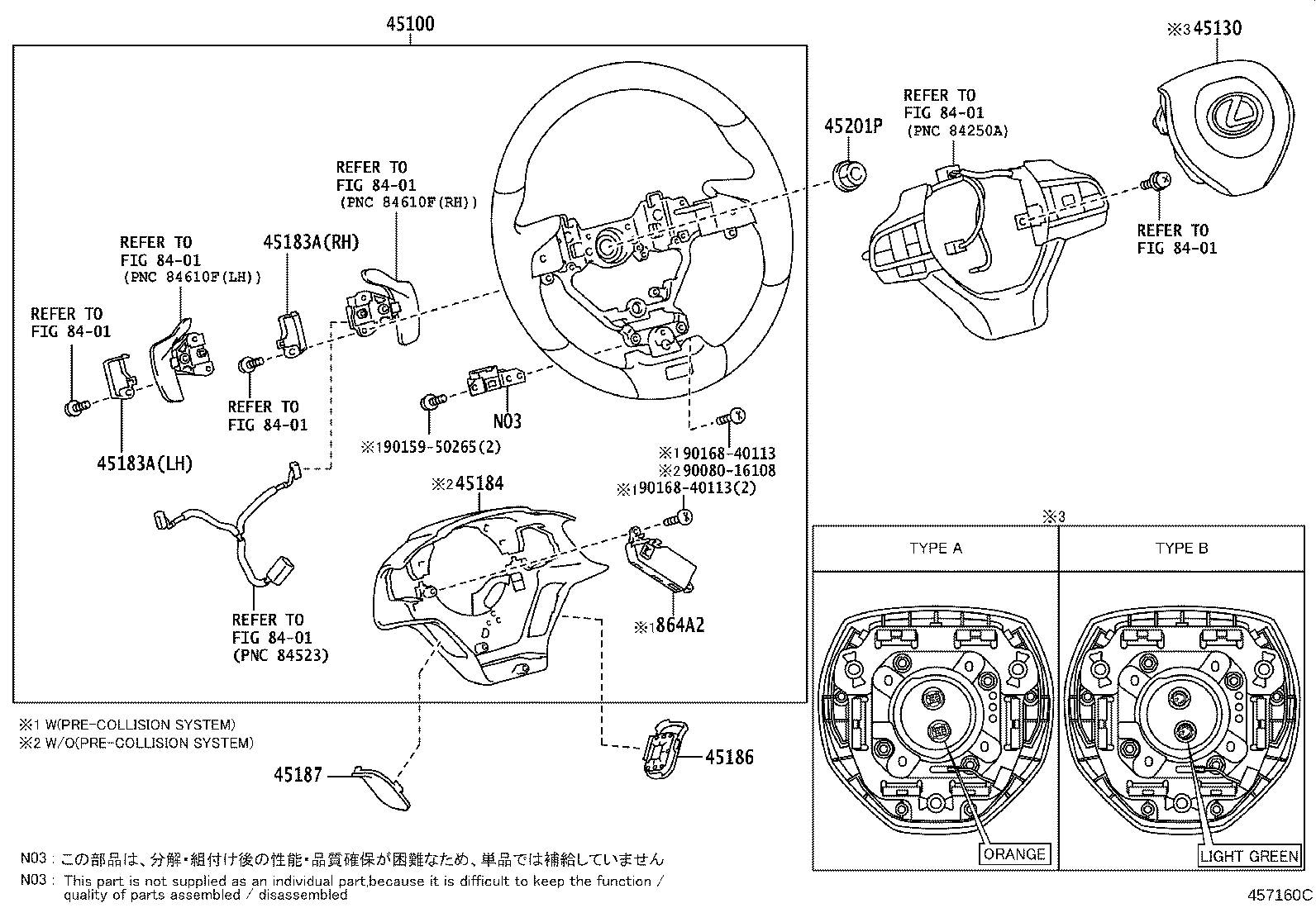

Figure 456093A 456093A 2007-11 → 2015-09 Figure 456847E 456847E 2015-09 → — Figure 457160C 457160C 2015-09 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45183A Cover, Steering Wheel Boss, Lower NO.1
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
55910E Control Assy, Steering Wheel Heater
84258 Cover, Steering Pad, RH
84259 Cover, Steering Pad, LH
864A2 Computer, Steering Vibration
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
