Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08
Parking Brake & Cable

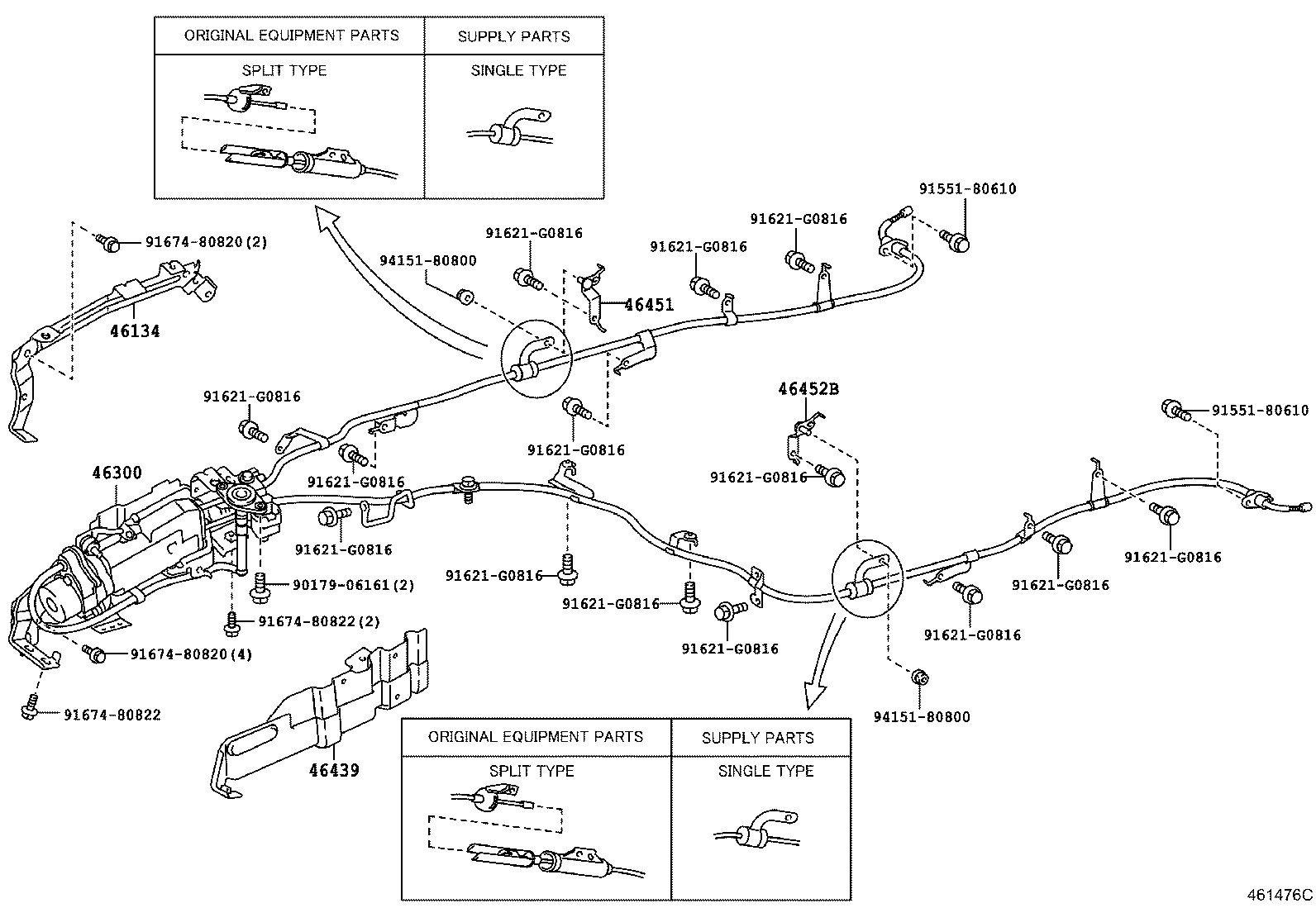

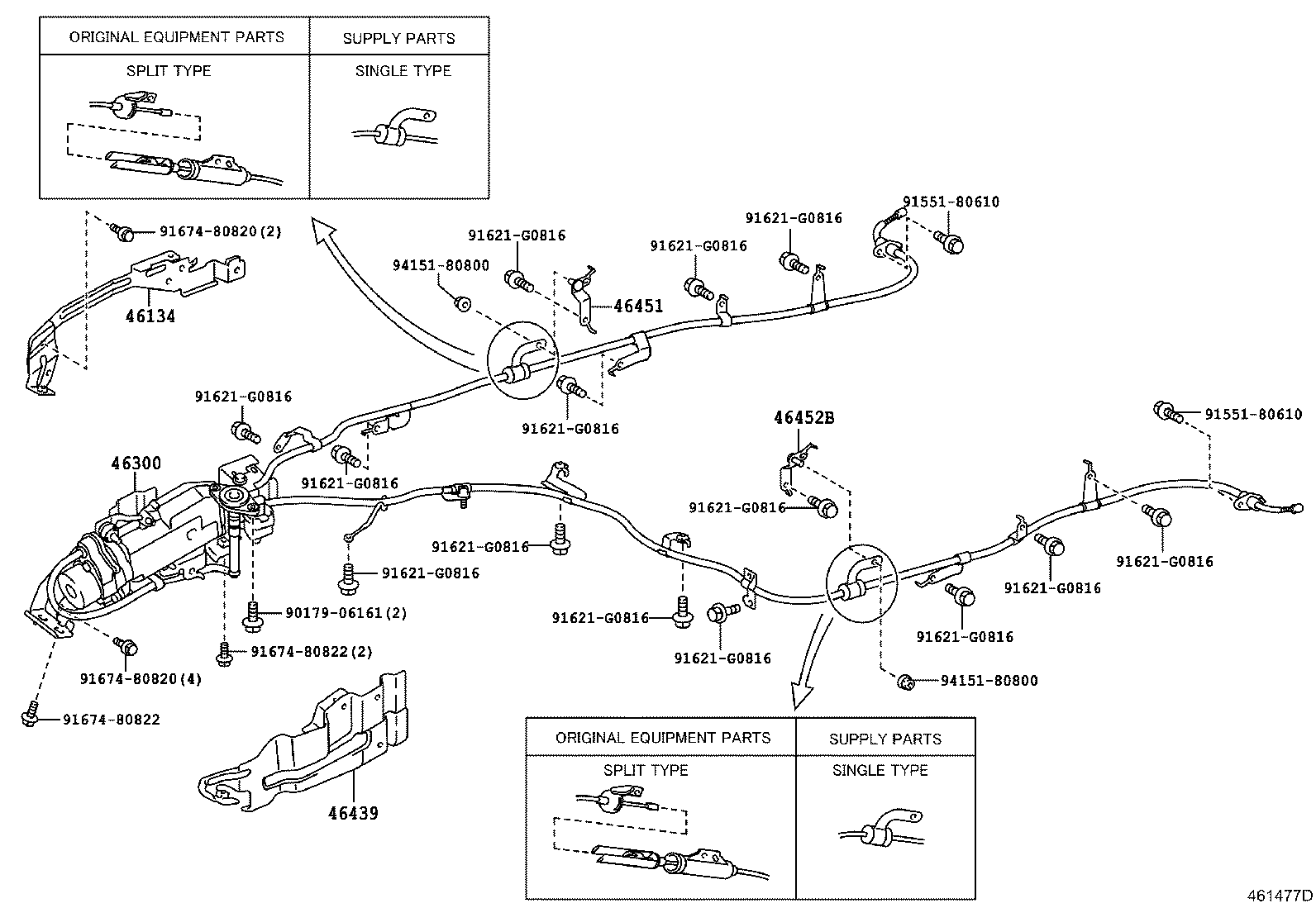

29 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 46134 | Support, Parking Brake Bracket, NO.2 |
| 46210 | Lever Assy, Parking Brake |
| 46300 | Actuator Assy, Parking Brake W/Bracket |
| 46305 | Spring, Parking Brake Return W/Damper |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420B | Clamp, NO.2(FOR PARKING BRAKE CABLE) |
| 46420J | Clamp, NO.3(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46439 | Insulator, Parking Brake Cable Heat |
| 46451 | Bracket, Cable Support |
| 46452B | Bracket, Cable Support, NO.2 |
| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46503A | Bolt(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) |
| 46503B | Nut(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 46505 | Block Sub-assy, Parking Brake Anchor |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46580 | Shoe Assy, Parking Brake, LH NO.1 |
| 46590 | Shoe Assy, Parking Brake, LH NO.2 |
| 46601A | Lever Sub-assy, Parking Brake Shoe, RH |
| 46602 | Lever Sub-assy, Parking Brake Shoe, LH |
| 47405A | Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) |
| 47406A | Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) |
| 47447C | Pin, Shoe Hold Down Spring(FOR PARKING BRAKE) |
| 47447D | Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN) |
| 47449A | Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
