Height Control (AUTO-LEVELER)

78 part groups · 3 illustrations

Illustrations

482672E 2007-11 → —

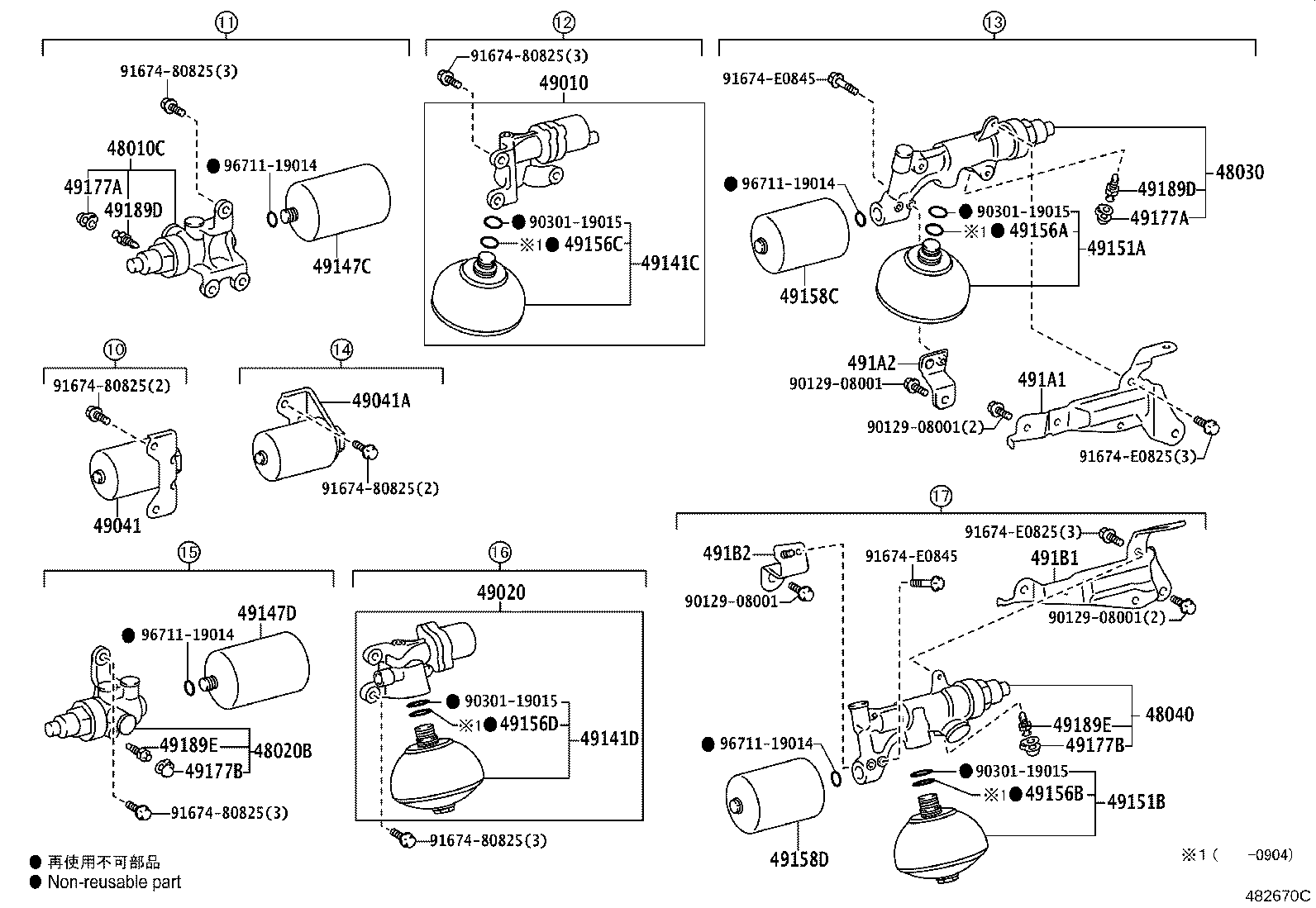

482670C 2007-11 → —

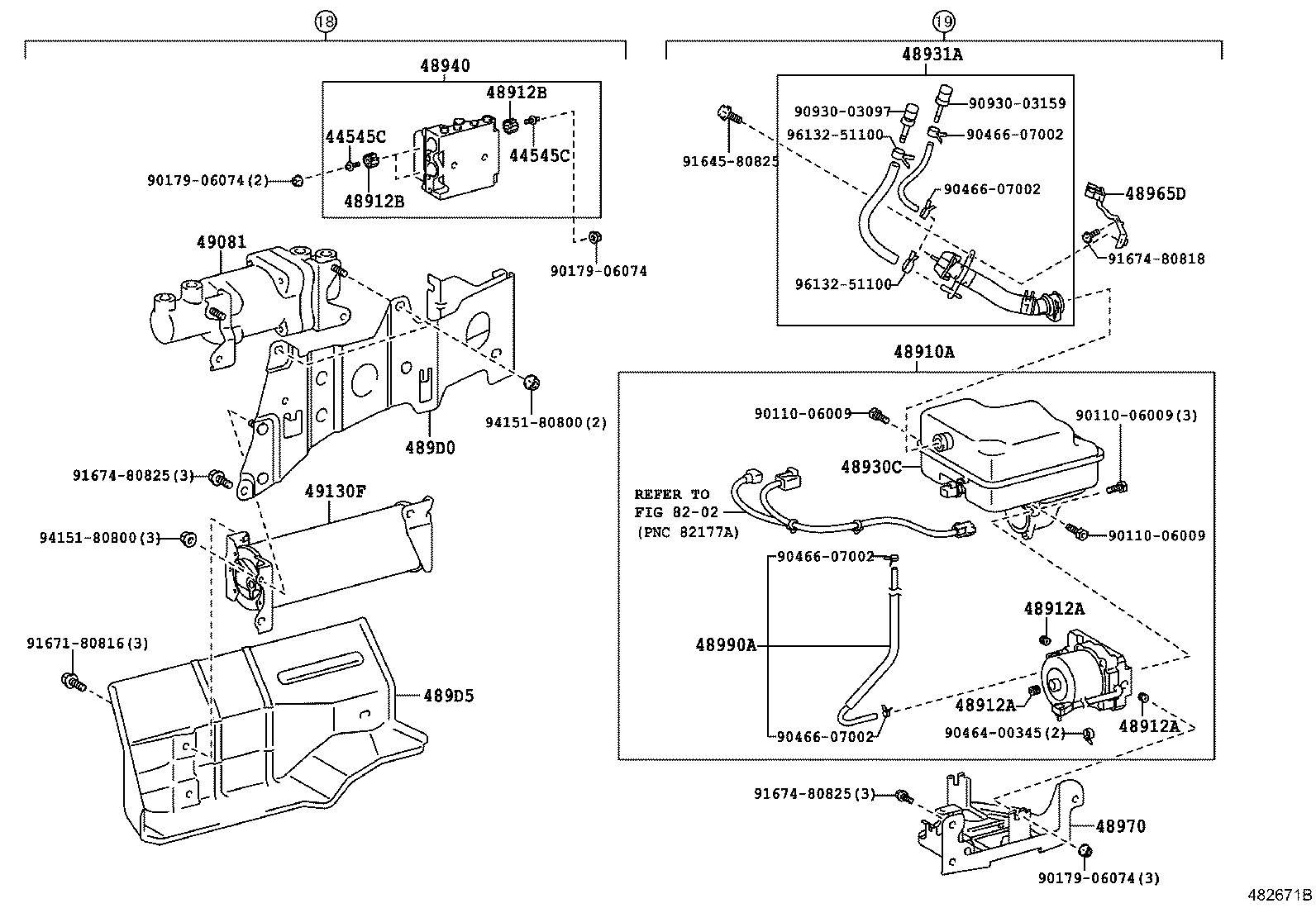

482671B 2007-11 → —

Part groups

PNC	Description
44327P	Gasket, Pressure Port, NO.1 RH
44327Q	Gasket, Pressure Port, NO.1 LH
44327R	Gasket, Pressure Port, NO.2
44327S	Bolt, Union, NO.3 RH
44327T	Bolt, Union, NO.3 LH
44327U	Bolt, Union, NO.4
44545C	Holder, Brake Actuator Bolt
48010C	Valve Assy, Front Shock Absorber Control, RH
48020B	Valve Assy, Front Shock Absorber Control, LH
48030	Valve Assy, Rear Shock Absorber Control, RH
48040	Valve Assy, Rear Shock Absorber Control, LH
48910A	Pump & Motor Assy, Height Control
48912A	Cushion, Height Control Bolt, NO.1
48912B	Cushion, Height Control Bolt, NO.2
48930C	Reservoir Assy, Height Control
48931A	Hose, Height Control Cap TO Reservoir
48940	Valve Assy, Height Control, NO.1
48942	Gasket, Height Control Union
48942A	Gasket, Height Control Union RH
48942B	Gasket, Height Control Union LH
48942C	Bolt, Union, NO.1 RH
48942D	Bolt, Union, NO.1 LH
48942E	Bolt, Union, NO.2
48965	Clamp, Height Control Tube
48965C	Clamp, Height Control Tube, NO.1
48965D	Clamp, Height Control Tube, NO.2
48970	Bracket Assy, Height Control Compressor
48981	Tube, Height Control, NO.1
48982	Tube, Height Control, NO.2
48983	Tube, Height Control, NO.3
48984	Tube, Height Control, NO.4
48985	Tube, Height Control, NO.5
48986	Tube, Height Control, NO.6
48987	Tube, Height Control, NO.7
48990A	Hose Assy, Height Control
48991A	Tube, Height Control, LH NO.1
48992	Tube, Height Control, LH NO.2
48993	Tube, Height Control, LH NO.3
48994F	Tube, Height Control, LH NO.4
48995E	Tube, Height Control, LH NO.5
48996D	Tube, Height Control, LH NO.6
48997	Tube, Height Control, Rear NO.4
48998	Tube, Height Control, Rear NO.5
48999	Tube, Height Control, Rear NO.6
489A0	Protector Assy, Height Control Unit, RH
489B0	Protector Assy, Height Control Unit, LH
489D0	Bracket Assy, Height Control Cylinder
489D5	Insulator, Height Control Unit
49010	Valve Assy, Front Suspension Control, RH
49020	Valve Assy, Front Suspension Control, LH
49041	Accumulator Sub-assy, Front Suspension Control, RH NO.1
49041A	Accumulator Sub-assy, Front Suspension Control, LH NO.1
49081	Cylinder Sub-assy, Suspension Control, Center
49130F	Accumulator Assy, Suspension Control Pump
49141C	Accumulator, Front Suspension Control, RH
49141D	Accumulator, Front Suspension Control, LH
49147C	Accumulator, Front Suspension Control, NO.2 RH
49147D	Accumulator, Front Suspension Control, NO.2 LH
49151A	Accumulator, Rear Suspension Control, RH
49151B	Accumulator, Rear Suspension Control, LH
49156A	Ring, Suspension Control Back UP, NO.1 RH
49156B	Ring, Suspension Control Back UP, NO.1 LH
49156C	Ring, Suspension Control Back UP, NO.2 RH
49156D	Ring, Suspension Control Back UP, NO.2 LH
49158C	Accumulator, Rear Suspension Control, NO.3 RH
49158D	Accumulator, Rear Suspension Control, NO.3 LH
49161C	Hose, Suspension Control Pressure, NO.1
49162B	Hose, Suspension Control Pressure, NO.2
49163B	Hose, Suspension Control Pressure, NO.3
49164B	Hose, Suspension Control Pressure, NO.4
49177A	Cap, Bleeder Plug Suspension Control, RH
49177B	Cap, Bleeder Plug Suspension Control, LH
49189D	Plug, Bleeder, Suspension Control, RH
49189E	Plug, Bleeder, Suspension Control, LH
491A1	Bracket, Rear Suspension Control Accumulator, RH NO.1
491A2	Bracket, Rear Suspension Control Accumulator, RH NO.2
491B1	Bracket, Rear Suspension Control Accumulator, LH NO.2
491B2	Bracket, Rear Suspension Control Accumulator, LH NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
