Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

11 part groups · 3 illustrations

Illustrations

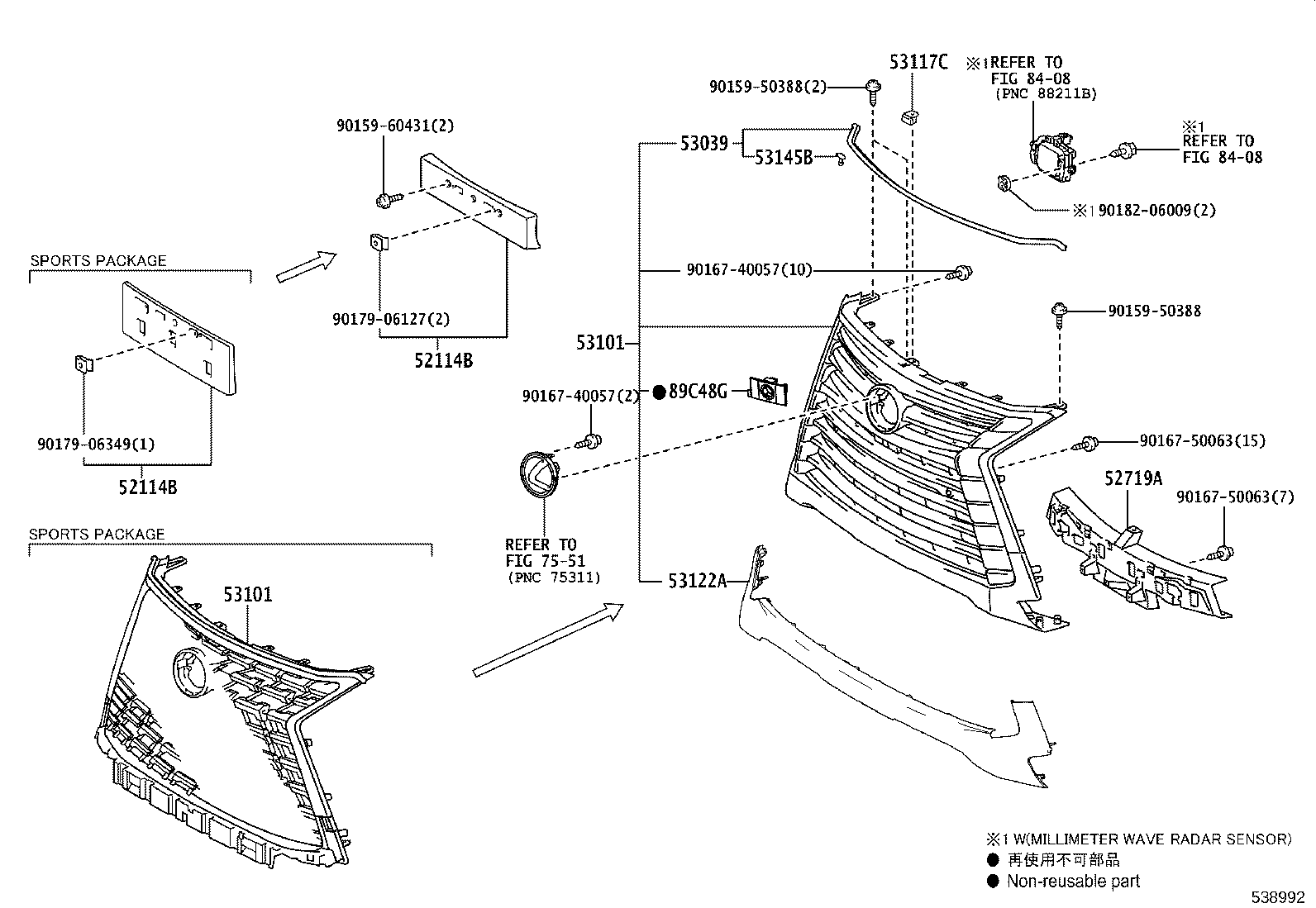

Figure 532708I 532708I 2007-11 → 2012-01 Figure 533641G 533641G 2012-01 → 2015-09 Figure 538992 538992 2015-09 → —

Part groups

PNCDescription
52114B Bracket, Front Bumper Extension Mounting
52161R Piece, Front Bumper
52719A Cover, Front Bumper Moulding
53039 Seal, Radiator, Upper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53117C Retainer, Radiator Grille, NO.1
53122A Moulding, Radiator Grille, Lower
53143 Garnish, Radiator Grille, NO.3
53145B Clip, Radiator Grille Garnish
89C48G Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
