Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

55 part groups · 8 illustrations

Illustrations

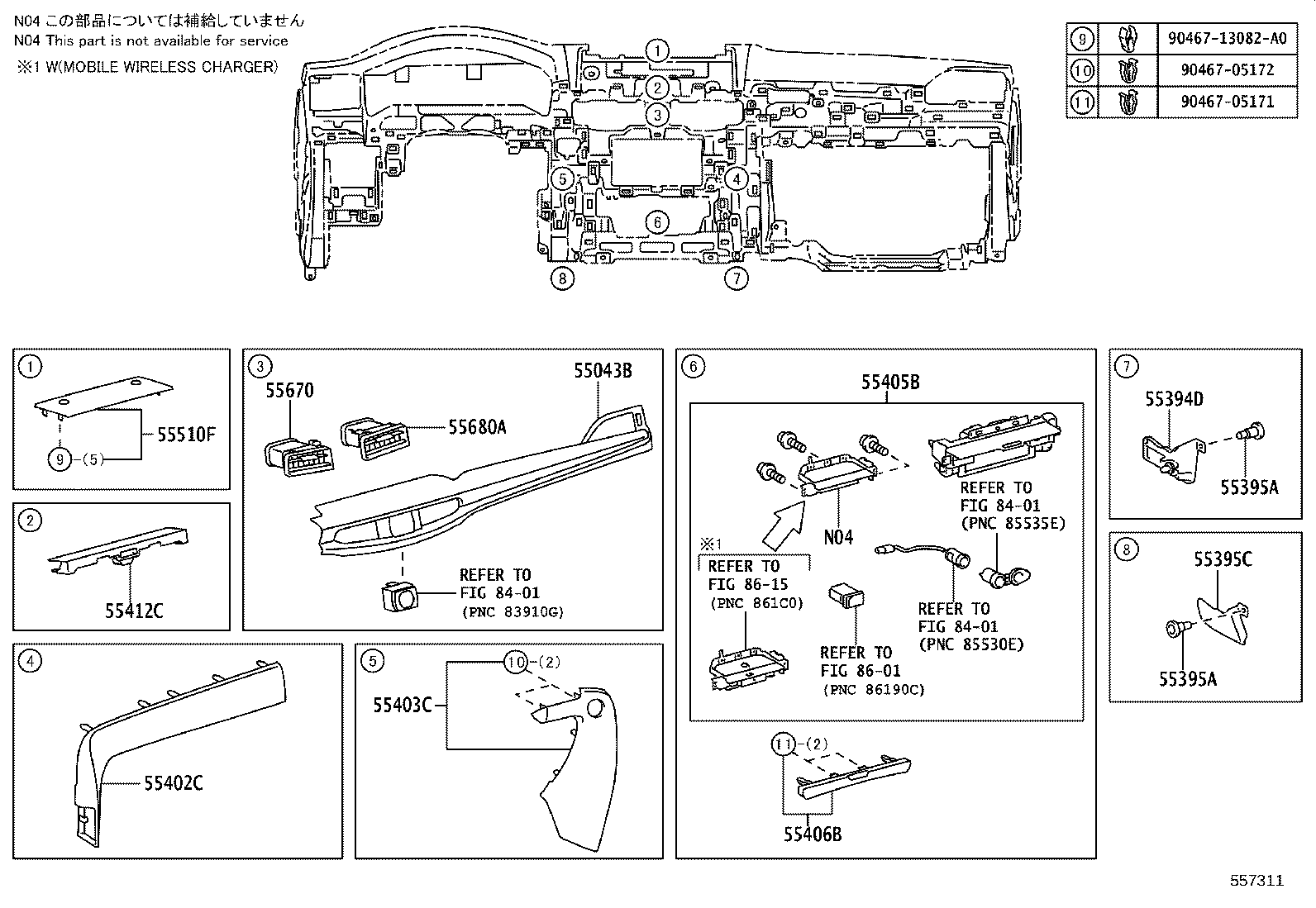

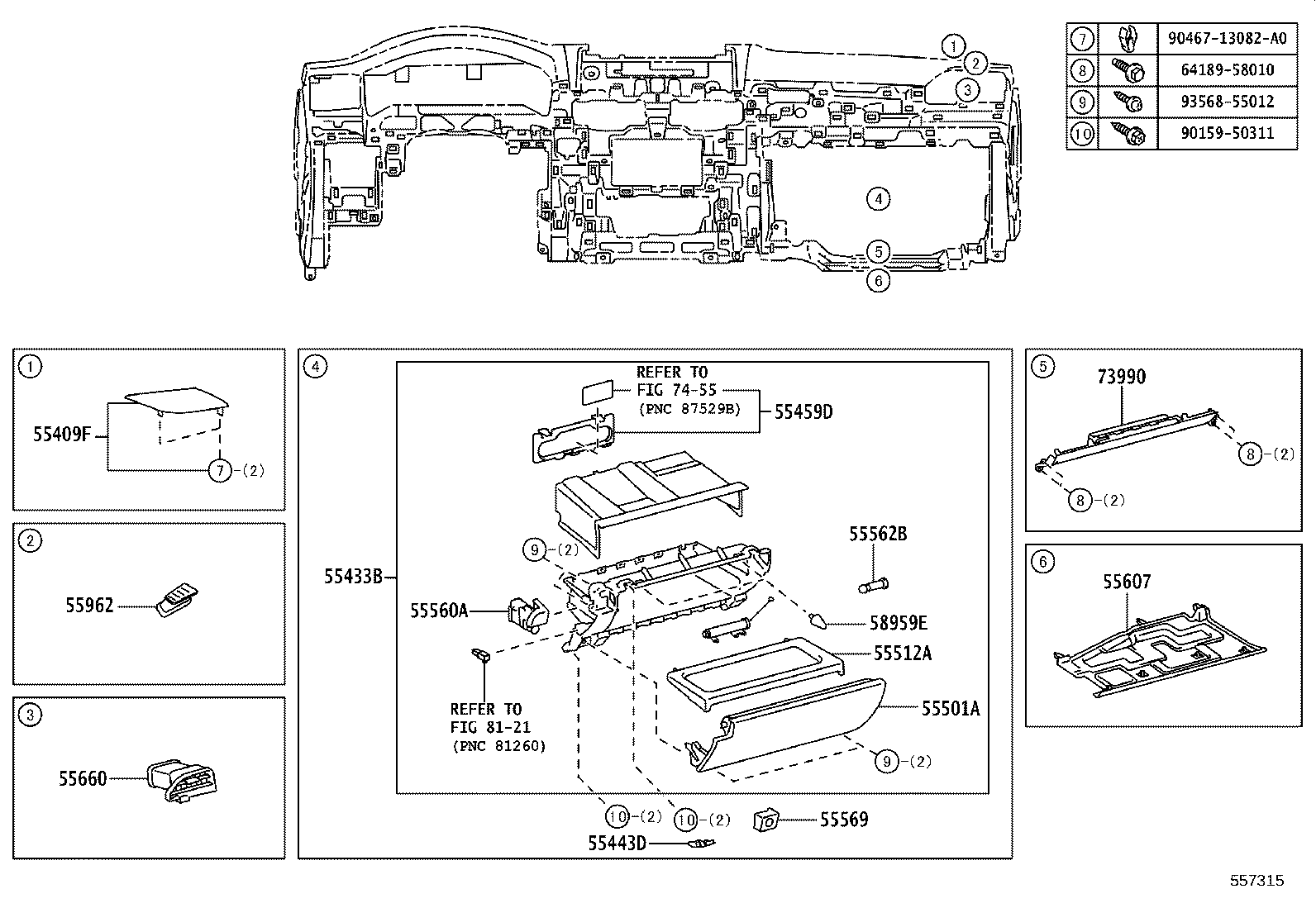

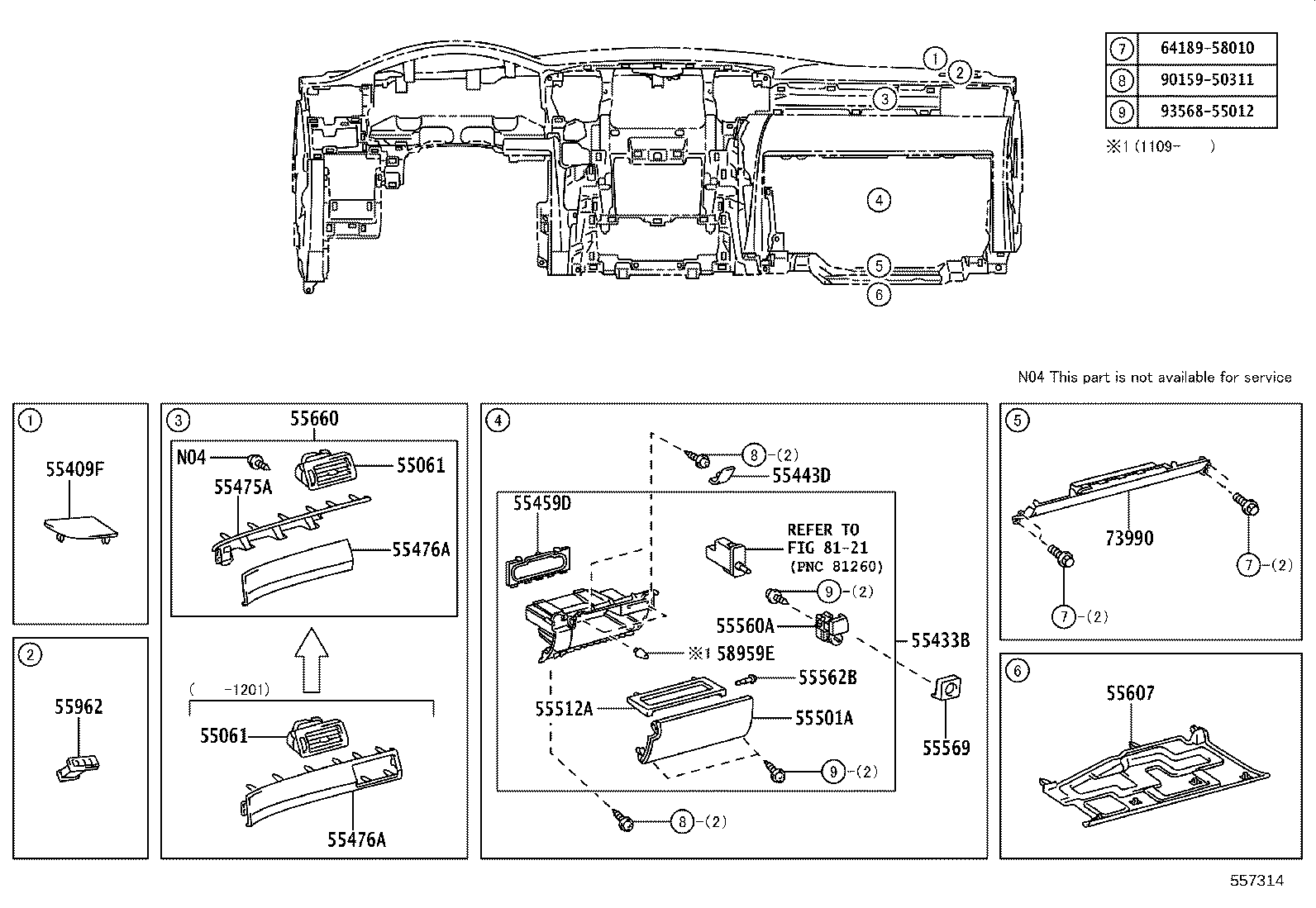

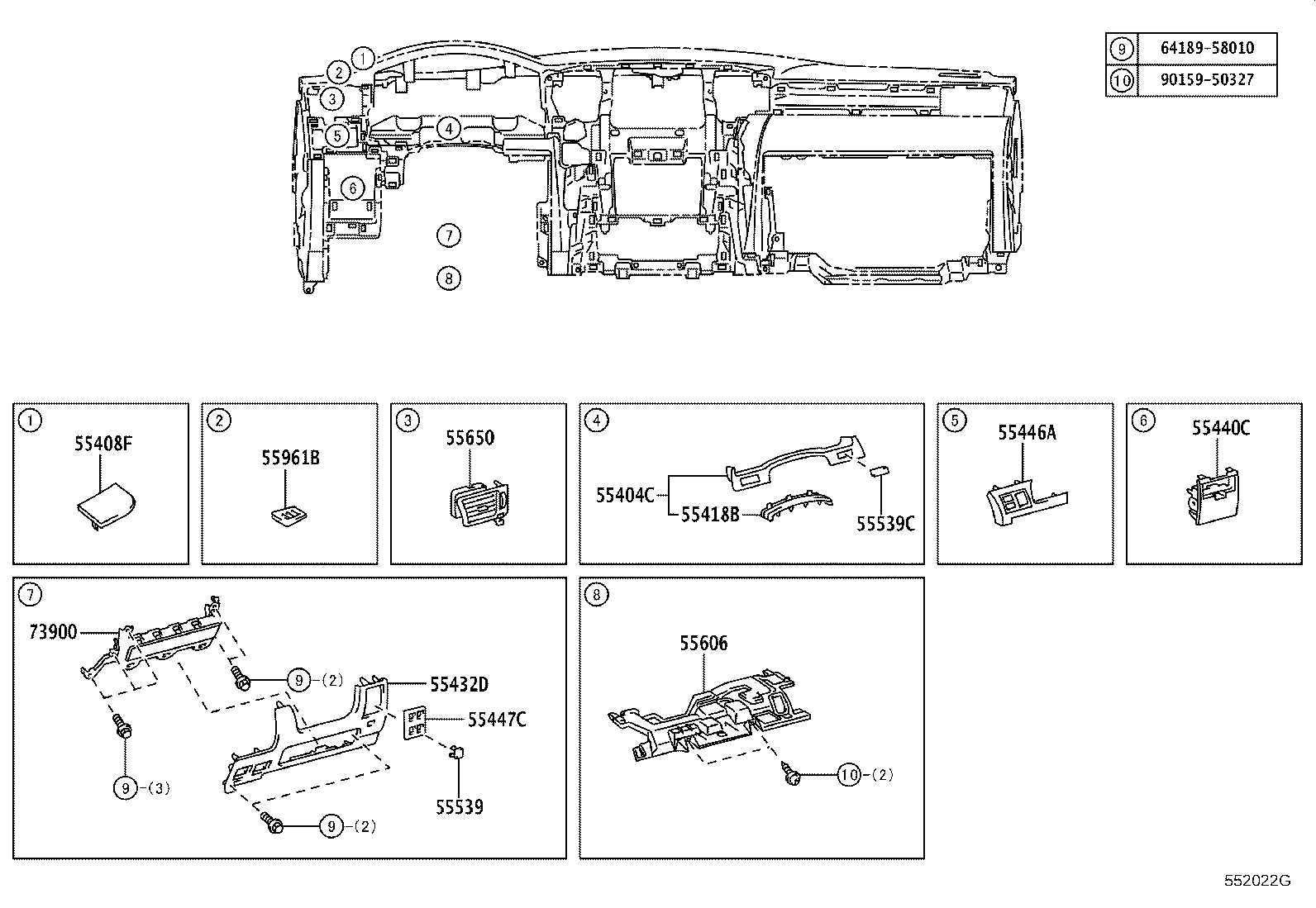

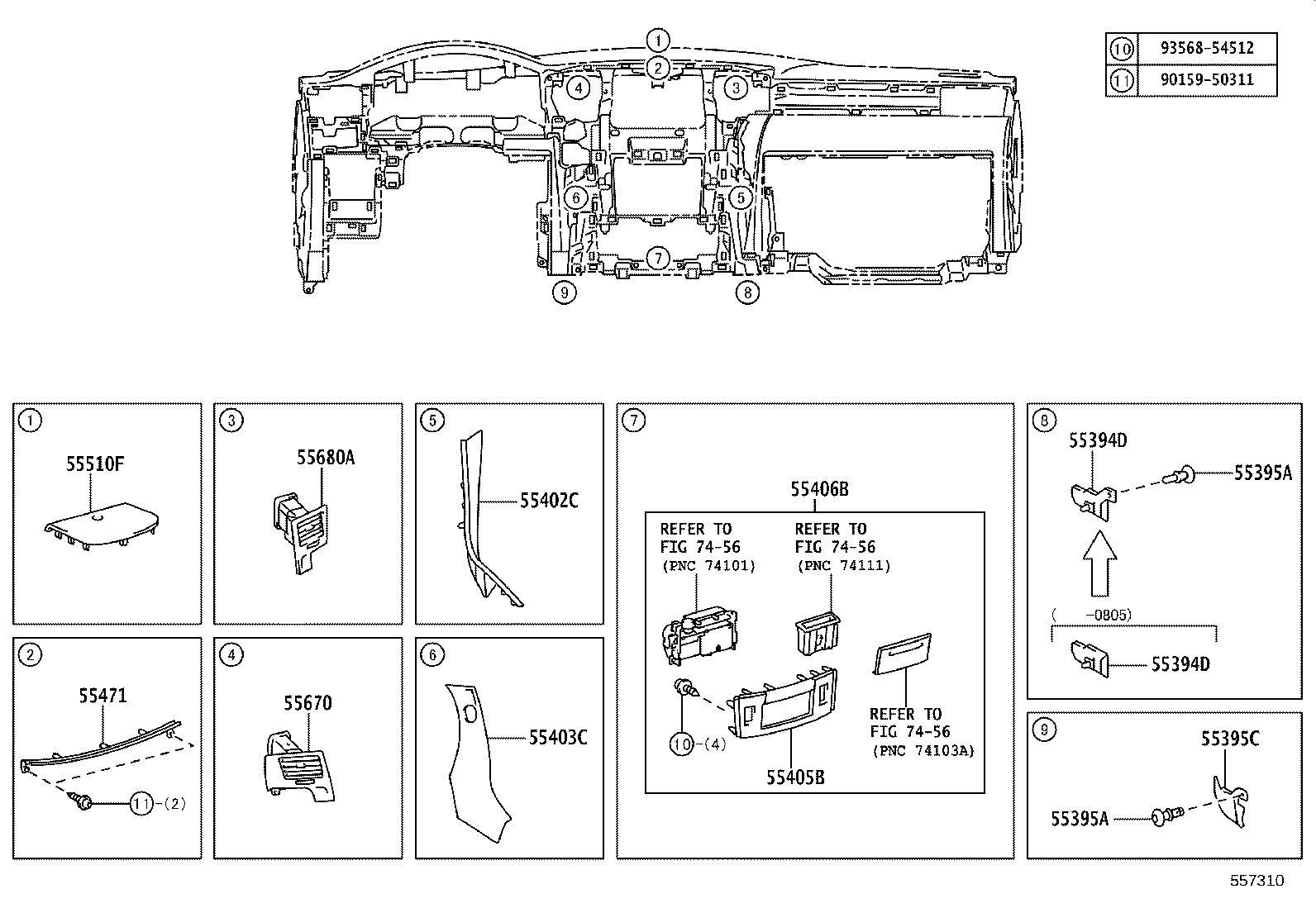

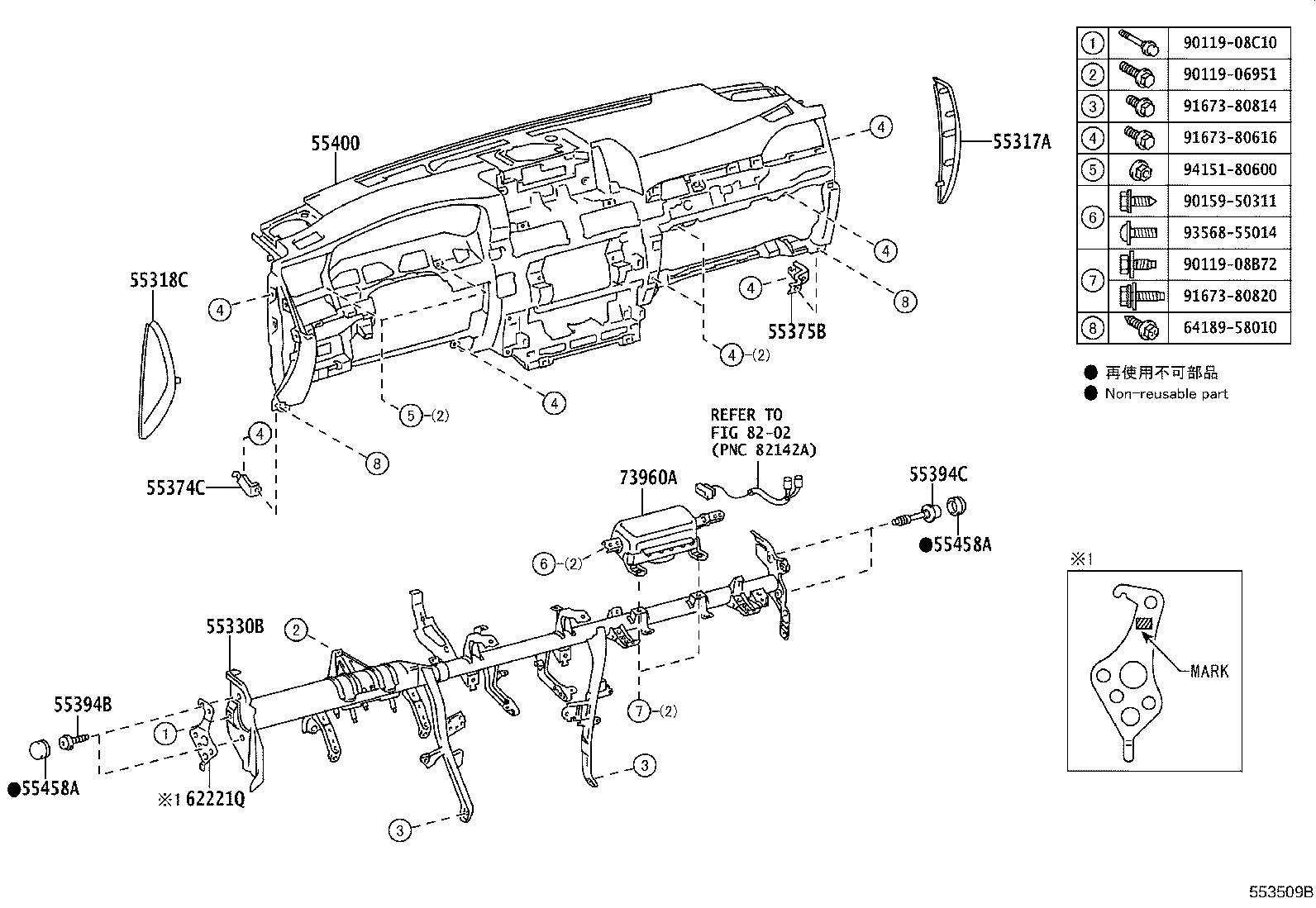

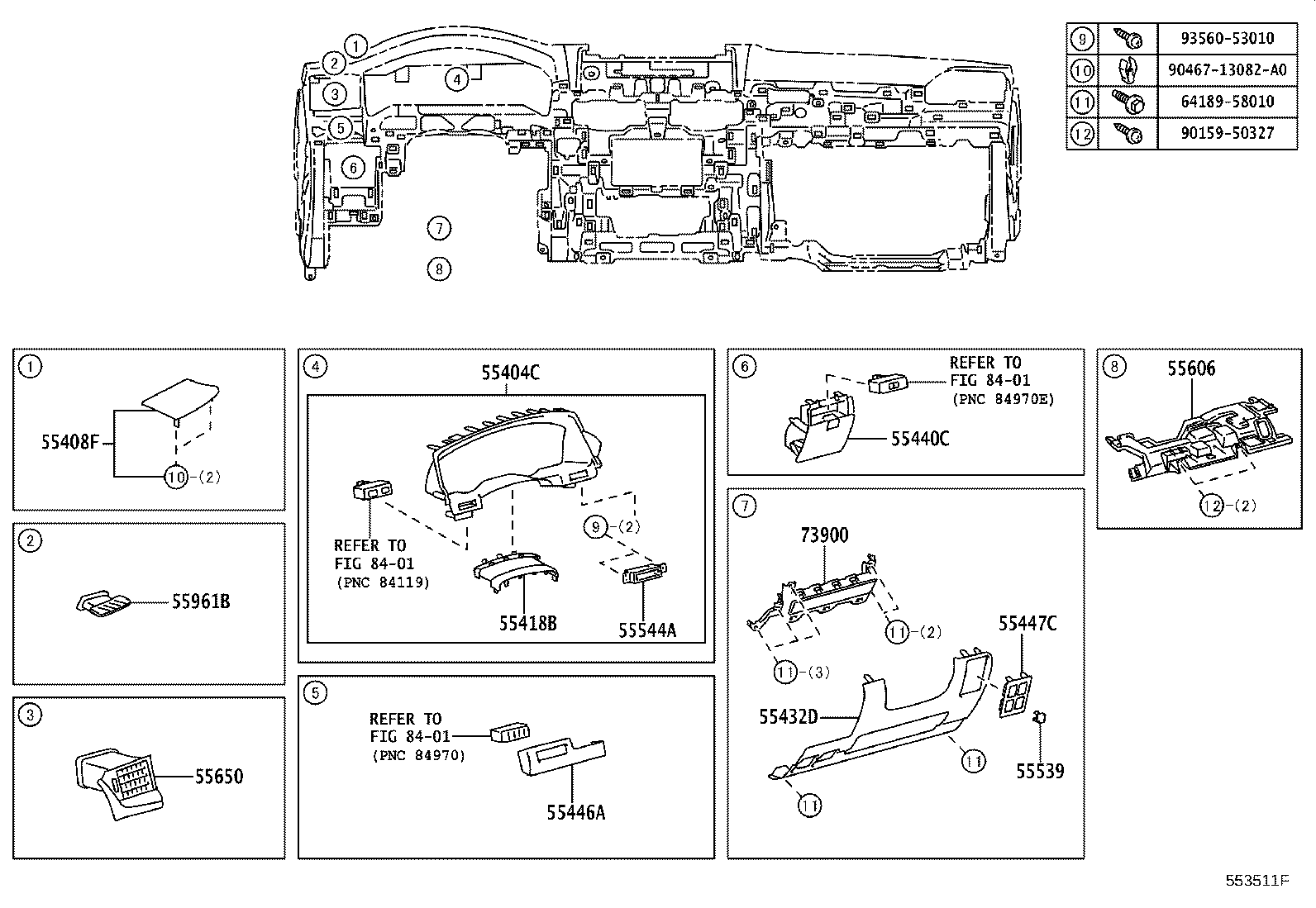

Figure 552024B 552024B 2007-11 → 2015-09 Figure 553509B 553509B 2015-09 → — Figure 552022G 552022G 2007-11 → 2015-09 Figure 553511F 553511F 2015-09 → — Figure 557310 557310 2007-11 → 2015-09 Figure 557311 557311 2015-09 → — Figure 557314 557314 2007-11 → 2015-09 Figure 557315 557315 2015-09 → —

Part groups

PNCDescription
55043B Moulding Sub-assy, Instrument Panel
55061 Register Sub-assy, Instrument Panel, NO.1
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55330B Reinforcement Assy, Instrument Panel
55374C Bracket, Instrument Panel Lower Mounting, NO.1
55375B Bracket, Instrument Panel Lower Mounting, NO.2
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55394D Cover, Instrument Panel Bracket, Inner NO.1 RH
55395A Retainer, Instrument Panel Clamp
55395C Cover, Instrument Panel Bracket, Inner NO.1 LH
55400 Pad Assy, Instrument Panel Safety
55402C Pad Sub-assy, Instrument Panel, Lower RH
55403C Pad Sub-assy, Instrument Panel, Lower LH
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55412C Panel, Instrument Cluster Finish, Center NO.1
55418B Spacer,Meter Hood
55432D Panel, Instrument Panel Finish, Lower NO.1
55433B Panel, Instrument Panel Finish, Lower NO.2
55440C Box Assy, Instrument Panel
55443D Knob, Instrument Panel Box Door
55446A Base, Switch Hole, NO.1
55447C Base, Switch Hole, NO.2
55458A Cap, Instrument Panel Safety Pad
55459D Cover, Instrument, Lower LH
55471 Moulding, Instrument Cluster, NO.1
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55476A Garnish, Instrument Cluster Finish Panel, NO.3
55501A Door Sub-assy, Glove Compartment
55510F Cover Assy, Speaker Opening, NO.1
55512A Plate, Glove Compartment
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55544A Retainer, Instrument Panel Hole Cover
55560A Lock Assy, Glove Compartment Door
55562B Pin, Glove Compartment Door Lock
55569 Cover, Glove Compartment Door Lock
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
55961B Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
58959E Cushion, Console Compartment Door
62221Q Spacer, Front Pillar, NO.1 RH
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
