Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08

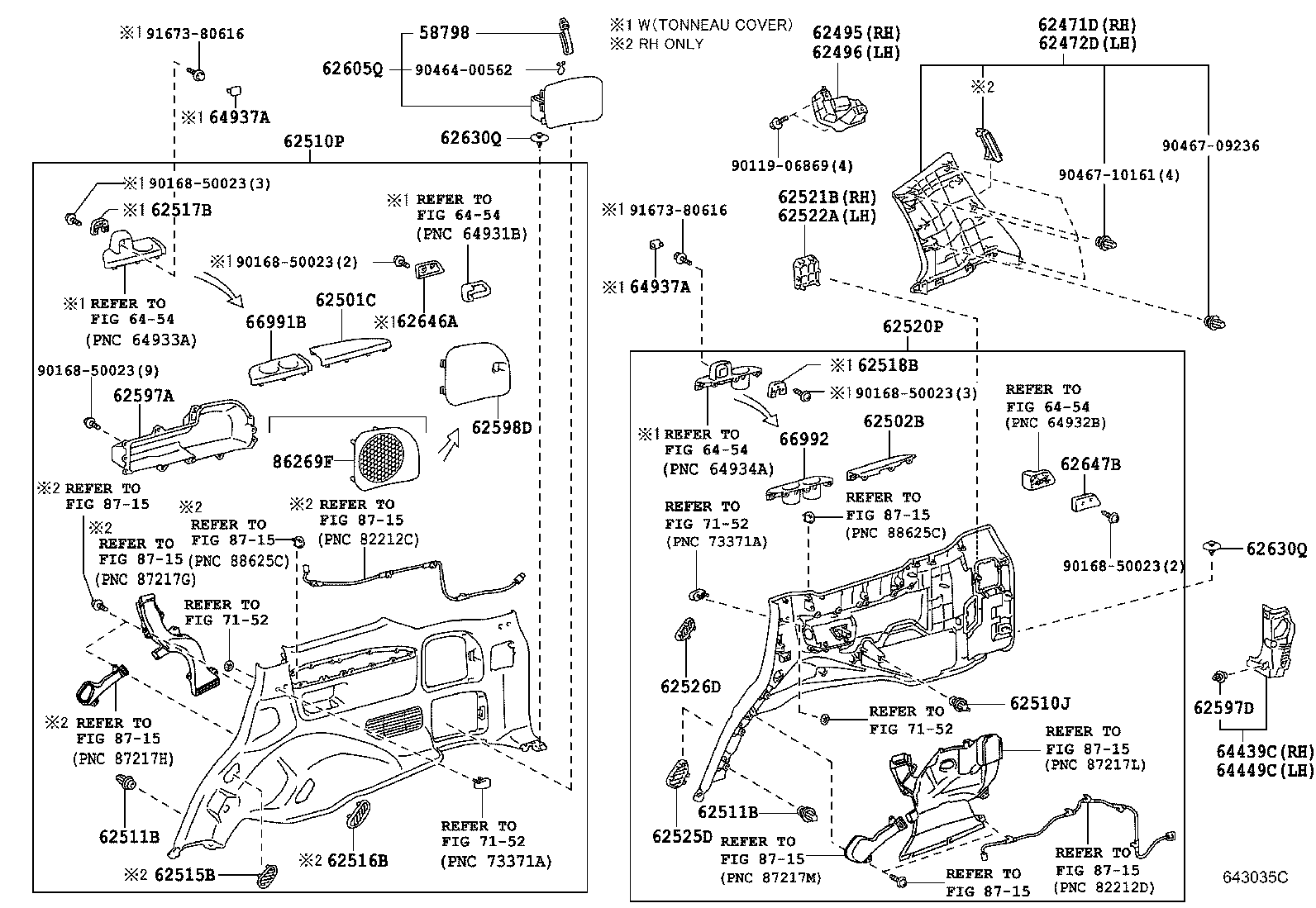

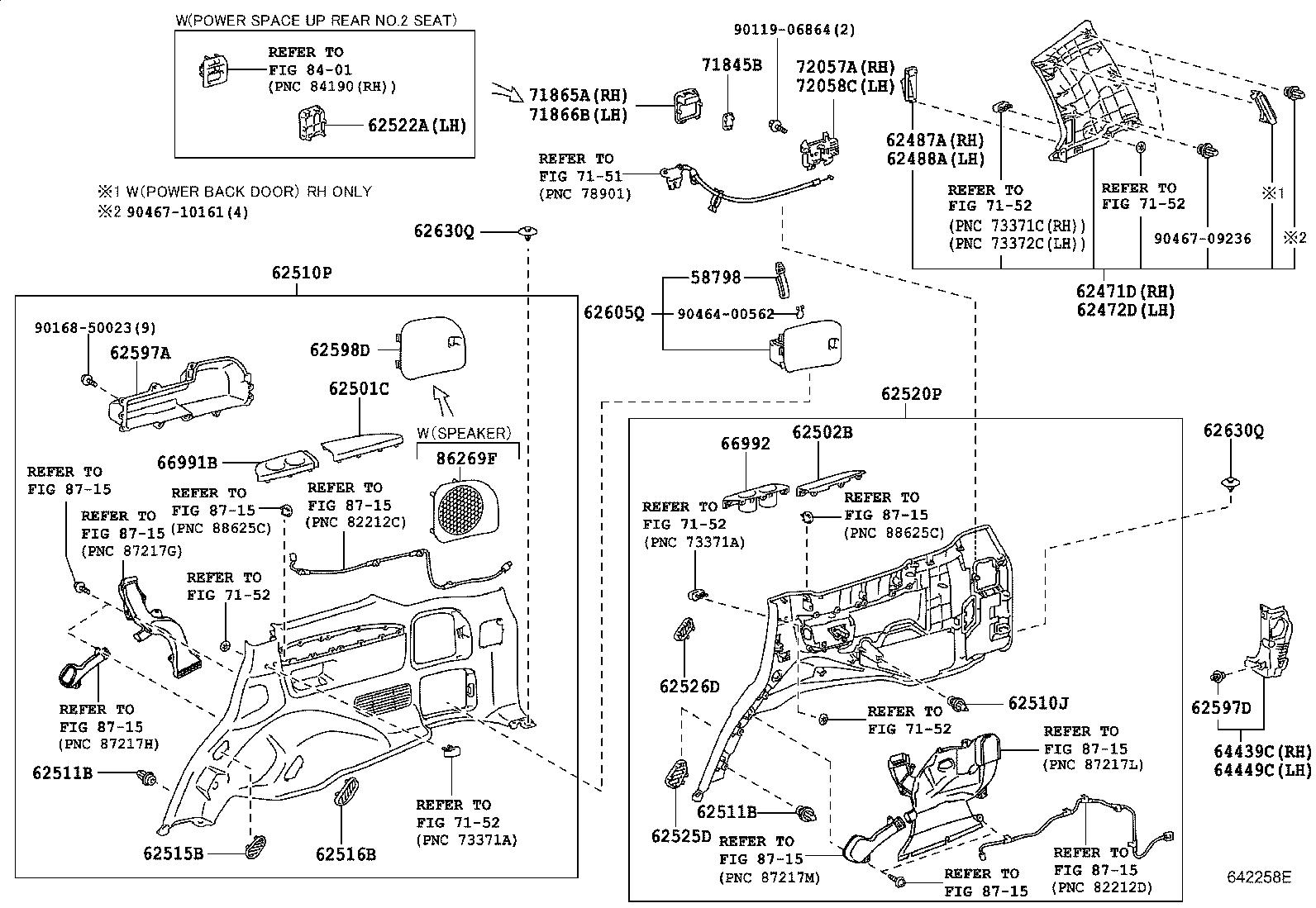

Inside Trim Board
79 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51775 | Cover,Rear Step |
| 58798 | Band, Jack Clamp,NO.2 |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62217H | Clip, Center Piller Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62421 | Cover, Center Pillar Garnish, RH |
| 62422 | Cover, Center Pillar Garnish, LH |
| 62431C | Garnish, Roof Side Rail, Front RH |
| 62432C | Garnish, Roof Side Rail, Front LH |
| 62471D | Garnish, Rear Pillar, Upper RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472D | Garnish, Rear Pillar, Upper LH |
| 62487A | Cover, Roof Side Inner Garnish, RH |
| 62488A | Cover, Roof Side Inner Garnish, LH |
| 62495 | Spacer, Roof Side Inner Garnish, RH |
| 62496 | Spacer, Roof Side Inner Garnish, LH |
| 62501C | Cover Sub-assy, Quarter Trim, RH |
| 62502B | Cover Sub-assy, Quarter Trim, LH |
| 62510J | Retainer, Quarter Trim |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62515B | Cover, Side Trim Base, NO.1 RH |
| 62516B | Cover, Side Trim Base, NO.2 RH |
| 62517B | Base, Quarter Trim, Front RH |
| 62518B | Base, Quarter Trim, Front LH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62521B | Cover, Quarter Trim, RH |
| 62522A | Cover, Quarter Trim, LH |
| 62525D | Cover, Side Trim Base, NO.1 LH |
| 62526D | Cover, Side Trim Base, NO.2 LH |
| 62566B | Clamp, Rocker Panel Inner Protecter, NO.1 |
| 62581F | Clip (FOR QUARTER PILLAR GARNISH) |
| 62597A | Box, Side Trim |
| 62597D | Clip |
| 62598D | Cover, Side Trim Box |
| 62605Q | Lid Sub-assy, Quarter Trim, RH |
| 62621E | Clip |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62638 | Garnish, Rear Quarter Trim, Front RH |
| 62639 | Garnish, Rear Quarter Trim, Front LH |
| 62646A | Base, Quarter Trim, Rear RH |
| 62647B | Base, Quarter Trim, Rear LH |
| 64439C | Cover, Luggage Room Box Side, RH |
| 64449C | Cover, Luggage Room Box Side, LH |
| 64937A | Cap, Tonneau Cover Holder, NO.1 |
| 66991B | Holder, Cup, NO.1 |
| 66992 | Holder, Cup, NO.2 |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918E | Plate, Rear Door Scuff, LH |
| 71845B | Cap, Rear Seat Cover, RH |
| 71865A | Bezel, Rear Seat Cover, NO.1 |
| 71866B | Bezel, Rear Seat Cover, NO.2 |
| 72057A | Lever Sub-assy, Rear Seat Lock Control, RH |
| 72058C | Lever Sub-assy, Rear Seat Lock Control, LH |
| 86269F | Grille, Speaker, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
