Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08

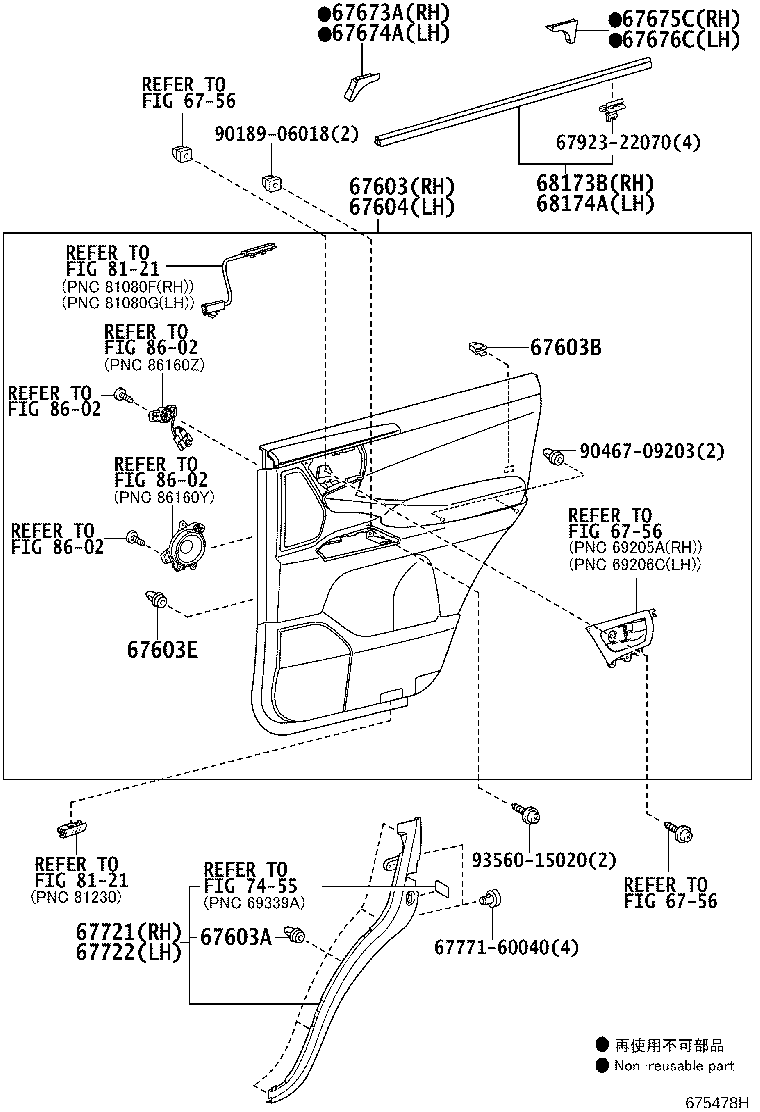

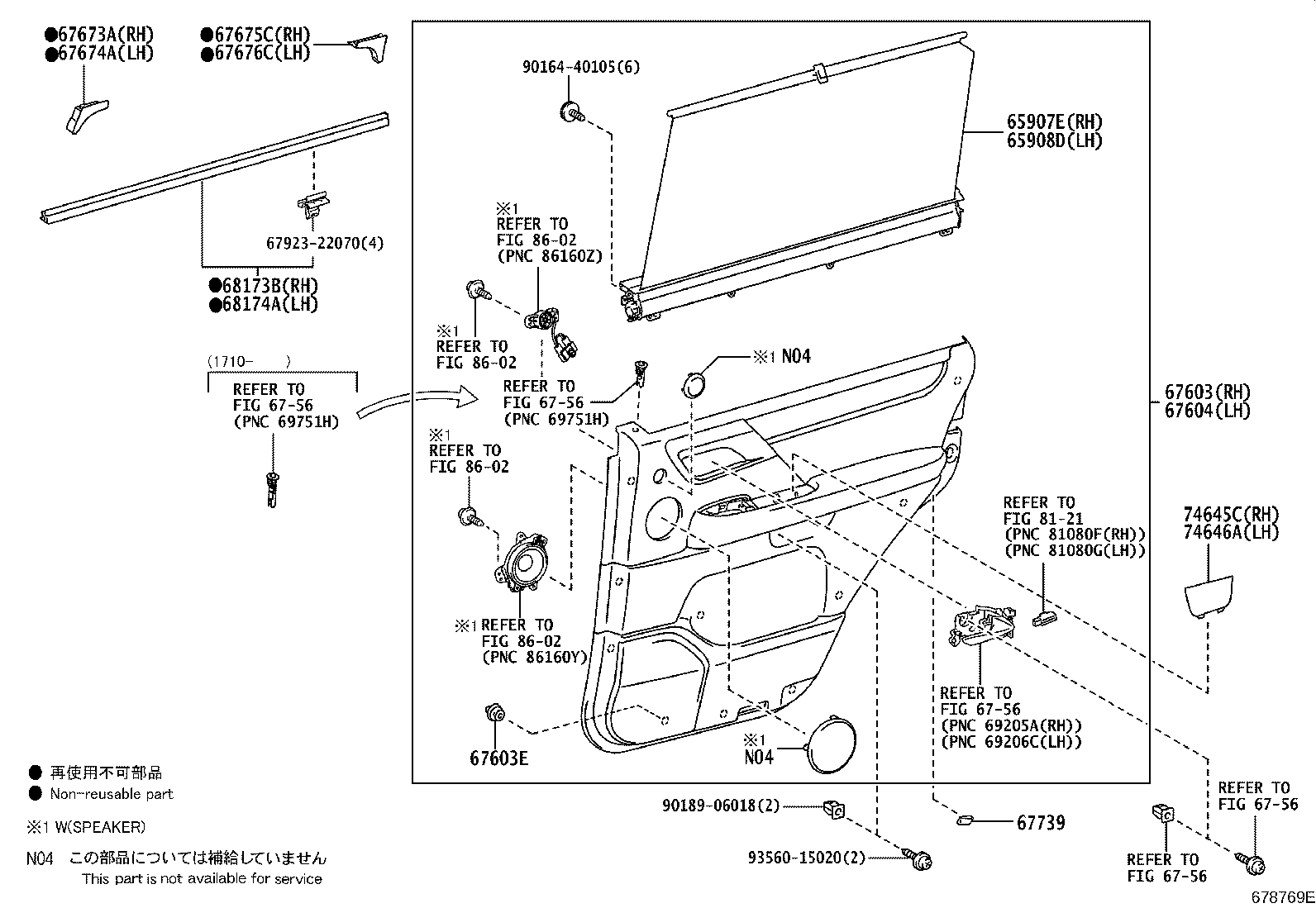

Rear Door Panel & Glass
55 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 65907E | Curtain Sub-assy, Rear RH |
| 65908D | Curtain Sub-assy, Rear LH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407F | Frame Sub-assy, Rear Door Window, Rear Lower RH |
| 67408F | Frame Sub-assy, Rear Door Window, Rear Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67675C | Garnish, Rear Door Frame, NO.2 RH |
| 67676C | Garnish, Rear Door Frame, NO.2 LH |
| 67721 | Cover, Rear Door Trim, RH |
| 67722 | Cover, Rear Door Trim, LH |
| 67739 | Cover, Rear Door Trim |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67845A | Sub-sheet, Rear Door Service Hole |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67895C | Weatherstrip, Rear Door, NO.3 RH |
| 67896 | Weatherstrip, Rear Door, NO.3 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124C | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68621C | Cover, Rear Door Check, RH |
| 68622A | Cover, Rear Door Check, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 74645C | Cover, Door Assist Grip, RH |
| 74646A | Cover, Door Assist Grip, LH |
| 75923C | Tape, Black Out, NO.2 RH |
| 75924C | Tape, Black Out, NO.2 LH |
| 75935A | Tape, Black Out, NO.6 RH |
| 75936A | Tape, Black Out, NO.6 LH |
| 75937A | Tape, Black Out, Inner Upper RH |
| 75938 | Tape, Black Out, Inner Upper LH |
| 75953A | Tape, Black Out, Inner Rear RH |
| 75954A | Tape, Black Out, Inner Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
