Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08

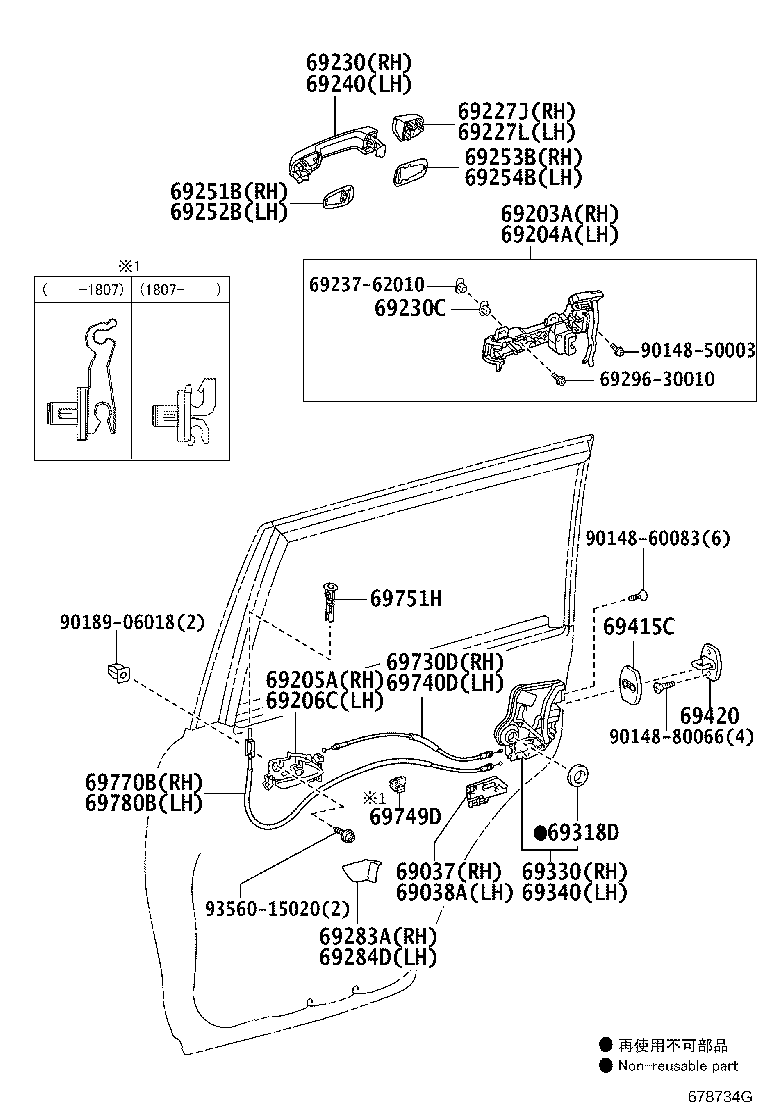

Rear Door Lock & Handle
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69037 | Cover Sub-assy, Rear Door Lock, RH |
| 69038A | Cover Sub-assy, Rear Door Lock, LH |
| 69203A | Frame Sub-assy, Rear Door Outside Handle, RH |
| 69204A | Frame Sub-assy, Rear Door Outside Handle, LH |
| 69205A | Handle Sub-assy, Rear Door Inside, RH |
| 69206C | Handle Sub-assy, Rear Door Inside, LH |
| 69227J | Cover, Rear Door Outside Handle, RH |
| 69227L | Cover, Rear Door Outside Handle, LH |
| 69230 | Handle Assy, Rear Door Outside, RH |
| 69230C | Bush(FOR REAR DOOR OUTSIDE HANDLE) |
| 69240 | Handle Assy, Rear Door Outside, LH |
| 69251B | Pad, Rear Door Outside Handle, NO.1 RH |
| 69252B | Pad, Rear Door Outside Handle, NO.1 LH |
| 69253B | Pad, Rear Door Outside Handle, NO.2 RH |
| 69254B | Pad, Rear Door Outside Handle, NO.2 LH |
| 69283A | Plug, Rear Door Inside Handle Bezel, RH |
| 69284D | Plug, Rear Door Inside Handle Bezel, LH |
| 69318D | Seal, Door Lock Wiring Harness |
| 69330 | Lock Assy, Rear Door, RH |
| 69340 | Lock Assy, Rear Door, LH |
| 69415C | Cover, Door Lock Striker, Rear |
| 69420 | Plate Assy, Rear Door Lock Striker |
| 69730D | Cable Assy, Rear Door Lock Remote Control, RH |
| 69740D | Cable Assy, Rear Door Lock Remote Control LH |
| 69749D | Clamp, Slide Door Lock Link |
| 69751H | Holder, Rear Door Lock Contral Knob |
| 69770B | Cable Assy, Rear Door Inside Locking, RH |
| 69780B | Cable Assy, Rear Door Inside Locking, LH |
| 89743E | Bracket, Electrical Key Wire Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
