Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08

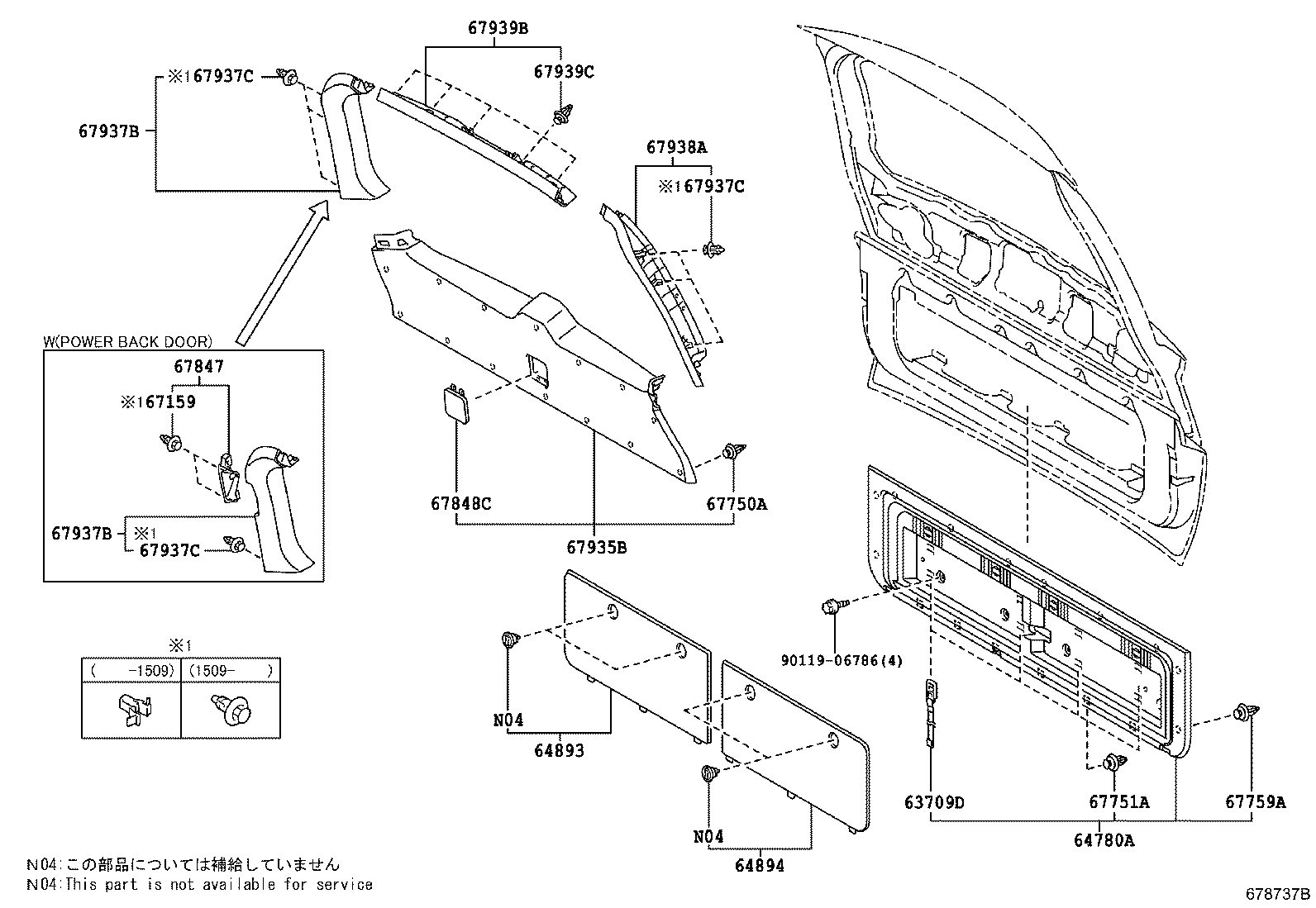

Back Door Panel & Glass
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63709D | Band Sub-assy, Room Rack |
| 64780A | Panel Assy, Back Door Trim |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819B | Spacer, Back Window Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 64885C | Channel, Back Door Glass, RH |
| 64886B | Channel, Back Door Glass, LH |
| 64893 | Cover, Back Door Trim, Upper, RH |
| 64894 | Cover, Back Door Trim, Upper, LH |
| 65061 | Panel Sub-assy, Tail Gate |
| 67005 | Panel Sub-assy, Back Door |
| 67159 | Retainer, Back Door Trim |
| 67395A | Protector, Back Door, Lower |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67759A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67837L | Seal, Door Dust Proof |
| 67847 | Cover, Back Door Service Hole, RH |
| 67848C | Cover, Back Door Service Hole, NO.2 |
| 67868J | Retainer, Door Weatherstrip |
| 67881A | Weatherstrip, Back Door |
| 67935B | Garnish, Back Door |
| 67935C | Garnish, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68281B | Weatherstrip, Lift Gate |
| 68294B | Dam, Back Door Glass Adhesive |
| 75573C | Moulding, Back Window, Outside |
| 75574B | Moulding, Back Window, Outside LH |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76802C | Garnish Sub-assy, Back Door, Outside NO.2 |
| 76817 | Clip, Back Door Outside Garnish |
| 76827A | Retainer, Back Door Garnish, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
