Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

27 part groups · 3 illustrations

Illustrations

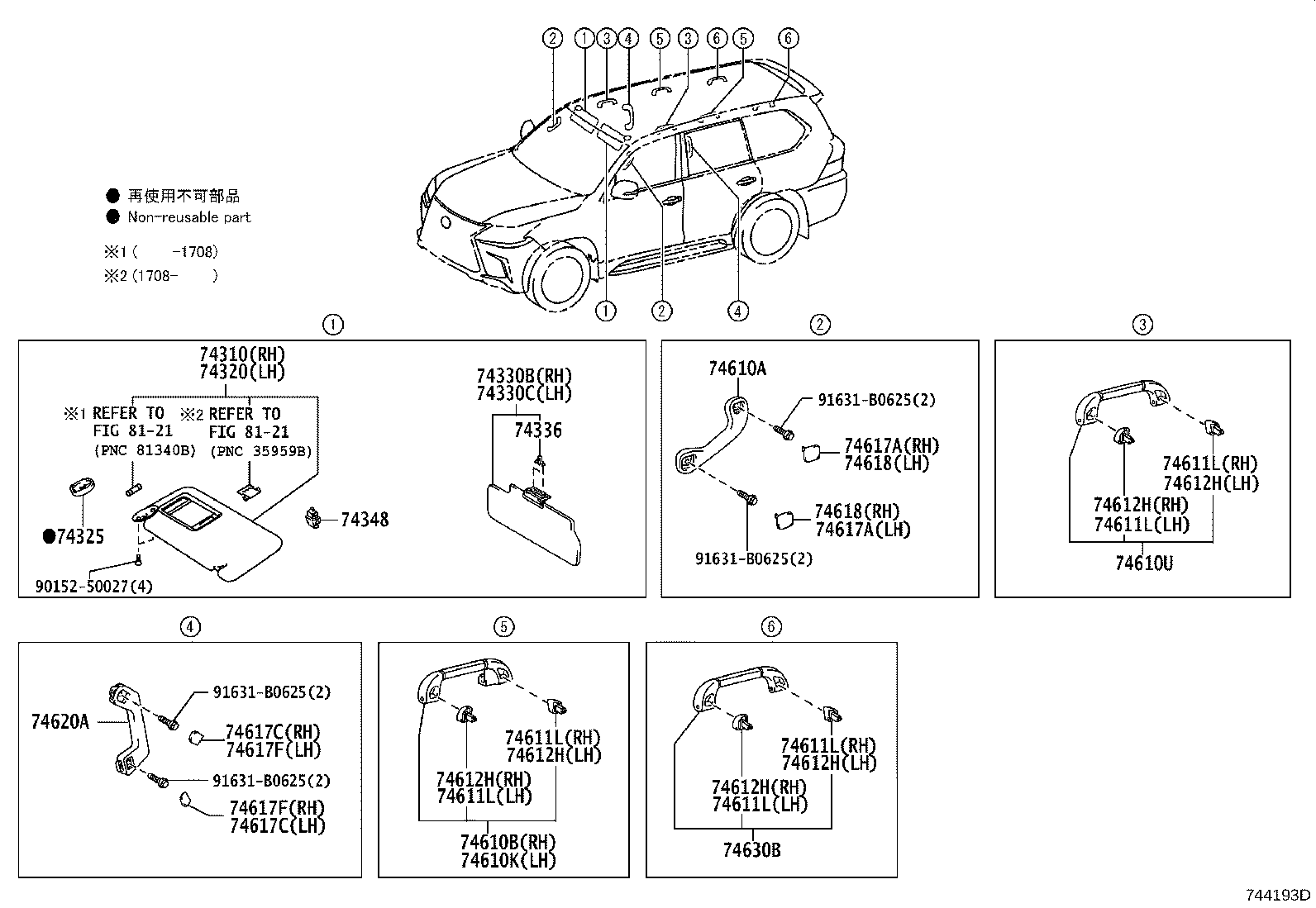

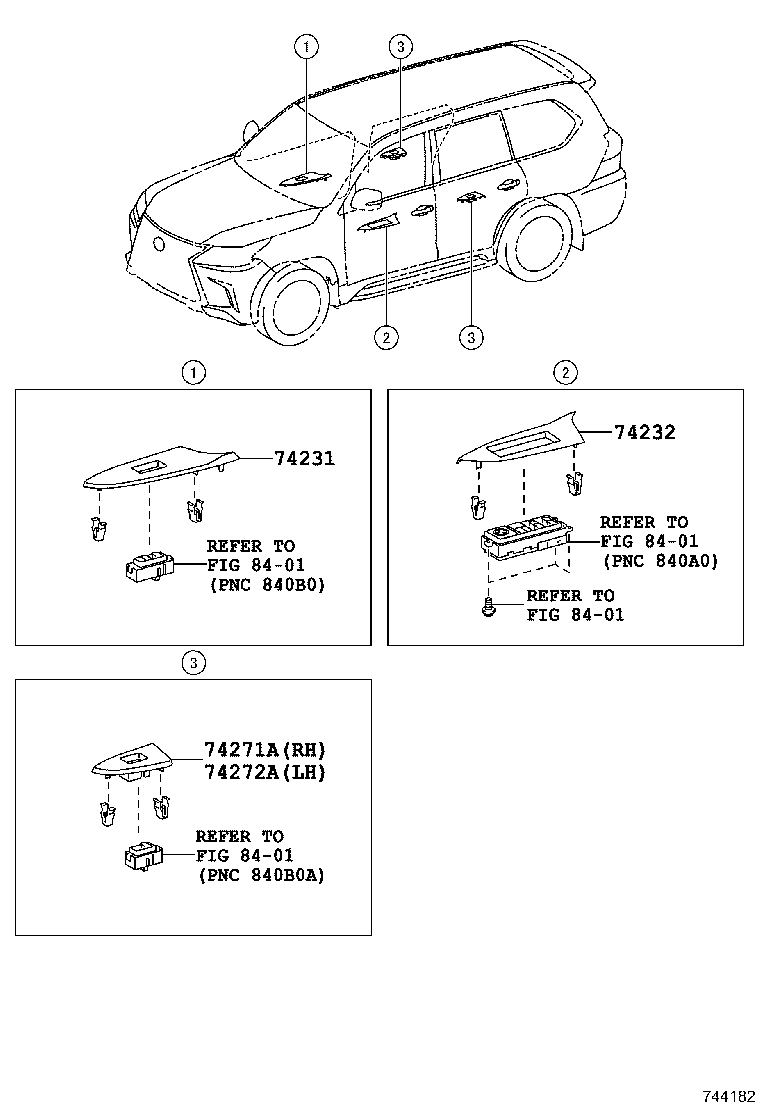

Figure 742455C 742455C 2007-11 → 2015-09 Figure 744182 744182 2015-09 → — Figure 744193D 744193D 2007-11 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74233A Panel, Front Door Armrest Base, Lower RH
74234A Panel, Front Door Armrest Base, Lower LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74273A Panel, Rear Door Armrest Base, Lower RH
74274A Panel, Rear Door Armrest Base, Lower LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74330B Visor Assy, RH
74330C Visor Assy, LH
74336 Clip, Visor Arm Set
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74610B Grip Assy, Assist, NO.2 RH
74610K Grip Assy, Assist, NO.2 LH
74610U Grip Assy, Assist
74611L Cover, Assist Grip, RH Rear Side
74612H Cover, Assist Grip, LH Rear Side
74617A Plug, Assist Grip
74617C Plug, Assist Grip
74617F Plug, Assist Grip
74618 Plug, Front Assist Grip
74620A Grip Assy, Assist, Rear
74630B Grip Assy, Assist (FOR 3RD SEAT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
