Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08

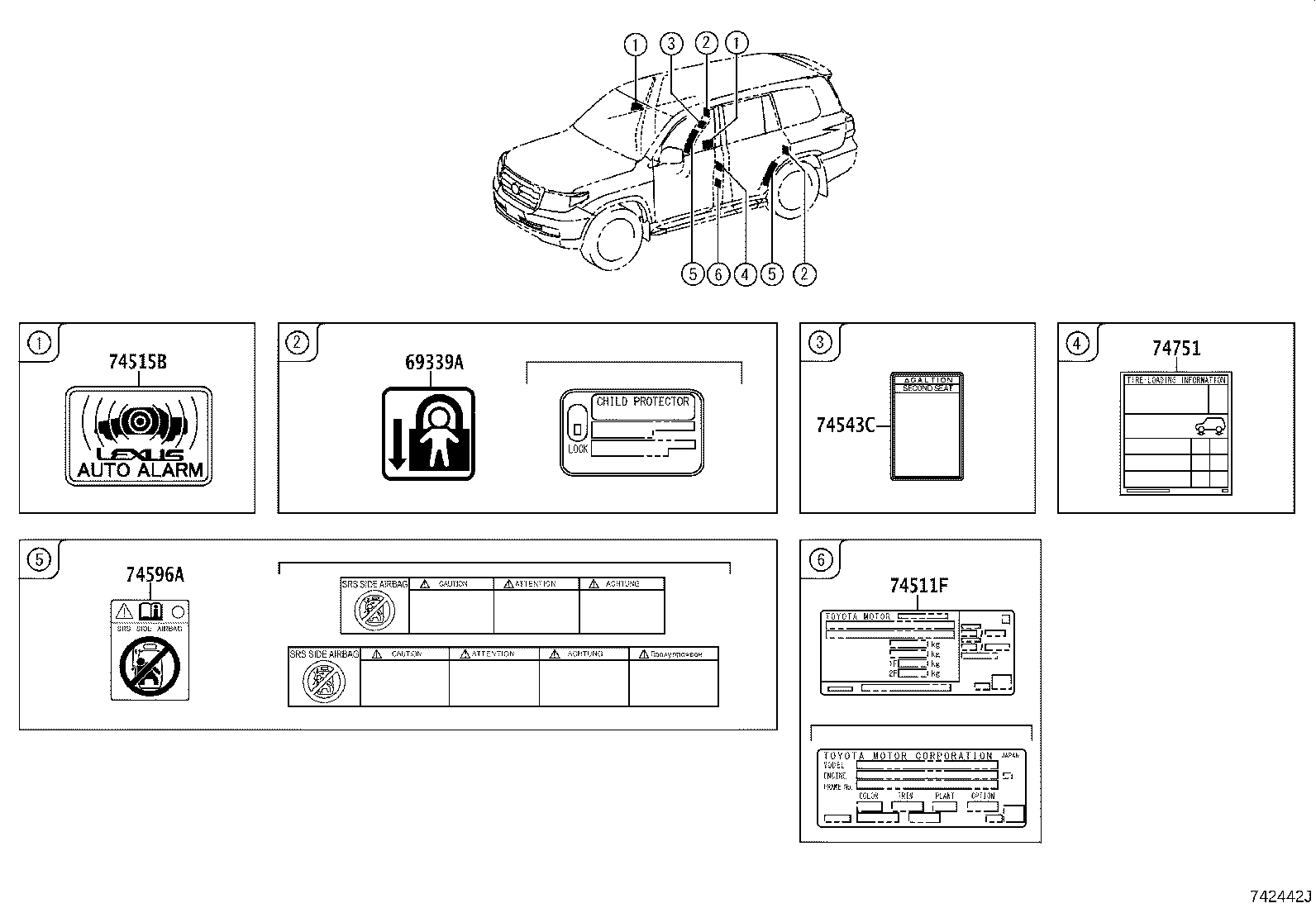

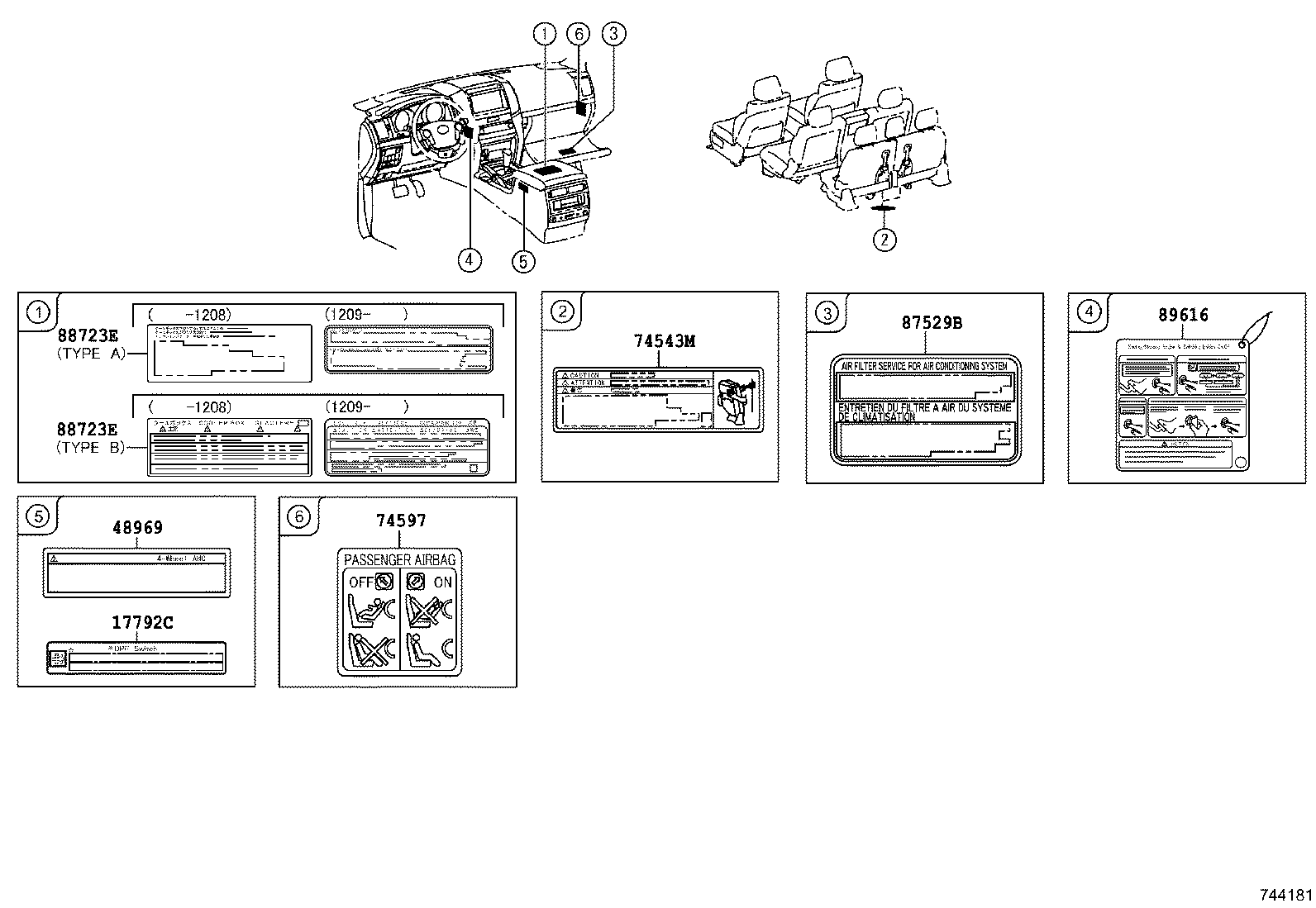

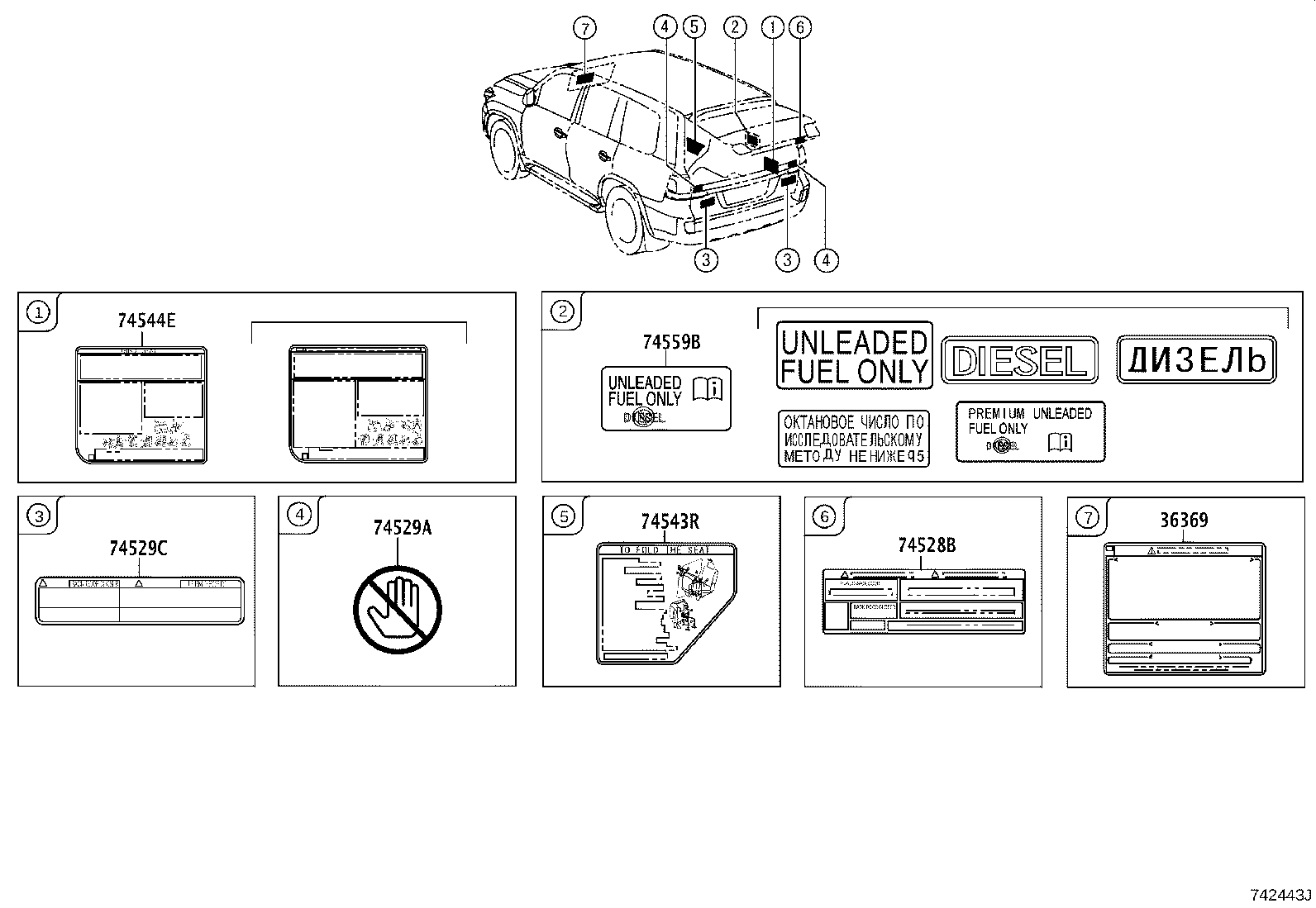

Caution Plate
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11291B | Plate, Engine Name |
| 17792C | Label, Engine Vacuum Hose Information |
| 28897A | Plate, Battery Caution |
| 36369 | Label, Transfer Information |
| 45248A | Label, Steering Actuator Caution |
| 48969 | Label, Jack UP Caution |
| 69339A | Plate, Child Protector Lock Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515B | Plate, Theft Warning |
| 74528B | Label, Back Door Caution |
| 74529A | Plate, Back Door Caution |
| 74529C | Plate, Back Door Caution |
| 74543C | Label, Rear Seat Information |
| 74543M | Label, Rear Seat Caution, NO.2 |
| 74543R | Label, Rear Seat Caution |
| 74544E | Label, Rear NO.2 Seat Information |
| 74559B | Label, Fuel Information |
| 74567A | Plate, E.C.E Approved Number |
| 74596A | Label, Side Airbag Caution |
| 74597 | Label, Driver & Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 88723H | Label, Cooler Service Caution |
| 89616 | Label, Push Start Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
