Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

34 part groups · 3 illustrations

Illustrations

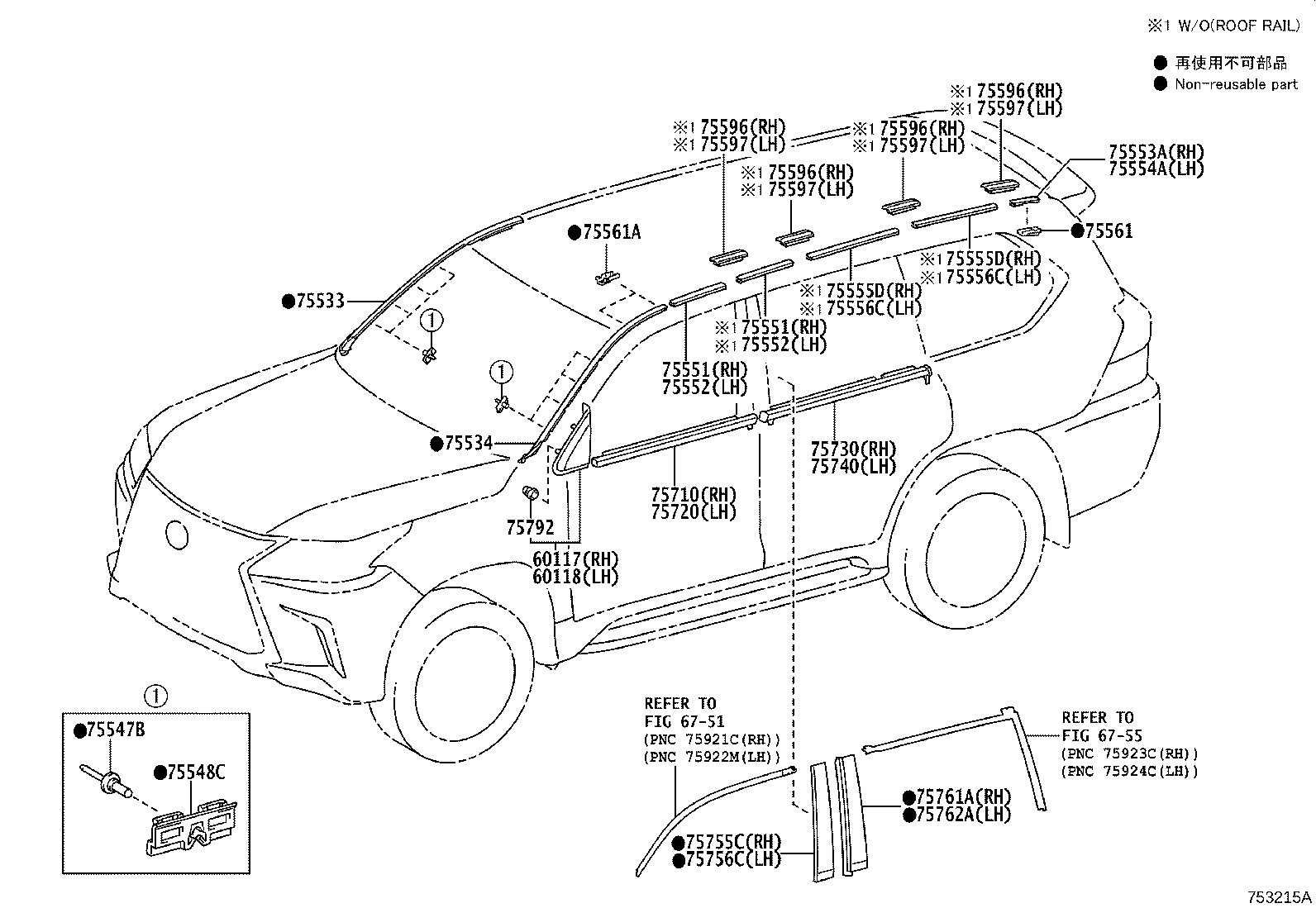

Figure 752014E 752014E 2007-11 → 2015-09 Figure 752647A 752647A 2012-01 → 2015-09 Figure 753215A 753215A 2015-09 → —

Part groups

PNCDescription
60117 Cover Sub-assy, Front Pillar, Upr RH
60118 Cover Sub-assy, Front Pillar, Upr LH
75071A Moulding Sub-assy, Front Door, Outside RH
75072A Moulding Sub-assy, Front Door, Outside LH
75075 Moulding Sub-assy, Rear Door, Outside RH
75076 Moulding Sub-assy, Rear Door, Outside LH
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75547B Clip, Windshield Outside Moulding, NO.3
75548C Pad, Windshield Moulding, NO.4
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75553A Moulding, Roof Drip Side Finish, Rear RH
75554A Moulding, Roof Drip Side Finish, Rear LH
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75561A Clip, Roof Drip Side Finish Moulding
75596 Cover, Roof Drip Side Finish Moulding Joint, RH
75597 Cover, Roof Drip Side Finish Moulding Joint, LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75740 Moulding Assy, Rear Door Belt, LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75761A Moulding, Rear Door Window Frame, Front RH
75762A Moulding, Rear Door Window Frame, Front LH
75787A Pad, Front Door Outside Moulding, RH
75788A Pad, Front Door Outside Moulding, LH
75792 Clip, Door Window Frame Moulding
75793 Pad, Front Door Outside Moulding, Upper
75797C Pad, Rear Door Outside Moulding, Upper
75798B Pad, Rear Door Outside Moulding, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
