Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08

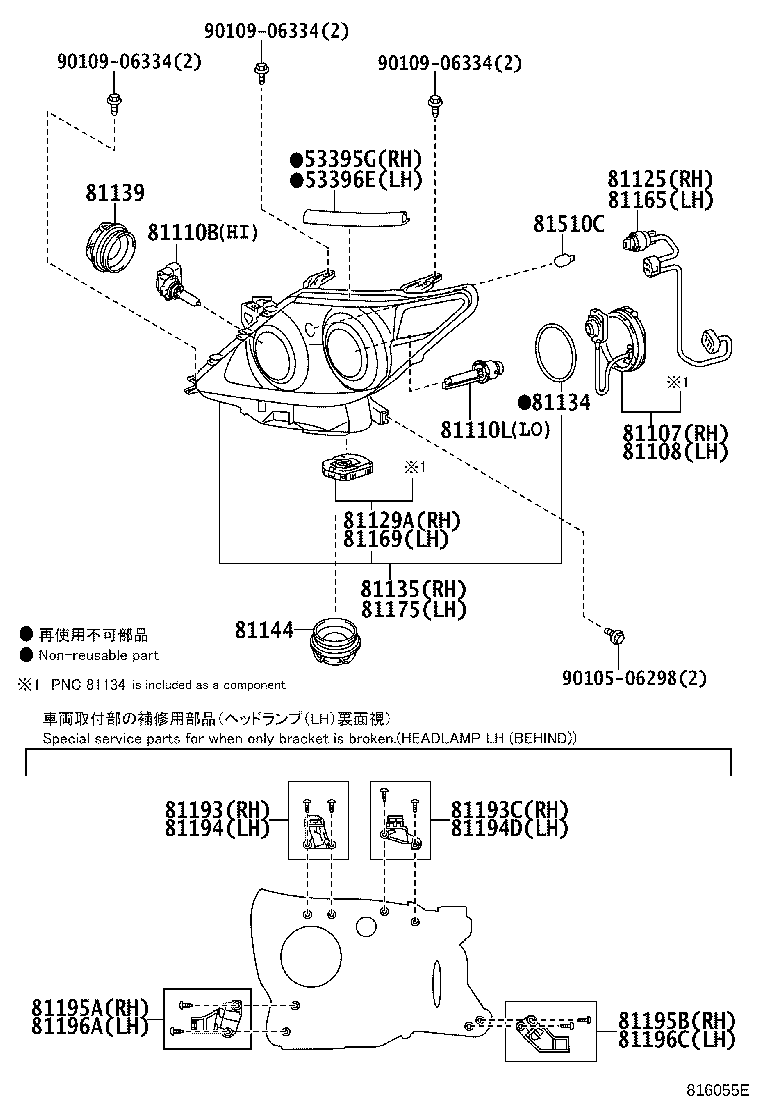

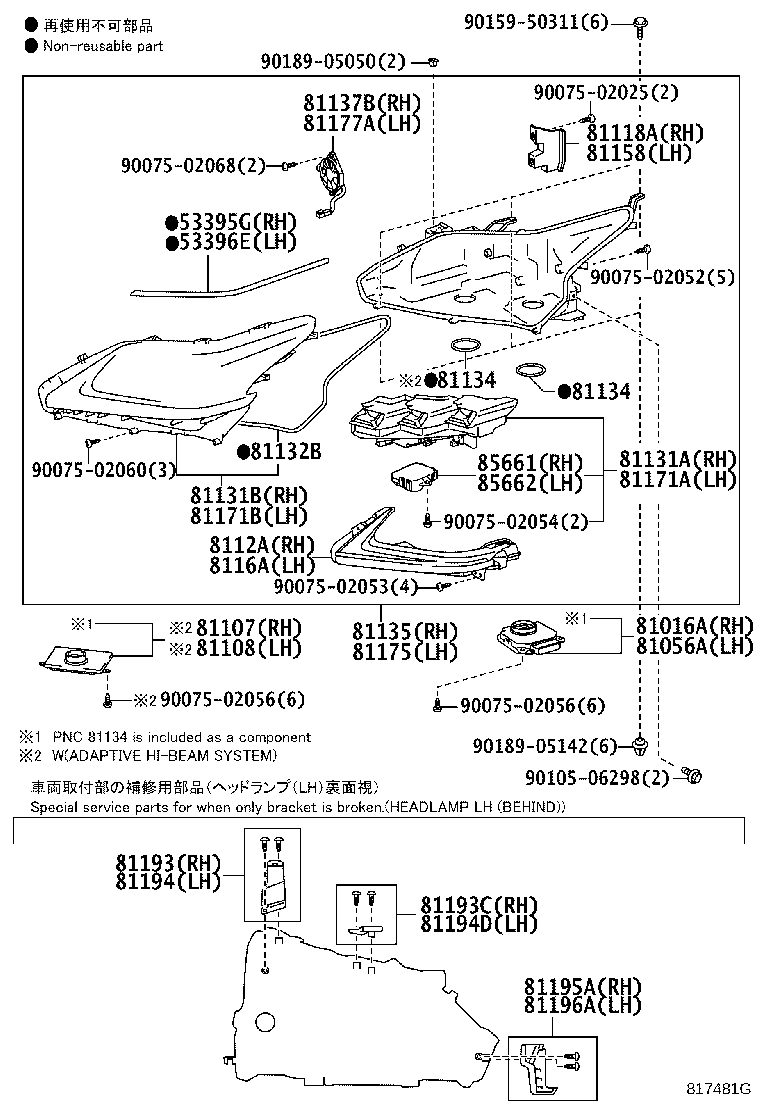

Headlamp

41 part groups · 3 illustrations

PNC	Description
53395G	Seal, Hood TO Front End Panel
53396E	Seal, Hood TO Front End Panel, NO.2
81016A	Computer Sub-assy, Headlamp, RH
81056A	Computer Sub-assy, Headlamp, LH
81107	Computer Sub-assy, Headlamp Light Control, RH
81108	Computer Sub-assy, Headlamp Light Control, LH
81110B	Bulb(FOR HEADLAMP, NO.1)
81110L	Bulb, Discharge Headlamp
81118A	Bracket, Headlamp, RH
81125	Cord, Headlamp
81129A	Reflector, Headlamp, RH
8112A	Unit, Headlamp Clearance Led, NO.1 RH
81131A	Unit, Headlamp, RH
81131B	Head Lamp Lens, RH
81132B	Gasket, Headlamp Lens
81134	Gasket, Headlamp
81135	Unit Assy, Headlamp, RH
81137B	Fan, Headlamp, RH
81139	Cover, Headlamp Socket
81144	Cover, Headlamp, NO.1
81158	Bracket, Headlamp, LH
81165	Cord, Headlamp, LH
81169	Reflector, Headlamp, LH
8116A	Unit, Headlamp Clearance Led, NO.1 LH
81171A	Unit, Headlamp, LH
81171B	Head Lamp Lens, LH
81175	Unit Assy, Headlamp, LH
81177A	Fan, Headlamp, LH
81193	Retainer, Headlamp Protector, Upper RH
81193C	Retainer, RH Headlamp Protector, Upper RH
81194	Retainer, Headlamp Protector, Upper LH
81194D	Retainer, LH Headlamp Protector, Upper LH
81195A	Retainer, Headlamp Protector, Lower RH
81195B	Retainer, RH Headlamp Protector, Lower RH
81196A	Retainer, Headlamp Protector, Lower LH
81196C	Retainer, LH Headlamp Protector, Lower LH
81510C	Bulb (FOR FRONT TURN SIGNAL LAMP)
81610F	Bulb(FOR CLEARANCE LAMP)
85661	Motor, Headlamp Leveling, RH
85662	Motor, Headlamp Leveling, LH
85669	Packing, Headlamp Leveling Motor Base

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
