Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08

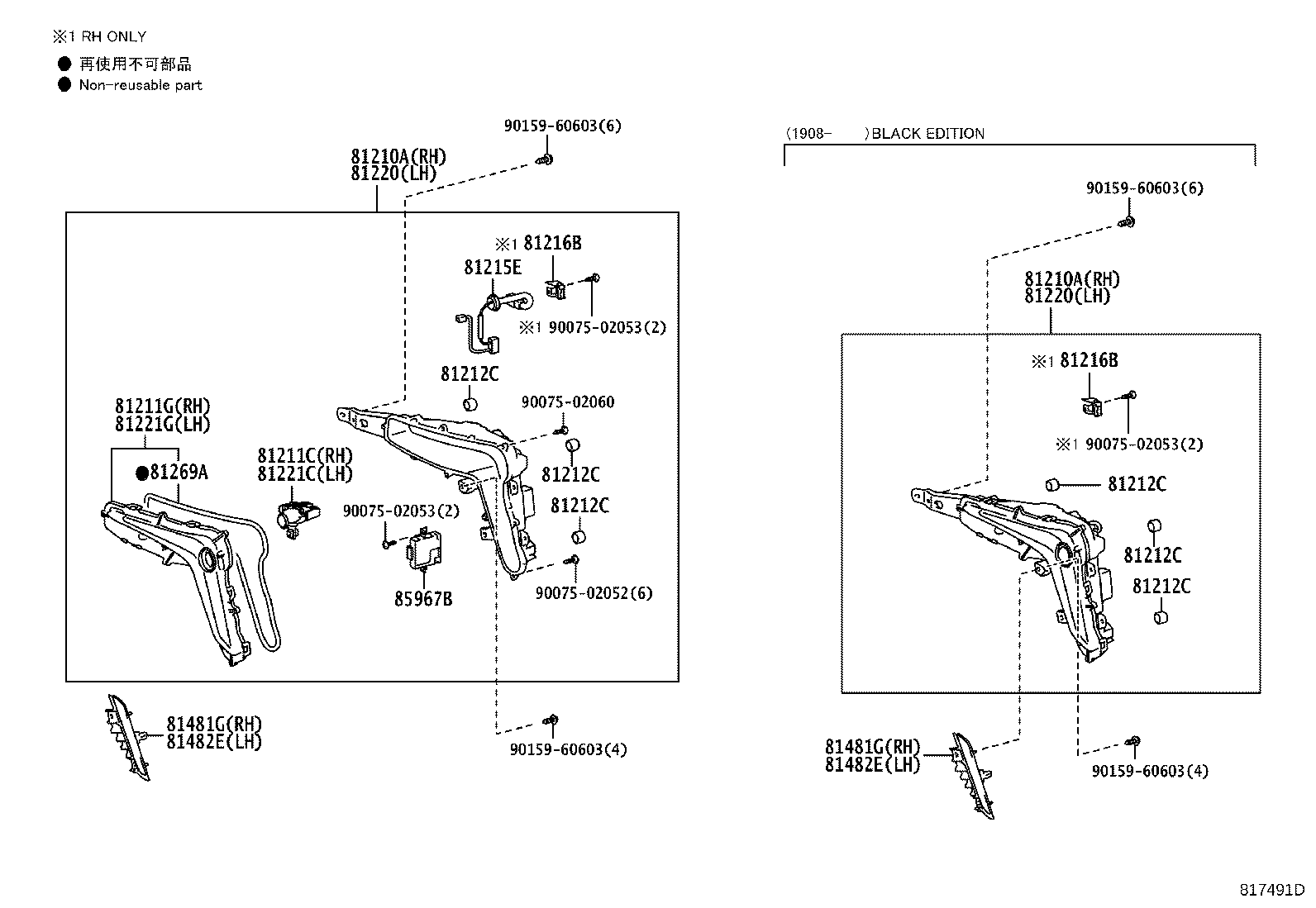

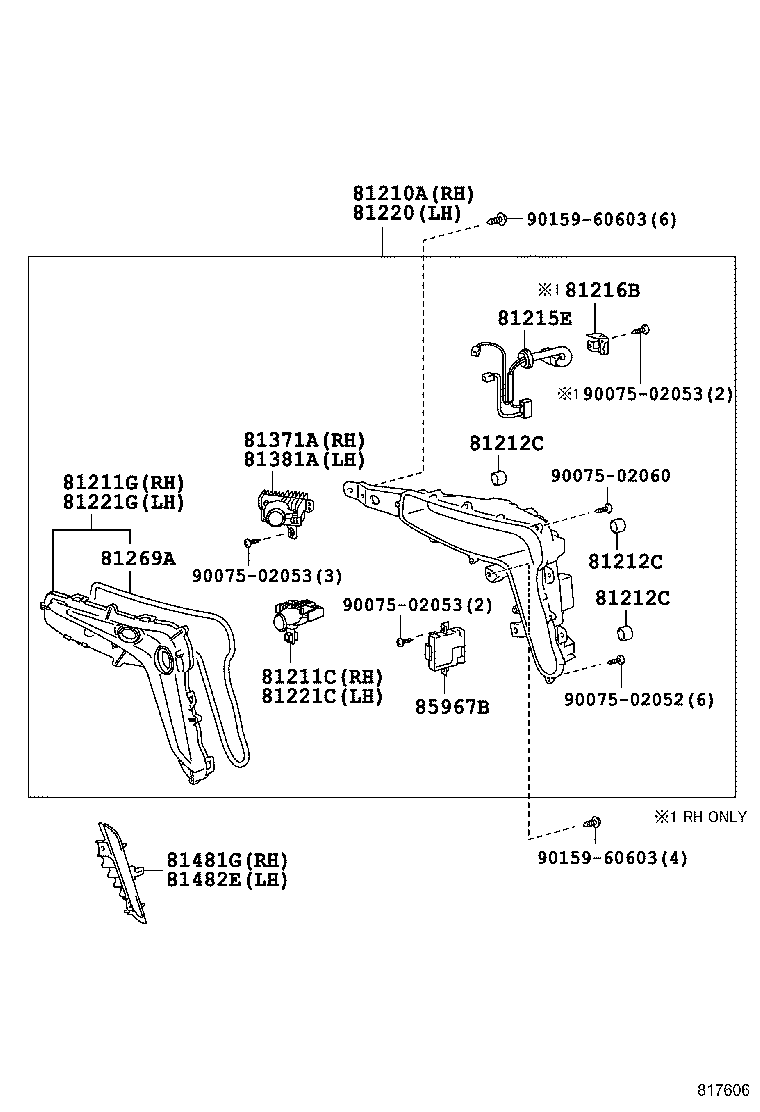

Fog Lamp
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81210A | Lamp Assy, Fog, RH |
| 81210B | Bulb, Fog Lamp |
| 81211C | Lamp Unit, Fog Lamp, RH |
| 81211G | Lens, Fog Lamp, RH |
| 81212C | Cover, Fog Lamp |
| 81215E | Cord, Fog Lamp |
| 81216B | Rim, Fog Lamp, RH NO.1 |
| 81220 | Lamp Assy, Fog, LH |
| 81221C | Lamp Unit, Fog Lamp, LH |
| 81221G | Lens, Fog Lamp, LH |
| 81269A | Seal, Fog Lamp |
| 81371A | Unit, Cornering Lamp, RH |
| 81381A | Unit, Cornering Lamp, LH |
| 81481G | Bracket, Fog Lamp, RH |
| 81482E | Bracket, Fog Lamp, LH |
| 85967B | Computer, Light Control Led |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
