Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08
Interior Lamp
25 part groups · 4 illustrations
Part groups

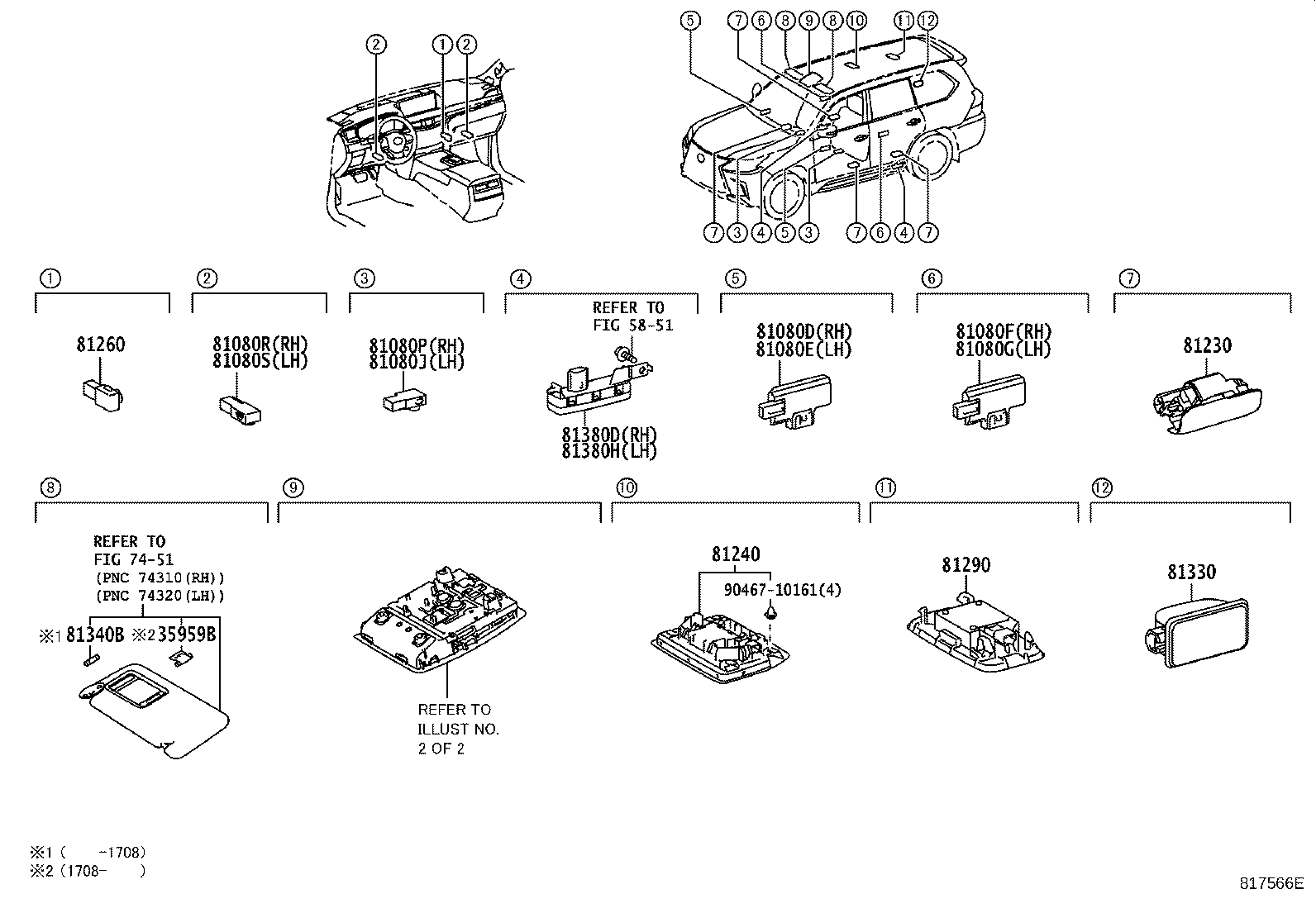

| PNC | Description |
|---|---|
| 35959B | Led(FOR VANITY LAMP) |
| 81080D | Lamp Assy, Front Door Inside Handle Illumination, RH |
| 81080E | Lamp Assy, Front Door Inside Handle Illumination, LH |
| 81080F | Lamp Assy, Rear Door Inside Handle Illumination, RH |
| 81080G | Lamp Assy, Rear Door Inside Handle Illumination, LH |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080P | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080R | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080S | Lamp Assy, Interior Illumination, NO.1 LH |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81260 | Lamp Assy, Glove Box |

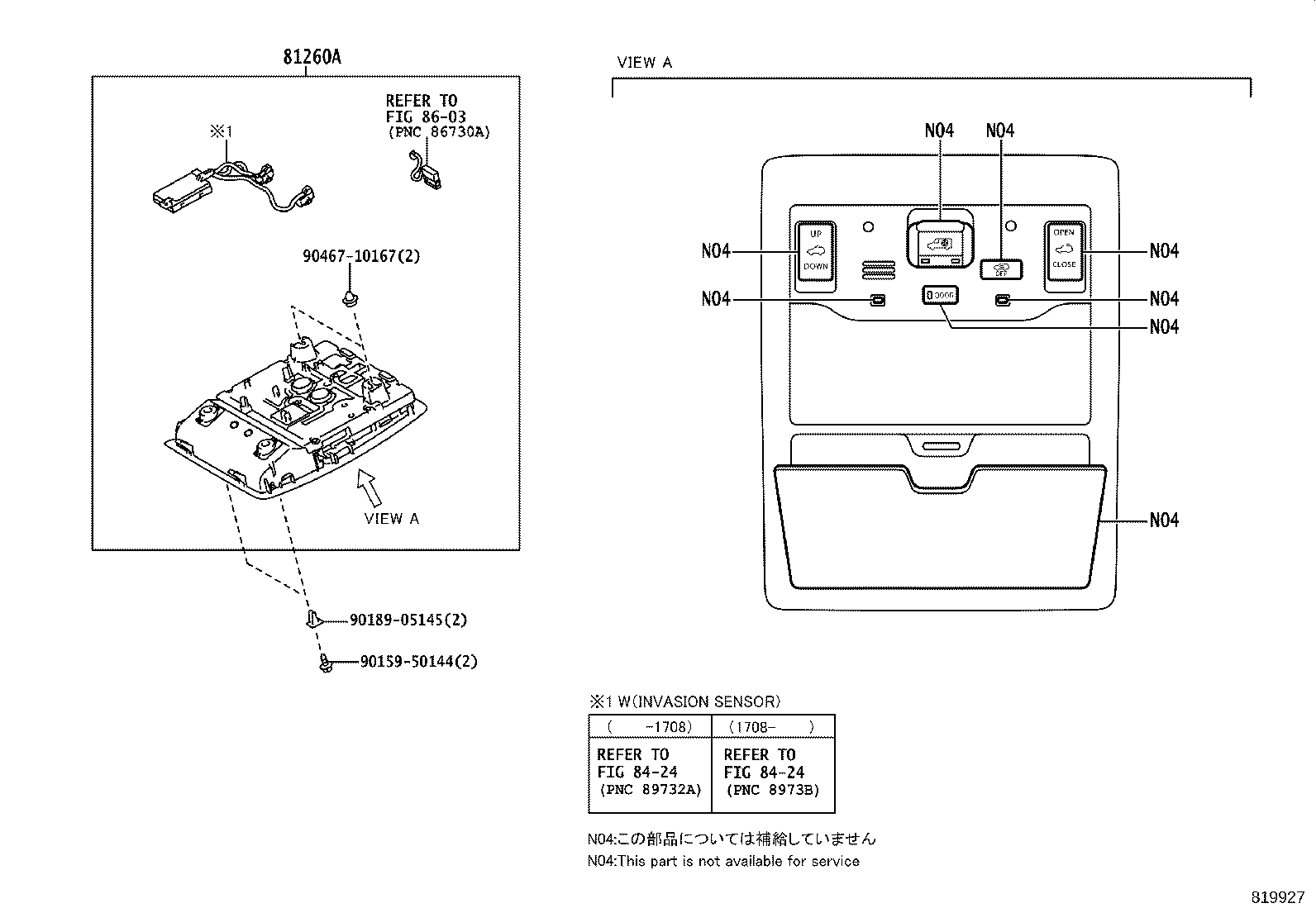

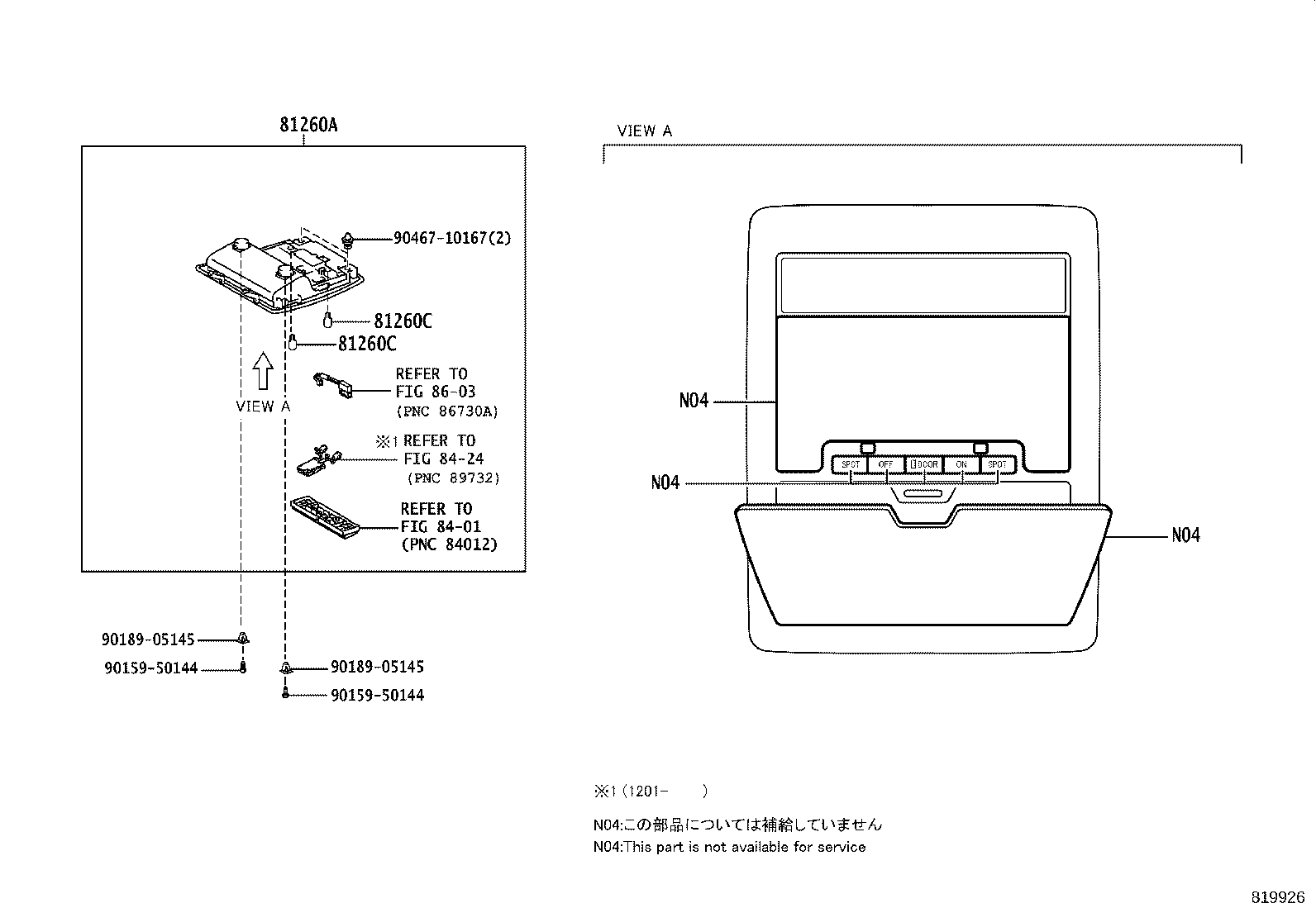

| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81290 | Lamp Assy, Room, NO.3 |
| 81290B | Bulb, Room Lamp, NO.3 |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81380D | Lamp Assy, Step |
| 81380E | Bulb (FOR STEP LAMP) |
| 81380H | Lamp Assy, Step |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
