Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

135 part groups · 18 illustrations

Illustrations

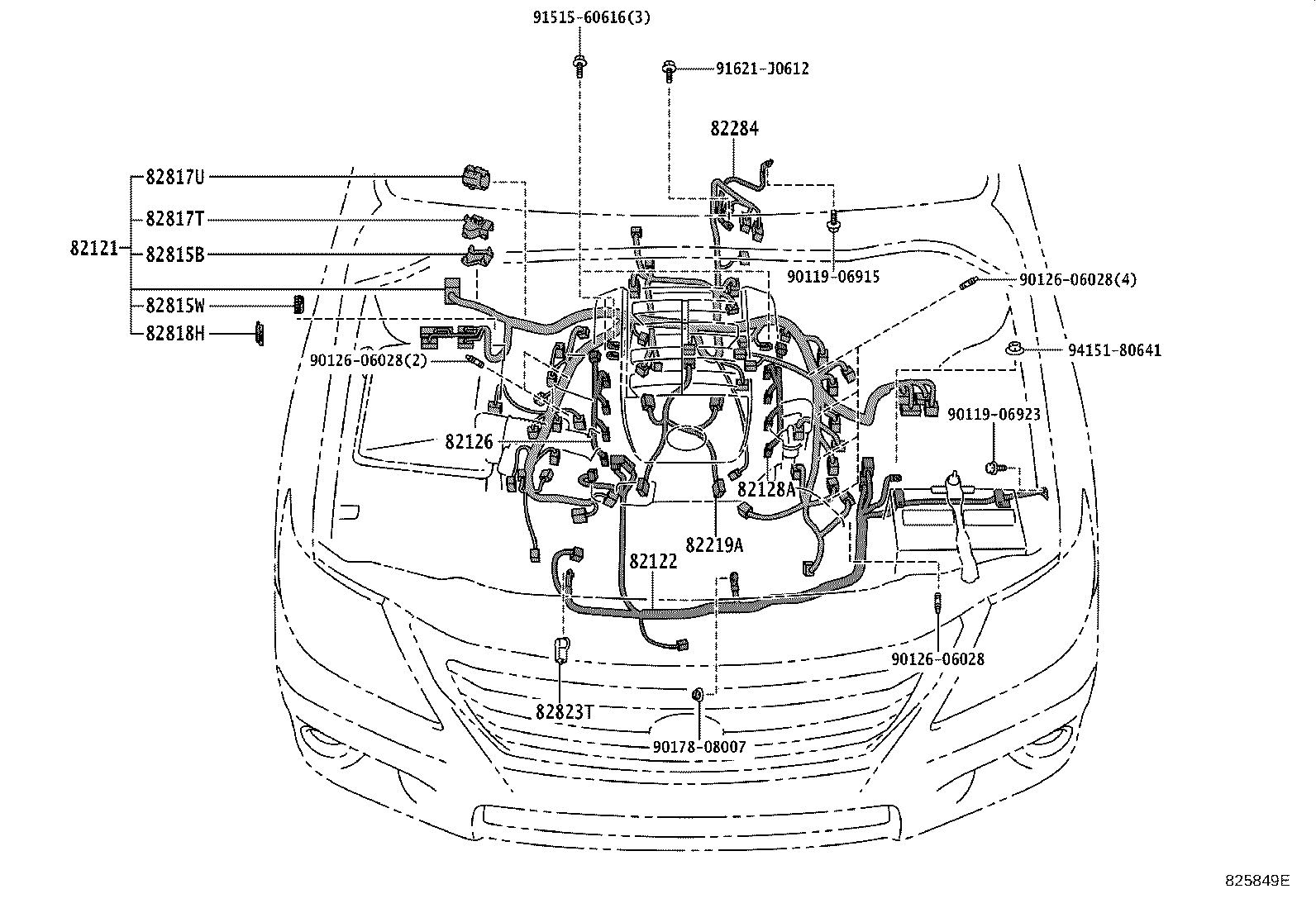

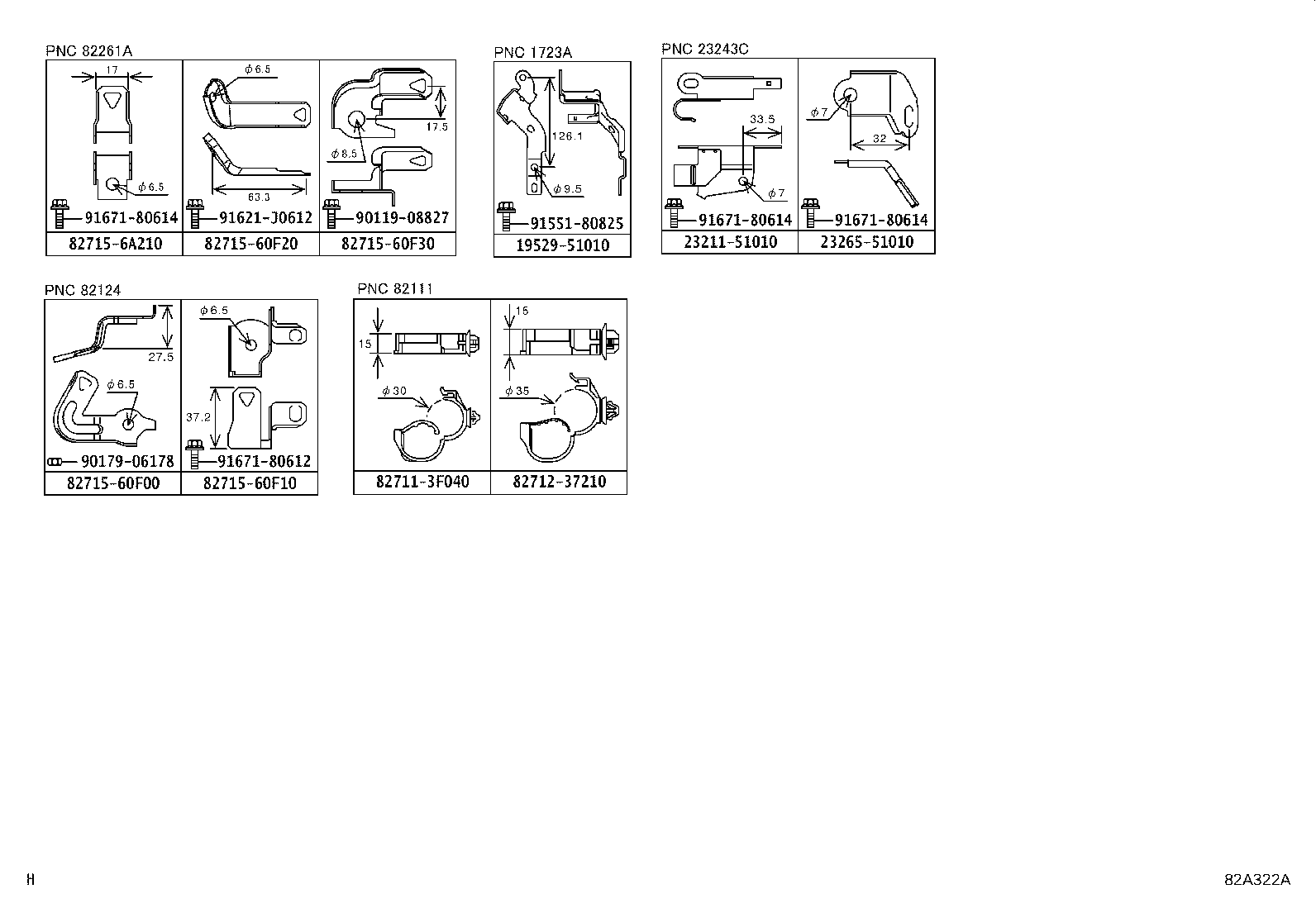

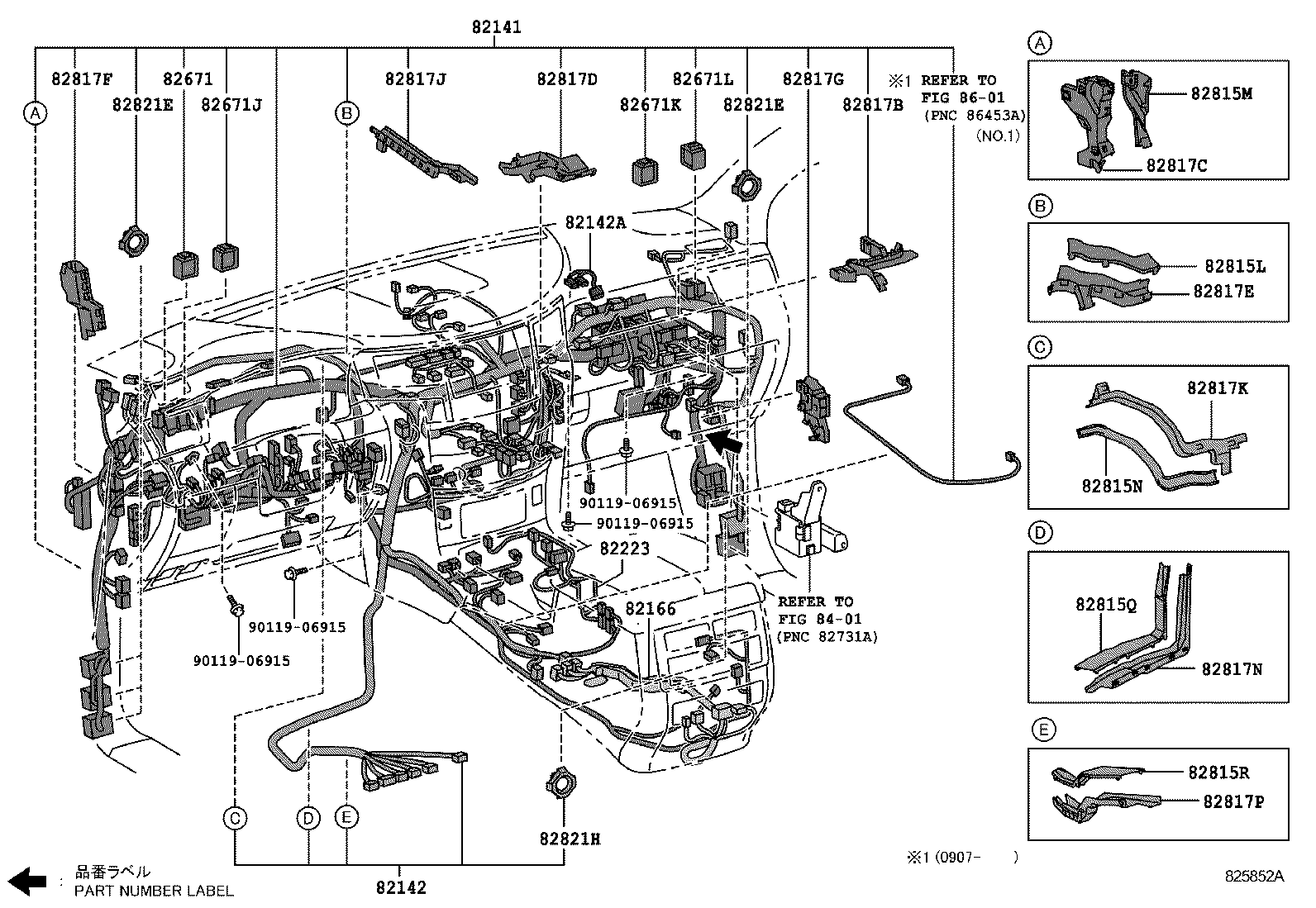

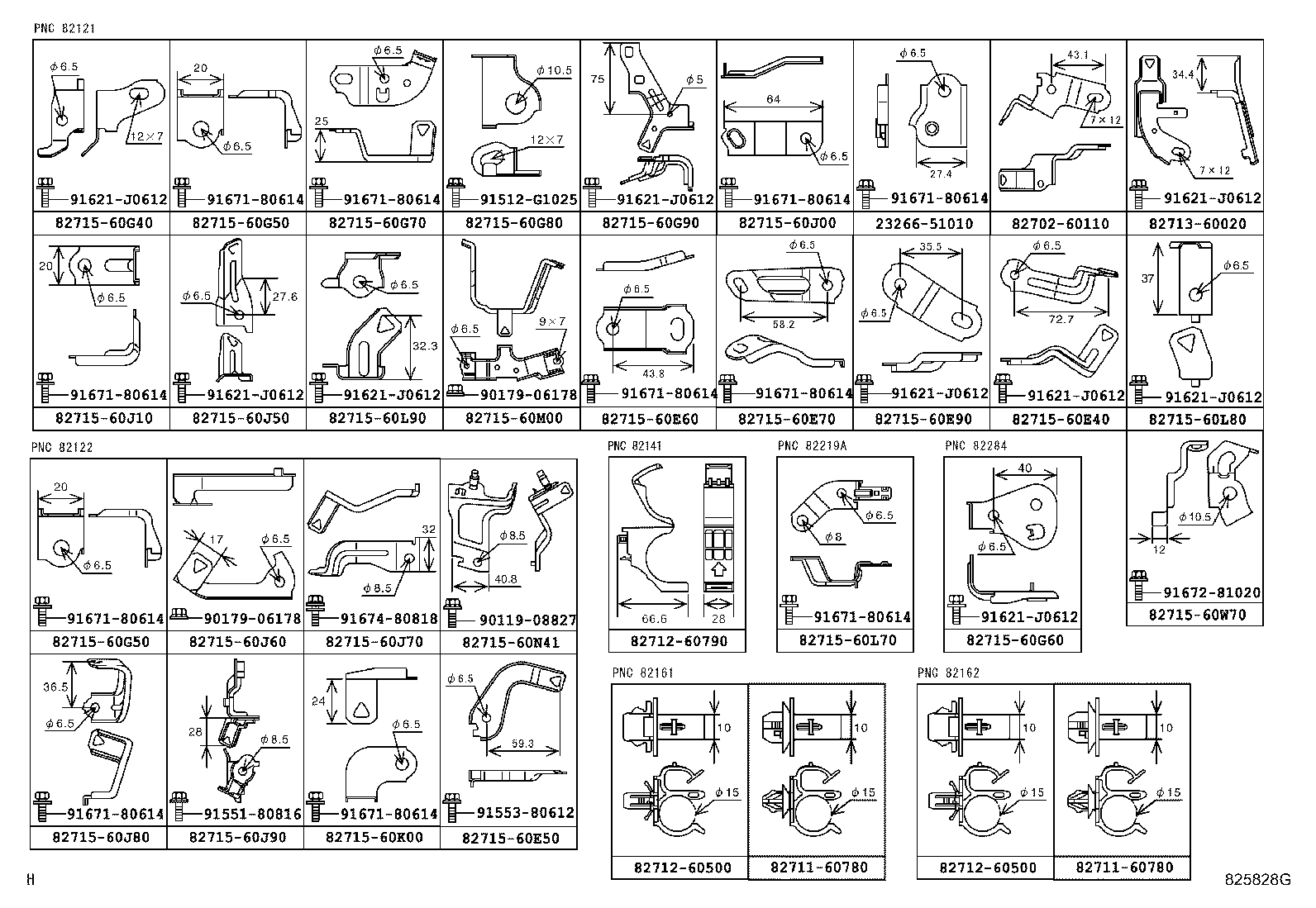

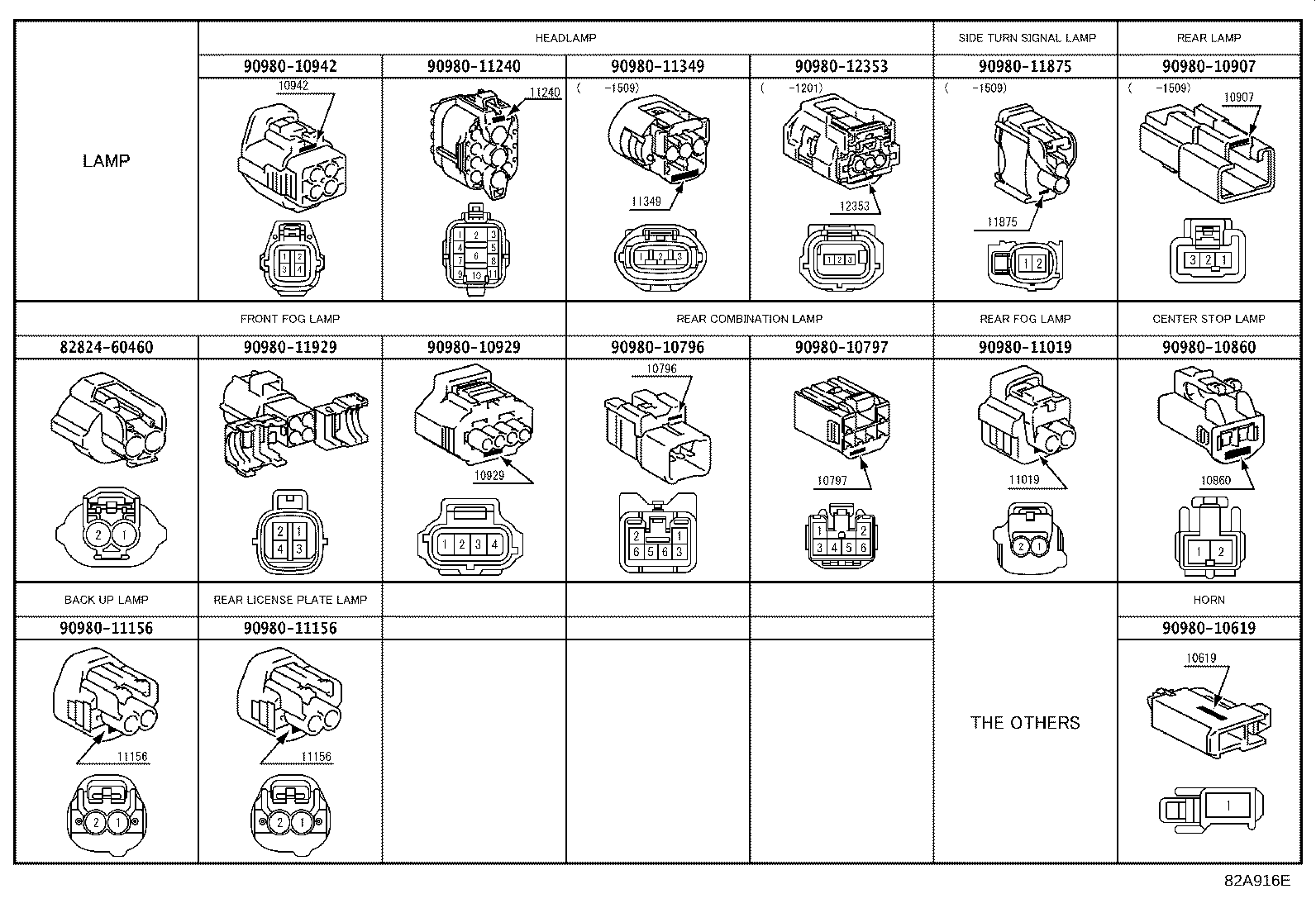

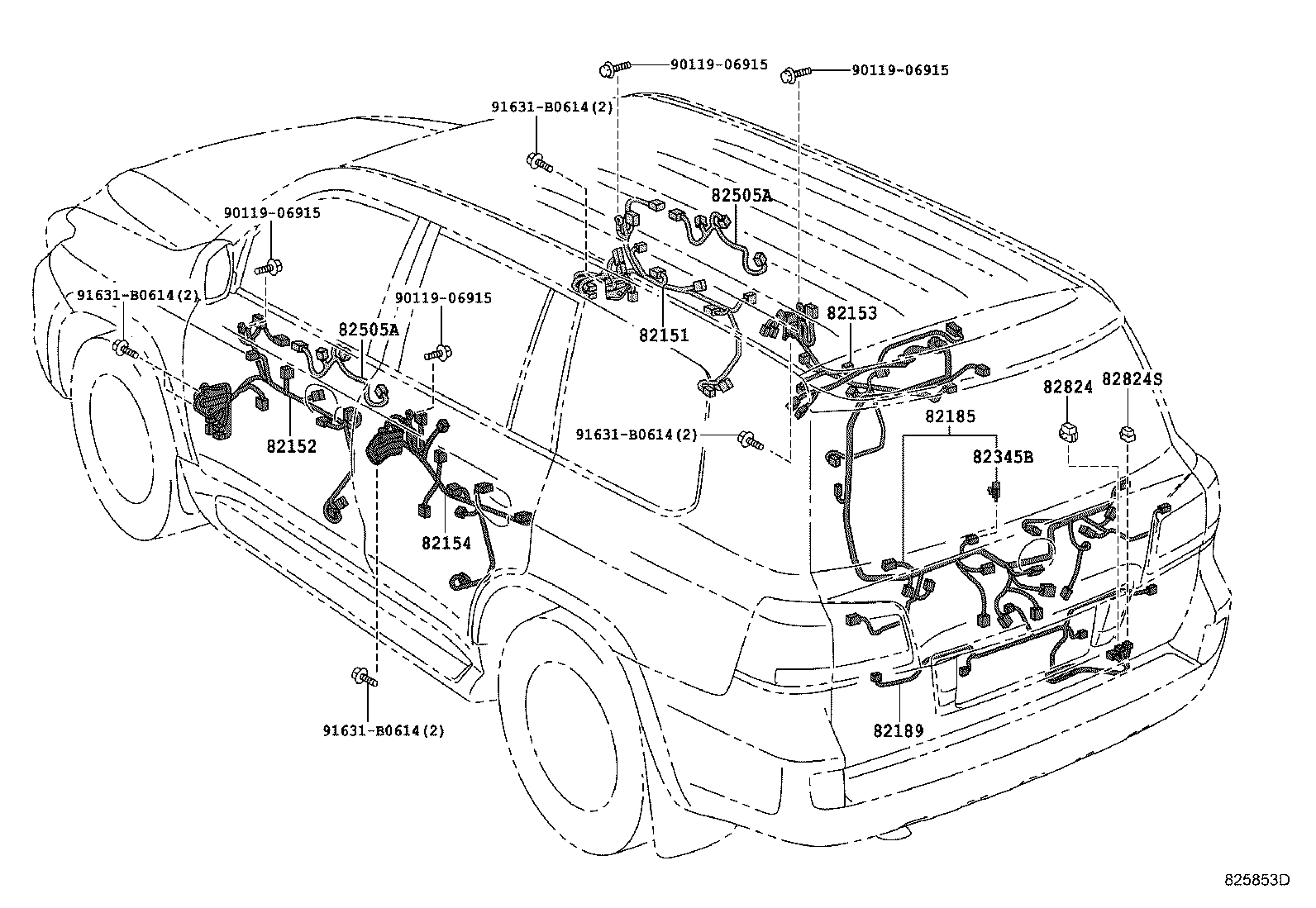

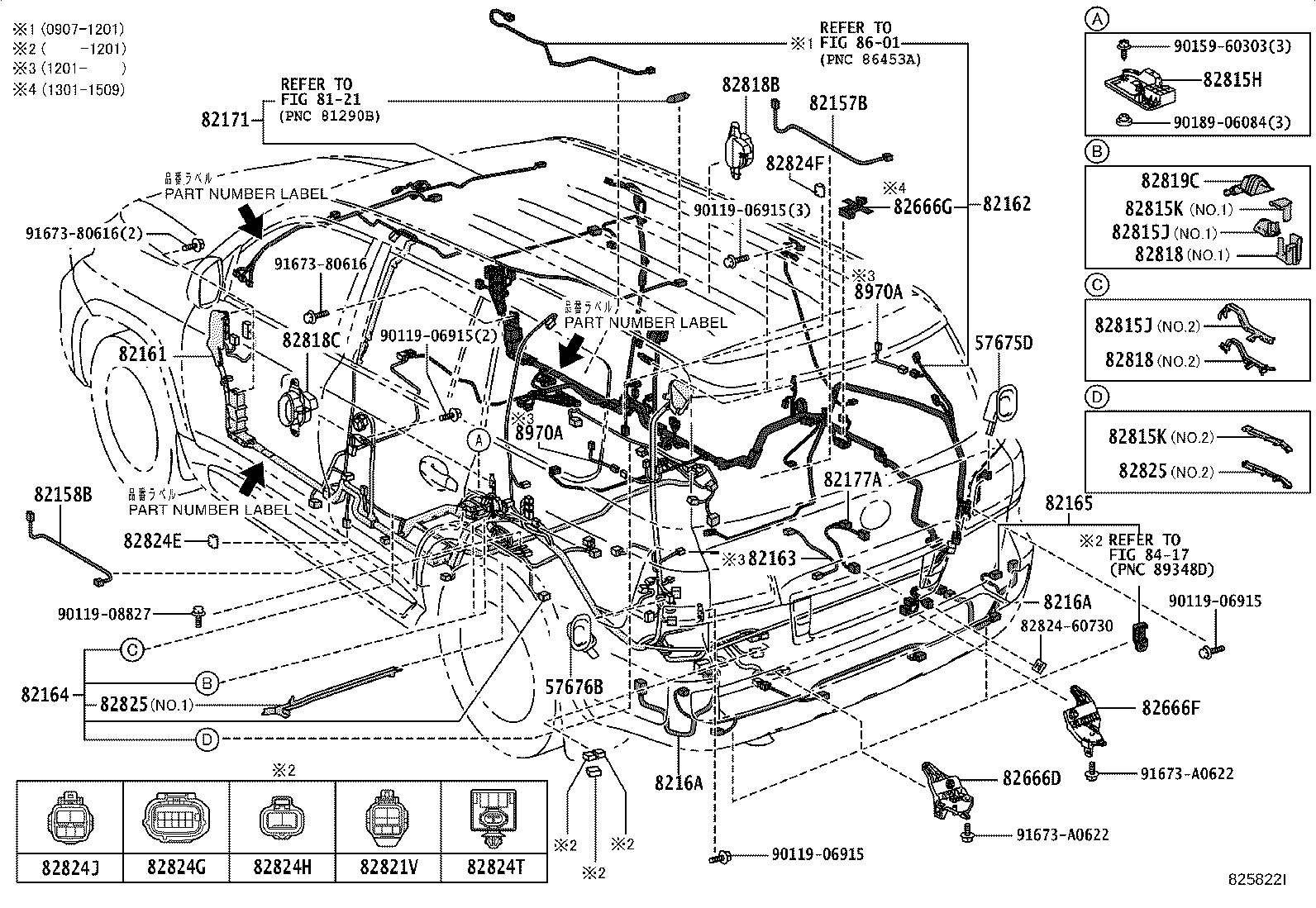

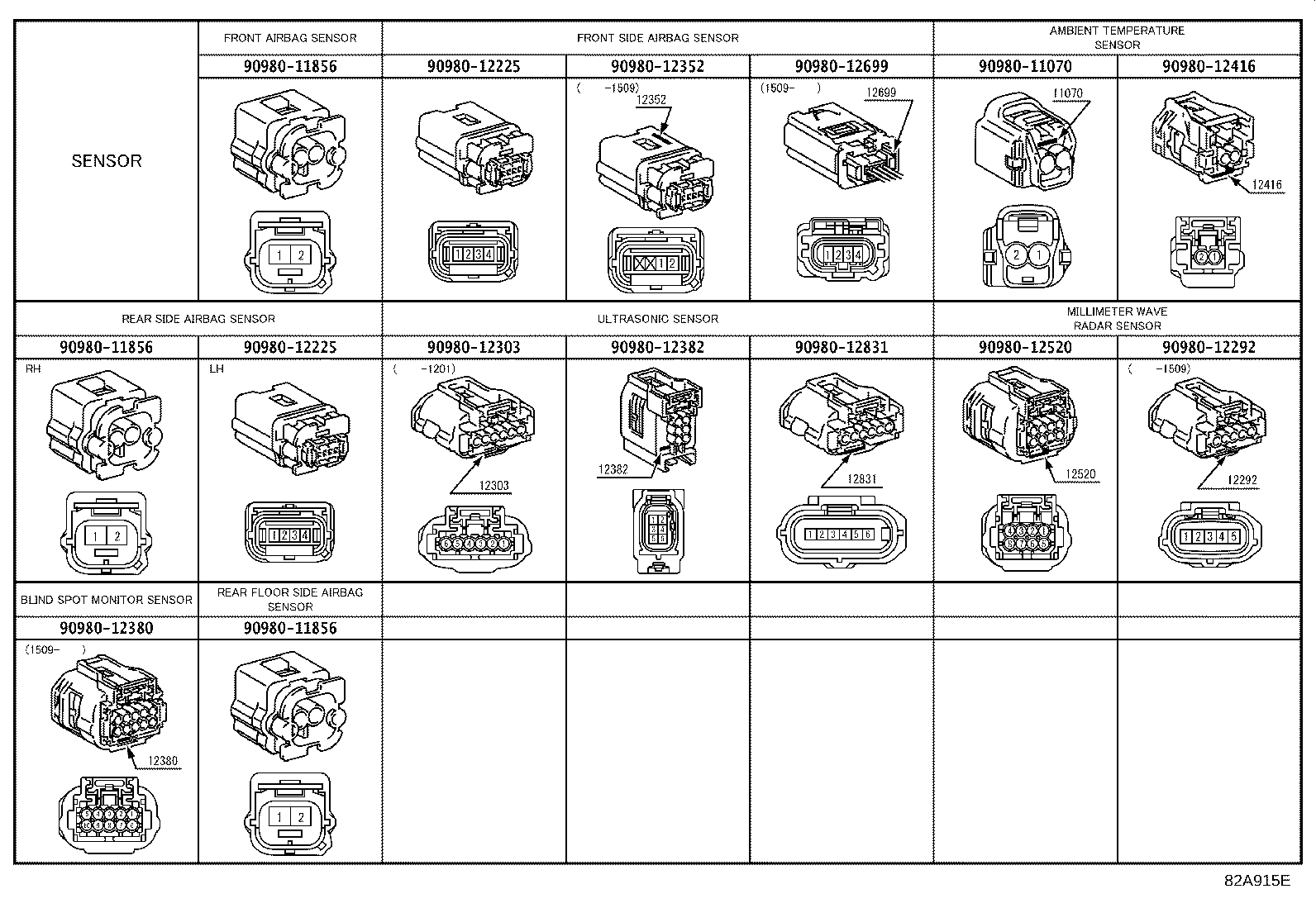

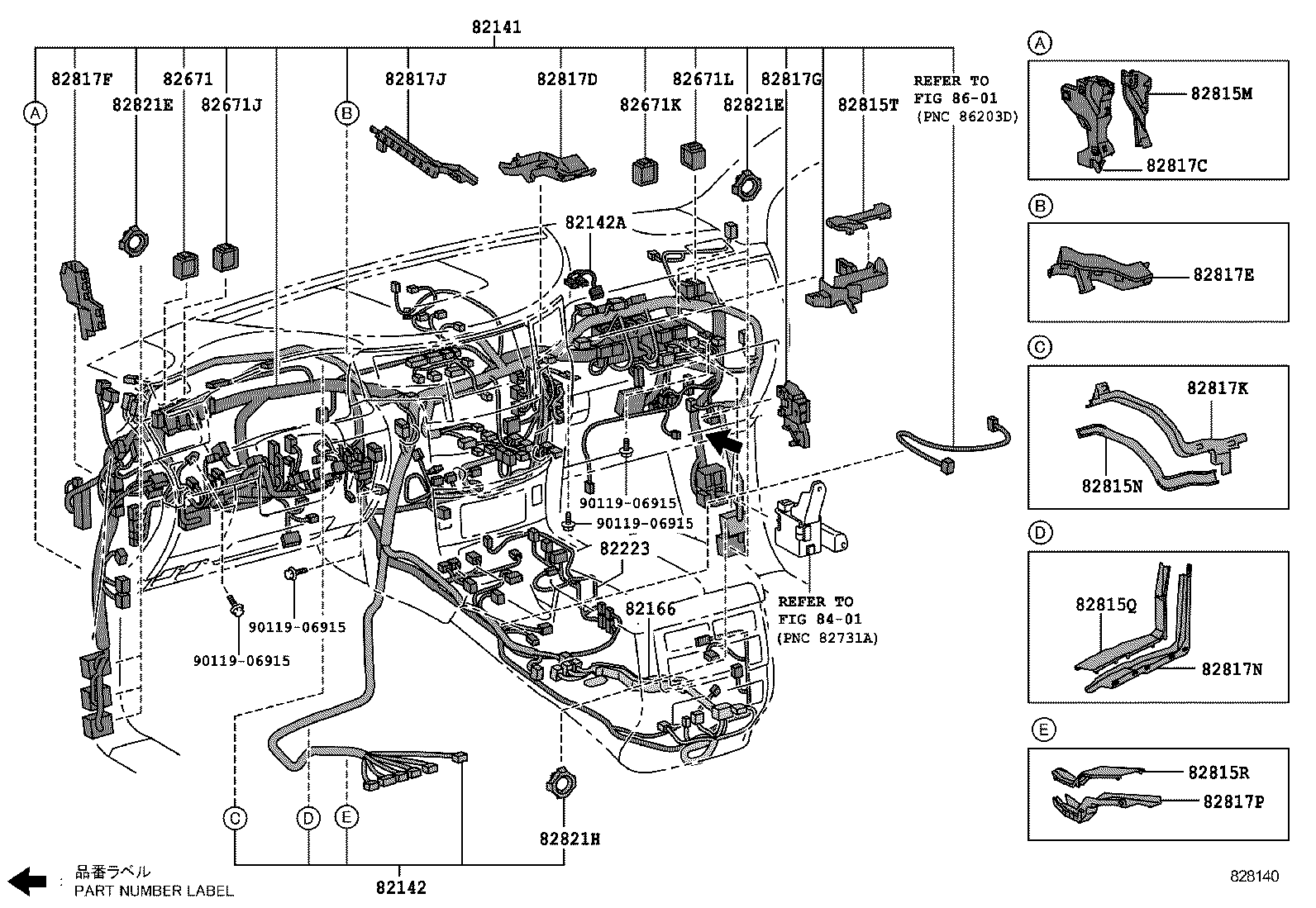

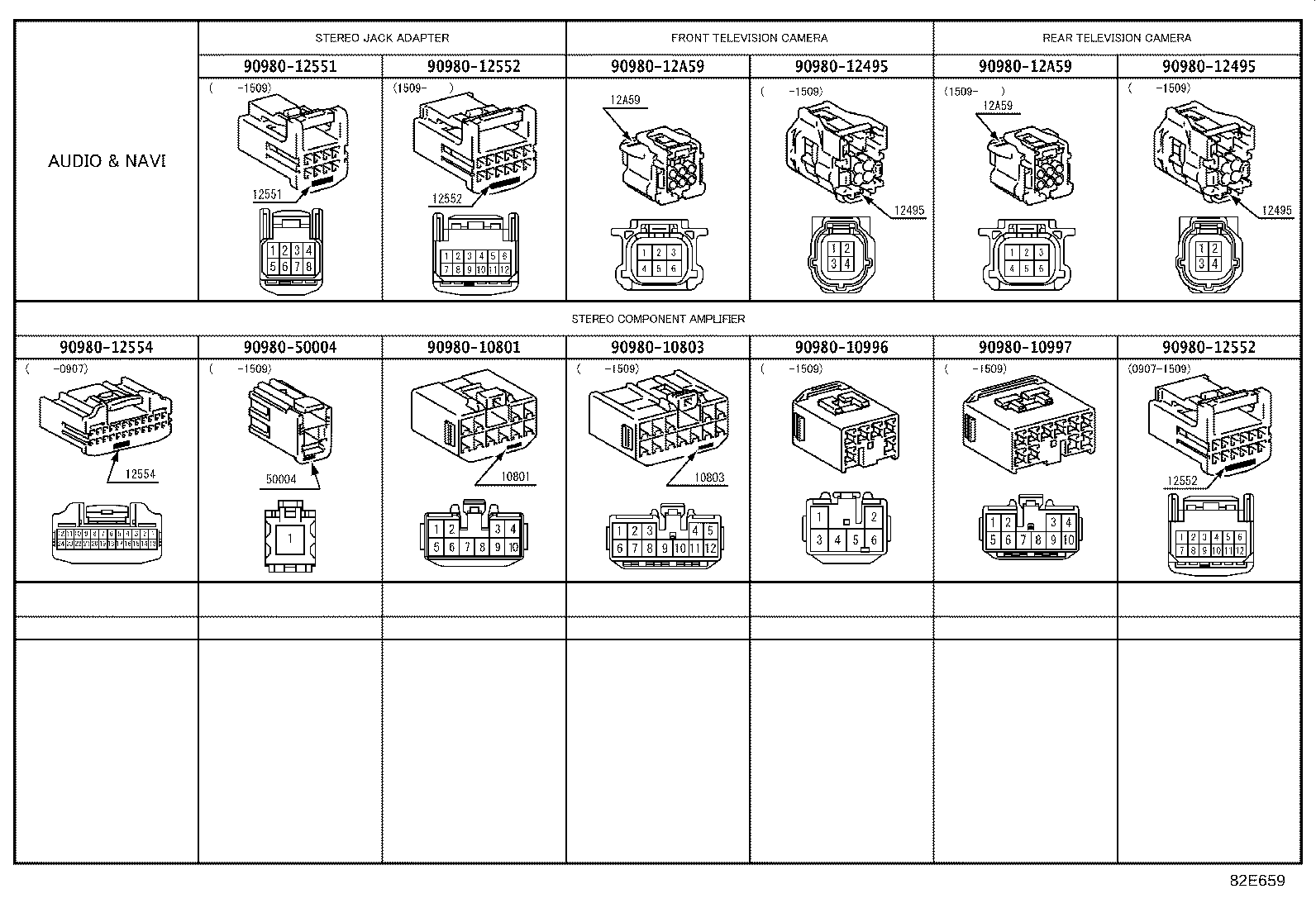

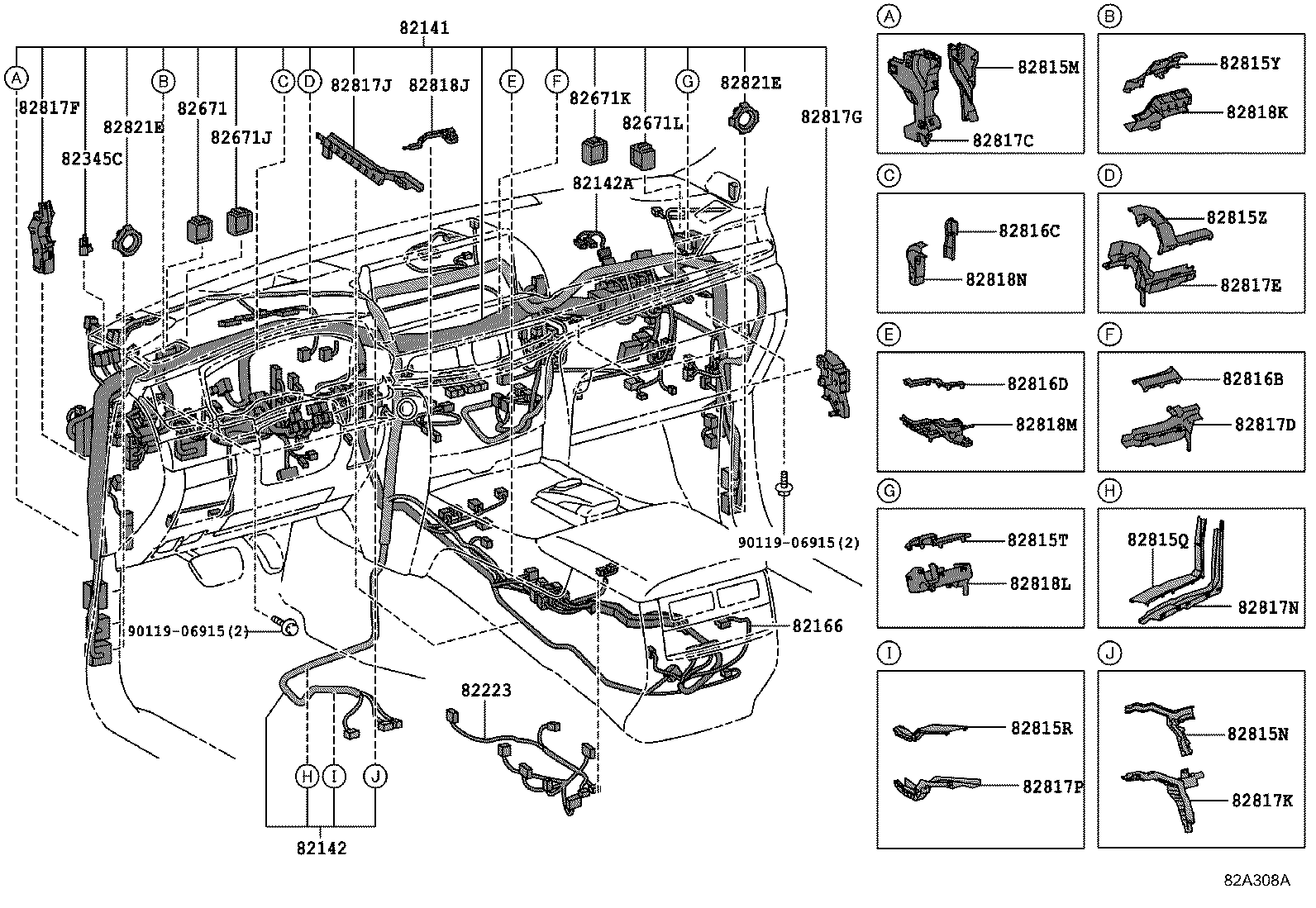

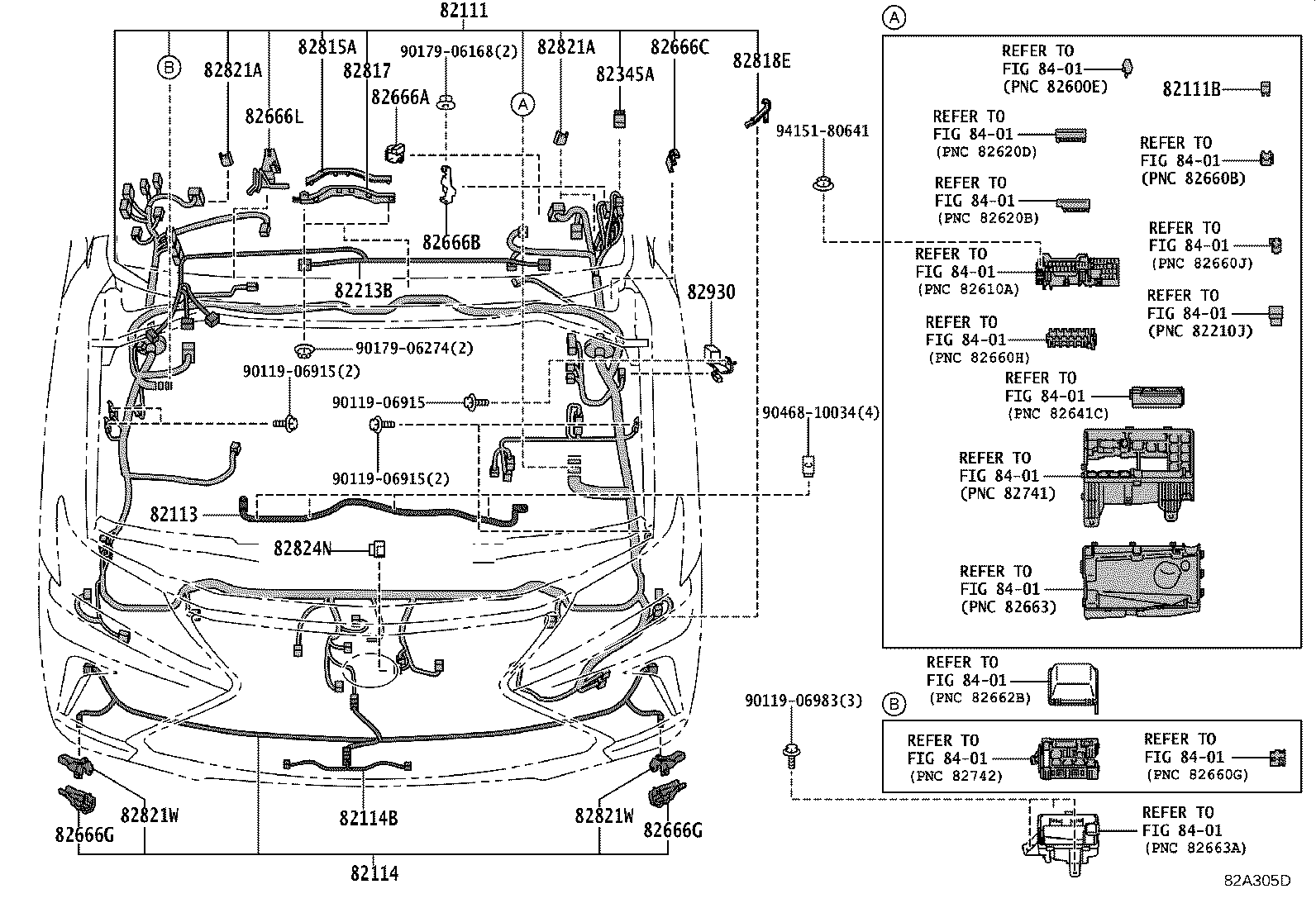

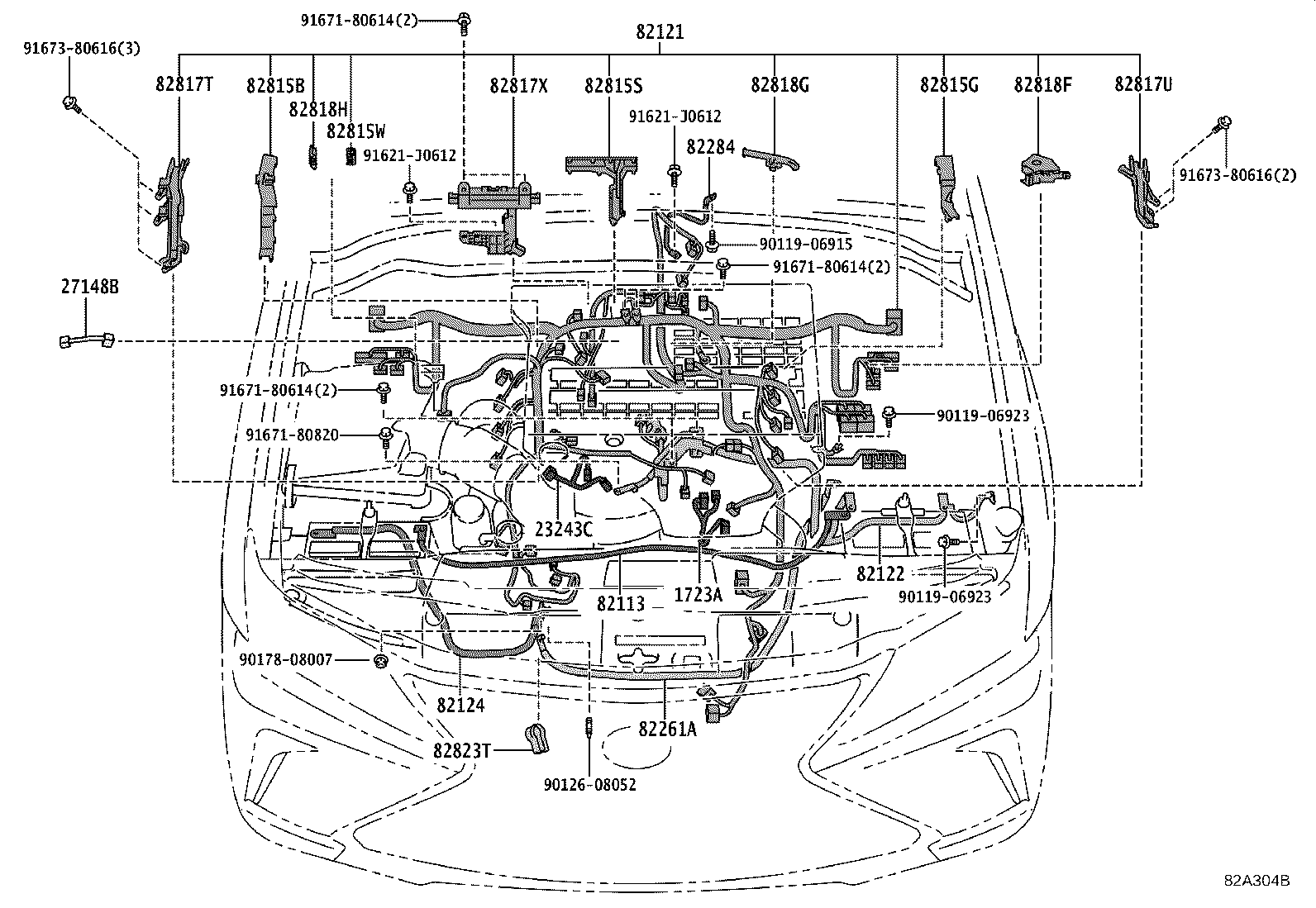

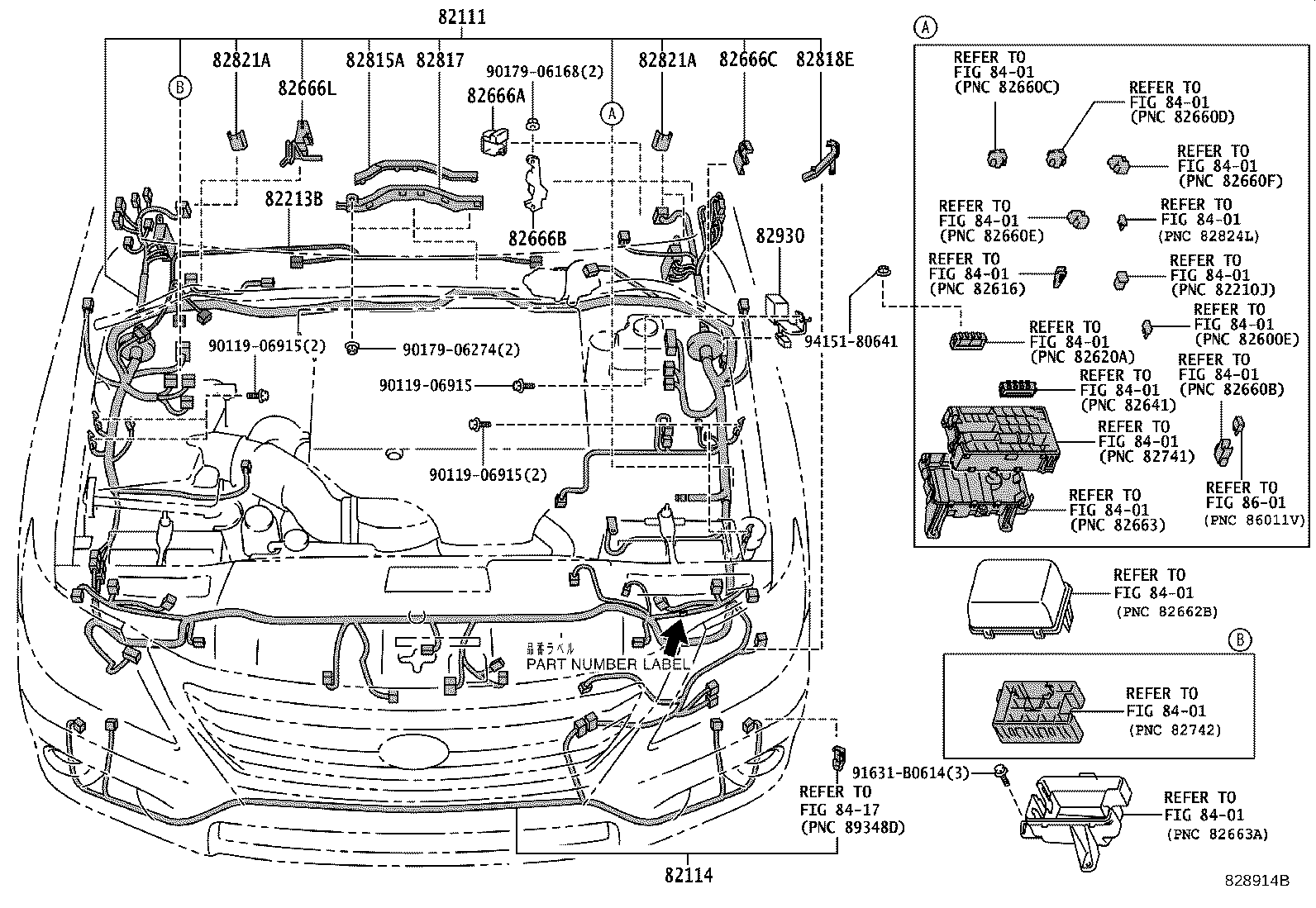

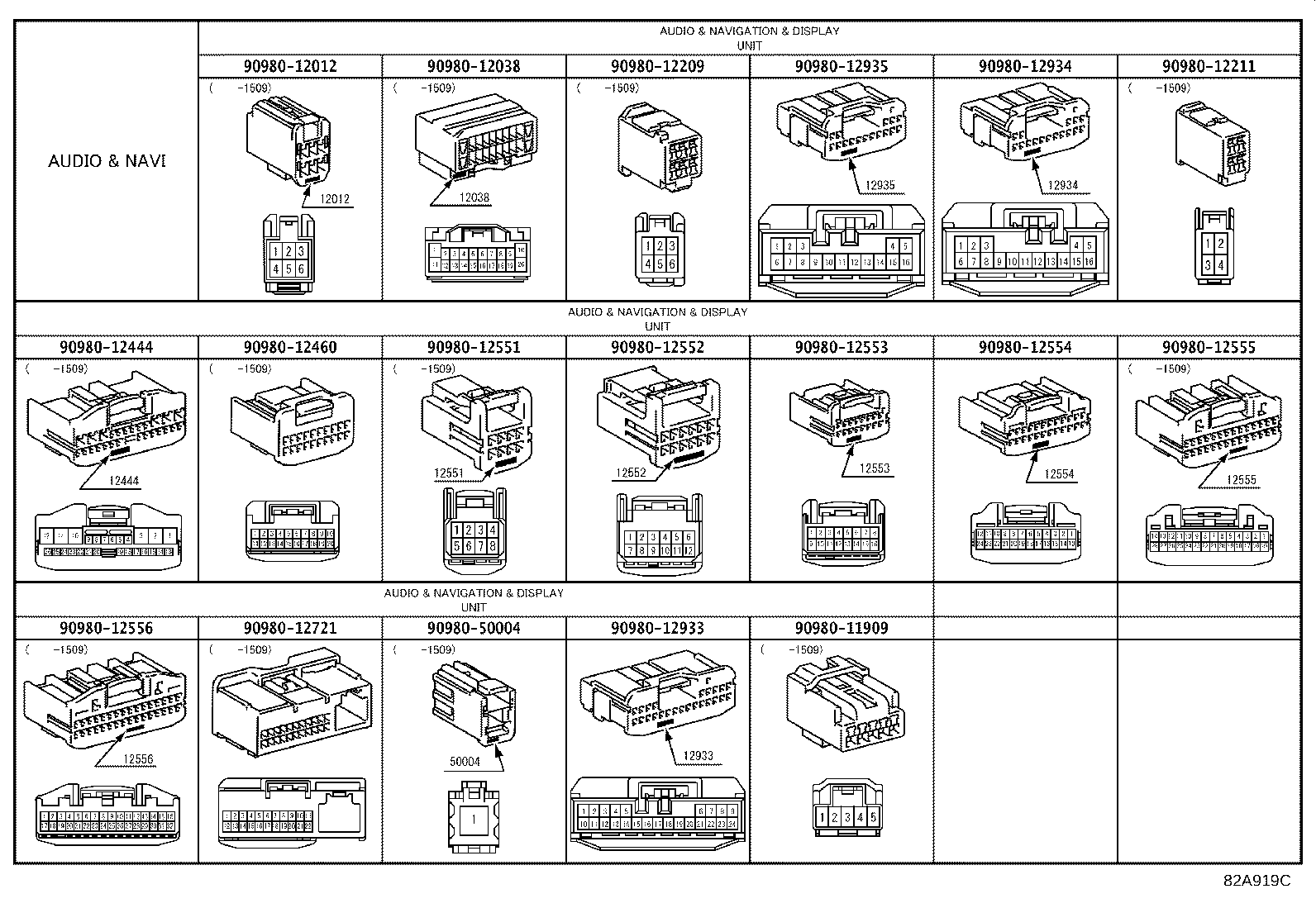

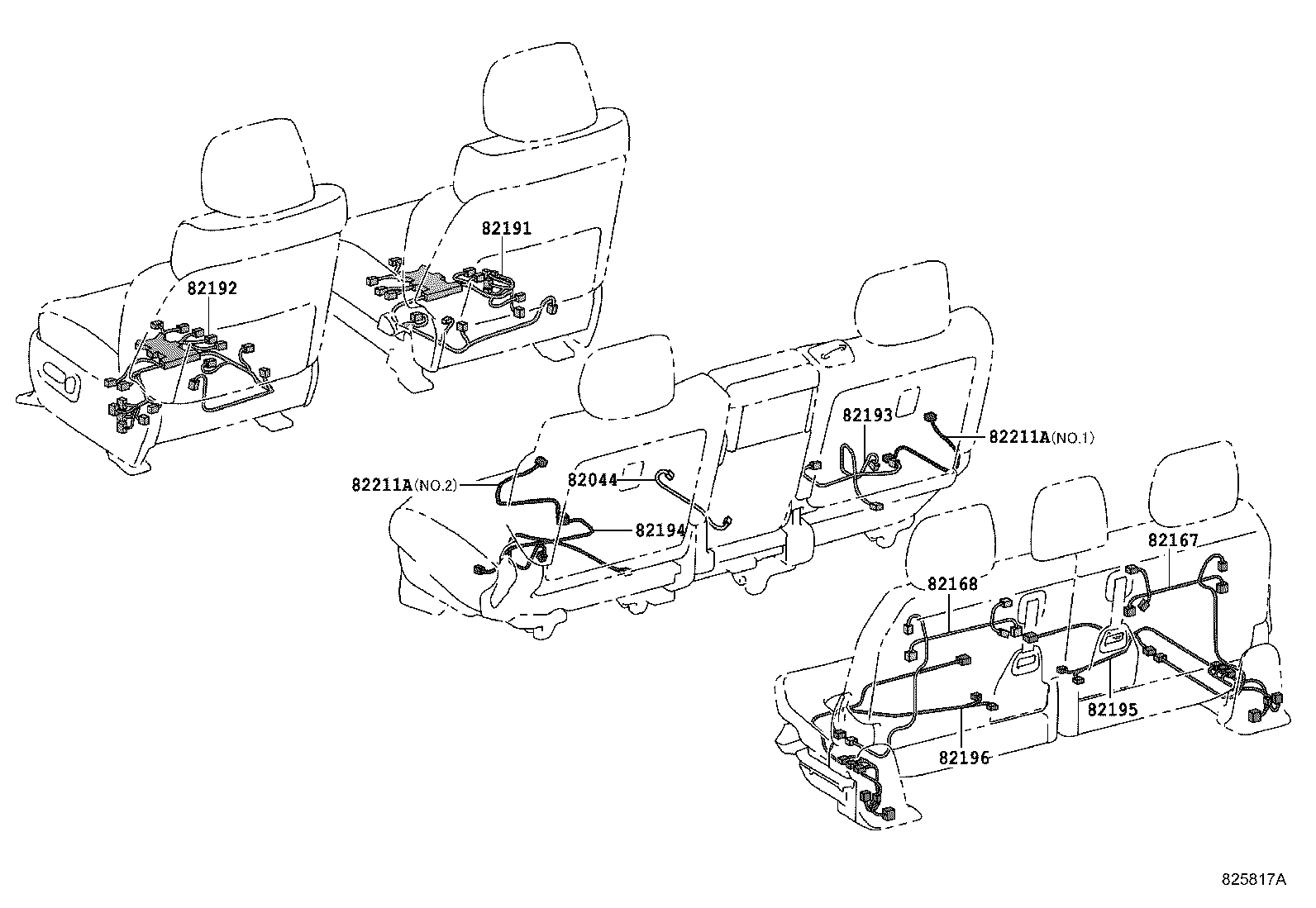

Figure 825848C 825848C 2007-11 → 2013-01 Figure 828914B 828914B 2013-01 → 2015-09 Figure 82A305D 82A305D 2015-09 → — Figure 825849E 825849E 2007-11 → — Figure 82A304B 82A304B 2015-09 → — Figure 825852A 825852A 2007-11 → 2012-01 Figure 828140 828140 2012-01 → 2015-09 Figure 82A308A 82A308A 2015-09 → — Figure 825853D 825853D 2007-11 → — Figure 825822I 825822I 2007-11 → — Figure 825817A 825817A 2007-11 → — Figure 825828G 825828G 2007-11 → — Figure 82A322A 82A322A 2007-11 → — Figure 827196A 827196A 2007-11 → — Figure 82A916E 82A916E 2007-11 → — Figure 82A915E 82A915E 2007-11 → — Figure 82A919C 82A919C 2007-11 → — Figure 82E659 82E659 2007-11 → —

Part groups

PNCDescription
1723A Wire, Turbocharger
23243C Wire, Fuel Pump Motor
27148B Wire, Connecting
57675D Guide, Wire Harness, NO.1
57676B Guide, Wire Harness, NO.2
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82044 Wiring Sub-assy, Seat Switch
82111 Wire, Engine Room Main
82111B Condenser
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82114B Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82126 Wire, Engine
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82157B Wire, Step Rear Floor, RH
82158B Wire, Step Rear Floor, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
8216A Wire, Floor NO.7
82171 Wire, Roof, NO.1
82177A Wire, Frame, NO.4
82185 Wire, Back Door, NO.2
82189 Wire, Back Door, NO.4
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
82211A Wire, Rear Heater
82213B Wire, Heater
82219A Wire, Sensor
82223 Wire, Switch
82261A Wire, Alternator
82284 Wire, Earth
82345A Diode
82345B Diode
82345C Diode
82505A Wiring Sub-assy, Front Door
82664A Block, Connector Holder
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82668A Cover, Connector Holder Block, Upper
82669A Cover, Connector Holder Block, Lower
82671 Block, Junction
82671J Block, Junction, NO.2
82671K Block, Junction, NO.3
82671L Block, Junction, NO.4
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815W Cover, Wiring Harness Protector, NO.2
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82819C Grommet, Wiring Harness
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824N Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
82825 Protector, Wiring Harness
82930 Condenser Assy, Wiring Harness, NO.1
8970A Cord Sub-assy, Theft Warning Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
