Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08
Meter
6 part groups · 4 illustrations
Part groups

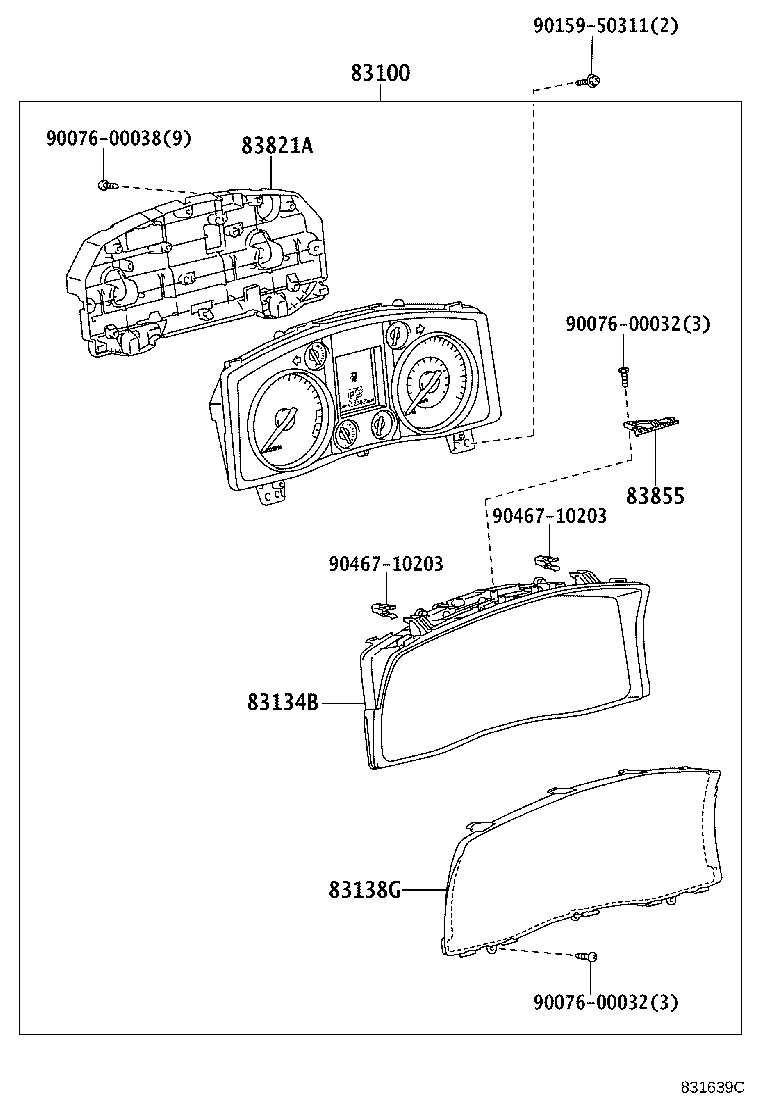

| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83108 | Mirror Sub-assy, Meter |
| 83134B | Cover, Combination Meter, NO.2 |
| 83138G | Glass, Combination Meter |
| 83821A | Cover, Combination Meter, NO.1 |
| 83855 | Bracket, Combination Meter, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
