Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08
Electronic Fuel Injection System

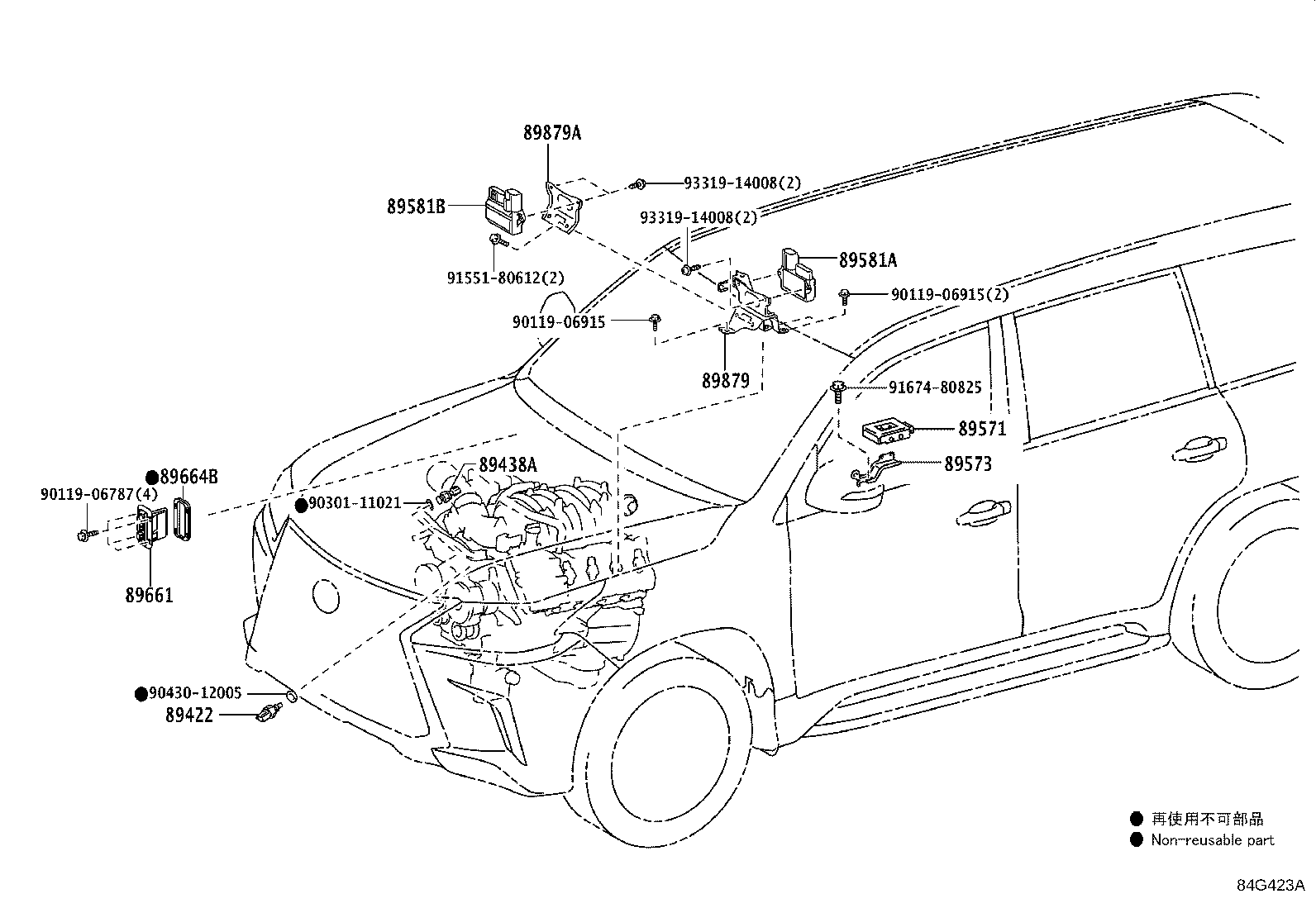

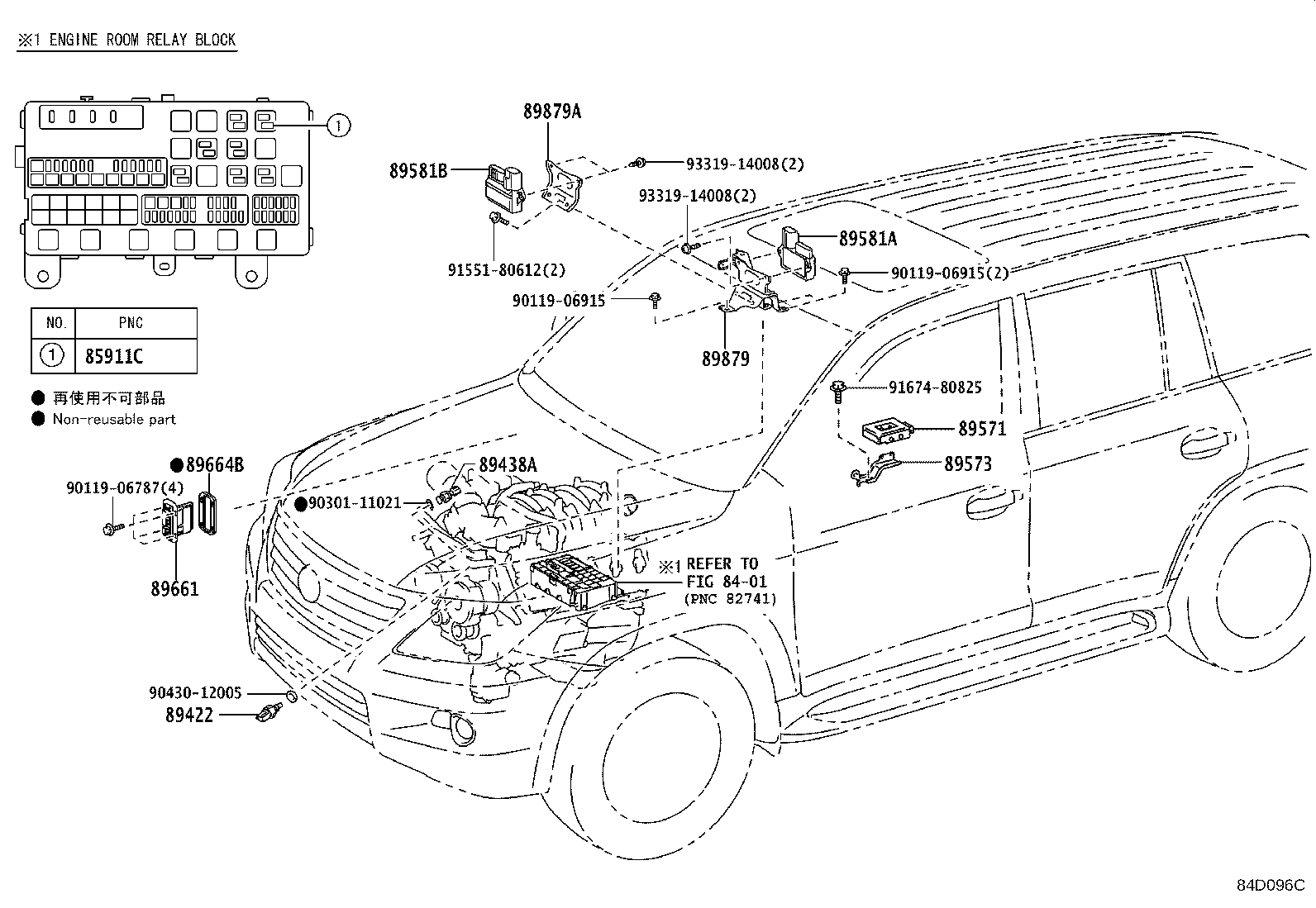

13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85911C | Relay, Efi 2 |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89438A | Switch, Power Steering Oil Pressure |
| 89570A | Computer Assy, Fuel Pump Control |
| 89571 | Computer, Fuel Pump Control |
| 89573 | Bracket, Fuel Pump Control Computer |
| 89581A | Driver, Air Injection Control |
| 89581B | Driver, Air Injection Control |
| 89661 | Computer, Engine Control |
| 89664B | Seal, Engine Control Computer |
| 89879 | Bracket, Injector Driver |
| 89879A | Bracket, Injector Driver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
