Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

5 part groups · 2 illustrations

Illustrations

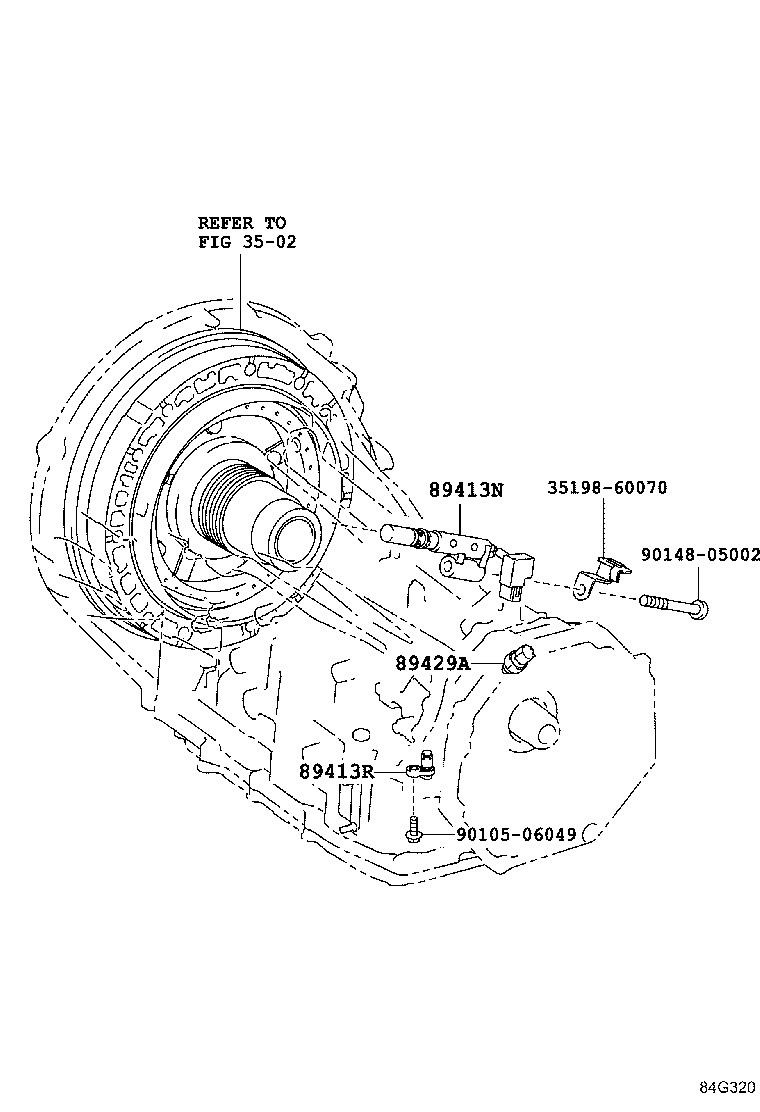

Figure 84A740B 84A740B 2007-11 → — Figure 84G320A 84G320A 2015-09 → —

Part groups

PNCDescription
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413N Sensor, Transmission Revolution, (NT)
89413R Sensor, Transmission Revolution (SP2)
89429A Sensor, Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
