Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Modulated Suspension

8 part groups · 2 illustrations

Illustrations

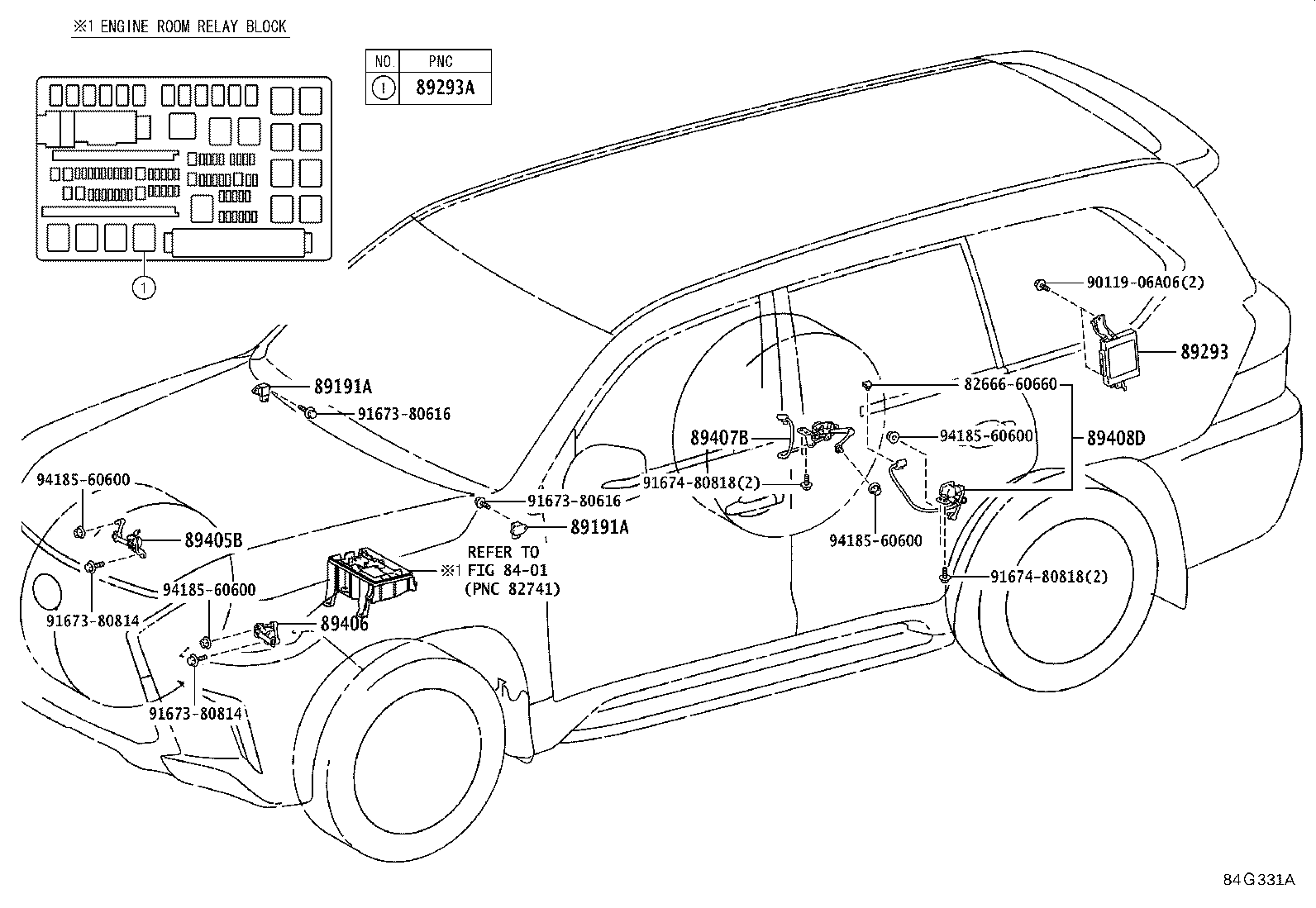

Figure 84D047A 84D047A 2007-11 → 2015-09 Figure 84G331A 84G331A 2015-09 → —

Part groups

PNCDescription
89191A Sensor, Acceleration
89249 Switch, Absorber Control
89293 Computer, Suspension Control
89293A Relay, Suspension Control
89405B Sensor Sub-assy, Height Control, Front RH
89406 Sensor Sub-assy, Height Control, Front LH
89407B Sensor Sub-assy, Height Control, Rear RH
89408D Sensor Sub-assy, Height Control, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
