Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

6 part groups · 3 illustrations

Illustrations

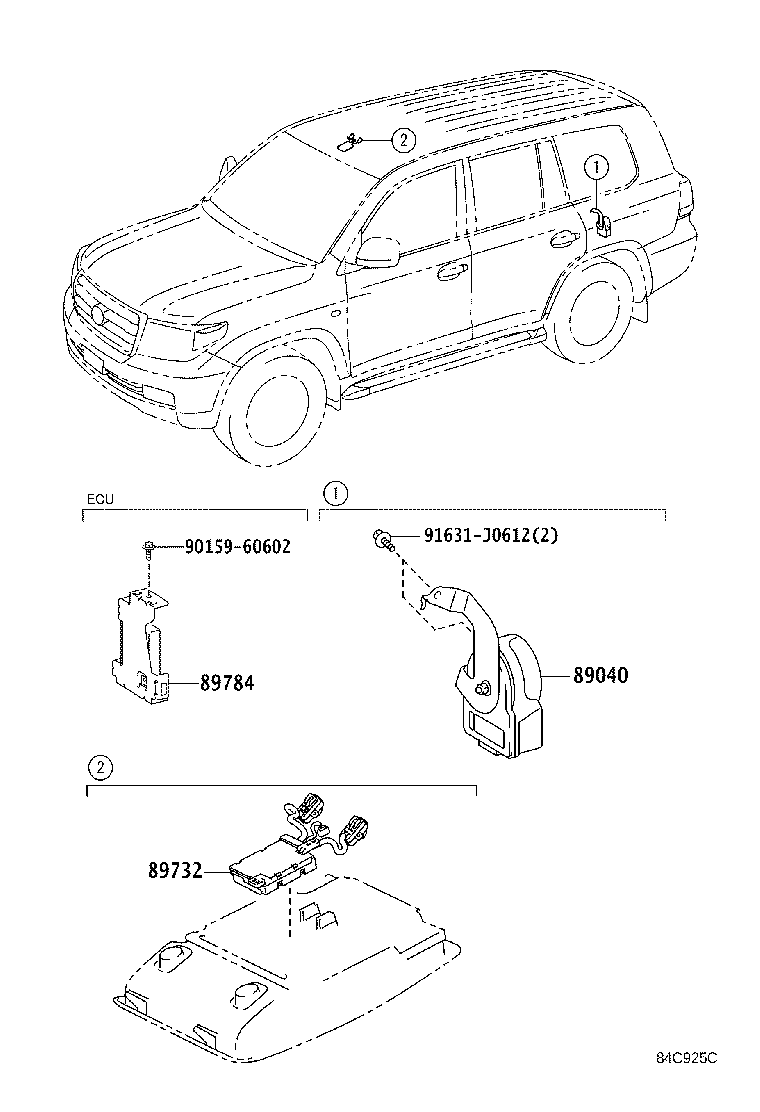

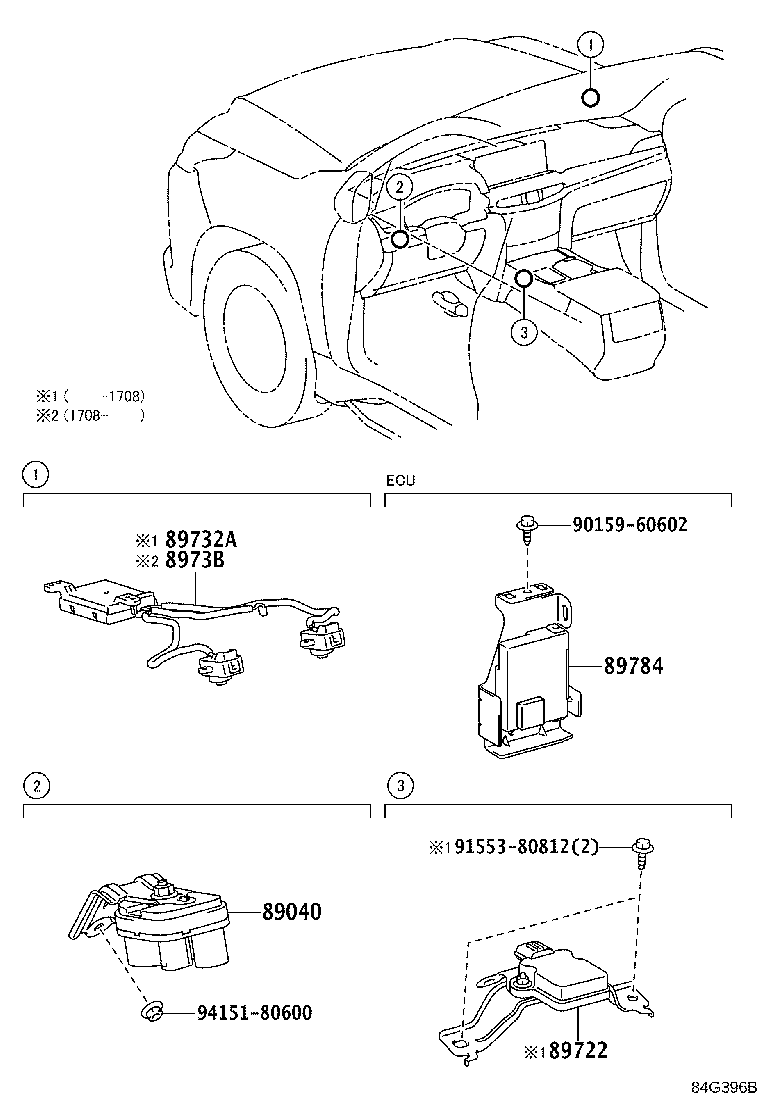

Figure 849492B 849492B 2007-11 → 2012-01 Figure 84C925C 84C925C 2012-01 → 2015-09 Figure 84G396B 84G396B 2015-09 → —

Part groups

PNCDescription
89040 Siren Assy, Theft Warning
89722 Sensor, Theft Warning Tilt
89732 Sensor, Theft Warning Radar
89732A Sensor, Theft Warning Ultrasonic
8973B Sensor, Theft Warning Ultrasonic & Tilt
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
