Toyota Lexus LX450D/570
2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe
Supported model
Data version 2018-08

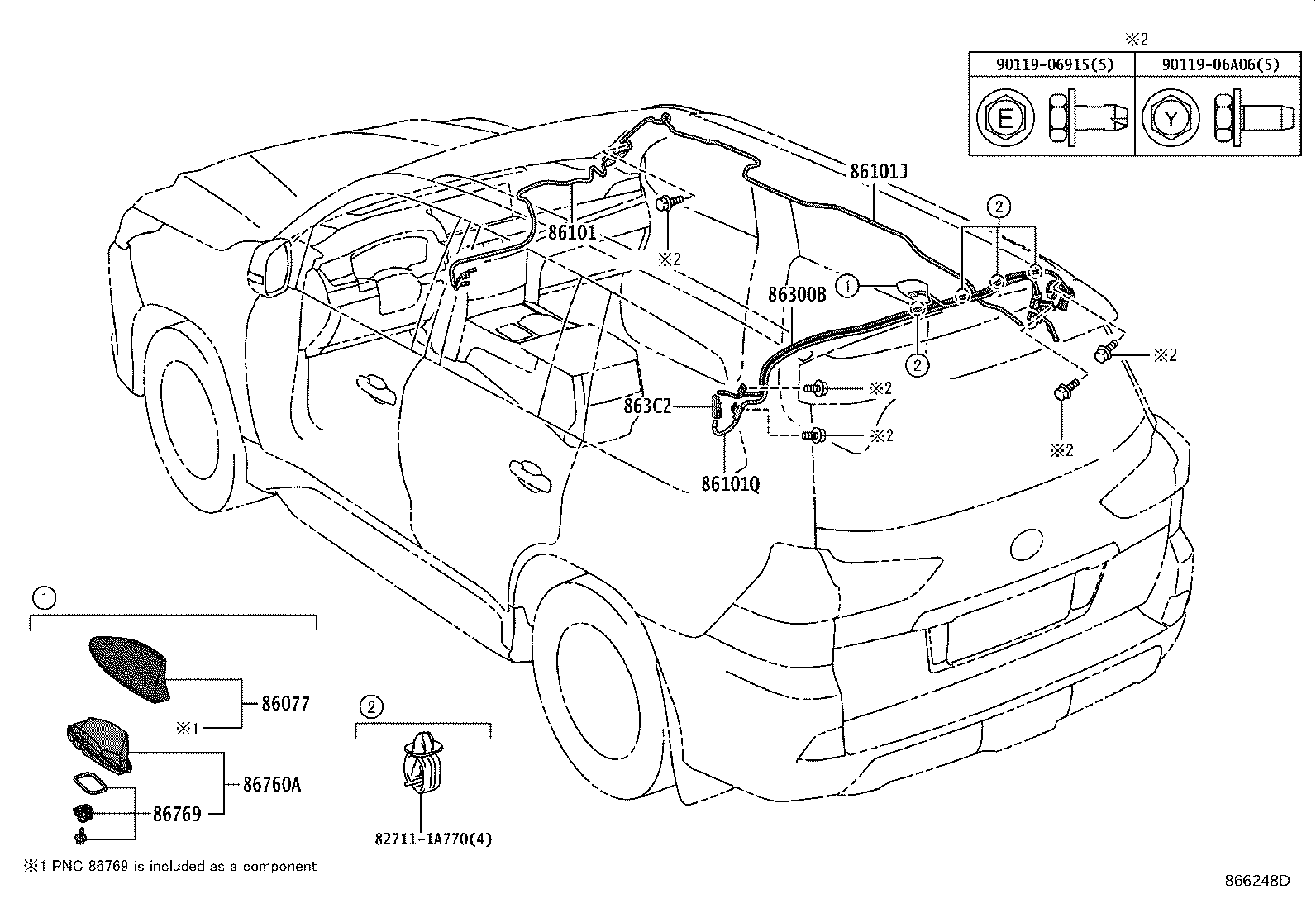

Antenna
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86396 | Nut, Antenna |
| 863C2 | Base, Digital Audio Broadcasting Antenna |
| 86760A | Antenna Assy, Telephone |
| 86769 | Housing, Roof Antenna |
| 87268R | Protector, Telephone Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
