Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

15 part groups · 3 illustrations

Illustrations

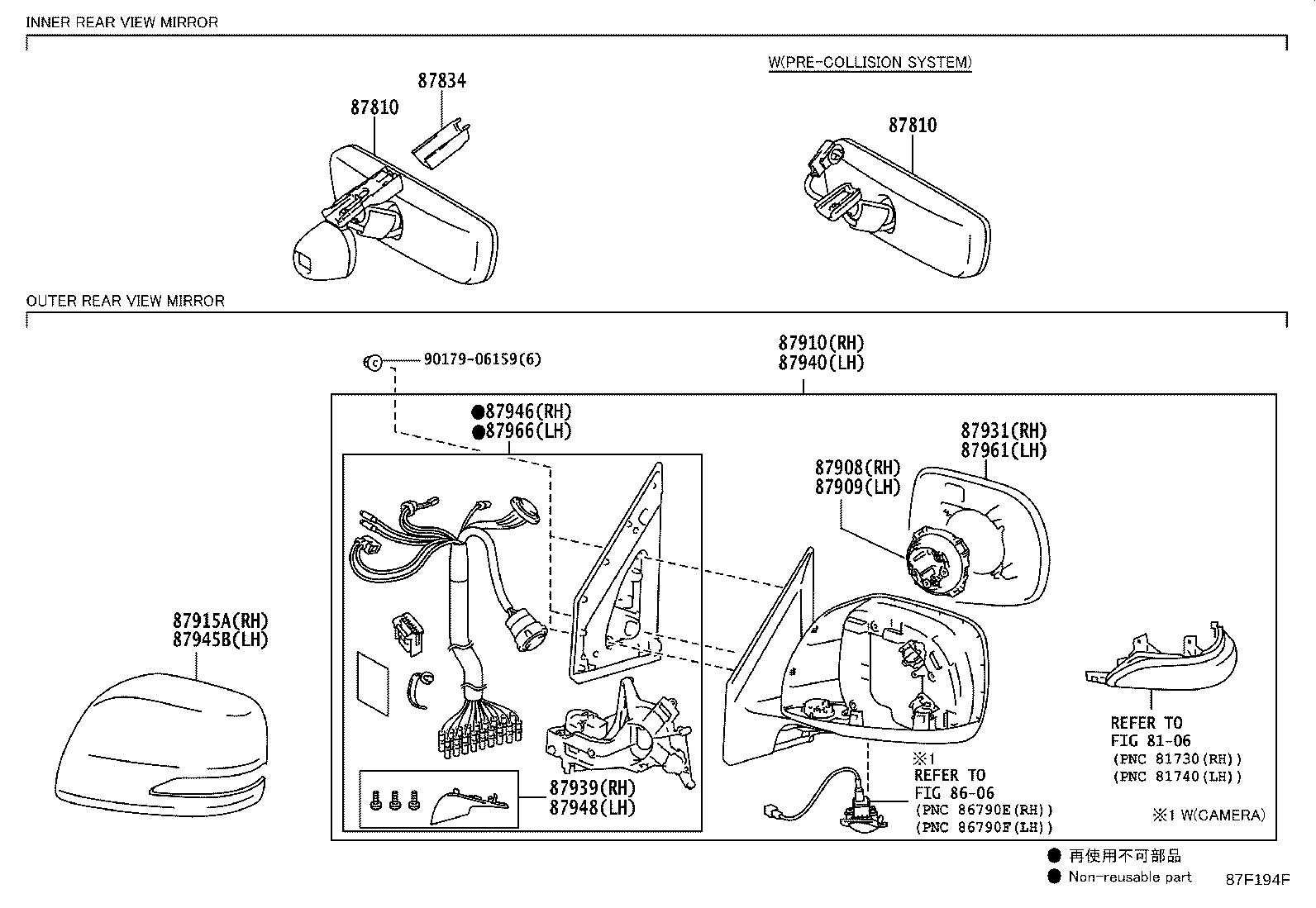

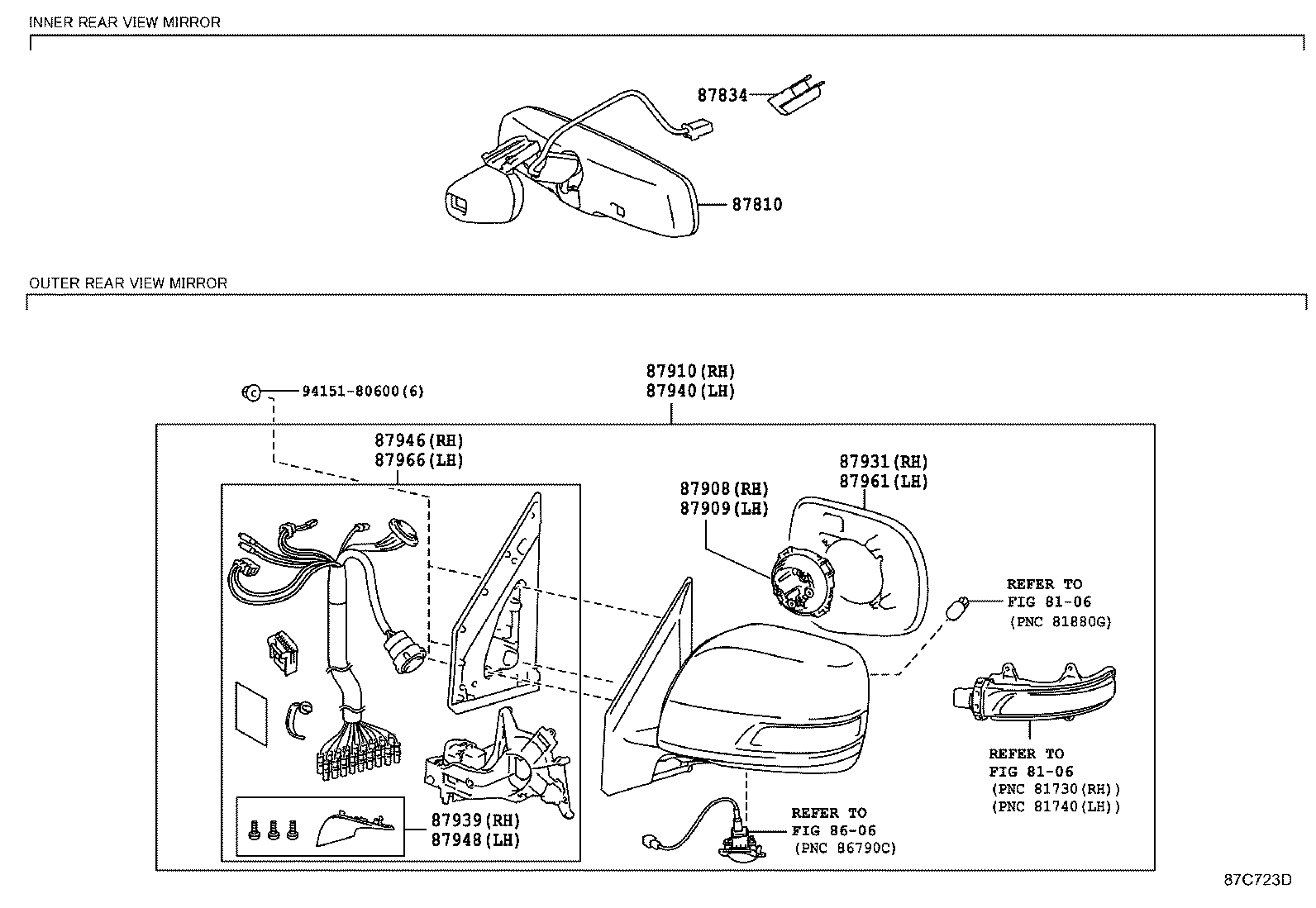

Figure 879867F 879867F 2007-11 → 2012-01 Figure 87C723D 87C723D 2012-01 → 2015-09 Figure 87F194F 87F194F 2015-09 → —

Part groups

PNCDescription
81880D Bulb, Outer Mirror Lamp Assy
87810 Mirror Assy, Inner Rear View
87834 Cover, Inner Rear View Mirror Stay Holder
87908 Actuator Assy, Outer Mirror, RH
87909 Actuator Assy, Outer Mirror, LH
87910 Mirror Assy, Outer Rear View, RH
87915A Cover, Outer Mirror, RH
87931 Outer Mirror, RH
87939 Cover, Outer Mirror Hole, RH
87940 Mirror Assy, Outer Rear View, LH
87945B Cover, Outer Mirror, LH
87946 Retractor, Outer Mirror, RH
87948 Cover, Outer Mirror Hole, LH
87961 Mirror Outer, LH
87966 Retractor, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
