Heating & Air Conditioning - Water Piping

17 part groups · 4 illustrations

Illustrations

Figure 87G406

87G406 2007-11 → 2015-09

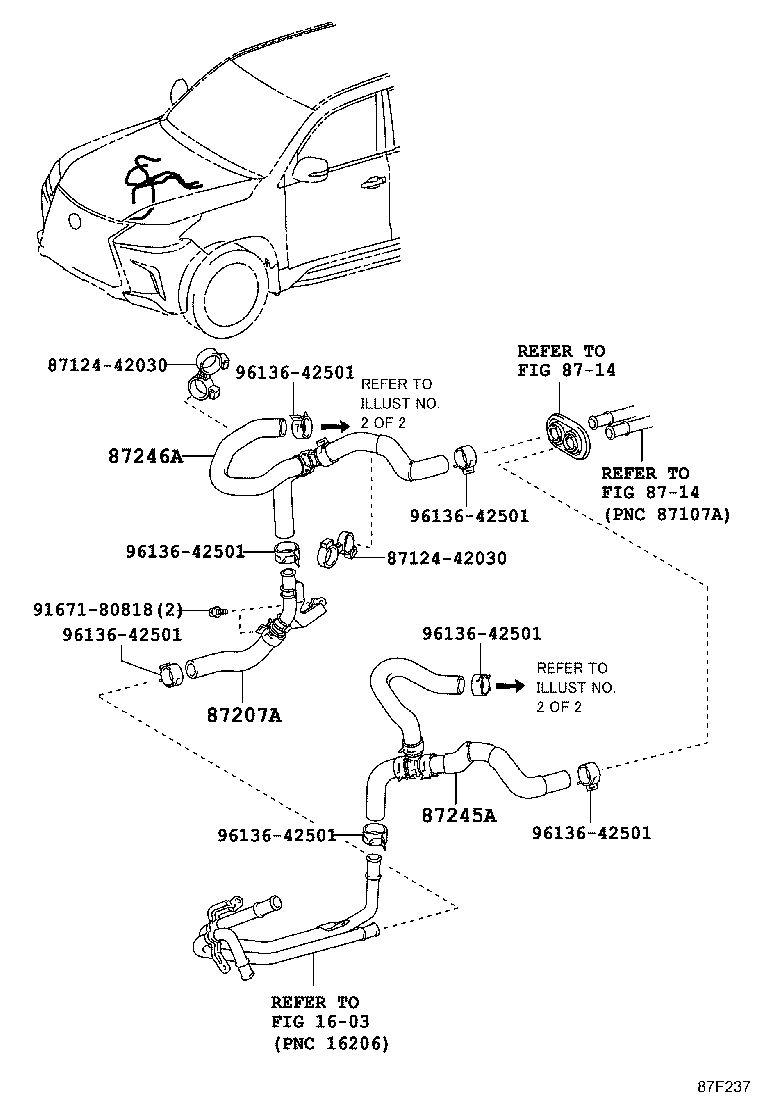

Figure 87F237

87F237 2015-09 → —

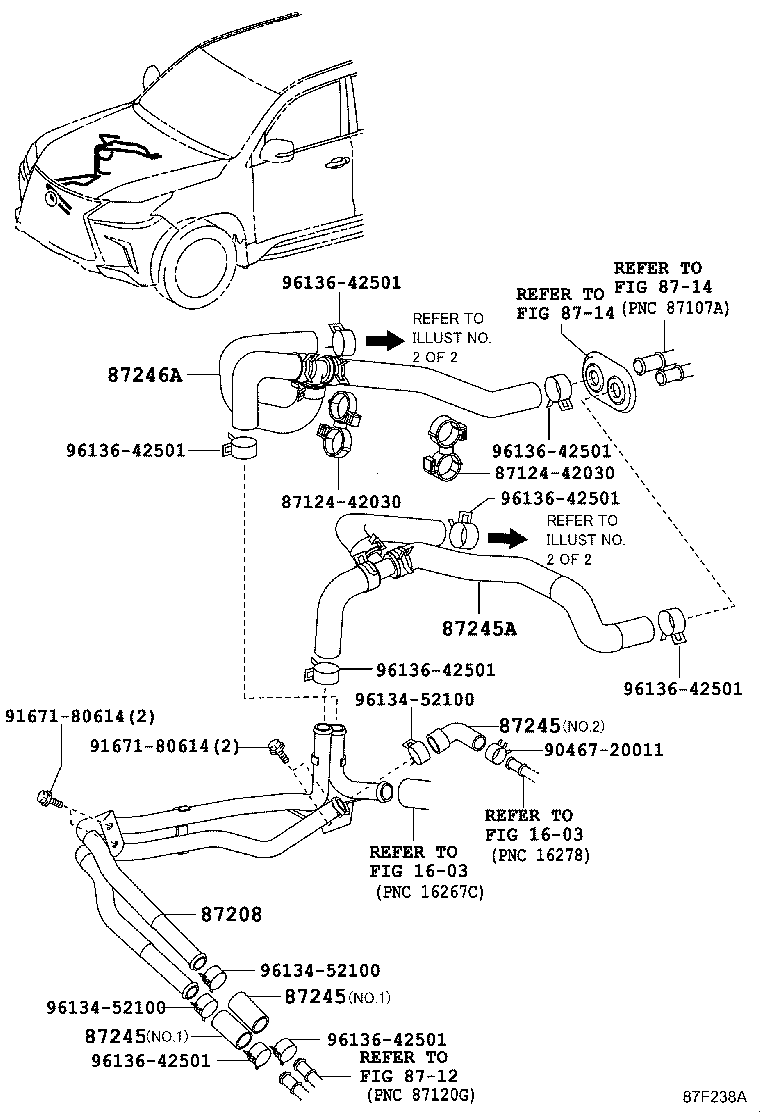

Figure 87F238A

87F238A 2015-09 → —

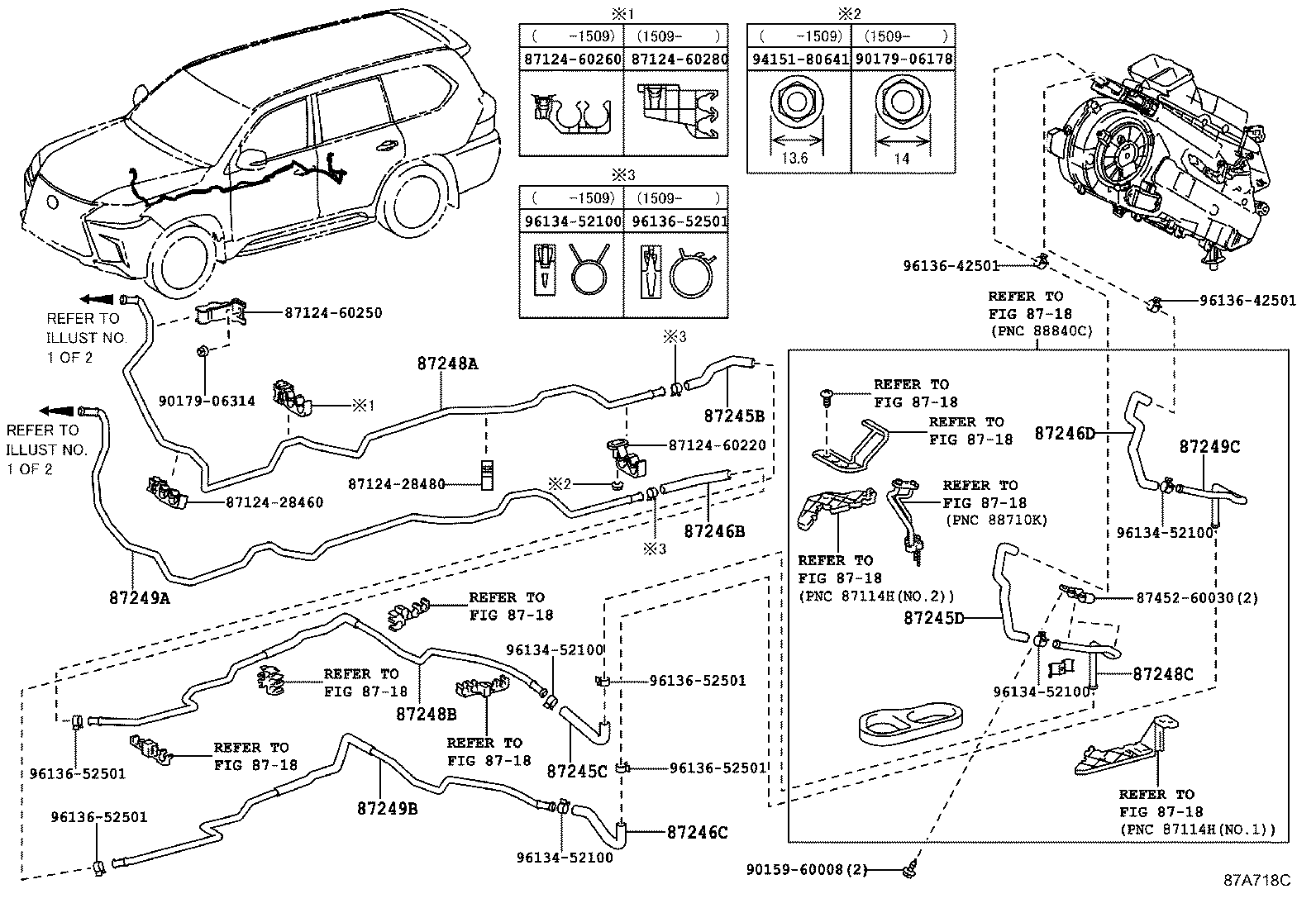

Figure 87A718C

87A718C 2007-11 → —

Part groups

PNC	Description
87207A	Pipe & Hose Sub-assy, Water A
87208	Pipe Sub-assy, Heater Water
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87245D	Hose, Heater Water, Inlet D
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87248C	Pipe, Heater Water Inlet, C
87249A	Pipe, Heater Water Outlet, A
87249B	Pipe, Heater Water Outlet, B
87249C	Pipe, Heater Water Outlet, C

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
