Toyota Lexus LX450D/570

2007-11 → present · chassis URJ201,VDJ201 · catalogue 792560 · Europe

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

31 part groups · 5 illustrations

Illustrations

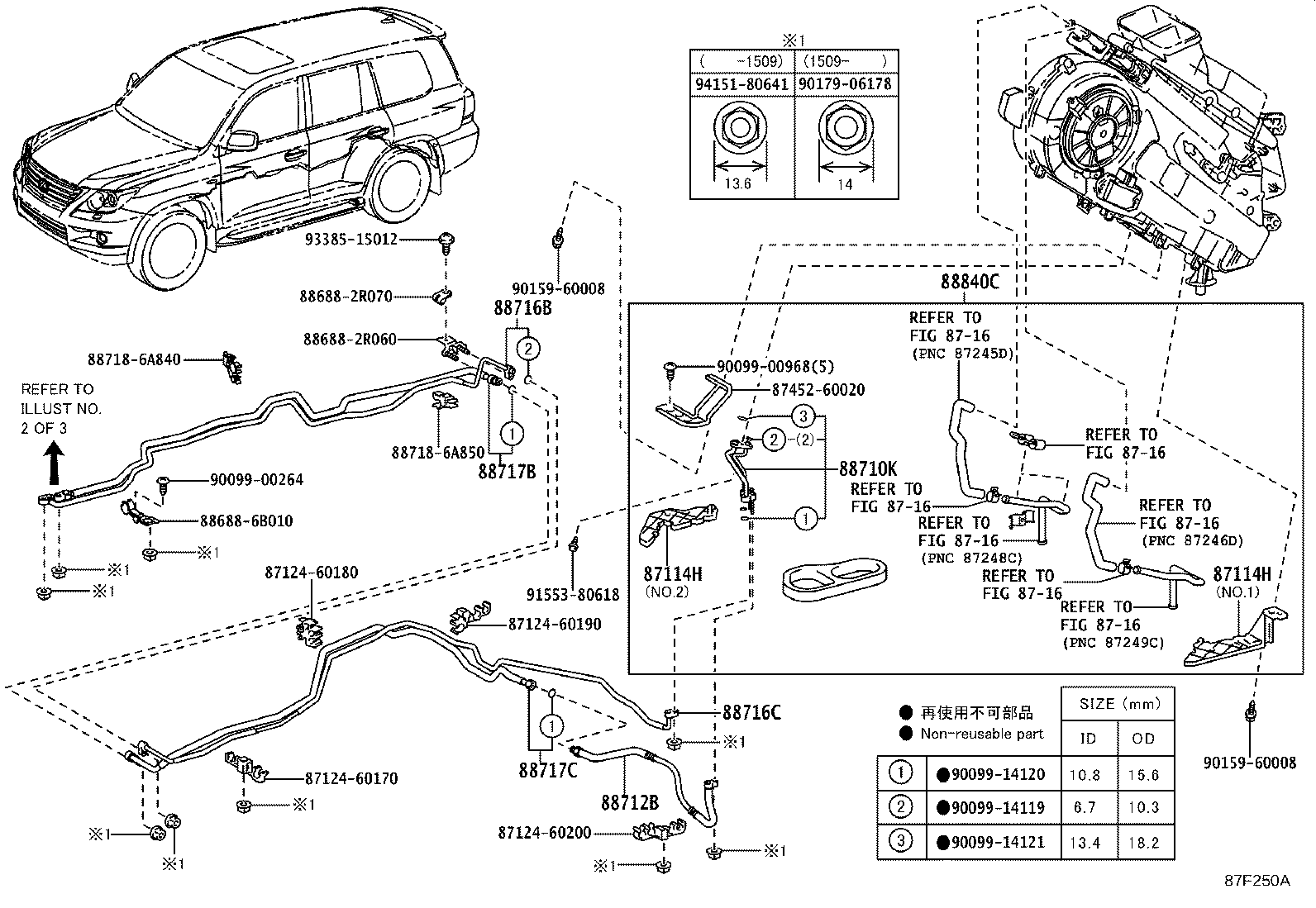

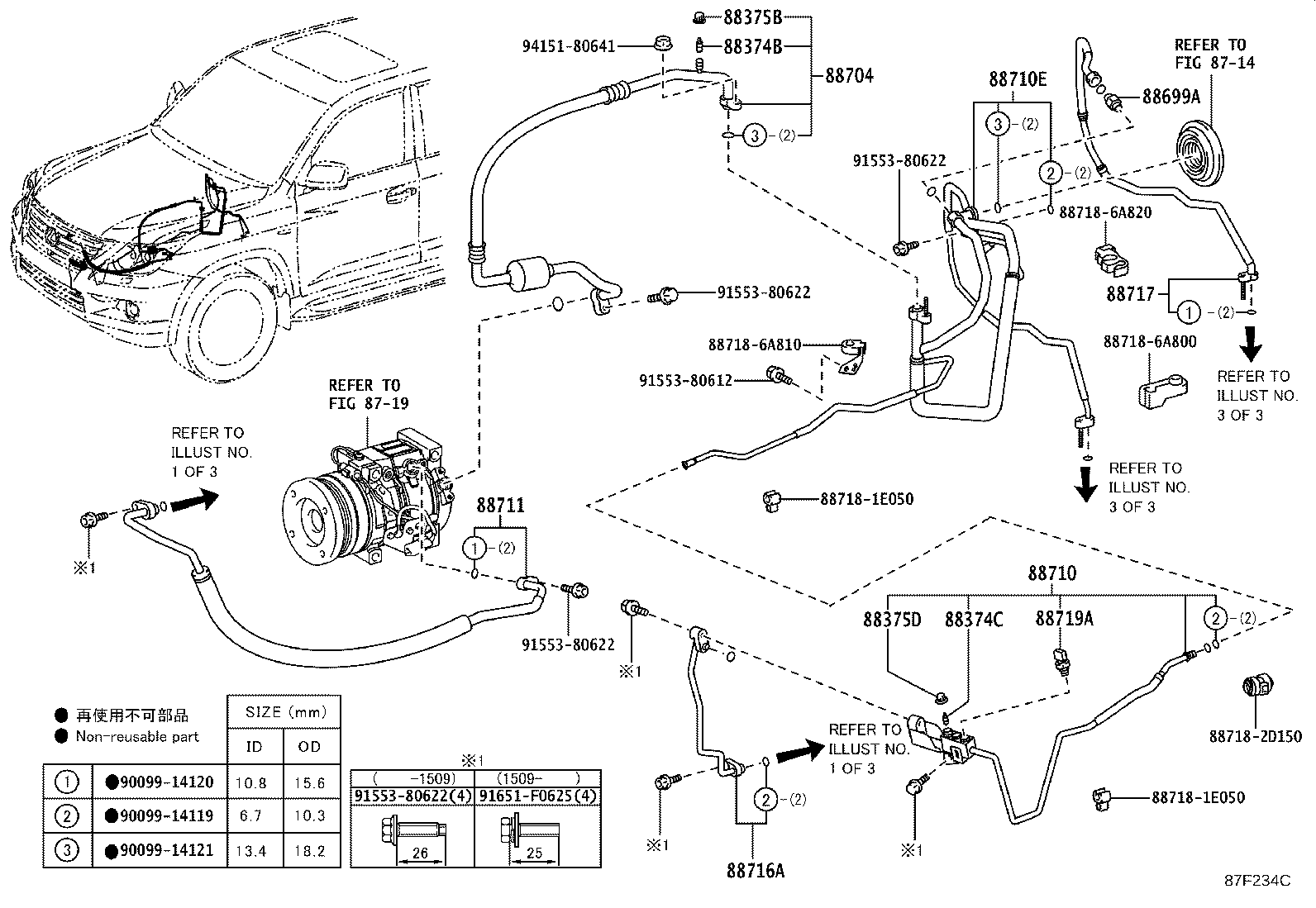

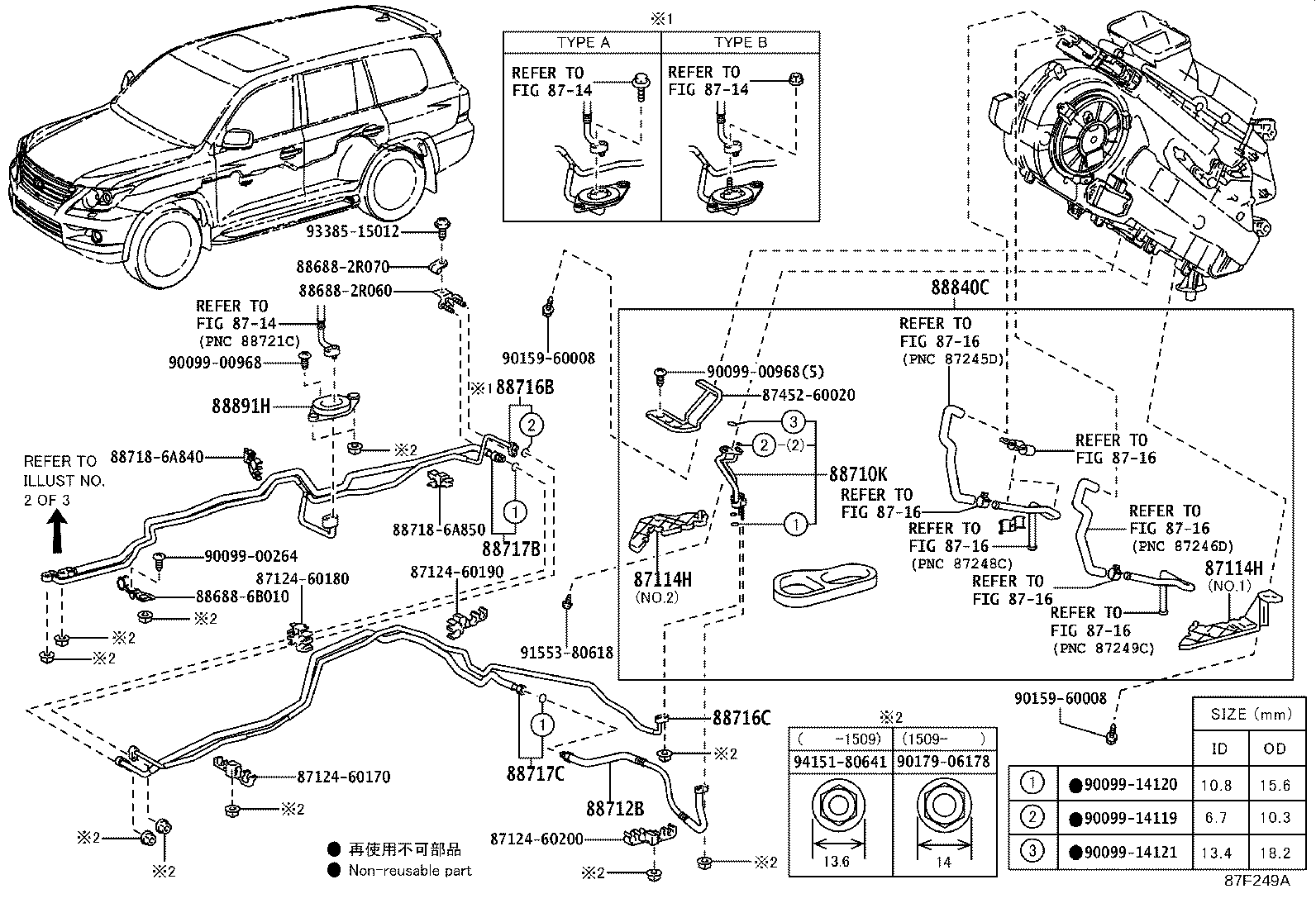

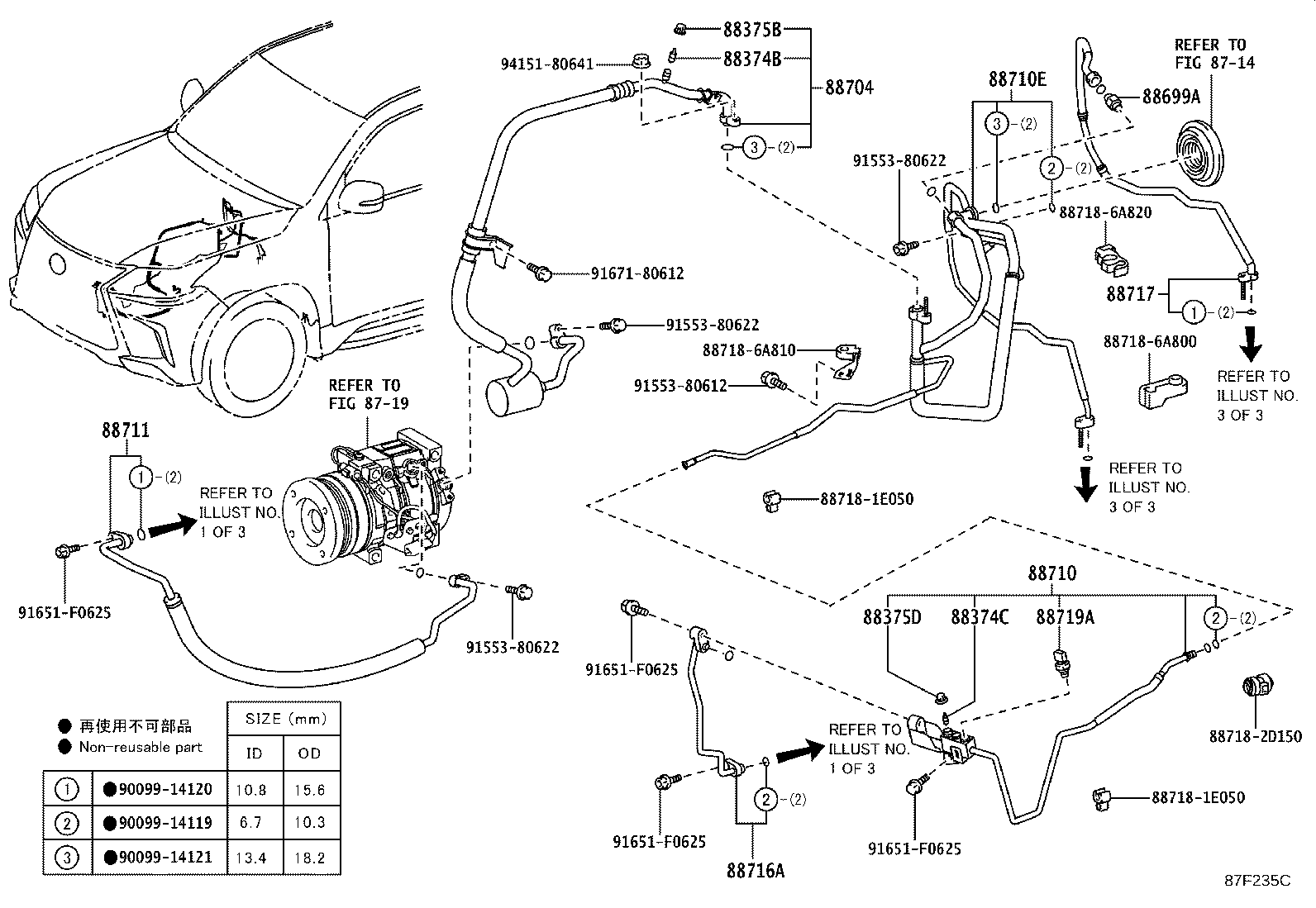

Figure 879680L 879680L 2007-11 → — Figure 87F234C 87F234C 2007-11 → — Figure 87F235C 87F235C 2015-09 → — Figure 87F249A 87F249A 2007-11 → — Figure 87F250A 87F250A 2007-11 → —

Part groups

PNCDescription
87114H Cover, Heater
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88699A Valve, Air
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88710K Tube & Accessory Assy, Air Conditioner, NO.3
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712B Hose, Cooler Refrigerant Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88719A Sensor, Air Conditioner Pressure
88723B Label, Cooler Service Caution
88840C Accessory Assy, Air Conditioner, NO.1
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
