Heating & Air Conditioning - Compressor

4 part groups · 2 illustrations

Illustrations

Figure 87A904A

87A904A 2007-11 → —

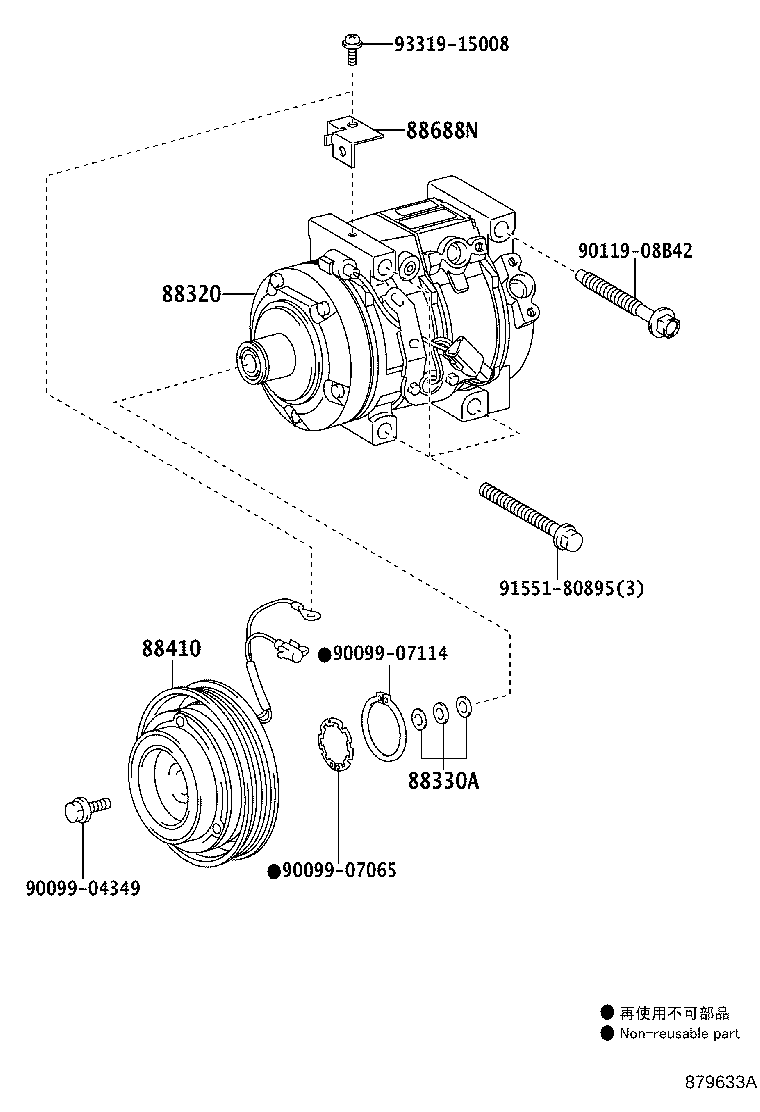

Figure 879633A

879633A 2015-09 → —

Part groups

PNC	Description
88320	Compressor Assy, Cooler
88330A	Washer (FOR MAGNET CLUTCH)
88410	Clutch Assy, Magnet
88688N	Bracket, Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
