Toyota Coaster

1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe

Discontinued model Data version 1982-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

11 part groups · 5 illustrations

Illustrations

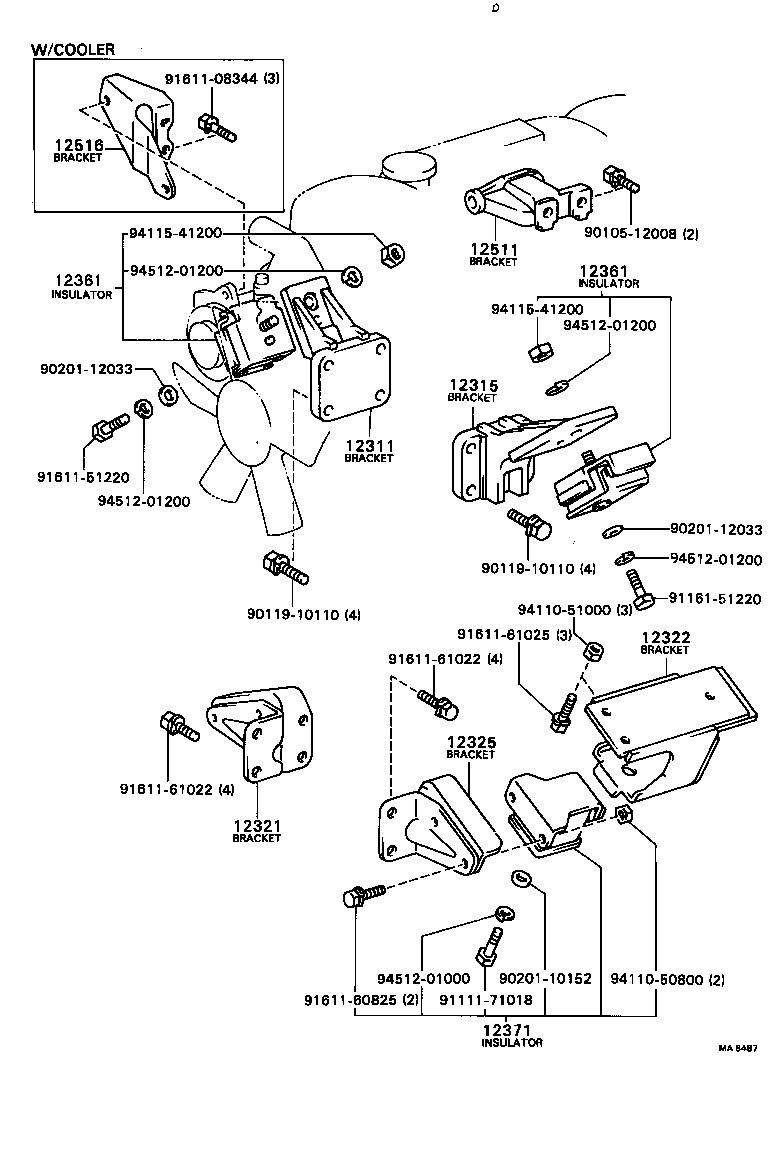

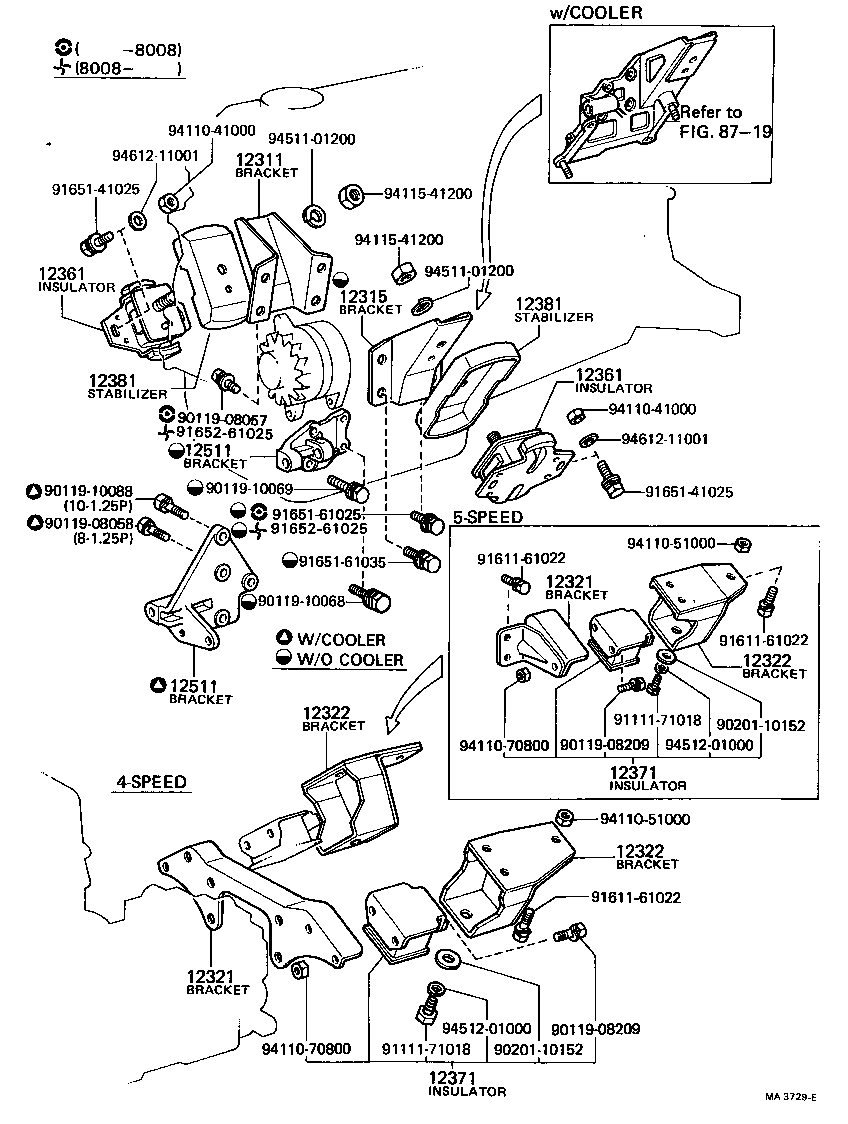

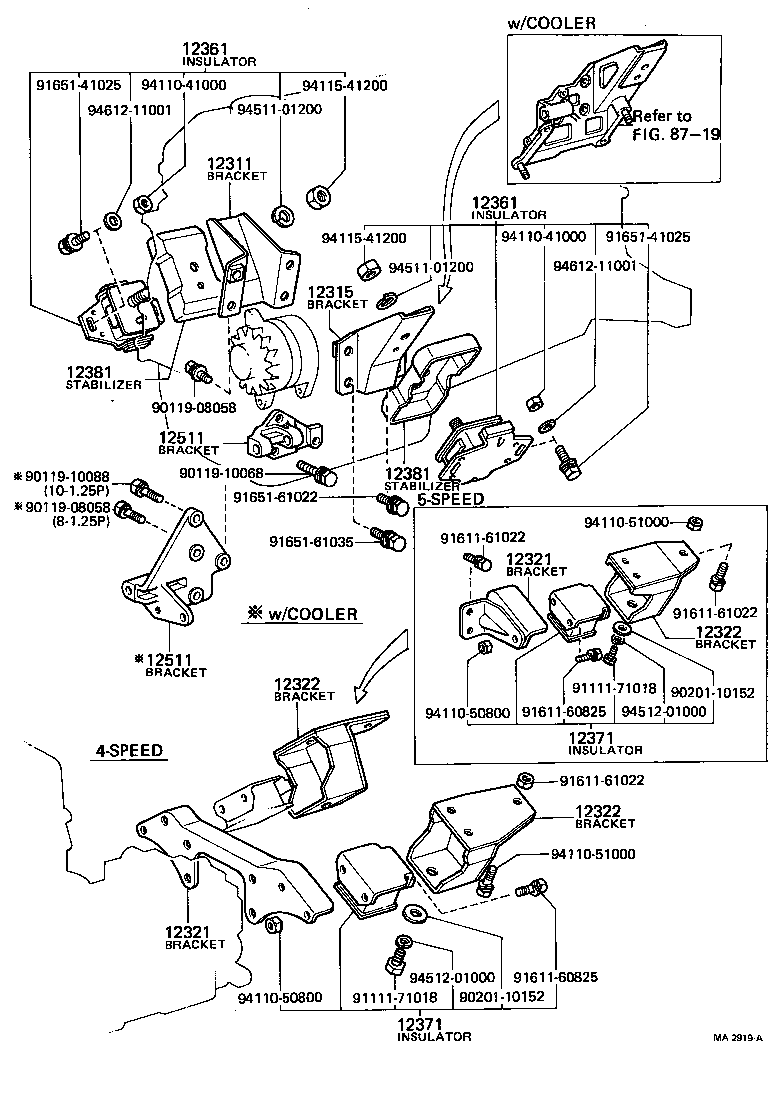

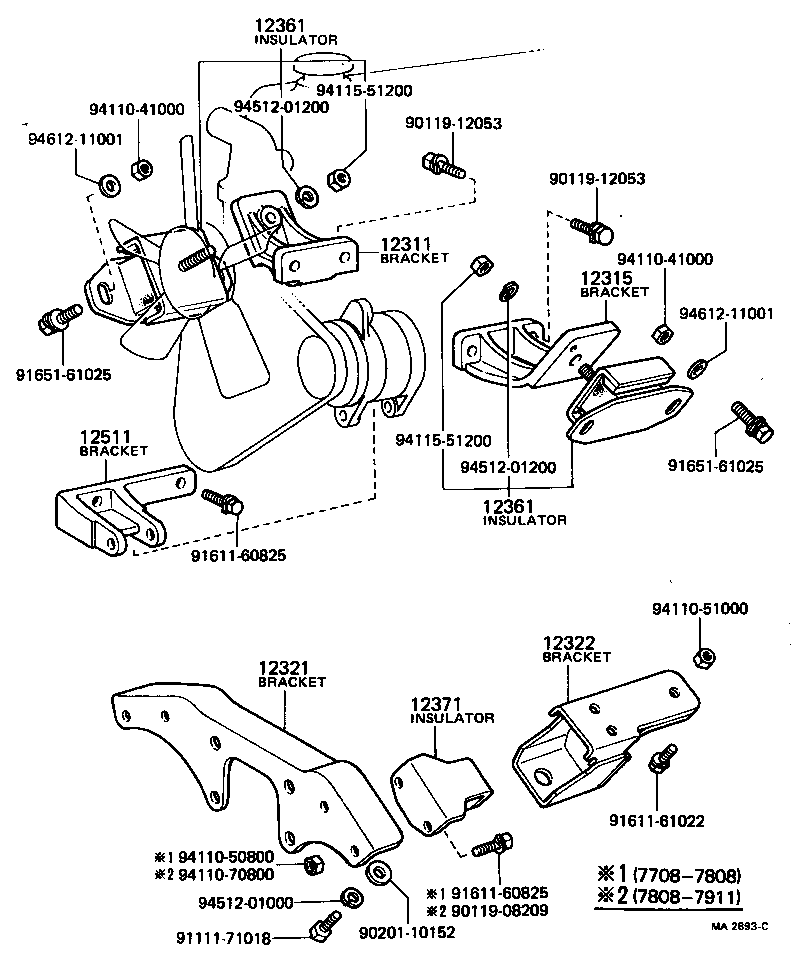

Figure MA5545A MA5545A 1977-08 → 1980-08 Figure MA6487 MA6487 1980-08 → — Figure MA2893C MA2893C 1977-08 → 1979-11 Figure MA2919A MA2919A 1977-08 → 1978-08 Figure MA3729E MA3729E 1978-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12501 Bracket Sub-assy, Alternator
12511 Bracket, Alternator, NO.1
12516 Bracket, Alternator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
