Toyota Coaster

1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe

Discontinued model Data version 1982-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

10 part groups · 3 illustrations

Illustrations

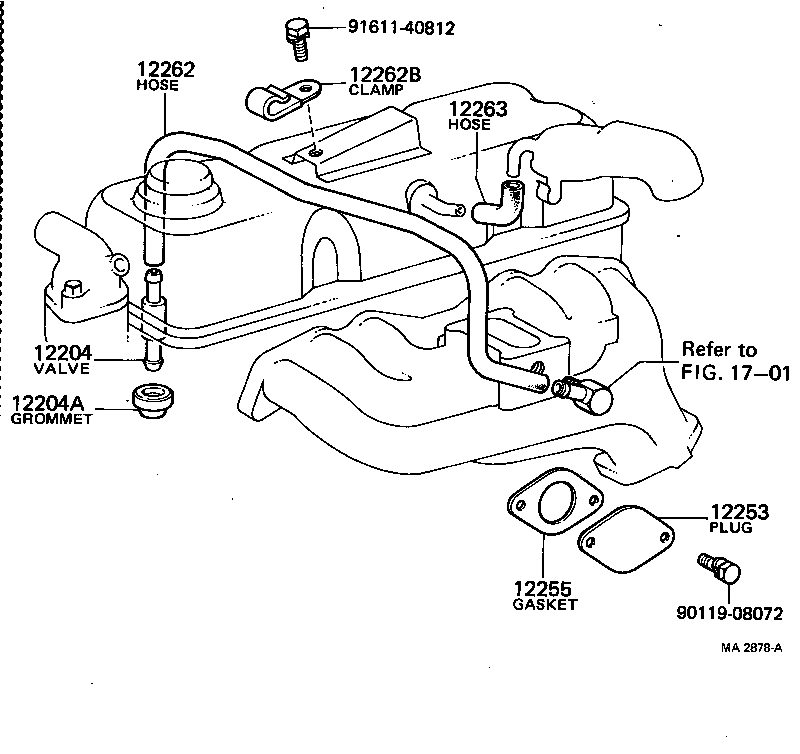

Figure MA1403F MA1403F 1977-08 → — Figure MA2878A MA2878A 1977-08 → 1979-11 Figure MA3726A MA3726A 1977-08 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12251 Clamp, Ventilation Tube
12253 Plug, Ventilation Hole
12255 Gasket, Ventilation
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262B Clamp(FOR VENTILATION HOSE)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
