Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe
Discontinued model
Data version 1982-12

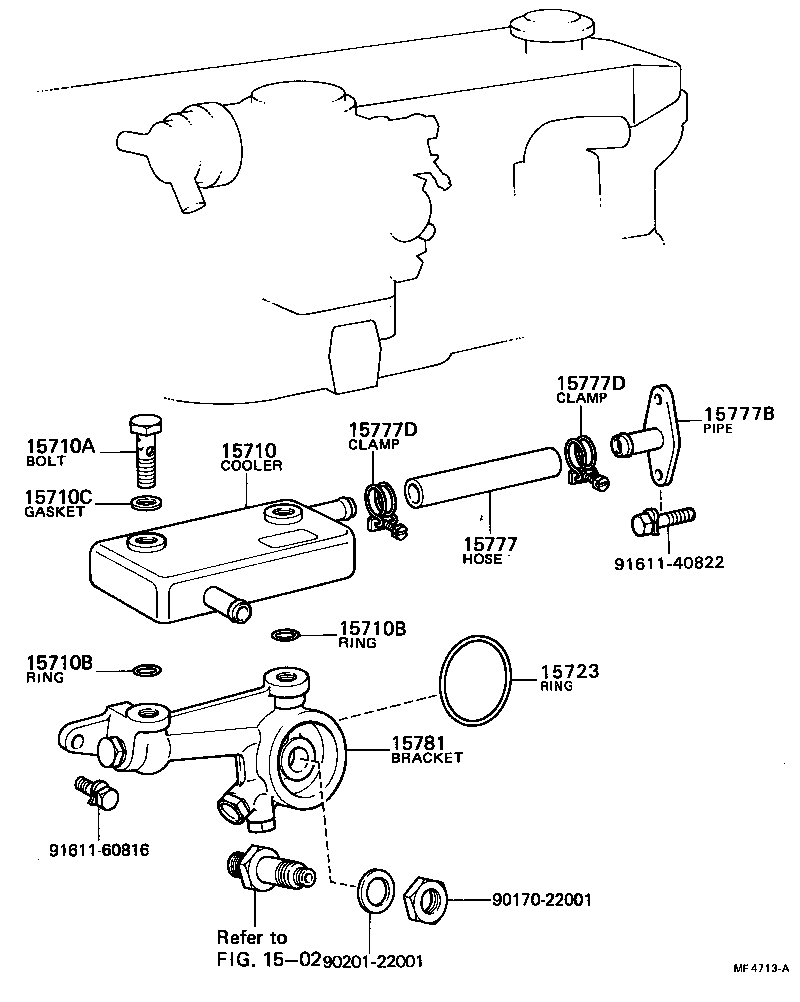

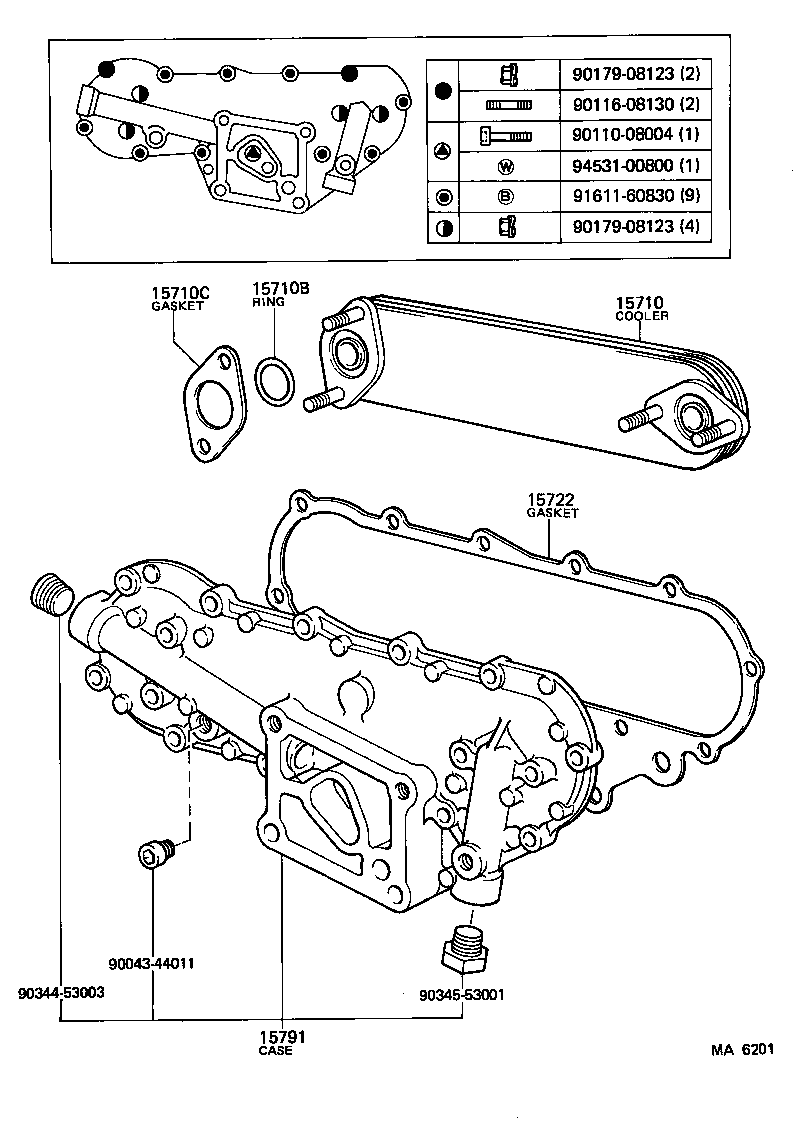

Engine Oil Cooler
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 15710 | Cooler Assy, Oil |
| 15710A | Bolt, Union(FOR OIL COOLER) |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15710C | Gasket(FOR OIL COOLER) |
| 15722 | Gasket, Oil Cooler |
| 15723 | Ring, O |
| 15771A | Union(FOR OIL PIPE) |
| 15771B | Hose, Oil, NO.1(FOR OIL PIPE) |
| 15771C | Clamp(FOR OIL PIPE) |
| 15771E | Bolt, Union(FOR OIL PIPE) |
| 15771F | Ring, O |
| 15771G | Gasket |
| 15772A | Union(FOR OIL PIPE) |
| 15772B | Hose, Oil, NO.1(FOR OIL PIPE) |
| 15777 | Hose, Oil Cooler |
| 15777A | Hose, Oil Cooler |
| 15777B | Pipe, Oil Cooler |
| 15777D | Clamp OR Clip, Hose(FOR OIL COOLER HOSE) |
| 15777H | Cover, Tube Clamp |
| 15781 | Bracket, Oil Cooler, NO.1 |
| 15791 | Case, Oil Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
