Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe
Discontinued model
Data version 1982-12

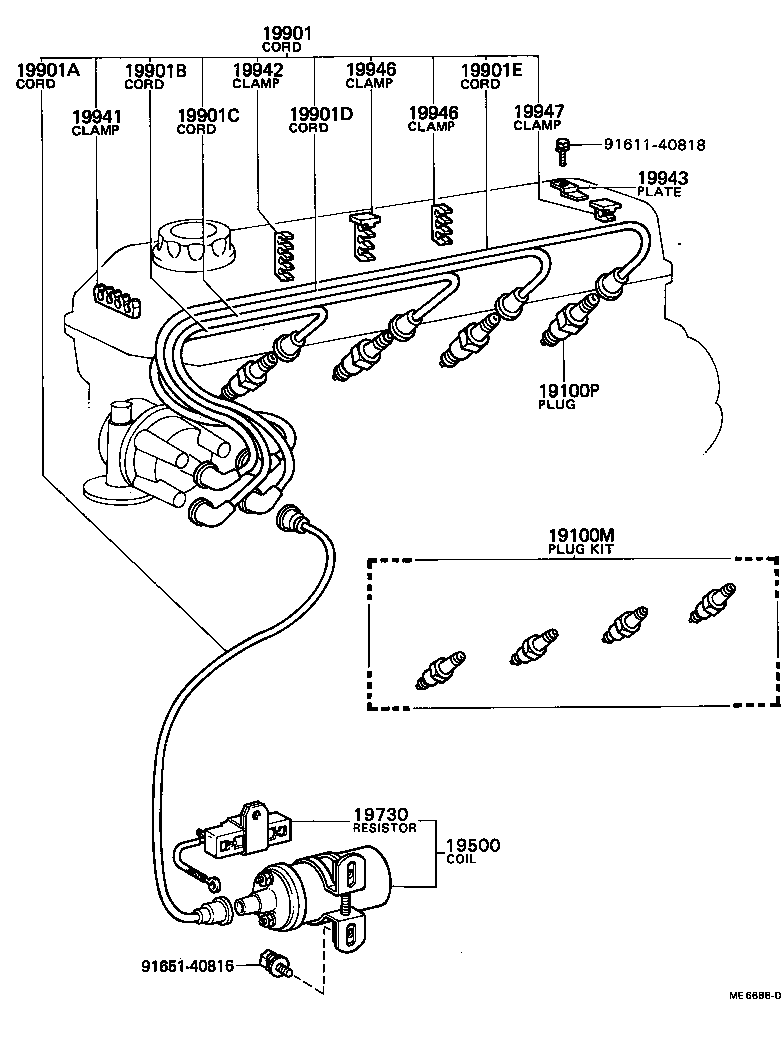

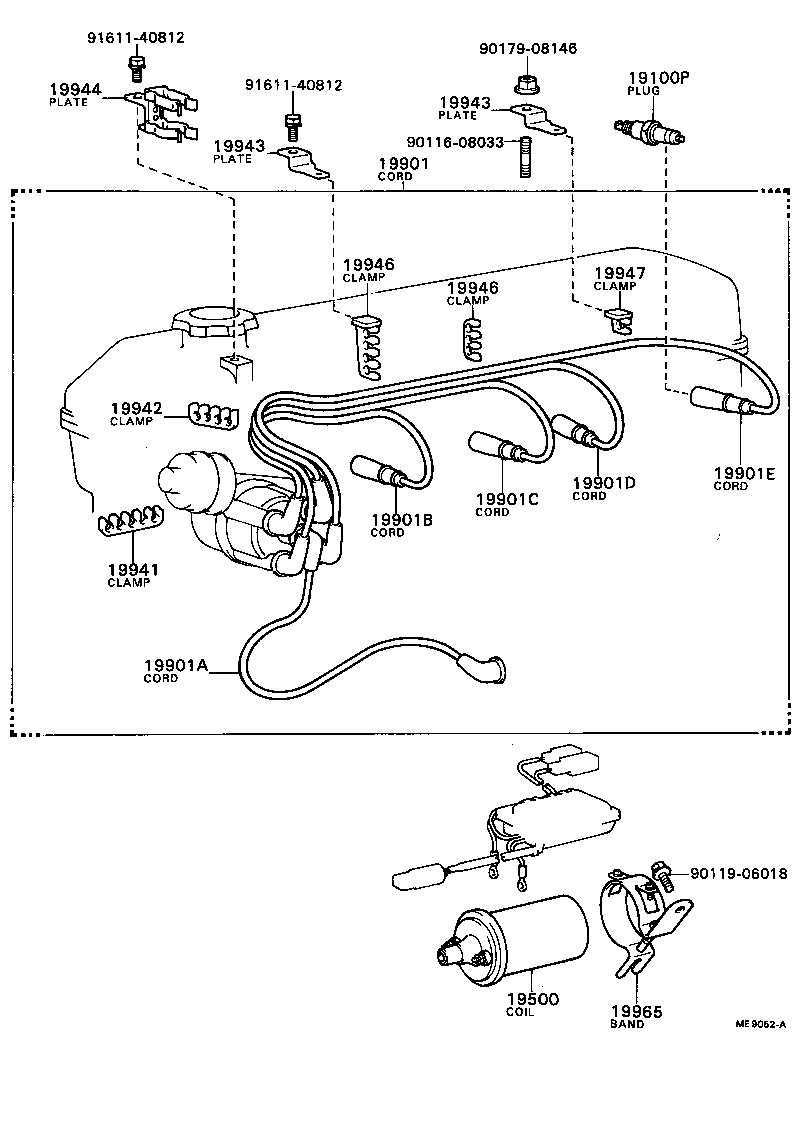

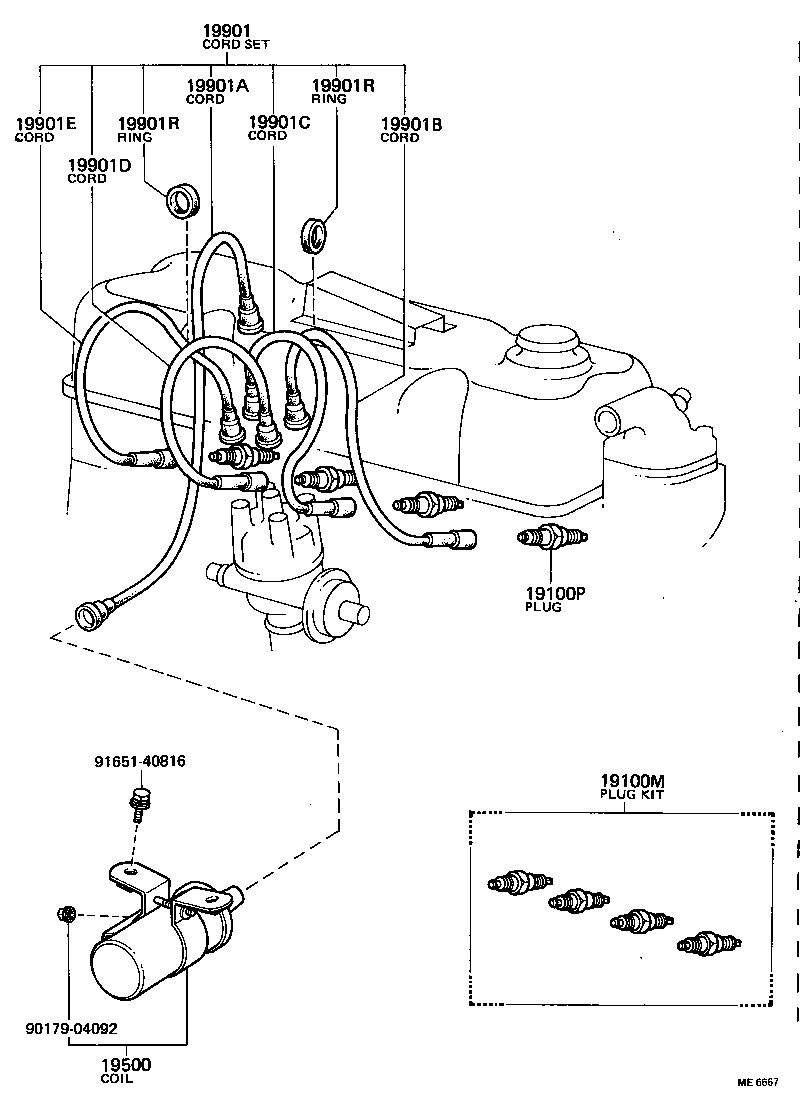

Ignition Coil & Spark Plug / Glow Plug
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 19100M | Plug Kit, Spark |
| 19100P | Plug, Spark |
| 19500 | Coil Assy, Ignition |
| 19730 | Resistor, Ignition Coil |
| 19807 | Insulator Sub-assy, Glow Plug, NO.1 |
| 19850 | Plug Assy, Glow |
| 19850B | Grommet, Screw(FOR GLOW PLUG) |
| 19871 | Connector, Glow Plug NO.1 |
| 19901 | Cord Set, Coil & Spark, W/Resistive |
| 19901A | Cord, Coil Resistive |
| 19901B | Cord, Spark Plug Resistive, NO.1 |
| 19901C | Cord, Spark Plug Resistive, NO.2 |
| 19901D | Cord, Spark Plug Resistive, NO.3 |
| 19901E | Cord, Spark Plug Resistive, NO.4 |
| 19901R | Ring, Rubber Spark Plug Resistive Cord |
| 19941 | Clamp, Resistive Cord, NO.1 |
| 19942 | Clamp, Resistive Cord, NO.2 |
| 19943 | Plate, Resistive Cord Clamp Support NO.1 |
| 19944 | Plate, Resistive Cord Clamp Support, NO.2 |
| 19946 | Clamp, Resistive Cord, NO.3 |
| 19947 | Clamp, Resistive Cord, NO.4 |
| 19965 | Band, Ignition Coil, NO.1 |
| 22560 | Magnet Assy, Over Injection |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
