Toyota Coaster

1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe

Discontinued model Data version 1982-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

10 part groups · 7 illustrations

Illustrations

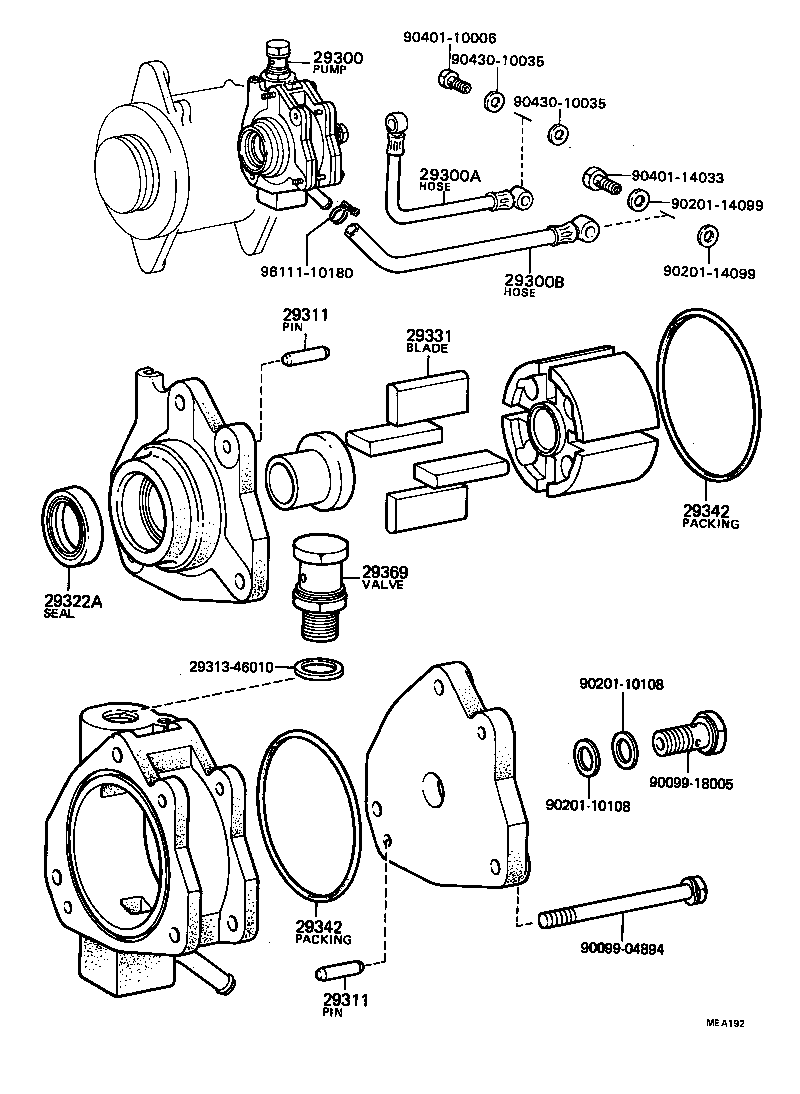

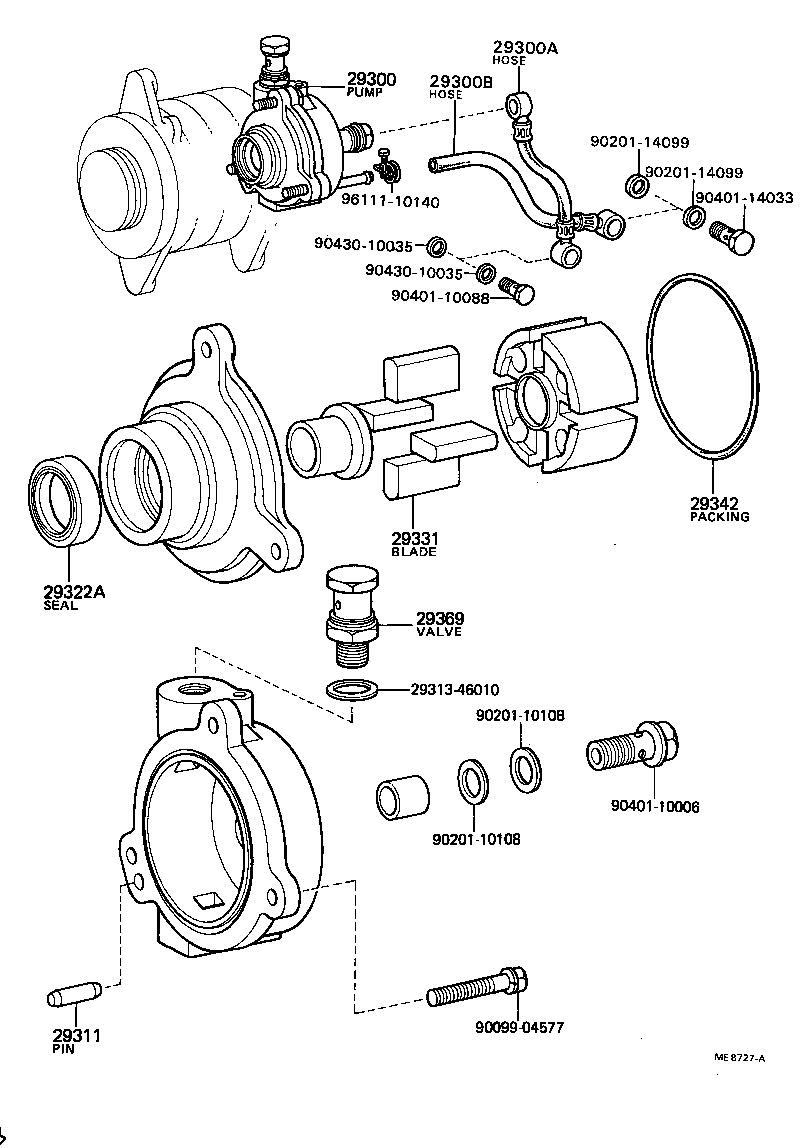

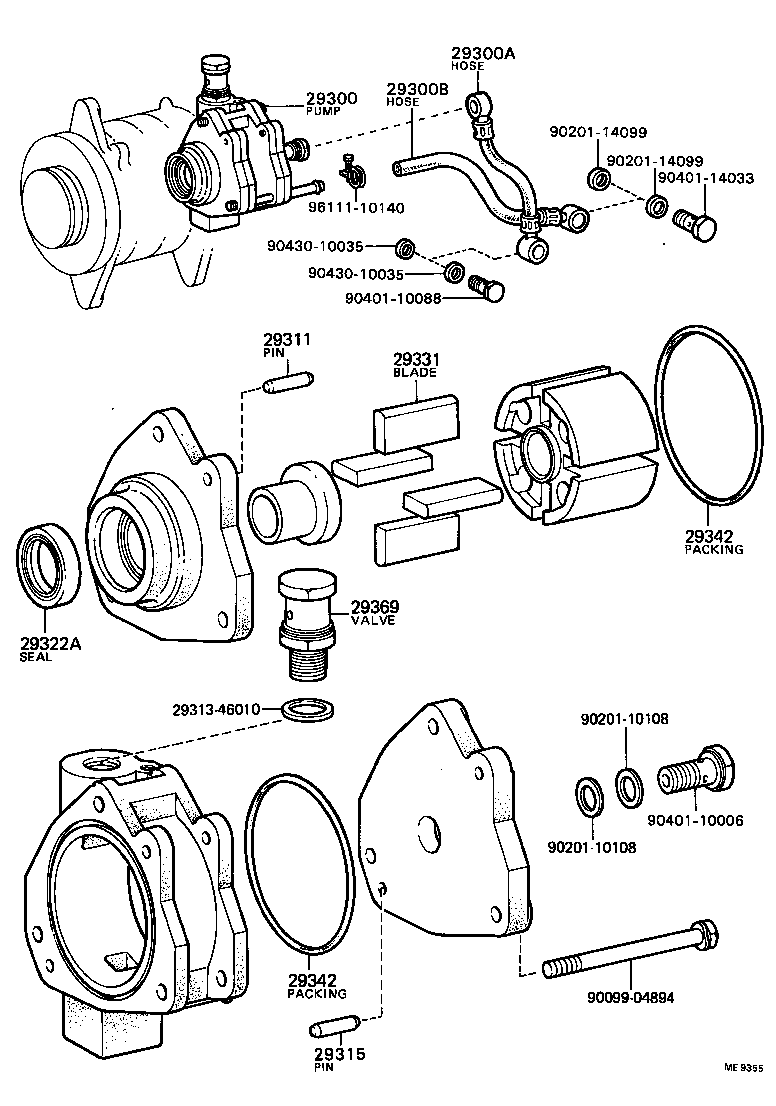

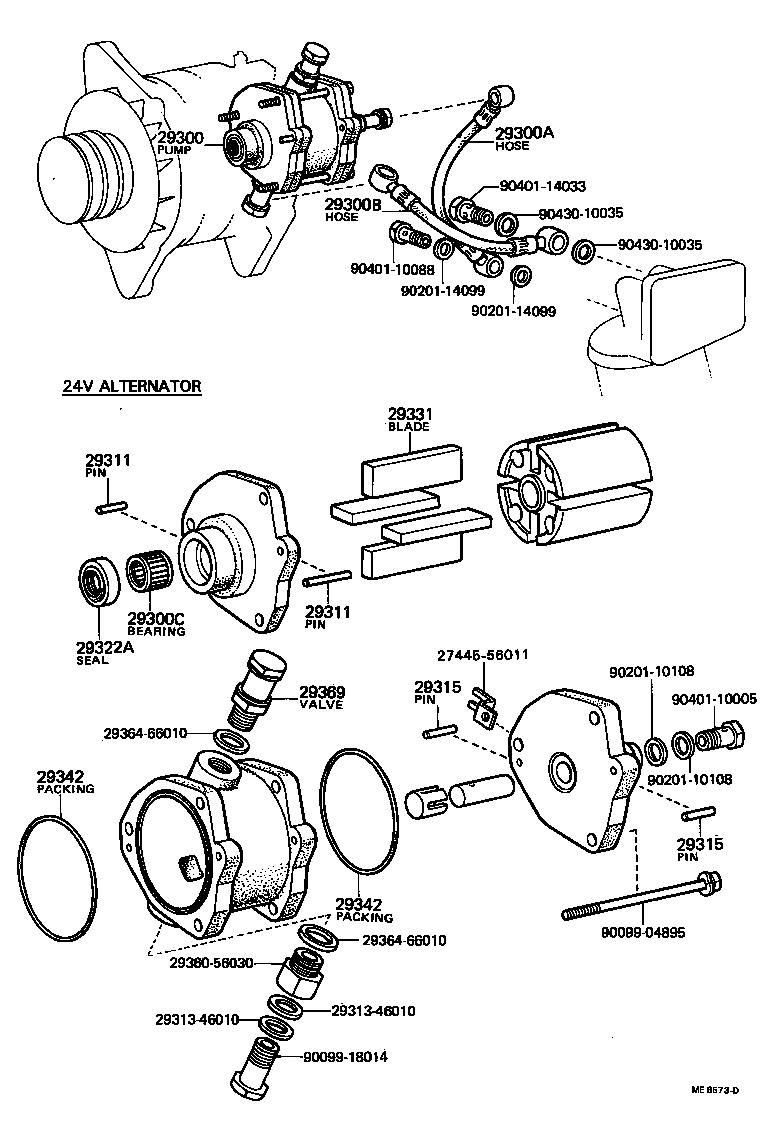

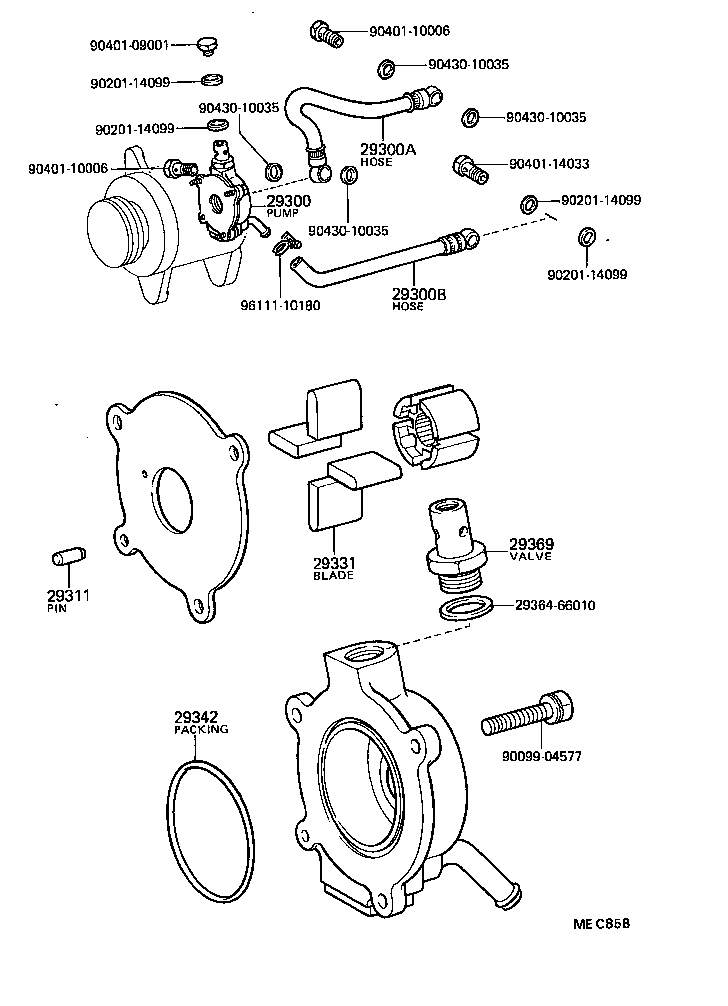

Figure ME7784A ME7784A 1977-08 → 1980-08 Figure ME8727A ME8727A 1979-11 → 1980-02 Figure ME9355 ME9355 1980-02 → 1980-08 Figure ME6573D ME6573D 1977-08 → 1980-08 Figure MEA192 MEA192 1980-08 → 1981-09 Figure MEA192 MEA192 1981-09 → — Figure MEC858 MEC858 1981-09 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29300C Bearing, Vacuum Pump Rotor, Front
29311 Pin, Vacuum Pump Dowel, NO.1
29315 Pin, Vacuum Pump Dowel, NO.2
29322A Seal, Vacuum Pump Oil
29331 Blade, Vacuum Pump, A
29342 Packing, Vacuum Pump
29369 Valve Sub-assy, Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
