Toyota Coaster

1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe

Discontinued model Data version 1982-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pipe & Clamp

13 part groups · 3 illustrations

Illustrations

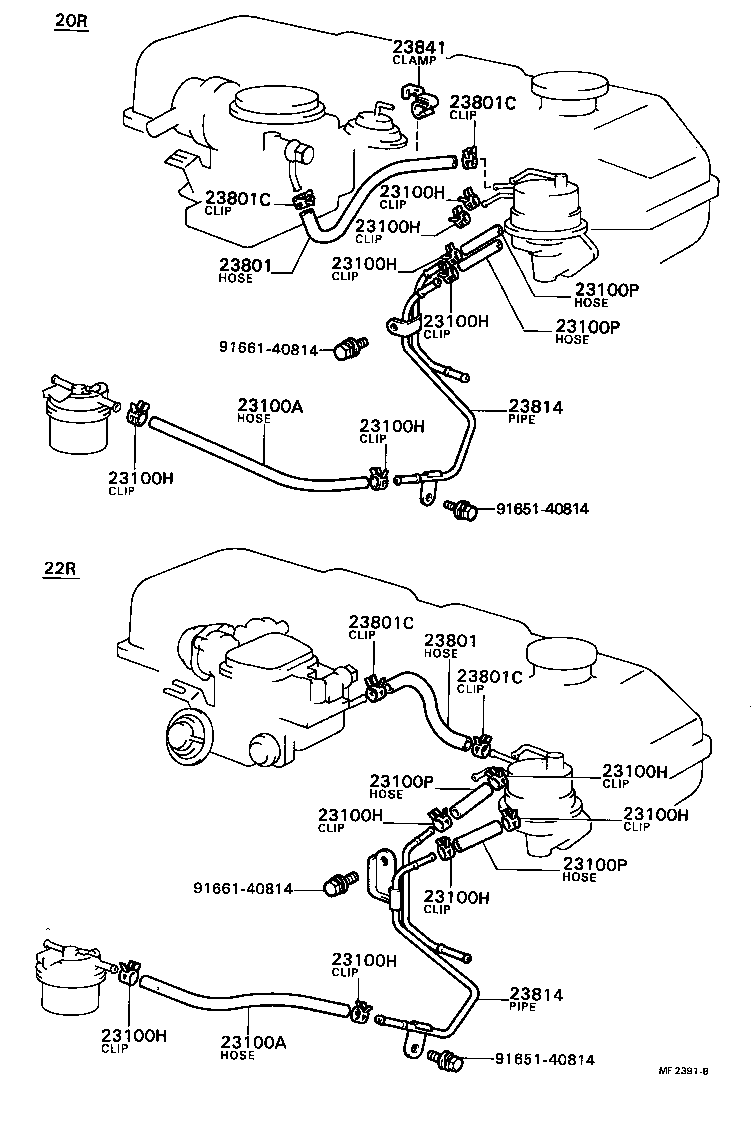

Figure MF1876B MF1876B 1977-08 → 1979-11 Figure MF2390A MF2390A 1977-08 → 1979-11 Figure MF2391B MF2391B 1979-11 → —

Part groups

PNCDescription
19907 Hose, Vacuum, NO.1
21100S Hose(FOR CARBURETOR TO MANIFOLD)
23100A Hose, Fuel
23100H Clip(FOR FUEL HOSE)
23100P Hose(FOR FUEL PUMP TO FUEL TUBE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801A Olive(FOR FUEL PIPE)
23801B Nut, Union(FOR FUEL PIPE)
23801C Clip(FOR CARBURETOR FUEL HOSE)
23814 Pipe, Fuel Delivery
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
23845 Insulator, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
