Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe
Discontinued model
Data version 1982-12

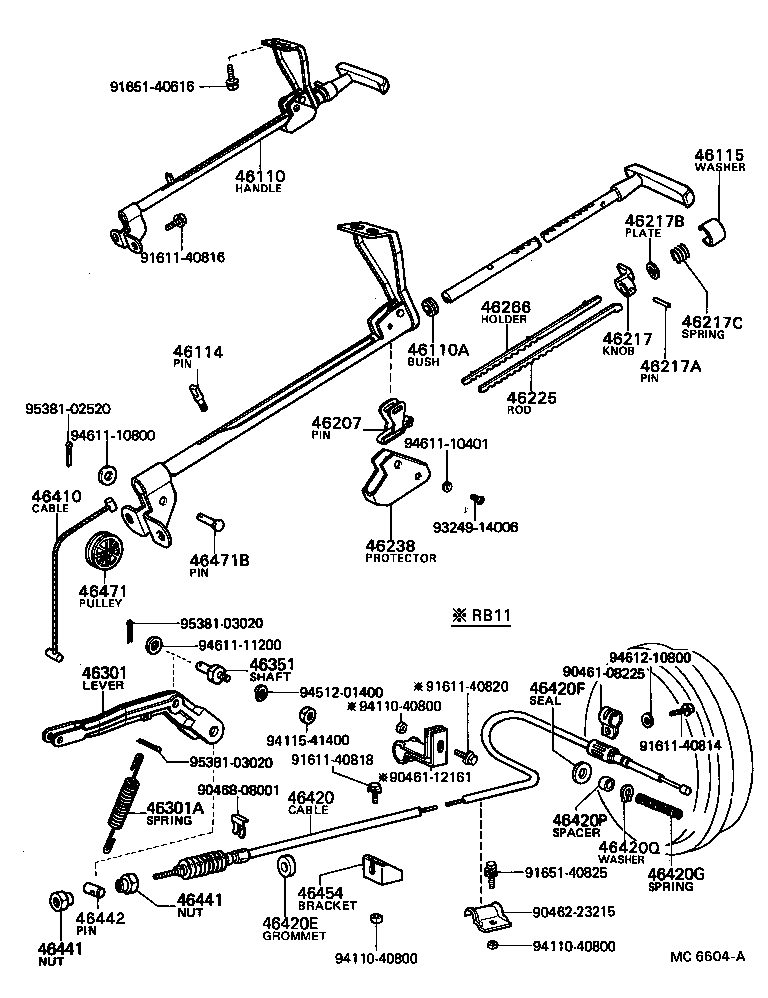

Parking Brake & Cable
42 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 46110 | Handle Assy, Parking Brake Control |
| 46110A | Bush OR Ring, O (FOR PARKING BRAKE PLUNGER) |
| 46114 | Pin, Parking Brake Plunger |
| 46115 | Washer, Parking Brake Plunger |
| 46207 | Pin Sub-assy, Plunger Lock |
| 46217 | Knob, Parking Brake Release Rod |
| 46217A | Pin, Slotted Spring(FOR PARKING BRAKE RELEASE ROD KNOB) |
| 46217B | Washer, Plate(FOR PARKING BRAKE RELEASE ROD KNOB) |
| 46217C | Spring, Compression(FOR PARKING BRAKE RELEASE ROD KNOB) |
| 46225 | Rod, Parking Brake Pawl Release |
| 46238 | Protector, Plunger Lock Pin |
| 46266 | Holder, Plunger Lock Pin |
| 46301 | Lever Sub-assy, Parking Brake Intermediate |
| 46301A | Spring, Tension(FOR INTERMEDIATE LEVER) |
| 46301B | Bush(FOR INTERMEDIATE LEVER) |
| 46311 | Pawl, Parking Brake |
| 46311A | Spring(FOR PARKING BRAKE PAWL) |
| 46351 | Shaft, Intermediate Lever Pivot |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420E | Grommet(FOR PARKING BRAKE CABLE CLAMP) |
| 46420F | Seal, Dust(FOR PARKING BRAKE CABLE) |
| 46420G | Spring(FOR PARKING CABLE INNER WIRE SET) |
| 46420P | Spacer, Parking Brake |
| 46420Q | Ring, E(FOR PARKING BRAKE CABLE) |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46442 | Pin, Wire Pivot |
| 46454 | Bracket, Cable Retainer, Front |
| 46471 | Pulley, Wire |
| 46471B | Pin, W/Hole(FOR WIRE PULLEY SET) |
| 46501 | Drum Sub-assy, Parking Brake |
| 46501A | Bolt, Serration(FOR PARKING BRAKE DRUM) |
| 46506 | Adjuster Sub-assy, Parking Brake Shoe, RH OR Center |
| 46520 | Plate Sub-assy, Parking Brake |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550C | Washer, Type C(FOR PARKING BRAKE SHOE) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46555 | Spring, Brake Shoe Hold Down |
| 46556 | Pin, Shoe Hold Down Spring |
| 46577 | Cover, Adjusting Cam Hole |
| 46601 | Lever Sub-assy, Parking Brake Shoe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
