Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe
Discontinued model
Data version 1982-12

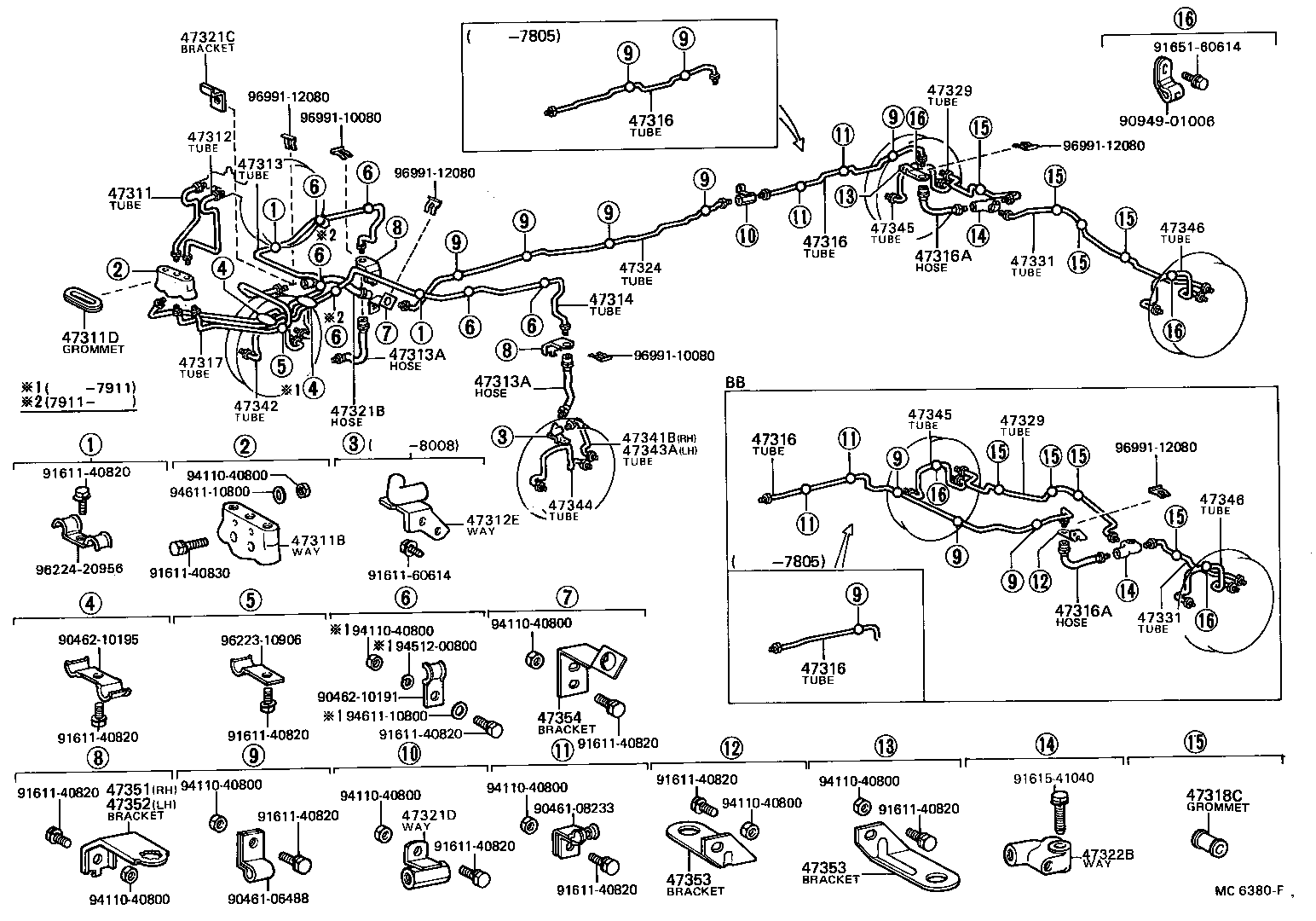

Brake Tube & Clamp
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47311D | Grommet(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47312E | Way, NO.2(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47314 | Tube, Front Brake, NO.4 |
| 47316 | Tube, Front Brake, NO.6 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47317 | Tube, Front Brake, NO.7 |
| 47318C | Grommet(FOR REAR RH BRAKE TUBE) |
| 47321B | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47321C | Bracket, Flexible Hose(FOR REAR BRAKE FLEXIBLE HOSE) |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322B | Way, NO.2(FOR REAR BRAKE TUBE) |
| 47324 | Tube, Rear Brake, NO.4 |
| 47329 | Tube, Rear Brake, NO.9 |
| 47331 | Tube, Rear Brake, NO.10 |
| 47341B | Tube, Wheel Cylinder, Front RH NO.1 |
| 47342 | Tube, Wheel Cylinder, Front RH NO.2 |
| 47343A | Tube, Wheel Cylinder, Front LH NO.1 |
| 47344 | Tube, Wheel Cylinder, Front LH NO.2 |
| 47345 | Tube, Wheel Cylinder, Rear RH |
| 47346 | Tube, Wheel Cylinder, Rear LH |
| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
| 47353 | Bracket, Flexible Hose(FOR REAR) |
| 47354 | Bracket, Front Flexible Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
