Toyota Coaster

1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe

Discontinued model Data version 1982-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

14 part groups · 2 illustrations

Illustrations

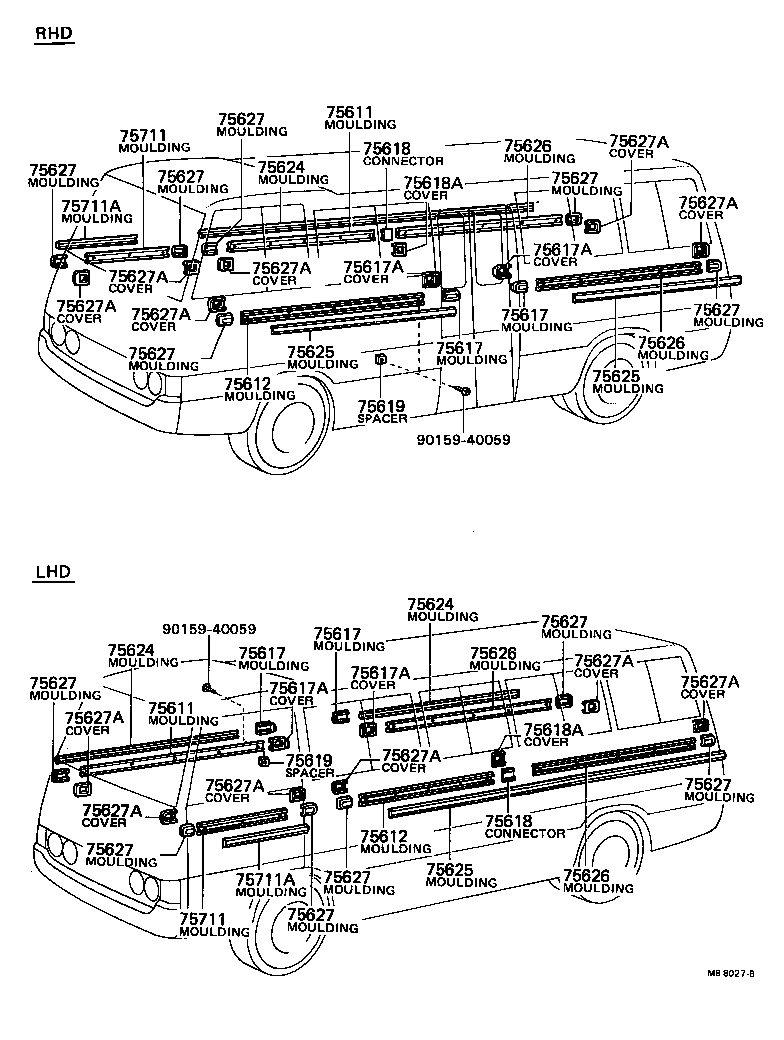

Figure MB7099B MB7099B 1977-08 → 1978-02 Figure MB8027B MB8027B 1978-02 → —

Part groups

PNCDescription
75611 Moulding, Side Panel Front, RH
75612 Moulding, Side Panel Front, LH
75617 Moulding, Side Panel End, NO.2
75617A Cover, Side Panel End Moulding, NO.2
75618 Connector, Side Panel Moulding
75618A Cover, Side Panel Moulding Connector
75619 Spacer, Side Panel Moulding
75624 Moulding, Side Panel Inner, RH
75625 Moulding, Side Panel Inner, LH
75626 Moulding, Side Panel, Rear
75627 Moulding, Side Panel End, NO.1
75627A Cover, Side Panel End Moulding, NO.1
75711 Moulding, Front Door Outside, NO.1
75711A Moulding, Front Door Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
