Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe
Discontinued model
Data version 1982-12
Wiring & Clamp
30 part groups · 5 illustrations
Part groups

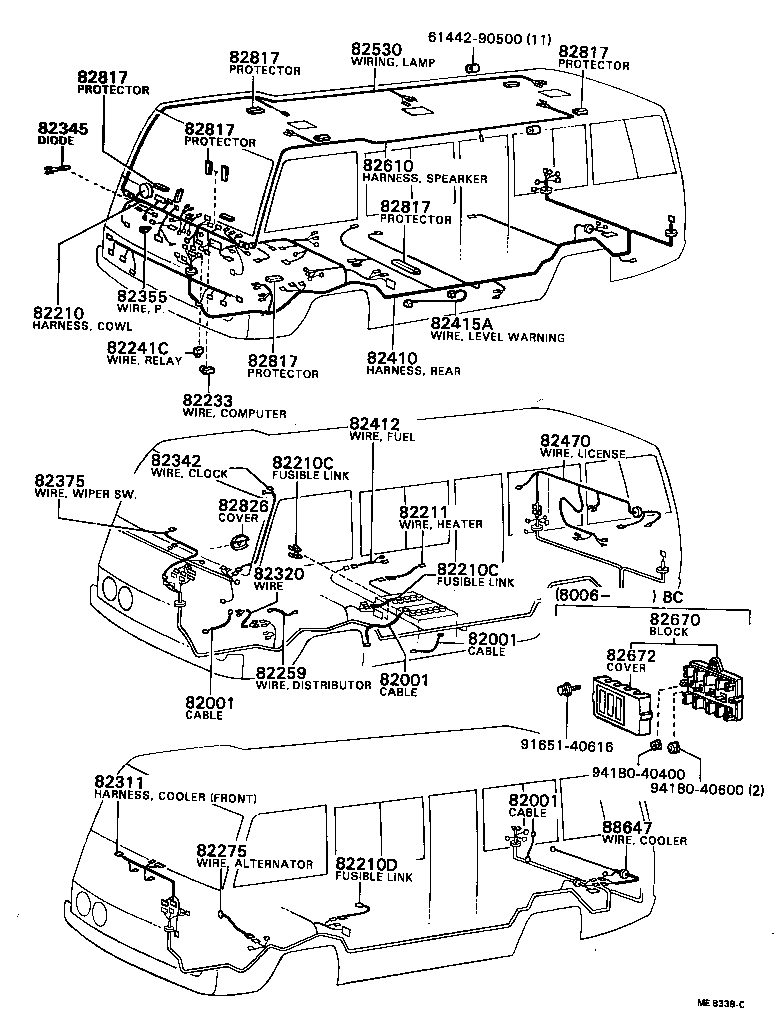

| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82210 | Harness Assy, Wiring Cowl TO Headlamp, NO.1 |
| 82210C | Fusible Link |
| 82210D | Fusible Link |
| 82211 | Wire, Heater Blower Fan Switch |
| 82233 | Wire, Computer |
| 82241C | Wire, Relay |
| 82259 | Wire, Distributor |
| 82275 | Wire, Alternator |
| 82311 | Harness Assy, Cooler |
| 82320 | Wire Assy, TO Horn |
| 82330 | Wiring Assy, TO Vacuum Warning Switch |
| 82342 | Wire, Clock |
| 82345 | Diode |
| 82355 | Wire, Parking Lamp Switch |
| 82370 | Wire Assy, Wiper Switch TO Wiper |
| 82374 | Wire, Washer |
| 82375 | Wire, Wiper Switch |
| 82410 | Harness Assy, Wiring TO Rear Lamp |
| 82412 | Wire, Fuel Gage |
| 82415A | Wire, Level Warning |
| 82470 | Wire Assy, License Lamp Feed |
| 82530 | Wiring Assy, Interior Lamp Feed |
| 82560 | Wiring, Vacuum Indicator |
| 82610 | Harness Assy, Roof Speaker |
| 82670 | Block Assy, Junction, NO.1 |
| 82672 | Cover, Junktion Block |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82826 | Cover, Wiring Harness Hole |
| 88647 | Wire Sub-assy, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
