Toyota Coaster

1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe

Discontinued model Data version 1982-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

19 part groups · 4 illustrations

Illustrations

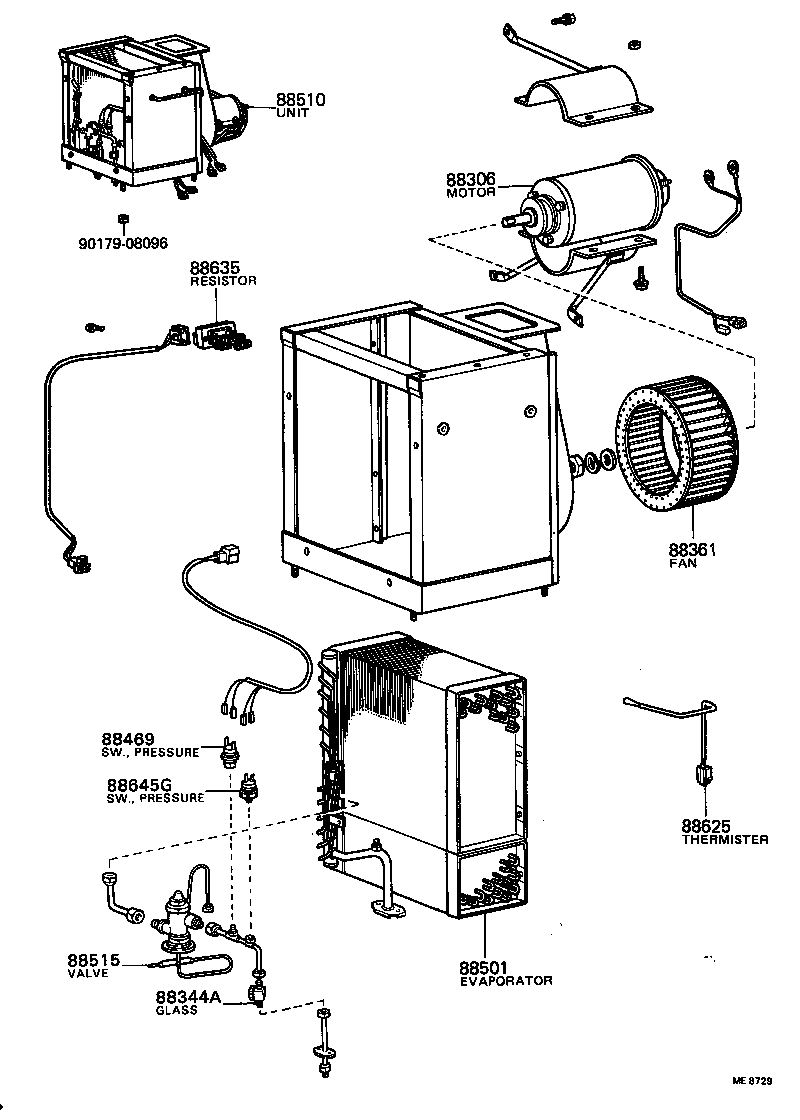

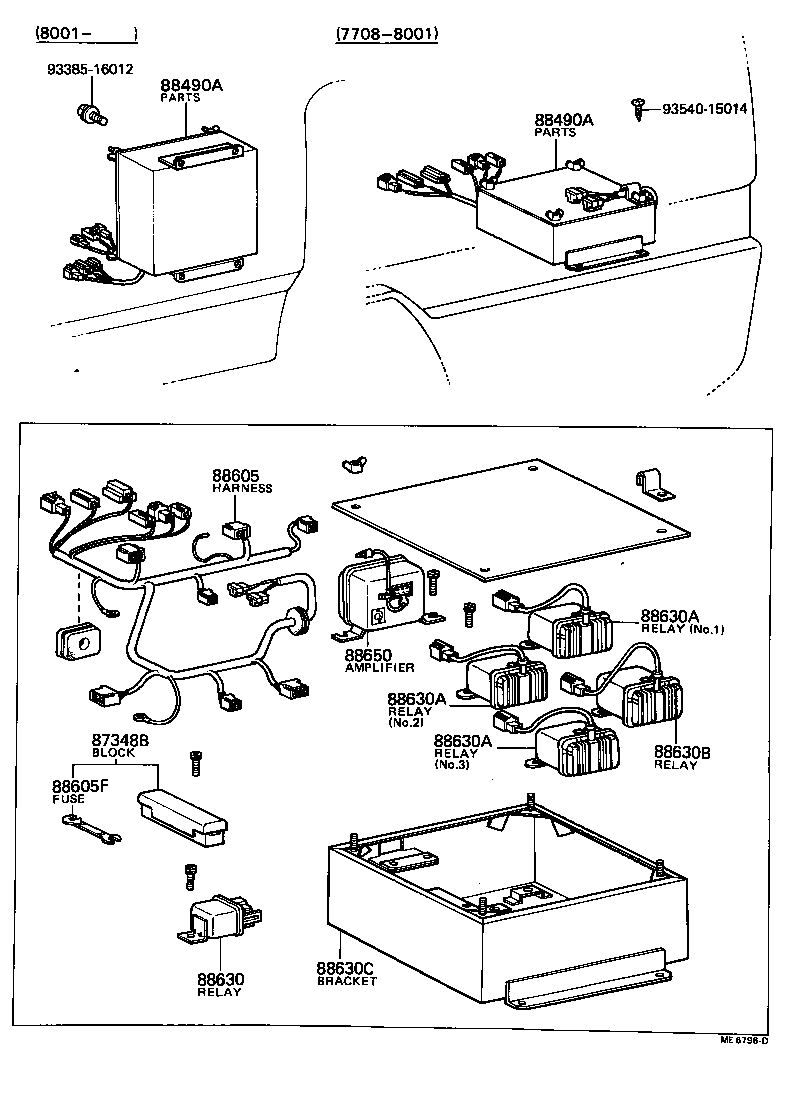

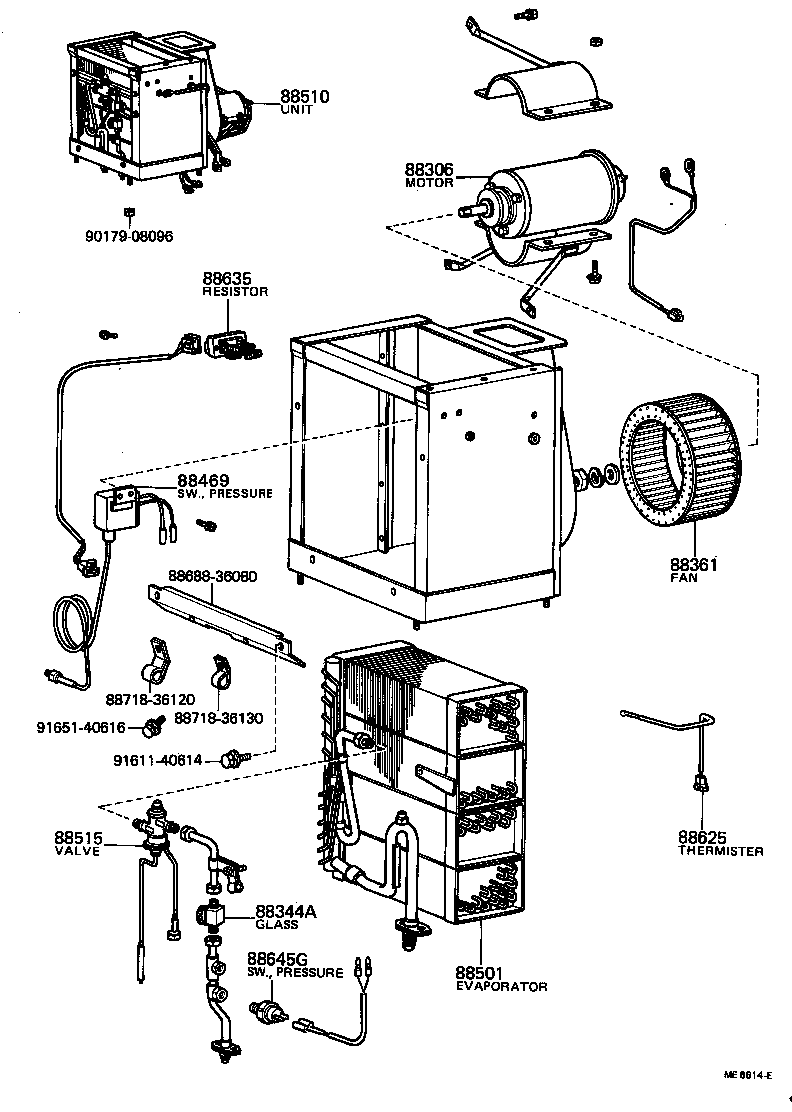

Figure ME6613E ME6613E 1977-08 → — Figure ME6796D ME6796D 1977-08 → — Figure ME6614E ME6614E 1977-08 → 1979-10 Figure ME8729 ME8729 1979-10 → —

Part groups

PNCDescription
87348B Block, Fuse
88306 Motor Sub-assy, Cooler Blower, NO.1
88344A Glass Sub-assy, Sight
88361 Fan, Cooler Blower, NO.1
88469 Switch, Pressure Control
88490A Parts Assy, Electrical
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605F Fuse(FOR COOLER WIRING HARNESS)
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88630C Bracket, Cooler Relay
88635 Resistor, Cooler Unit Blower
88645G Switch, Pressure
88650 Amplifier Assy, Cooler Stabilizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
