Toyota Coaster
1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe
Discontinued model
Data version 1982-12

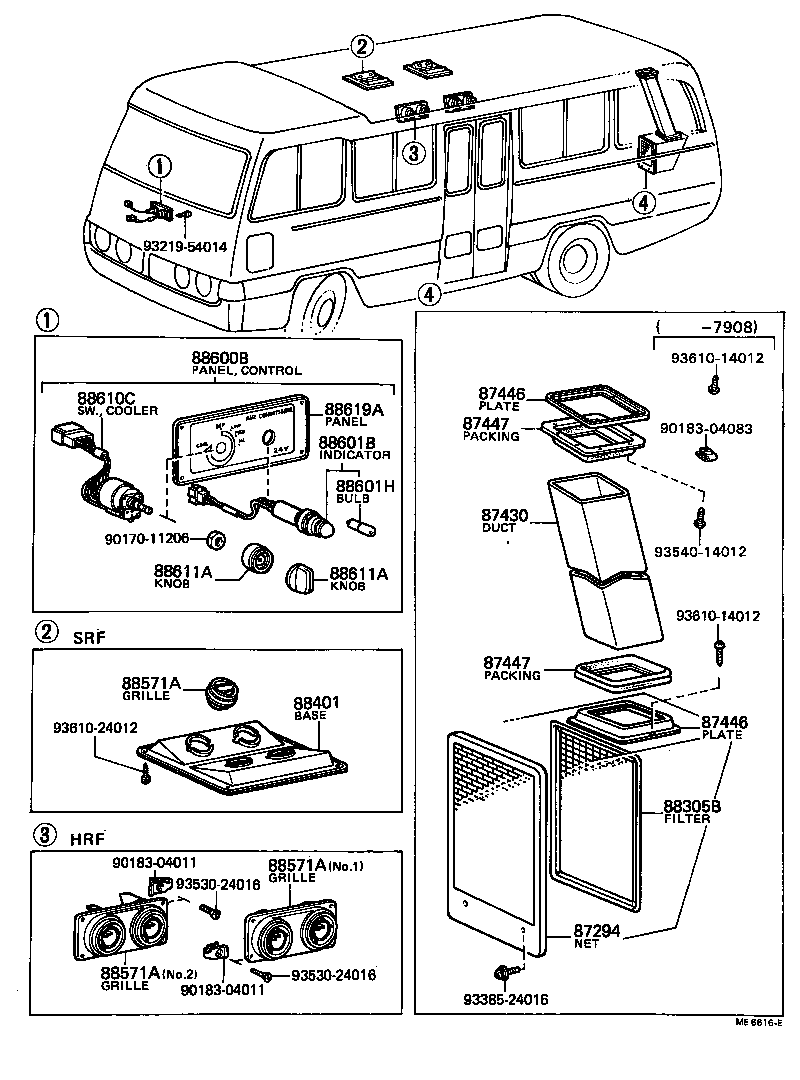

Heating & Air Conditioning - Control & Air Duct
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55905 | Cable Sub-assy, Defrost Control |
| 55907 | Cable Sub-assy, Heater Air Inlet Butterfly |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55914 | Retainer, Heater Control Knob |
| 55937 | Knob, Heater Control Lever |
| 87210 | Damper Assy, Air |
| 87231 | Hose, Heater Defroster, RH |
| 87232 | Hose, Heater Defroster, LH |
| 87294 | Net, Air Duct |
| 87430 | Duct Assy, Air |
| 87446 | Plate, Air Duct |
| 87447 | Packing, Air Duct |
| 88305B | Filter (FOR COOLER UNIT) |
| 88401 | Base Sub-assy, Air Duct Grille Holder |
| 88571A | Grille, Air Outlet |
| 88600B | Panel Assy, Control |
| 88601B | Indicator, Cooler Control Switch |
| 88601H | Bulb, Indicator Lamp |
| 88610C | Switch Assy, Cooler Control |
| 88611A | Knob, Cooler Control Switch |
| 88619A | Panel, Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
