Toyota Coaster

1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe

Discontinued model Data version 1982-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

24 part groups · 22 illustrations

Illustrations

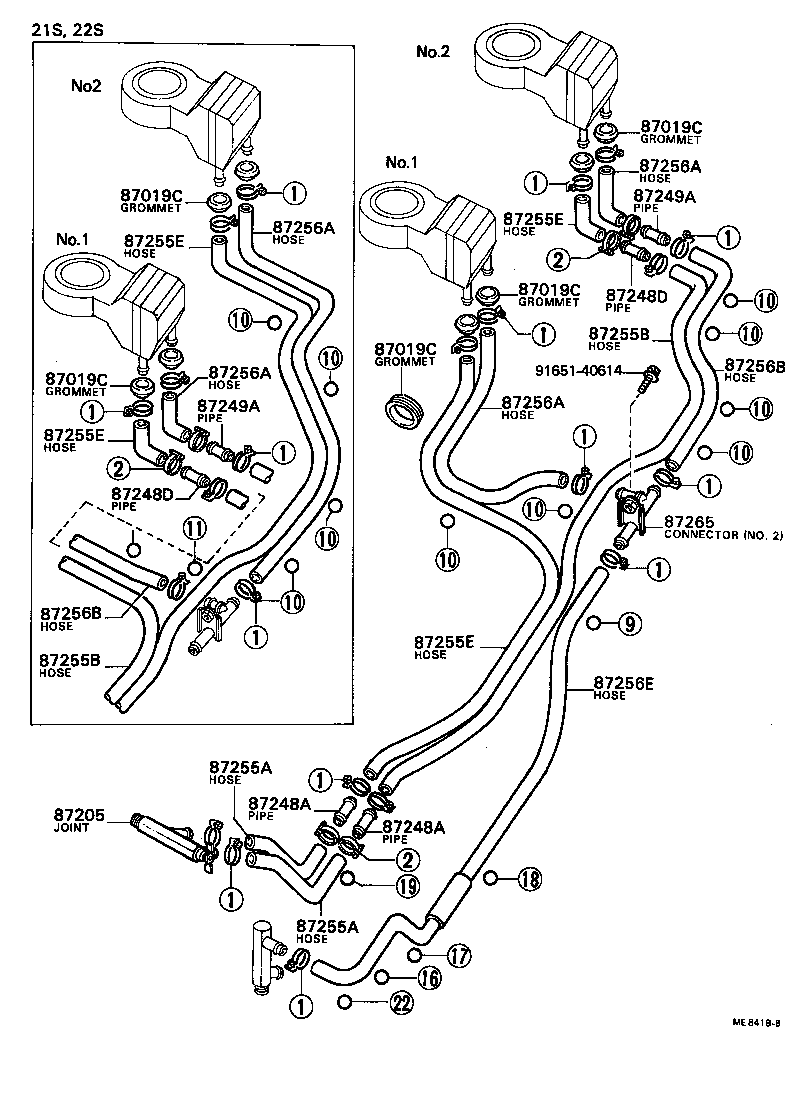

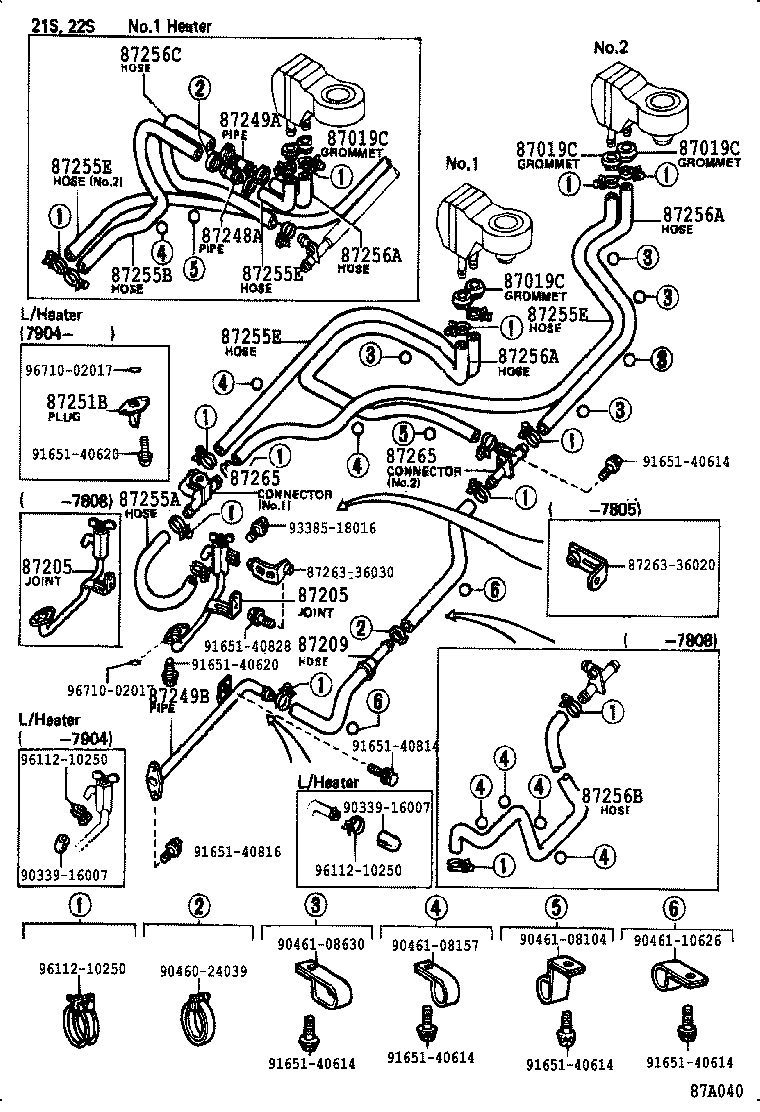

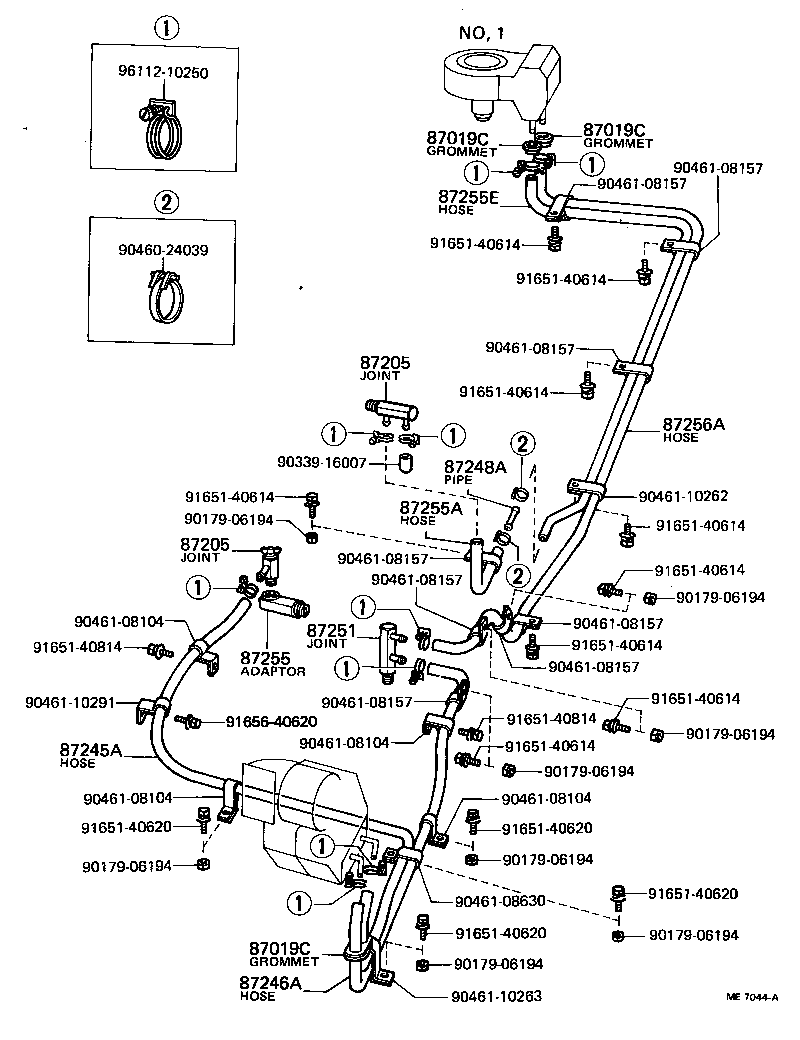

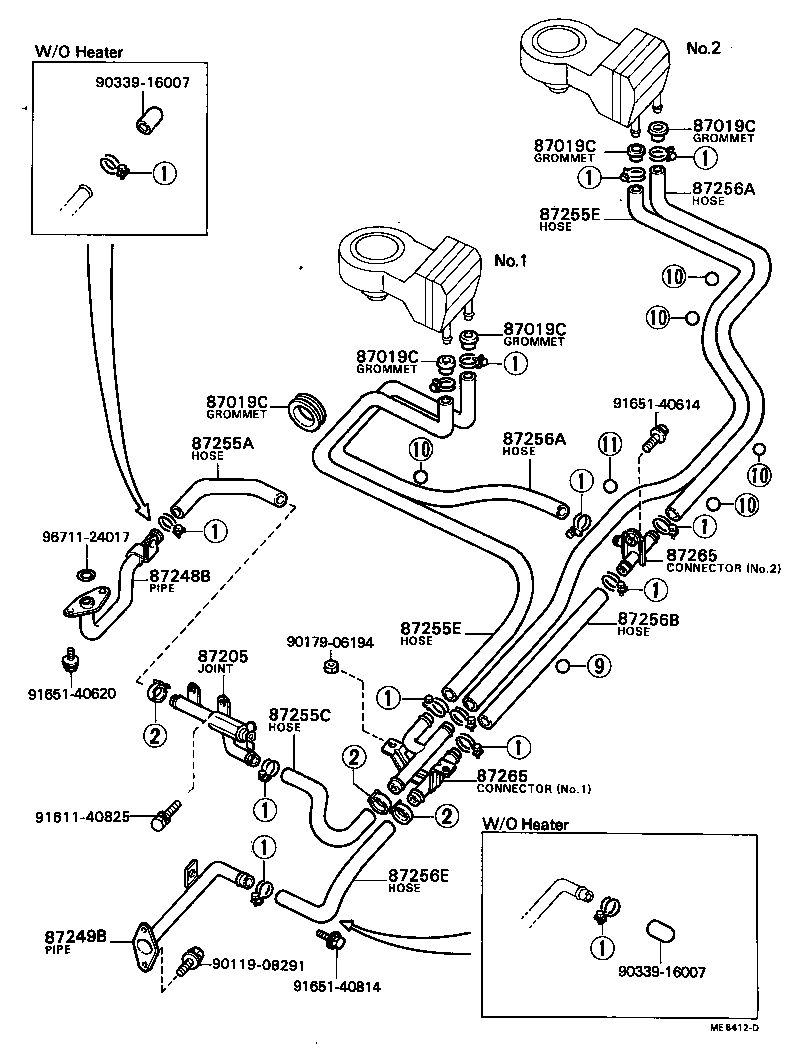

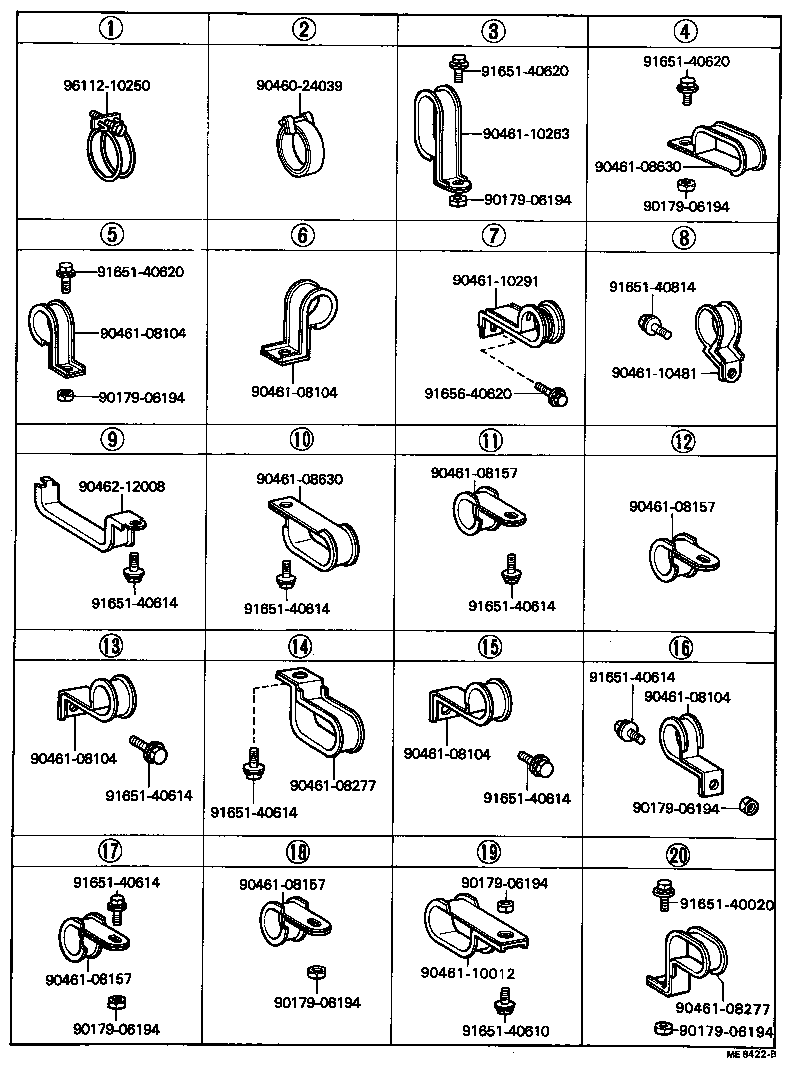

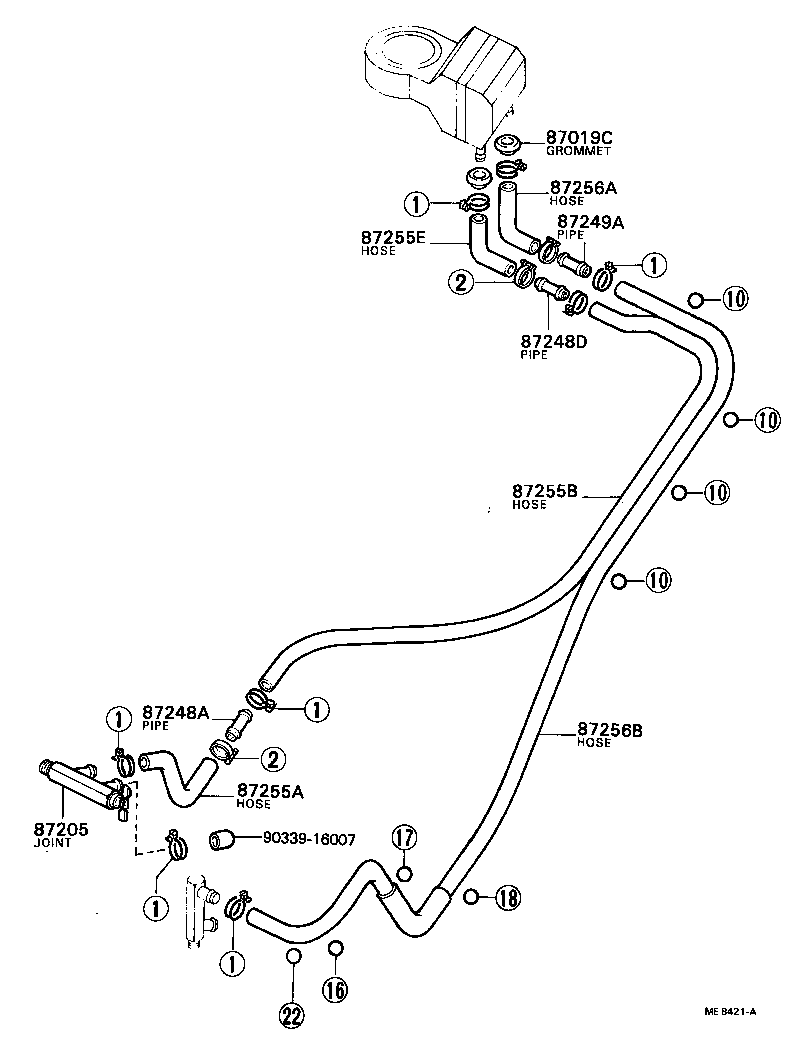

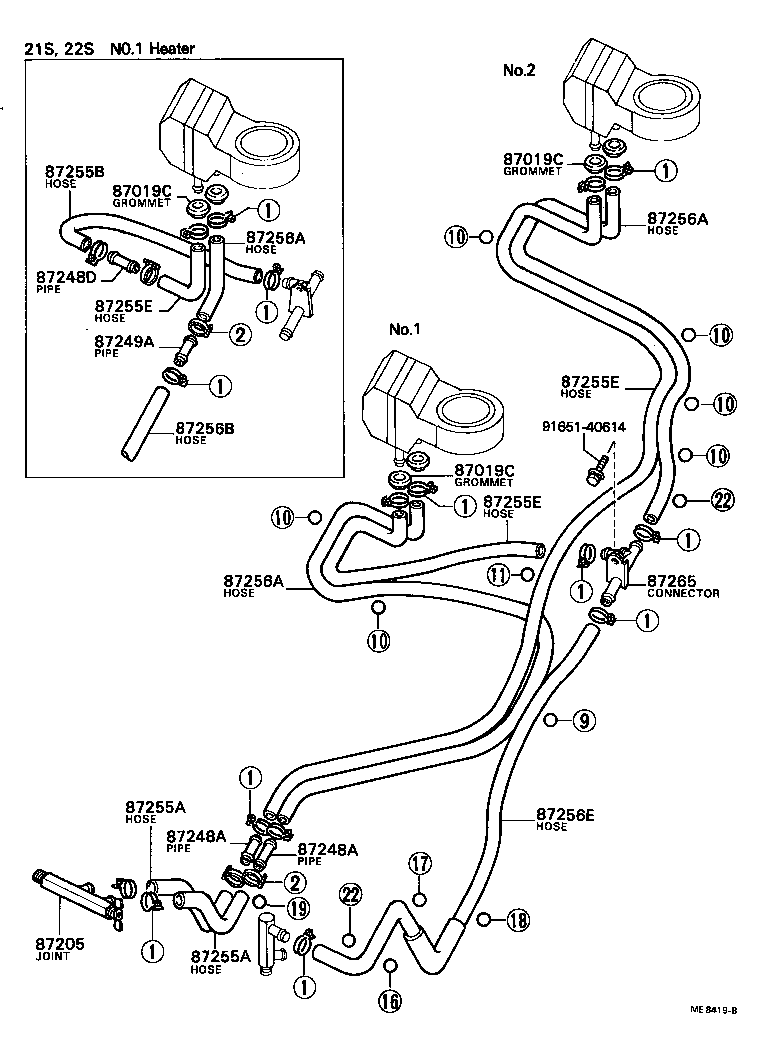

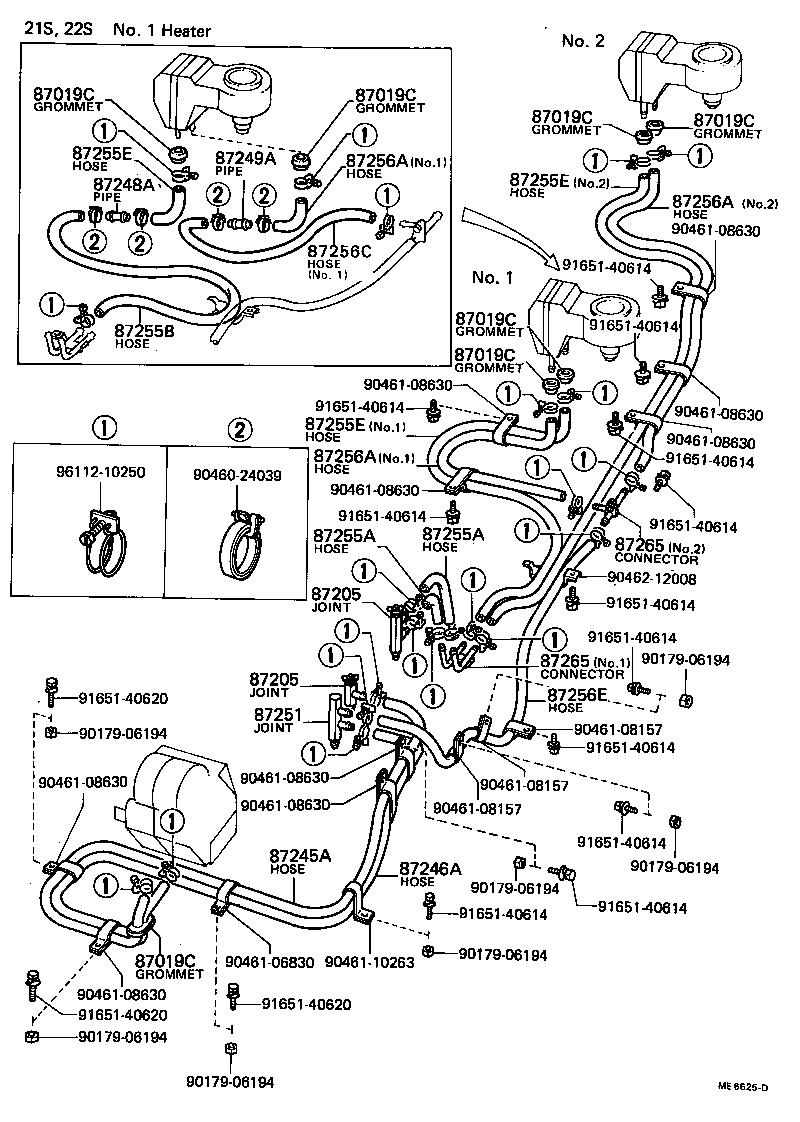

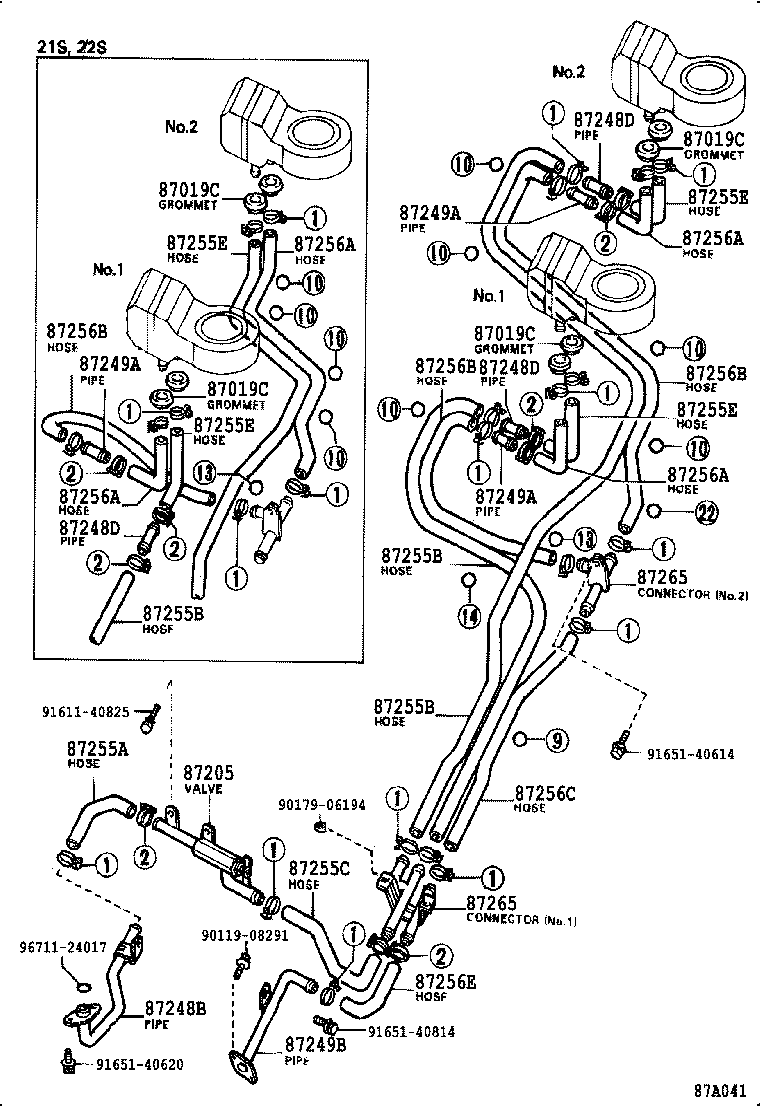

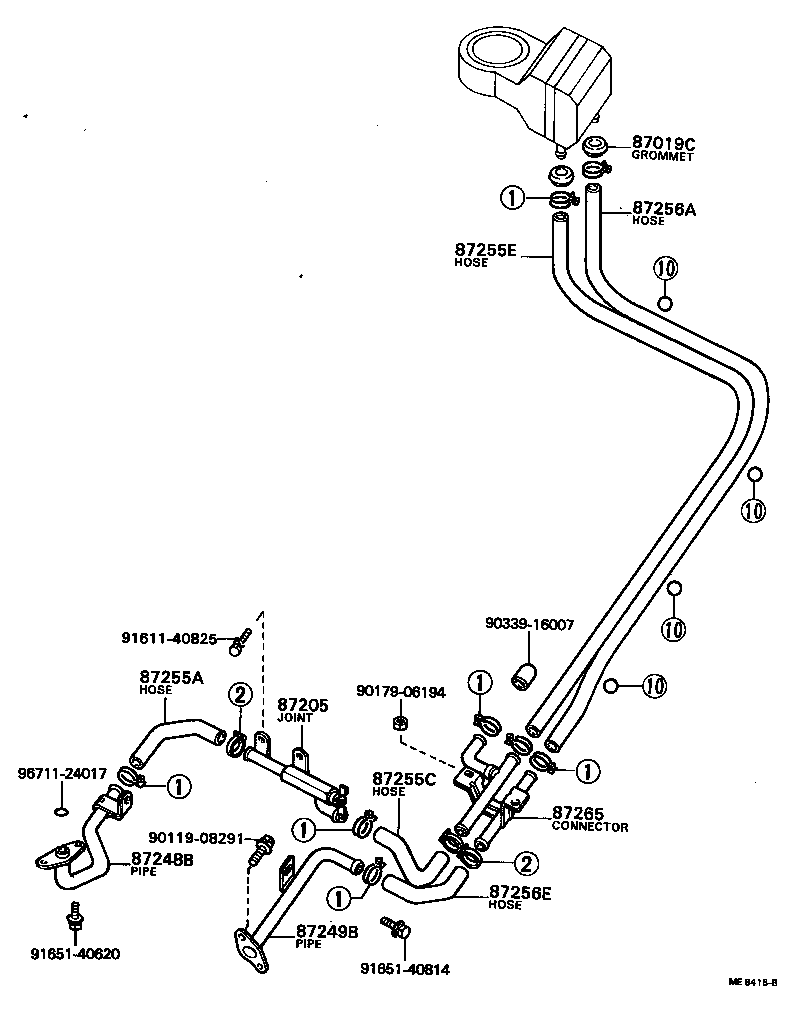

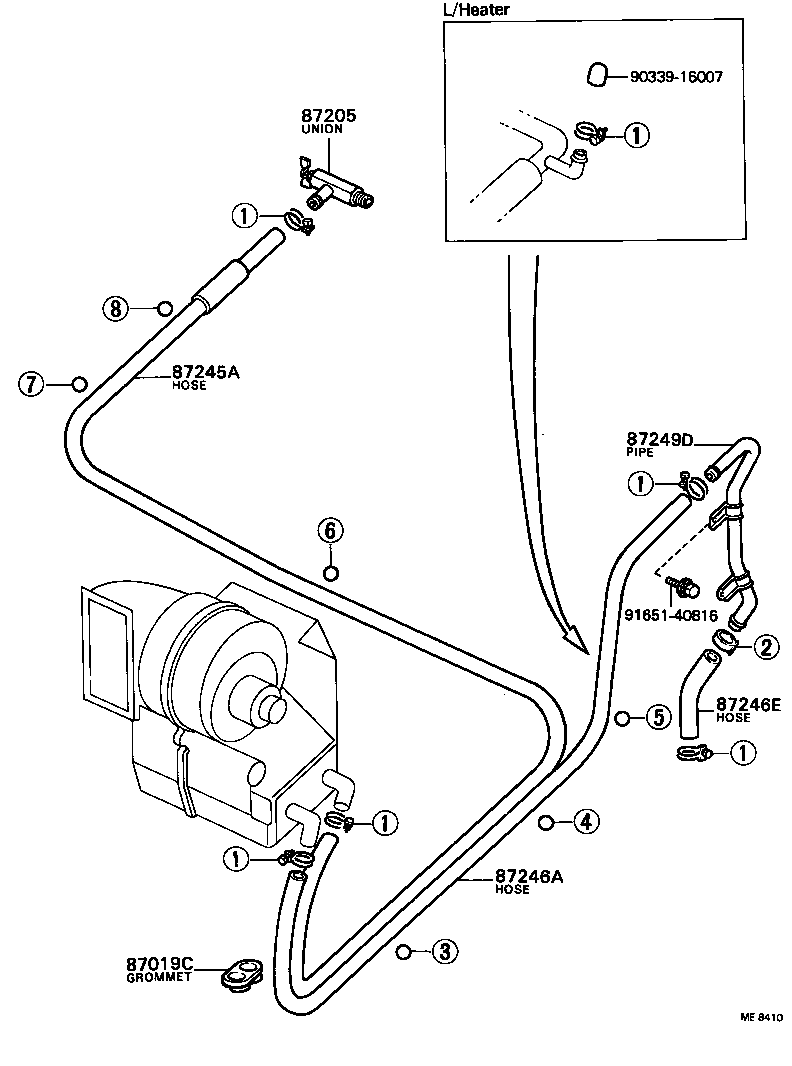

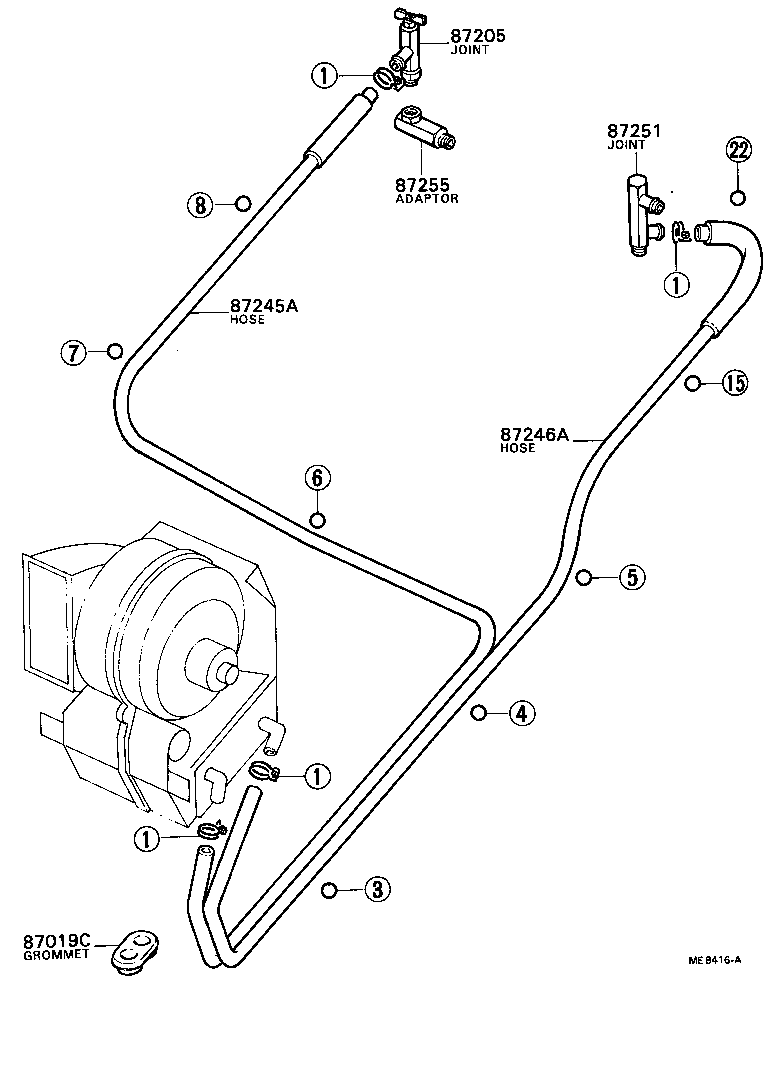

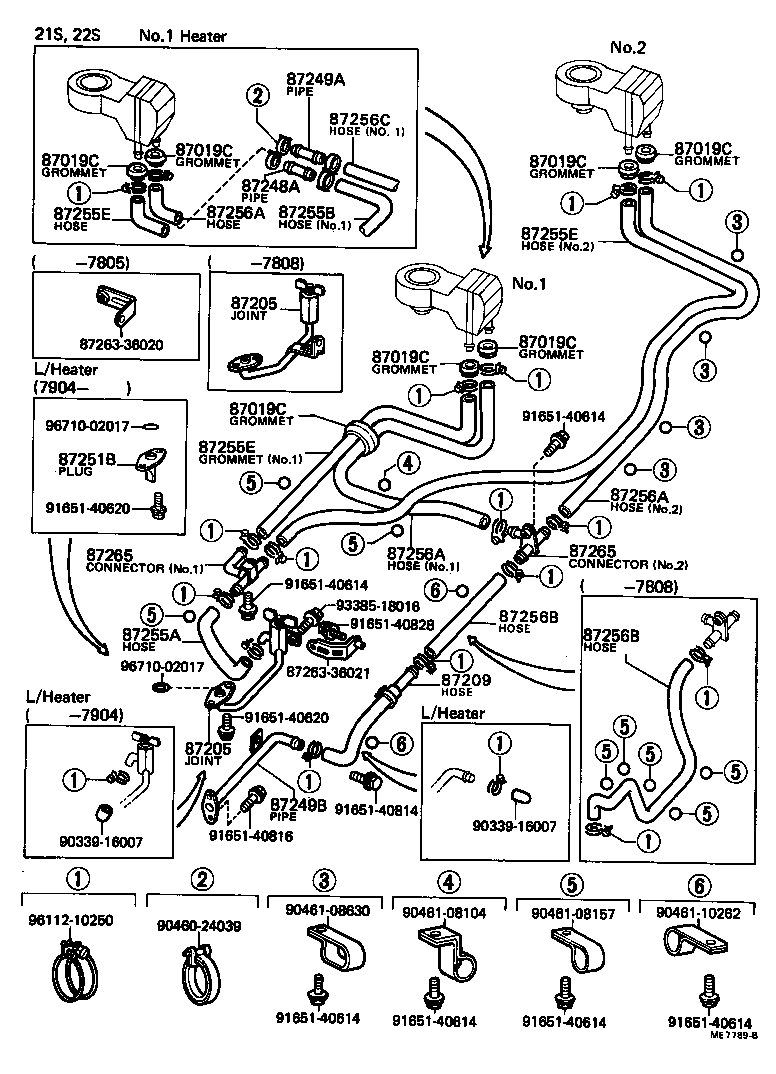

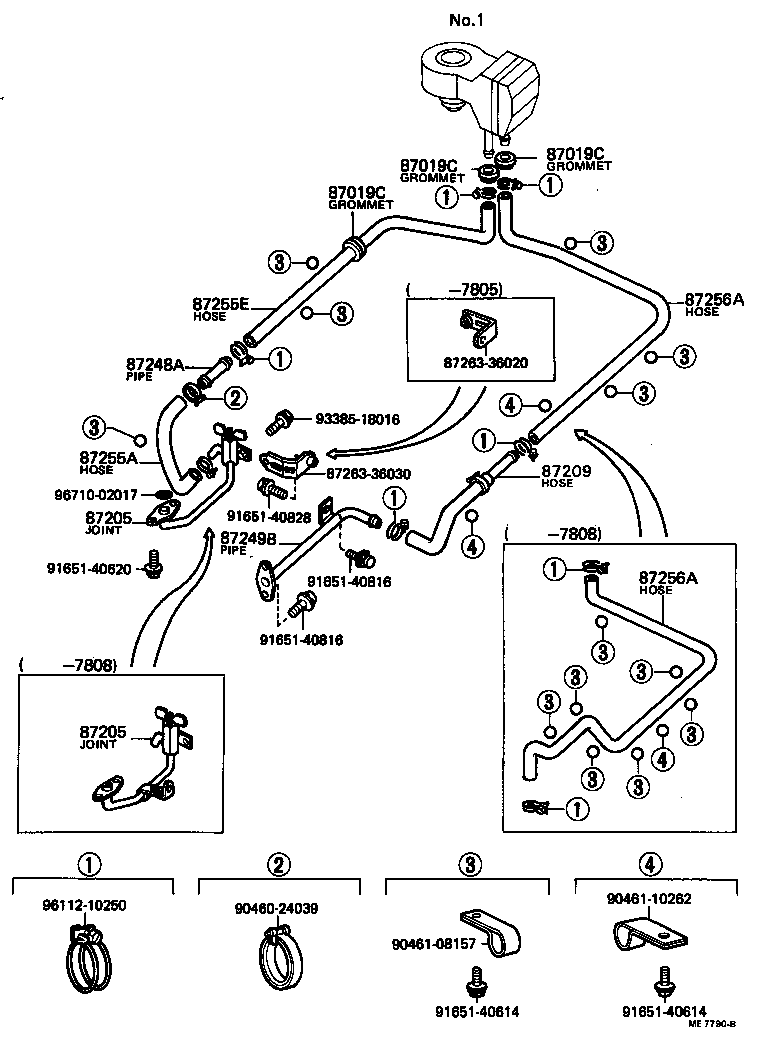

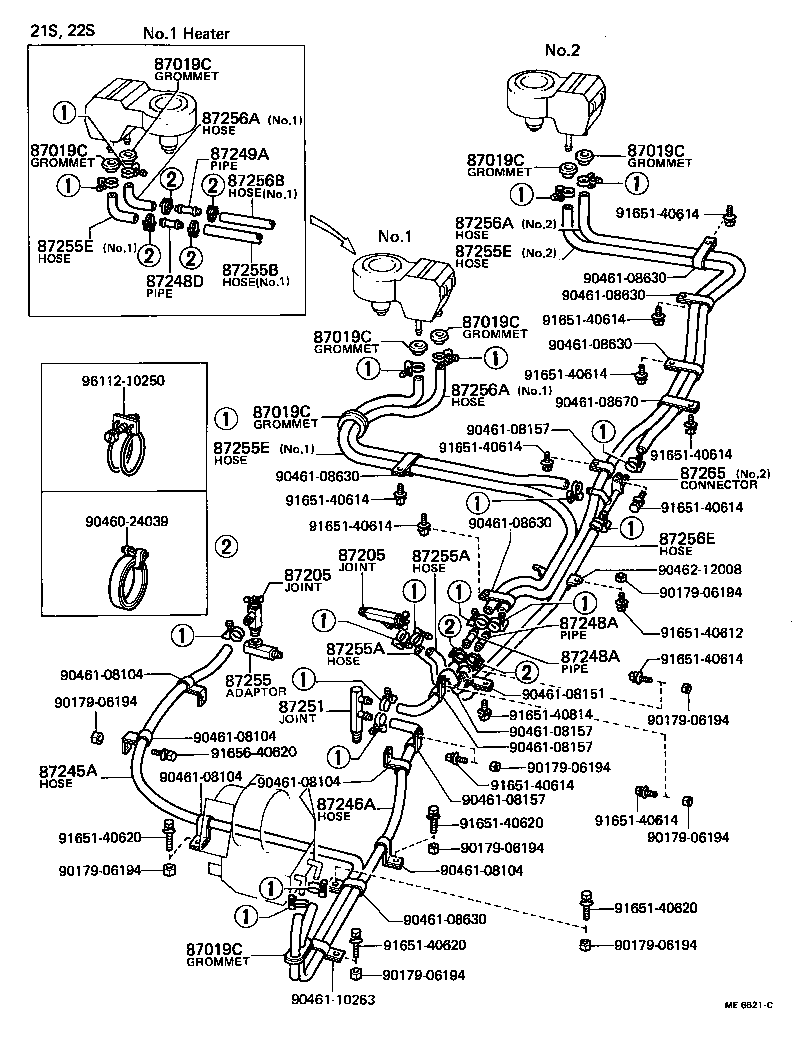

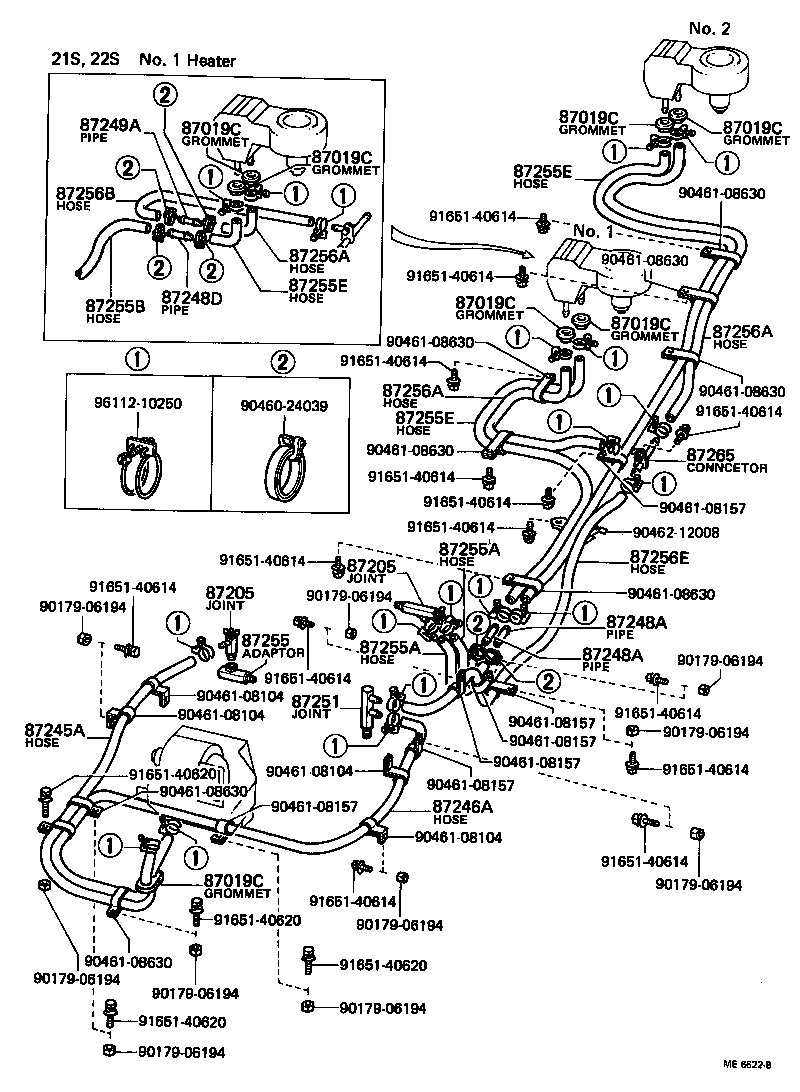

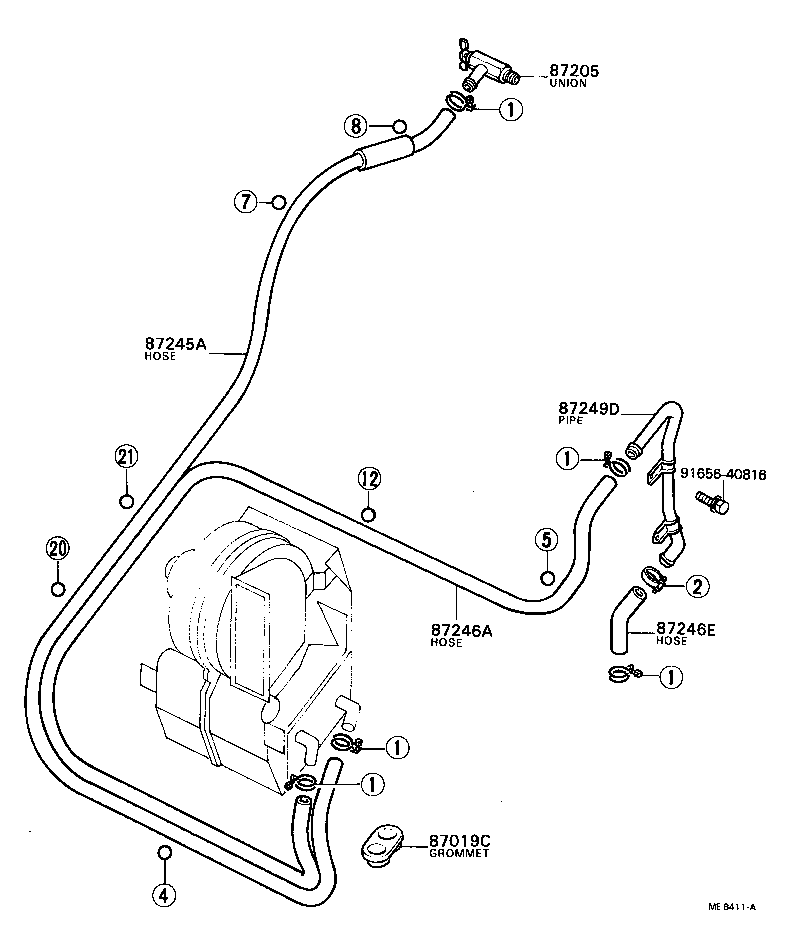

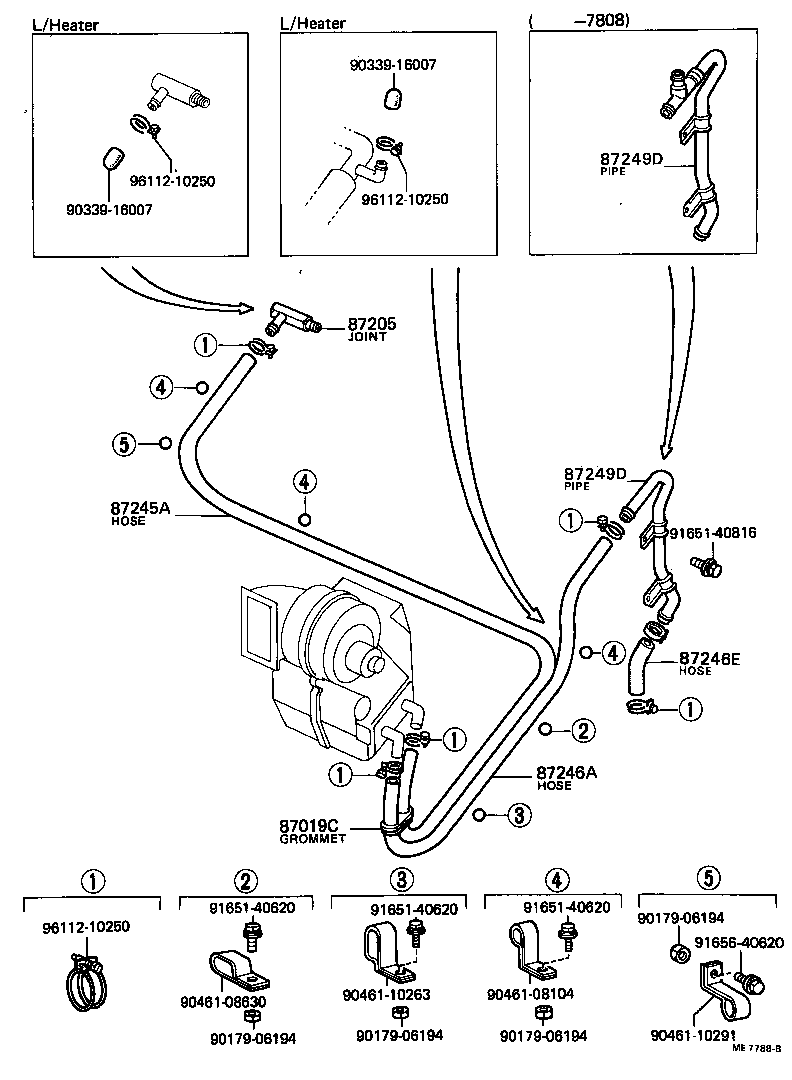

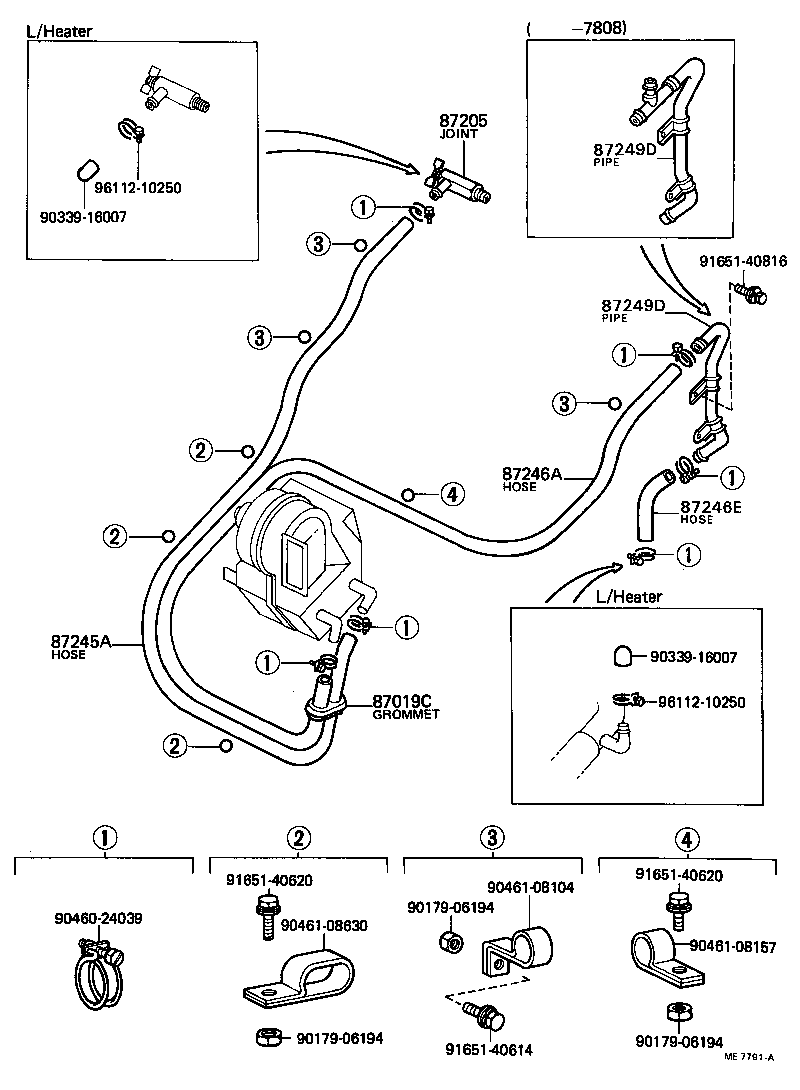

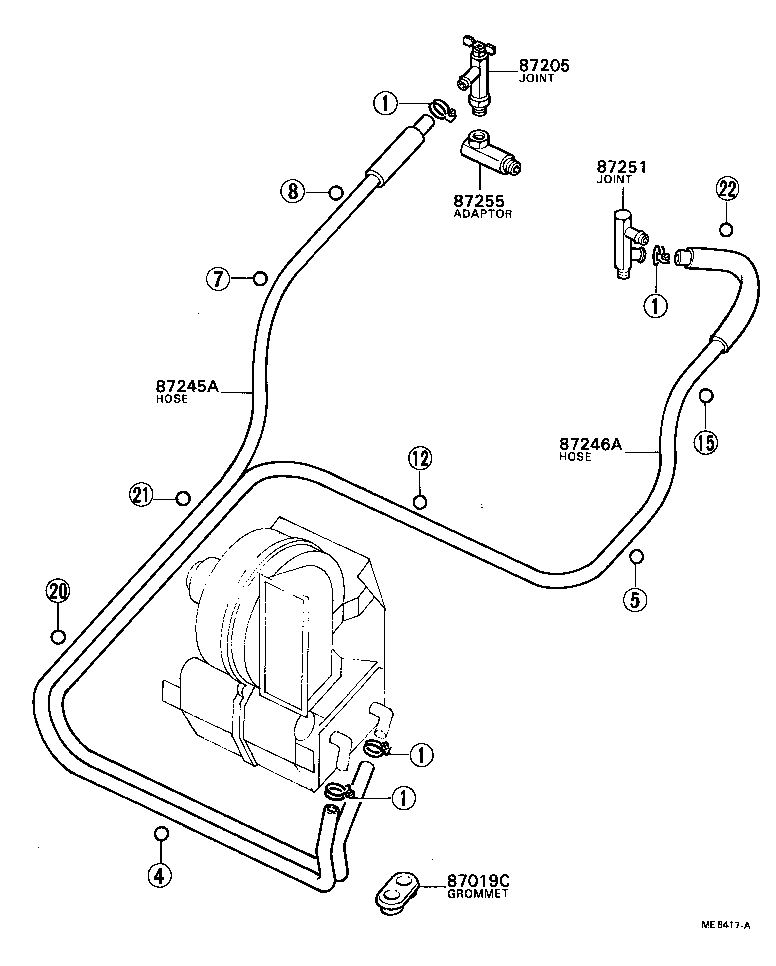

Figure ME6624B ME6624B 1977-08 → 1979-11 Figure ME6625D ME6625D 1977-08 → 1979-11 Figure ME7788B ME7788B 1977-08 → 1979-11 Figure ME7789B ME7789B 1977-08 → 1979-11 Figure ME7790B ME7790B 1977-08 → 1979-11 Figure ME7791A ME7791A 1977-08 → 1979-11 Figure 87A040 87A040 1977-08 → 1979-11 Figure ME6621C ME6621C 1977-08 → 1979-11 Figure ME7044A ME7044A 1978-04 → 1979-11 Figure ME6622B ME6622B 1977-08 → 1979-11 Figure ME8410 ME8410 1979-11 → — Figure ME8411A ME8411A 1979-11 → — Figure ME8416A ME8416A 1979-11 → — Figure ME8417A ME8417A 1979-11 → — Figure ME8412D ME8412D 1979-11 → — Figure 87A041 87A041 1979-11 → — Figure ME8415B ME8415B 1979-11 → — Figure ME8418B ME8418B 1979-11 → — Figure ME8419B ME8419B 1979-11 → — Figure ME8421A ME8421A 1979-11 → — Figure ME8422B ME8422B 1979-11 → — Figure ME8731A ME8731A 1979-11 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87209 Hose Sub-assy, Water
87245A Hose, Heater Water, Inlet A
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248D Pipe, Heater Water Inlet, D
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249D Pipe, Heater Water Outlet, D
87251 Joint OR Union, Water Hose Through
87251B Plug, Heater Water
87255 Adapter, Water Hose Joint
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
