Toyota Coaster

1977-08 → 1982-04 · chassis RB1#,BB10 · catalogue 811210 · Europe

Discontinued model Data version 1982-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

9 part groups · 2 illustrations

Illustrations

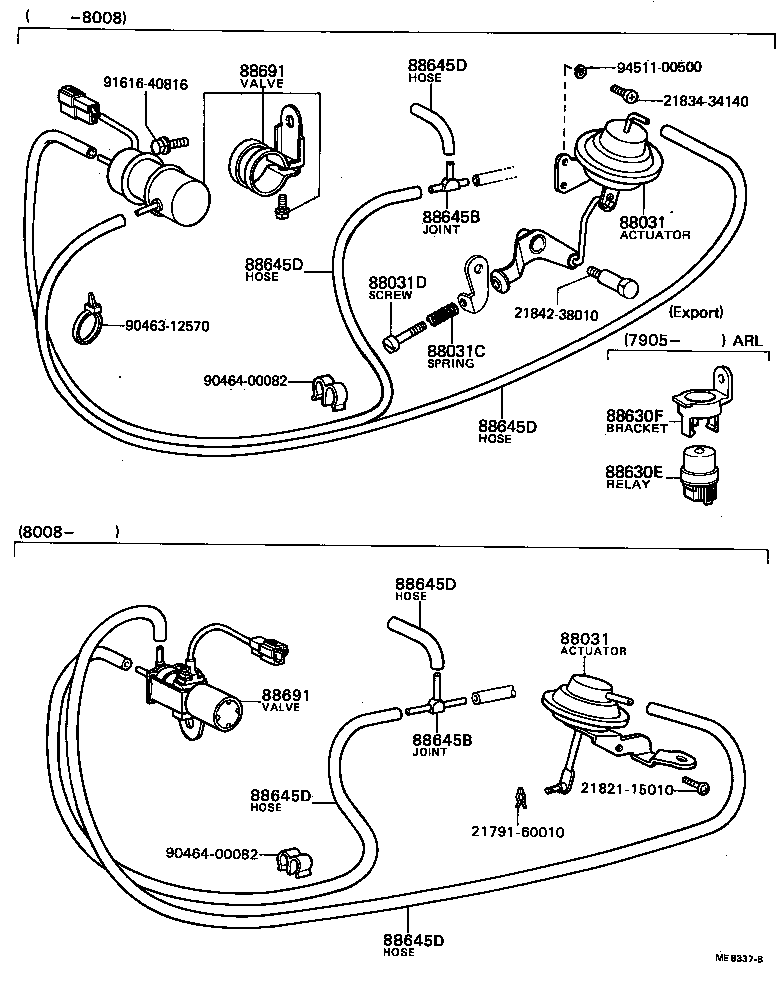

Figure ME9356A ME9356A 1977-08 → — Figure ME8337B ME8337B 1977-08 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031C Spring(FOR IDLE-UP ACTUATOR)
88031D Screw, Throttle Adjusting(FOR IDLE-UP ACTUATOR)
88630E Relay Assy, Cooler
88630F Bracket, Cooler Relay
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88645D Hose (FOR IDLE UP DEVICE)
88646 Bracket, Idle UP Device, NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
